KAT Walk C2 CORE VR løbebånd brugermanual

1. Introduktion

The KAT Walk C2 CORE VR Treadmill is an advanced omnidirectional walking platform designed to provide an immersive and natural locomotion experience in virtual reality. This device allows users to walk, run, and move freely in 360 degrees within VR environments, enhancing gameplay and offering a unique home fitness solution. It is engineered to reduce motion sickness often associated with VR and is compatible with a wide range of VR headsets.

2. Hvad er der i æsken

Your KAT Walk C2 CORE package includes the following components:

• KAT Walk C2 CORE Omnidirectional Treadmill
• KAT VR-sko (specifik størrelse baseret på ordre)
• KAT Nexus Adapter
• Kabel
• Controller

Figure 2.1: Main components of the KAT Walk C2 CORE package.

3. Opsætningsvejledning

Follow these steps to set up your KAT Walk C2 CORE VR Treadmill:

3.1. Montering

Refer to the detailed assembly instructions provided in the separate assembly manual for your KAT Walk C2 CORE. Ensure all parts are securely fastened before proceeding.

3.2. At bære udstyret

1. Wear KAT VR Shoes: Put on the specialized KAT VR shoes. These shoes are designed to work with the treadmill's low-friction surface.


Figure 3.1: Shoe size chart for selecting the correct KAT VR shoes.

2. Fastgør selen: Step onto the treadmill platform. Carefully put on the safety harness and adjust it to fit snugly around your waist. Ensure it is securely buckled. This harness provides stability and prevents accidental falls.


Figure 3.2: User wearing the safety harness on the KAT Walk C2 CORE.

3. Connect VR Headset: Connect your VR headset to your PC or standalone device. The KAT Nexus adapter facilitates wireless gameplay for standalone devices like Meta Quest 2, 3, and Pro. For SteamVR headsets, direct connection to a PC is typically used.

Figure 3.3: Connectivity options for the KAT Walk C2 CORE with various VR platforms.

3.3. Initial Calibration and Software

For first-time setup, a Windows 10+ PC is required for initial configuration via the KAT Gateway software. Follow the on-screen instructions within the software for calibration and pairing your devices. Ensure your VR headset and the KAT Walk C2 CORE are properly recognized.

4. Betjeningsvejledning

Once set up, operating the KAT Walk C2 CORE is intuitive, mimicking natural movement.

4.1. Starting a VR Experience

1. Ensure your VR headset is active and connected to the KAT Walk C2 CORE system.
2. Launch your desired VR game or application that supports free locomotion.
3. Begin walking naturally on the treadmill platform. Your movements will be translated into the virtual environment.

4.2. Movement and Immersion

The omnidirectional design allows for 360-degree movement. You can walk, run, and turn in any direction, providing a highly immersive experience. The system is designed to reduce motion sickness by synchronizing your physical movement with your virtual movement.

Figure 4.1: The KAT Walk C2 CORE helps alleviate VR motion sickness by enabling natural locomotion.

Figure 4.2: Experience full-body VR movement within a minimal physical footprint.

Figure 4.3: Seamlessly move inside your VR games with the KAT Walk C2 CORE.

4.3. Fitness Integration

The KAT Walk C2 CORE allows you to incorporate physical activity into your gaming sessions. Walking and running in VR can contribute to your daily fitness goals.

Figure 4.4: Engage in physical activity and burn calories while playing VR games.

5. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your KAT Walk C2 CORE.

5.1. Rensning

• Wipe down the treadmill platform and harness with a soft, damp klud efter hver brug.
• Undgå at bruge slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladerne.
• Keep the optical sensors on the platform clean and free from dust or debris to ensure accurate tracking.

5.2. Opbevaring

Store the KAT Walk C2 CORE in a dry, cool place away from direct sunlight and extreme temperatures. Ensure cables are neatly coiled to prevent damage.

6. Fejlfinding

If you encounter issues with your KAT Walk C2 CORE, refer to the following common solutions:

6.1. No Movement in VR

• Tjek forbindelser: Ensure all cables (power, USB, Nexus) are securely connected.
• Softwarestatus: Verify that the KAT Gateway software is running and recognizes the treadmill and your VR headset.
• Shoe Placement: Confirm that your KAT VR shoes are properly positioned on the treadmill platform and that the anti-slip locks are disengaged for movement.
• Spilkompatibilitet: Ensure the VR game or application you are using supports free locomotion and is compatible with the KAT Walk C2 CORE.

6.2. Motion Sickness

• While the KAT Walk C2 CORE is designed to reduce motion sickness, some users may still experience it initially. Take breaks if you feel unwell.
• Ensure proper calibration of the system to match your physical movements accurately.
• Adjust in-game VR settings related to locomotion speed or comfort options if available.

6.3. Harness Discomfort

• Adjust the harness straps to ensure a snug but comfortable fit. It should support your weight without being overly restrictive.
• Ensure the harness is positioned correctly around your waist, as shown in the setup guide.

7. Specifikationer

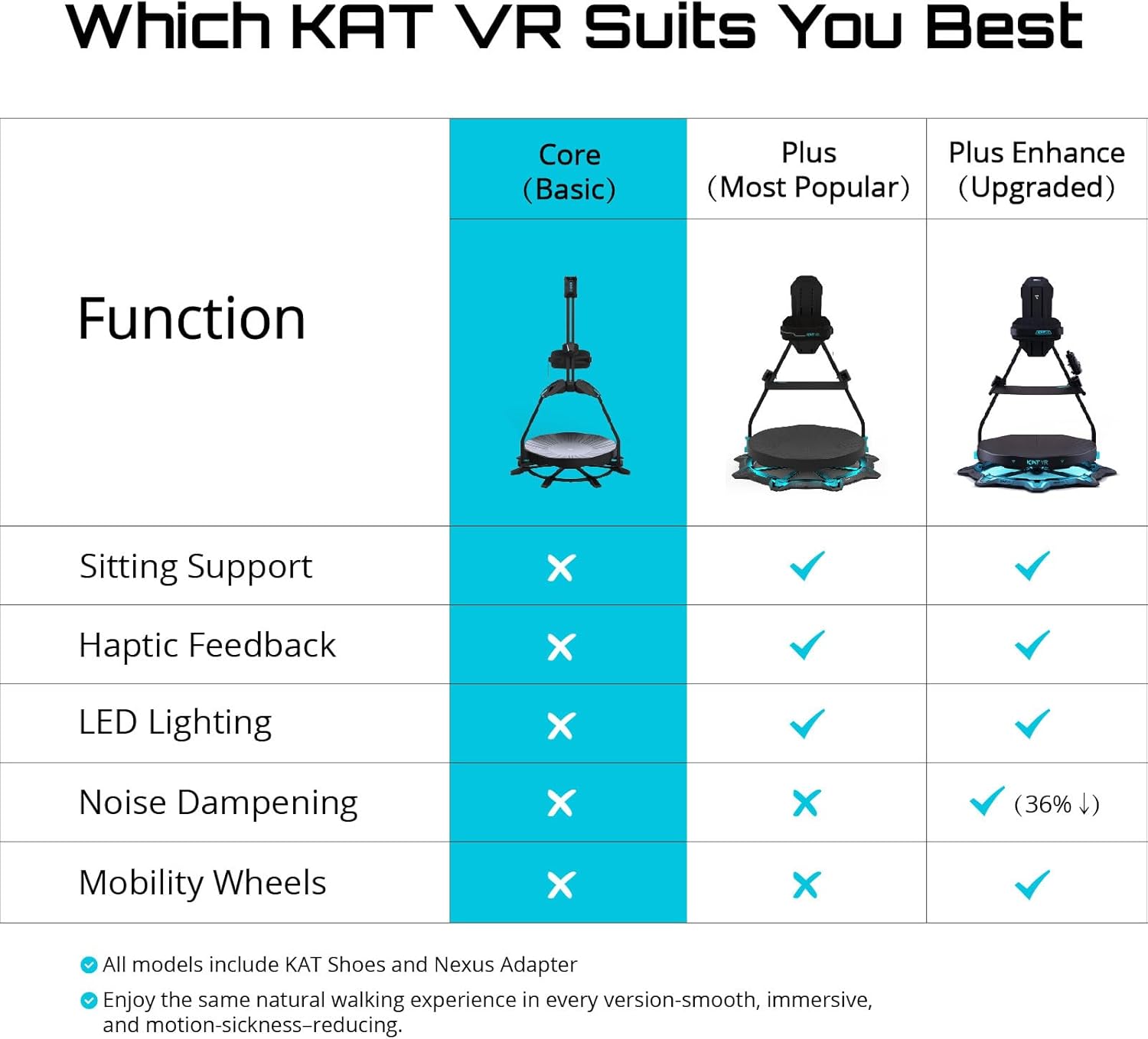

Figure 7.1: Feature comparison across KAT VR treadmill models.

8. Garanti og support

For warranty information, technical support, or service inquiries, please refer to the official KATVR webwebstedet eller kontakt deres kundesupport direkte. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
