1. Introduktion og overview
The AZZA CSAZ-570B Cove is an ATX mid-tower computer case designed for gaming and high-performance PC builds. It features a back-connect supported design, optimizing cable management and internal aesthetics. This manual provides essential information for setting up, operating, and maintaining your computer case.

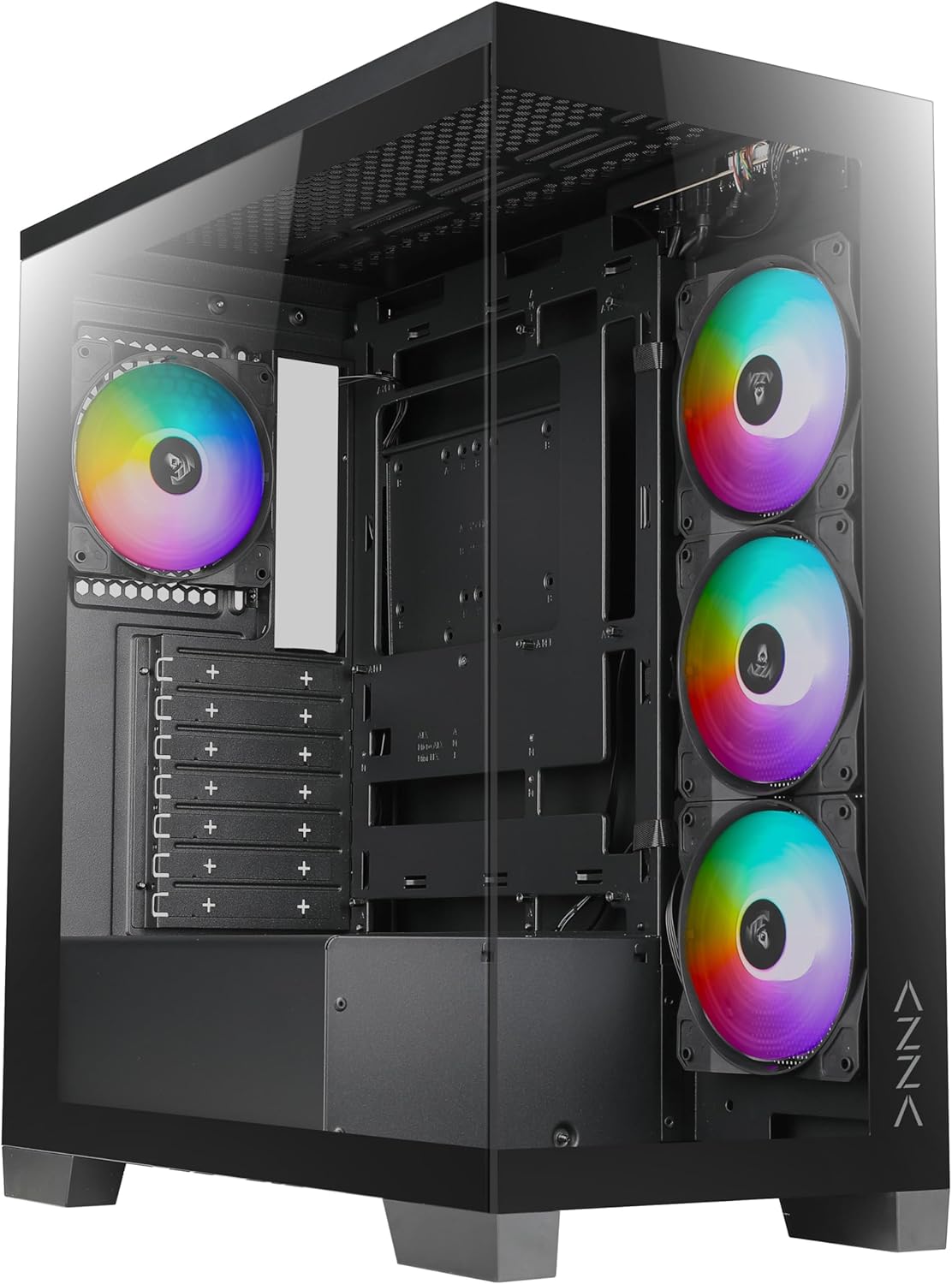

Figur 1: Forside view of the AZZA CSAZ-570B Cove computer case with RGB fans visible.
Nøglefunktioner:
- Performance Optimized: Full mesh front panel with 4 x 120 mm pre-installed addressable RGB fans for excellent airflow.
- Multifaceted Airflow Support: Supports up to 10 x 120 mm fans, including direct GPU airflow with 2 x 120 mm fans above the PSU shroud.
- Tilpasset belysning: Controllable fan lighting via the top panel LED button, with motherboard RGB software synchronization support.
- Intuitive I/O: Top panel includes Power button, LED button, Combo HD Audio, 1 x USB 2.0, 1 x USB 3.0, and 1 x Type-C port.
- Back-Connect Supported: Designed to accommodate motherboards with back-mounted connectors for cleaner internal routing.
2. Opsætning og installation
This section outlines the steps for installing components into your AZZA CSAZ-570B Cove computer case.
2.1 Installation af bundkort
The case supports ATX (including back-connect supported), Micro ATX, and ITX motherboards. Ensure standoffs are correctly aligned for your motherboard form factor before installation.
Figure 2: Internal layout indicating motherboard support area (A), maximum CPU cooler height (B), and maximum GPU length (C).
- Juster dit bundkort med de forudinstallerede standoffs.
- Secure the motherboard using appropriate screws.
- Connect all necessary power cables (24-pin ATX, CPU 8-pin) and data cables.
- For back-connect motherboards, route cables through the designated rear channels.
2.2 Kølesystemkonfiguration
The CSAZ-570B offers extensive cooling options for optimal thermal performance.
Figure 3: Diagram illustrating fan mounting locations and sizes within the case.
Fan Support:
- Front: 4 x 120mm (pre-installed ARGB fans)
- Top: 3 x 120 mm eller 2 x 140 mm
- Bag: 1 x 120 mm
- Side (Motherboard Tray): 3 x 120 mm
- Above PSU Shroud: 2 x 120mm (for direct GPU airflow)
Figure 4: Diagram showing radiator compatibility for the AZZA CSAZ-570B case.
Radiatorstøtte:
- Motherboard Side: Op til 360 mm
- Top: Up to 280mm or 360mm
2.3 Installation af lagerenhed
The case provides flexible options for installing 2.5" SSDs and 3.5" HDDs.
Figur 5: Intern view highlighting locations for SSD and HDD installation.
- Højre sidepanel: Supports 2 x 2.5" SSDs or 1 x 3.5" HDD.
- Metalbakke: Supports 1 x 2.5" SSD.
2.4 Installation af strømforsyning
The power supply mounts at the bottom of the case.
- Slide the power supply into the designated compartment at the bottom rear of the case.
- Fastgør strømforsyningen med skruer fra bagsiden af kabinettet.
3. Betjeningsvejledning
This section details the functionality of the front I/O panel and lighting controls.
3.1 Forreste I/O-panel
The top panel provides convenient access to essential ports and controls.
Figur 6: Nærbillede view of the top I/O panel with labeled ports and buttons.
- Power knap: Press to power on or off the system.
- LED knap: Cycles through various pre-programmed ARGB lighting modes for the installed fans.
- Combo HD Audio: Til tilslutning af hovedtelefoner og mikrofoner.
- USB 2.0 x 1: Standard USB-port til periferiudstyr.
- USB 3.0 x 1: High-speed USB port for data transfer.
- Type-C x 1: Reversible USB-C port for modern devices.
3.2 ARGB-lysstyring
The pre-installed ARGB fans can be controlled in two ways:
- LED knap: Use the dedicated LED button on the top panel to cycle through different lighting effects and colors.
- Motherboard RGB Software: If your motherboard supports Addressable RGB (ARGB) synchronization, connect the case's ARGB cable to the motherboard's ARGB header. This allows you to control the fan lighting directly through your motherboard's software (e.g., ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, ASRock Polychrome Sync). Ensure the LED button is not actively overriding the motherboard control.
4. Vedligeholdelse
Regular maintenance helps ensure optimal performance and longevity of your computer case and its components.
- Støvrensning: Periodically clean dust filters (if present) and internal components using compressed air. Dust accumulation can impede airflow and lead to overheating.
- Rengøring af ventilator: Gently clean fan blades to remove dust buildup, which can affect fan performance and noise levels.
- Kabelstyring: Ensure cables are neatly routed and secured to prevent interference with airflow and moving parts.
- Udvendig rengøring: Tør de udvendige overflader af med en blød, damp klæde. Undgå slibende rengøringsmidler.
5. Fejlfinding
This section provides general troubleshooting tips for common issues.
- Systemet tænder ikke:
- Check if the power supply is properly connected to the wall outlet and the motherboard.
- Sørg for, at tænd/sluk-knappens kabel fra kabinettet er korrekt tilsluttet til bundkortets frontpanel.
- Kontroller, at strømforsyningsafbryderen er i 'ON'-positionen.
- Ventilatorer drejer ikke/RGB virker ikke:
- Kontroller, at blæserens strømkabler er korrekt tilsluttet til bundkortet eller blæsercontrolleren.
- Check ARGB cables for proper connection to the motherboard's ARGB header or the case's ARGB controller.
- If using motherboard software, ensure the software is running and configured correctly.
- Try cycling the LED button on the top panel to see if the lights respond.
- USB-porte fungerer ikke:
- Ensure the USB 2.0, USB 3.0, and Type-C headers from the case are correctly plugged into the corresponding headers on your motherboard.
- Check device drivers for your motherboard's USB controllers.
6. Specifikationer
Detailed technical specifications for the AZZA CSAZ-570B Cove computer case.
| Feature | Specifikation |
|---|---|
| Modelnavn | CSAZ-570B |
| Sagstype | Mid Tower |
| Farve | Sort |
| Materiale | Plastik, hærdet glas |
| Produktmål (LxBxH) | 435 mm x 230 mm x 490 mm (17.1 cm D x 9.1 cm B x 19.3 cm H) |
| Varens vægt | 21.8 pund |
| Bundkort kompatibilitet | ATX (Back-connect supported), Micro ATX, ITX |
| Max CPU kølerhøjde | 170 mm |
| Max GPU-længde | 400 mm |
| Strømforsyningsmonteringstype | Bundmontering |
| Forudinstallerede ventilatorer | 4 x 120mm ARGB (Front) |
| Front I / O-porte | Power Button, LED Button, Combo HD Audio, 1x USB 2.0, 1x USB 3.0, 1x Type-C |
| Drive Bays | 2 x 2.5" SSD or 1 x 3.5" HDD (Right Side Panel), 1 x 2.5" SSD (Metal Tray) |
Figure 7: Product dimensions of the AZZA CSAZ-570B case.
7. Garanti og support
For warranty information and technical support, please contact AZZA directly.
- Fabrikant: AZZA
- Sælger: AZZA USA (via Amazon)
- Product Protection Plans: Additional protection plans are available for purchase separately. These plans offer extended coverage beyond the standard manufacturer's warranty.
- 3-årig beskyttelsesplan
- 4-årig beskyttelsesplan
- Komplet beskyttelse (månedligt abonnement)
- Returpolitik: This product is eligible for a 30-day return policy (refund/replacement) from the date of purchase.
- Official AZZA Store: For further information and product updates, visit the AZZA Store on Amazon.
