DWIN 7 tommer kommerciel DMG80480C070_03WTC kapacitiv berøringsskærm brugermanual

1. Introduktion

This manual provides essential instructions for the proper setup, operation, and maintenance of your DWIN 7 Inch Commercial Grade Capacitive Touch Screen, model DMG80480C070_03WTC. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

2. Produktet er slutview

The DWIN DMG80480C070_03WTC is a high-quality 7.0-inch capacitive touch screen designed for commercial applications. It features an 800x480 pixel resolution with 16.7 million colors on a TN-TFT-LCD panel. The device is powered by the T5L1 chip and runs on the DGUS II system, offering robust performance and a user-friendly interface.

Key features include TTL/RS232 interface for versatile connectivity and support for easy development using DWIN DGUS V7.6 GUIs, requiring no coding skills. It also supports a dual development system (DGUS II/TA).

Billede 2.1: Overview of the DWIN DMG80480C070_03WTC Capacitive Touch Screen highlighting its key features such as 800x480 resolution, 7.0-inch size, 24-bit color, G+G structure, T5L1 chip, and TTL/RS232 connectivity.

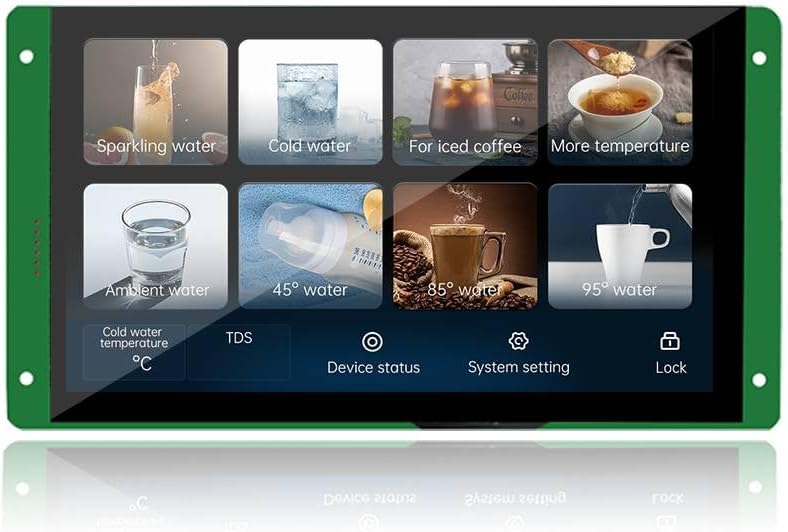

Billede 2.2: En eksample of a user interface displayed on the DWIN DMG80480C070_03WTC touch screen, demonstrating various interactive elements and data displays.

3. Opsætning

3.1 Udpakning og indhold

Carefully unpack the device and verify that all components are present:

• DWIN DMG80480C070_03WTC Capacitive Touch Screen
• FCC1005 Connection Cable
• HDL662K USB to Serial Adapter
• USB -tilslutningskabel

3.2 Tilslutning af enheden

The touch screen offers TTL and RS232 interfaces for communication. Use the provided 10Pin_1.0mm FCC connection wire to establish communication with your host system.

Billede 3.1: Detaljeret view of the back panel of the DWIN DMG80480C070_03WTC, showing various interfaces such as FLASA, TP interface, LCM interface, Buzzer, ON=TTL/OFF=RS232 switch, Reserved module interface, Expand FLASH, T5L ASIC, PGT05 interface, SD Card slot, and User interface.

1. Strømtilslutning: Connect the appropriate power supply to the designated power input on the back panel.
2. Dataforbindelse: Utilize the FCC1005 connection cable to link the screen's TTL/RS232 interface to your control system. Refer to Image 3.1 for port identification.
3. Serial Mode Selection: Ensure the ON/OFF switch for TTL/RS232 is set to the desired communication mode (ON for TTL, OFF for RS232).
4. SD-kort: If using an SD card for data or firmware updates, insert it into the SD card slot.

4. Betjeningsvejledning

4.1 DGUS II System Operation

The screen operates on the DGUS II system, which manages the display and touch functionalities. Once powered on, the screen will load its pre-programmed interface.

4.2 GUIs Development and Data Download

The DWIN DMG80480C070_03WTC supports easy-to-use DWIN DGUS V7.6 GUIs Development, which does not require extensive coding skills. This platform allows for the creation and customization of user interfaces.

Billede 4.1: En overview of the DWIN DGUS Development Platform, illustrating its interface and capabilities for designing and managing screen displays and touch interactions.

Firmware and user interface data can be downloaded to the device via an SD card or through the on-line serial port connection. Refer to the DWIN DGUS V7.6 software documentation for detailed instructions on development and download procedures.

4.3 Dual Development System

The device supports a dual development system: DGUS II and TA (Instruction Set). This provides flexibility for advanced users to implement custom functionalities and control logic.

5. Vedligeholdelse

5.1 Rengøring af skærmen

To clean the touch screen, gently wipe the surface with a soft, lint-free cloth. For stubborn smudges, slightly dampen the cloth with water or a mild, non-abrasive screen cleaner. Avoid using harsh chemicals, abrasive materials, or excessive moisture, as these can damage the screen or internal components.

5.2 Miljøhensyn

Ensure the device is operated within its specified temperature and humidity ranges. Avoid exposing the screen to direct sunlight for prolonged periods or to environments with high dust concentration to prevent damage and maintain optimal performance.

6. Fejlfinding

If you encounter issues with your DWIN touch screen, consider the following basic troubleshooting steps:

• Ingen visning: Verify that the power supply is correctly connected and providing adequate power. Check all cable connections.
• No Touch Response: Ensure the screen is clean and free from obstructions. If the issue persists, a recalibration might be necessary (refer to DGUS software documentation).
• Kommunikationsfejl: Confirm that the TTL/RS232 switch is set to the correct mode and that the communication cables are securely connected. Check the serial port settings on your host system.
• Softwareproblemer: If problems arise after a firmware update or GUI change, try reloading a known working configuration via SD card or serial port.

For more complex issues or technical support, please contact DWIN customer service or refer to the official DWIN documentation available on their webwebsted.

7. Specifikationer

The following table details the technical specifications for the DWIN DMG80480C070_03WTC Capacitive Touch Screen:

8. Garanti og support

For information regarding product warranty, please refer to the documentation provided at the time of purchase or contact your vendor. DWIN Technology Co., Ltd provides support for their products. You can visit the official DWIN Store on Amazon for additional resources and contact information.
