Indledning
This manual provides detailed instructions for the safe and effective use of your Nanlite PavoSlim 60CL 2X.5 RGBWW LED Panel. Please read this manual thoroughly before operation and retain it for future reference.
The Nanlite PavoSlim 60CL is an exceptionally slim and lightweight RGBWW LED panel designed for professional lighting applications. It offers impressive output, accurate color rendition (CRI 96, TLCI 97), and flicker-free performance, suitable for high-frame-rate shooting. The unit supports both AC power and battery operation (NP-F and V-Mount) for versatile use on location.
Figure 1: Nanlite PavoSlim 60CL LED Panel with Softbox
Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke. Hvis der mangler eller er beskadigede varer, bedes du kontakte din forhandler.
- PavoSlim 60CL LED Panel
- Kontrolenhed
- Pop-up Softbox
- Fabric Grid (Eggcrate)
- 2 x Diffusion Cloths
- 2 x monteringsbeslag
- Super Clamp
- AC strømkabel
- Tilslutningskabler
- Bæretaske
Figure 2: Complete PavoSlim 60CL Kit Contents
Sikkerhedsinstruktioner
- Se ikke direkte ind i lyskilden, når lyset er tændt.
- Do not place the product in direct sunlight or near heating devices.
- Udsæt ikke produktet for regn eller fugt.
- Afbryd altid strømmen før rengøring eller vedligeholdelse.
- Sørg for korrekt ventilation under drift for at forhindre overophedning.
- Brug kun godkendte strømadaptere og tilbehør.
- Opbevares utilgængeligt for børn.
Opsætning
1. Mounting the LED Panel
- Attach the appropriate mounting bracket to the PavoSlim 60CL LED Panel.
- Secure the panel to a light stand using the mounting bracket and super clamp. Ensure it is stable.

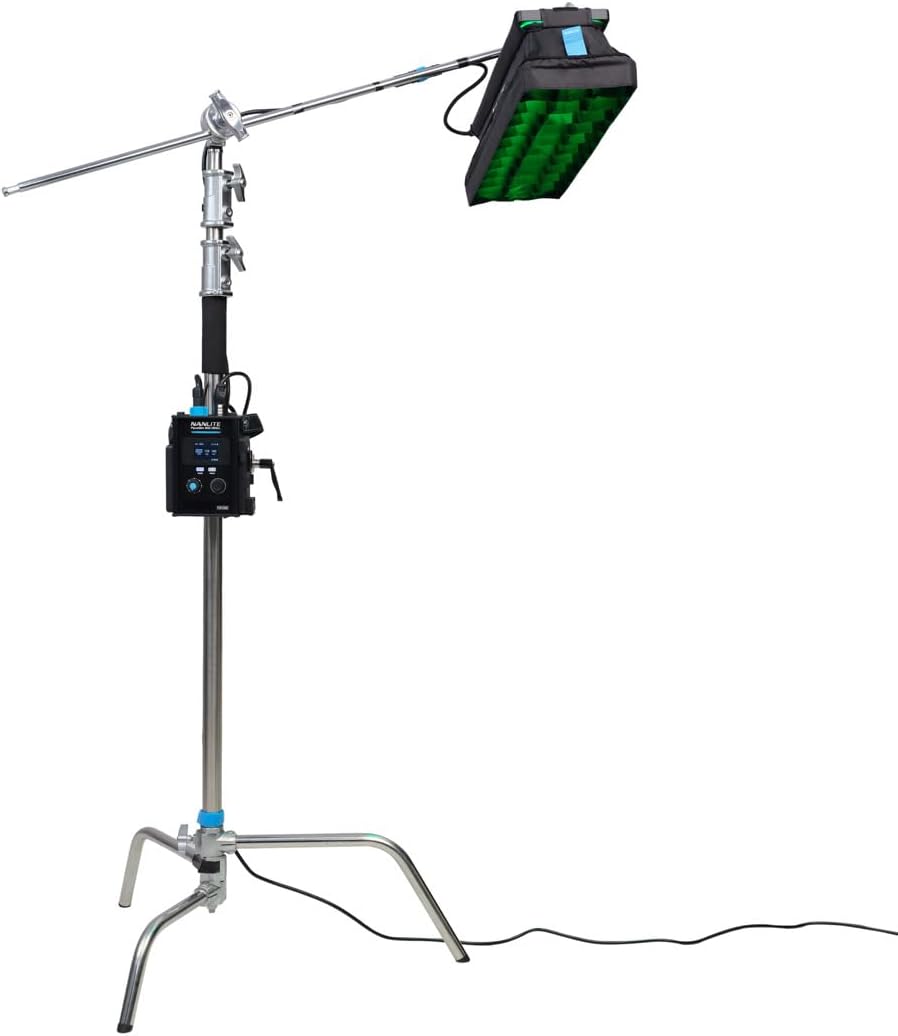

Figure 3: Panel Mounted on a C-Stand
2. Attaching the Softbox and Grid
- Unfold the pop-up softbox and attach it to the front of the LED panel.
- If desired, attach one or both diffusion cloths inside the softbox for softer light.
- For more directional light, attach the fabric grid (eggcrate) to the front of the softbox.
Figure 4: Panel with Softbox and Grid
3. Tænd for enheden
- AC strøm: Connect the AC power cable to the control unit, then plug it into a suitable power outlet.
- Batteristrøm: Insert compatible NP-F batteries into the designated slots on the control unit, or connect a V-Mount battery to the V-Mount plate.
Figure 5: Control Unit with V-Mount Battery
Betjeningsvejledning
Kontrolenhed overview
Figure 6: PavoSlim 60CL Control Unit
- Skærm: Shows current settings (brightness, color temperature, mode, etc.).
- MODE knap: Cycles through different lighting modes (CCT, HSI, RGBW, Effects).
- MENU knap: Accesses system settings and advanced options.
- Kontrolknapper: Adjust parameters such as brightness, color temperature, hue, saturation, and intensity depending on the selected mode.
Grundlæggende betjening
- Tænd/sluk: Press and hold the power button on the control unit.
- Juster lysstyrke: In any mode, use the designated control knob to increase or decrease the light intensity.
- Change Color Temperature (CCT Mode): Press the MODE button until CCT mode is selected. Use the control knob to adjust the color temperature from warm to cool white light.
- Adjust Color (HSI Mode): Press the MODE button until HSI mode is selected. Use the control knobs to adjust Hue, Saturation, and Intensity.
- Specialeffekter: Press the MODE button to cycle through various built-in lighting effects. Refer to the on-screen display for effect names and parameters.
Figure 7: Panel Emitting Red Light
Bluetooth-forbindelse
The PavoSlim 60CL supports Bluetooth connectivity for remote control via the Nanlink APP. Download the Nanlink APP from your device's app store and follow the in-app instructions to pair your light.
Opretholdelse
- Rensning: Use a soft, dry cloth to clean the surface of the LED panel and control unit. Do not use abrasive cleaners or solvents.
- Opbevaring: When not in use, store the unit in its carry case in a cool, dry place, away from direct sunlight and moisture.
- Batteripleje: If using batteries, ensure they are charged regularly and stored according to battery manufacturer guidelines. Remove batteries if the unit will not be used for an extended period.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power supply; loose cable connection; dead battery. | Kontroller strømtilslutningen eller batteriopladningen. Sørg for, at alle kabler er korrekt tilsluttet. |
| Lyse flimrer. | Unstable power supply; incorrect settings. | Ensure stable power source. Reset settings or try a different mode. |
| Kan ikke oprette forbindelse via Bluetooth. | Bluetooth not enabled; incorrect pairing procedure; interference. | Ensure Bluetooth is enabled on both devices. Follow Nanlink APP pairing instructions. Move closer to the light. |
| Lyset er for svagt. | Brightness set too low; power limitation. | Increase brightness setting. Ensure adequate power supply (e.g., fully charged batteries or AC). |
Specifikationer
| Feature | Detalje |
|---|---|
| Model | PavoSlim 60CL |
| Varemodelnummer | 9742634 |
| Produktdimensioner | 24 x 6 x 0.73 tommer |
| Varens vægt | 4.4 pund |
| Farvetemperatur | Adjustable (CCT Mode) |
| Color Rendition Index (CRI) | 96 |
| Television Lighting Consistency Index (TLCI) | 97 |
| Forbindelse | Bluetooth |
| Strømkilde | AC or Battery (NP-F, V-Mount) |
Garantioplysninger
The Nanlite PavoSlim 60CL comes with a 2-year limited warranty. This warranty can be extended to 3 years with online registration. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper storage.
For warranty claims or to register your product, please visit the official Nanlite website or contact Nanlite customer support.
Kundesupport
If you encounter any issues or have questions not covered in this manual, please contact Nanlite customer support:
- Webwebsted: www.nanlite.com
- E-mail: Henvis til embedsmanden webwebsted for kontakt-e-mail.
- Telefon: Henvis til embedsmanden webhjemmeside for kontakttelefonnummer.
Du kan også besøge NANLITE Store on Amazon for yderligere produktinformation og supportressourcer.
Vigtige bemærkninger
No official product videos from the seller were found in the provided data. Therefore, no videos are embedded in this manual.
