1. Introduktion
Thank you for choosing the R for Rabbit Lullabies Automatic Baby Cradle Swing. This manual provides essential information for the safe assembly, operation, and maintenance of your baby's new cradle. Please read all instructions carefully before use and retain this manual for future reference.
The R for Rabbit Lullabies cradle is designed to provide a comfortable and soothing environment for infants aged 0 to 2 years, supporting a maximum weight of 12 kg. It features an automatic swing mechanism, remote control, smart timer, and soothing music to assist in calming your baby.
Image: The R for Rabbit Lullabies Automatic Baby Cradle Swing in blue, shown with a remote control in hand.
2. Vigtige sikkerhedsadvarsler
ADVARSEL: Manglende overholdelse af disse advarsler og instruktioner kan resultere i alvorlig personskade eller død.
- EN Certified: This product is EN Certified, meeting stringent European safety standards for babies.
- Alders- og vægtgrænse: Suitable for infants from 0 to 2 years, with a maximum weight capacity of 12 kg. Do not use for children exceeding this weight or age.
- Overvågning: Never leave your child unattended in the cradle. Always keep your child in view.
- Selesystem: Always use the 5-point safety harness to secure your child in the cradle. Ensure it is properly adjusted and fastened.
- Forsamling: Ensure the cradle is fully and correctly assembled before placing a child inside.
- Placering: Place the cradle on a flat, stable, and level surface. Do not place near windows, cords, or heat sources.
- Ændringer: Do not modify the cradle or use accessories not approved by R for Rabbit.
- Kvælningsfare: Keep small parts away from children. Regularly check for loose or damaged components.
Billede: Et nærbillede view of the blue cradle interior, highlighting the secure 5-point safety harness.
3. Pakkens indhold
Kontroller venligst, at alle komponenter er til stede, før monteringen påbegyndes:
- Cradle Bed with Bedside Table (main sleeping unit)
- Frame Components (legs and support structure)
- Myggenet
- Fjernbetjening
- Strømadapter
- Instruktionsmanual
4. Monteringsvejledning
The R for Rabbit Lullabies cradle features a 'Plug & Play' installation design for easy setup.
- Udpak komponenter: Tag forsigtigt alle dele ud af emballagen, og læg dem på en ren, plan overflade.
- Saml ramme: Connect the frame components as indicated in the diagrams. Ensure all connections click securely into place. The anti-skid base should be facing downwards.
- Attach Cradle Bed: Securely attach the cradle bed unit to the assembled frame. Verify that it is firmly seated and stable.
- Install Mosquito Net: Drape and secure the mosquito net over the cradle bed, ensuring full coverage and proper attachment points.
- Strømtilslutning: Connect the power adapter to the cradle and plug it into a suitable electrical outlet. Alternatively, insert 4 AA batteries into the designated battery compartment (batteries not included).
- Endelig kontrol: Before first use, double-check all connections, the stability of the frame, and the security of the safety harness.
Image: Visual guide to key features including plug & play installation and anti-skid base.
5. Betjeningsvejledning
5.1 Powering the Cradle
The cradle can be powered using two methods:
- Strømadapter: Connect the provided power adapter to the cradle and a wall outlet.
- AA batterier: Insert 4 AA batteries into the battery compartment located on the side of the cradle's control unit. This provides portability.
Image: Illustration of the dual power options: AC adapter and battery compartment.
5.2 Automatic Swing Function
The cradle features a remote-controlled automatic swing mechanism with 5 adjustable speeds.
- Aktivér sving: Press the 'Swing' button on the remote control or the control panel on the cradle.
- Juster hastighed: Use the speed buttons (1-5) on the remote to select the desired swing intensity. Speed 1 is the gentlest, and Speed 5 is the fastest.
- Manuel sving: The cradle also supports manual swinging if preferred.
Image: Visual representation of the 5 levels of gentle swing mode.
5.3 Smart Timer
The smart timer allows you to set the duration of the automatic swing function.
- Indstil timer: Press the 'Timer' button on the remote control or control panel to cycle through the available options: 15 minutes, 30 minutes, or 60 minutes.
- Automatisk slukning: The swing will automatically stop after the selected time duration.
Image: The remote control displaying timer options (15, 30, 60 minutes).
5.4 Soothing Music
The cradle includes a selection of built-in tunes and nature sounds to soothe your baby.
- Vælg musik: Use the music selection buttons on the remote or control panel to choose from 18 tunes and 6 nature sounds.
- Juster lydstyrken: Brug volumenkontrolknapperne til at indstille det ønskede lydniveau.
Image: Visual representation of the musical features, including tunes and nature sounds.
5.5 Myggenet
The integrated mosquito net provides protection for your baby from insects.
- Implementering: Unfold the mosquito net and secure it around the cradle opening.
- Opbevaring: When not in use, the net can be folded away or removed.
6. Vedligeholdelse og pleje
Proper care will ensure the longevity and hygiene of your R for Rabbit Lullabies cradle.
- Rengøring af stof: The fabric components of the cradle should be hand washed only. Use mild soap and cold water. Do not bleach or tumble dry.
- Rengøringsramme: Wipe the metal and plastic frame components with a damp klud og mild sæbe. Tør grundigt.
- Regelmæssig kontrol: Periodically inspect all parts for wear, damage, or loose fasteners. Tighten any loose screws. Discontinue use if any part is broken or missing.
- Opbevaring: When not in use for extended periods, store the cradle in a clean, dry place away from direct sunlight and extreme temperatures.
7. Fejlfinding
If you encounter any issues with your cradle, please refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Cradle does not swing automatically. | No power; remote control batteries low; motor issue. | Ensure power adapter is securely plugged in or replace AA batteries. Check remote control batteries. If issue persists, contact customer support. |
| Music is not playing or is too quiet. | Volume too low; music not selected. | Increase volume using the remote or control panel. Select a tune or nature sound. |
| Fjernbetjeningen reagerer ikke. | Remote control batteries low or depleted. | Replace the button cell battery in the remote control. Ensure line of sight to the cradle's receiver. |
| Cradle feels unstable. | Improper assembly; placed on uneven surface. | Re-check all assembly connections. Ensure the cradle is on a flat, level, and stable surface. |
8. Produktspecifikationer
- Model: Vuggeviser
- Mærke: R for kanin
- Farve: Blå
- Produktdimensioner: 104L x 70W x 76H Centimeter
- Varens vægt: 6 kilo
- Rammemateriale: Metal, Cloth, Plastic
- Anbefalet alder: 0 - 2 år
- Maksimal vægtkapacitet: 12 kg
- Strømkilde: AC-adapter (medfølger) eller 4 AA-batterier (medfølger ikke)
- Swing Speeds: 5 niveauer
- Timerindstillinger: 15, 30, 60 minutter
- Musik: 18 tunes & 6 nature sounds
- Sikkerhedscertificering: EN Certified

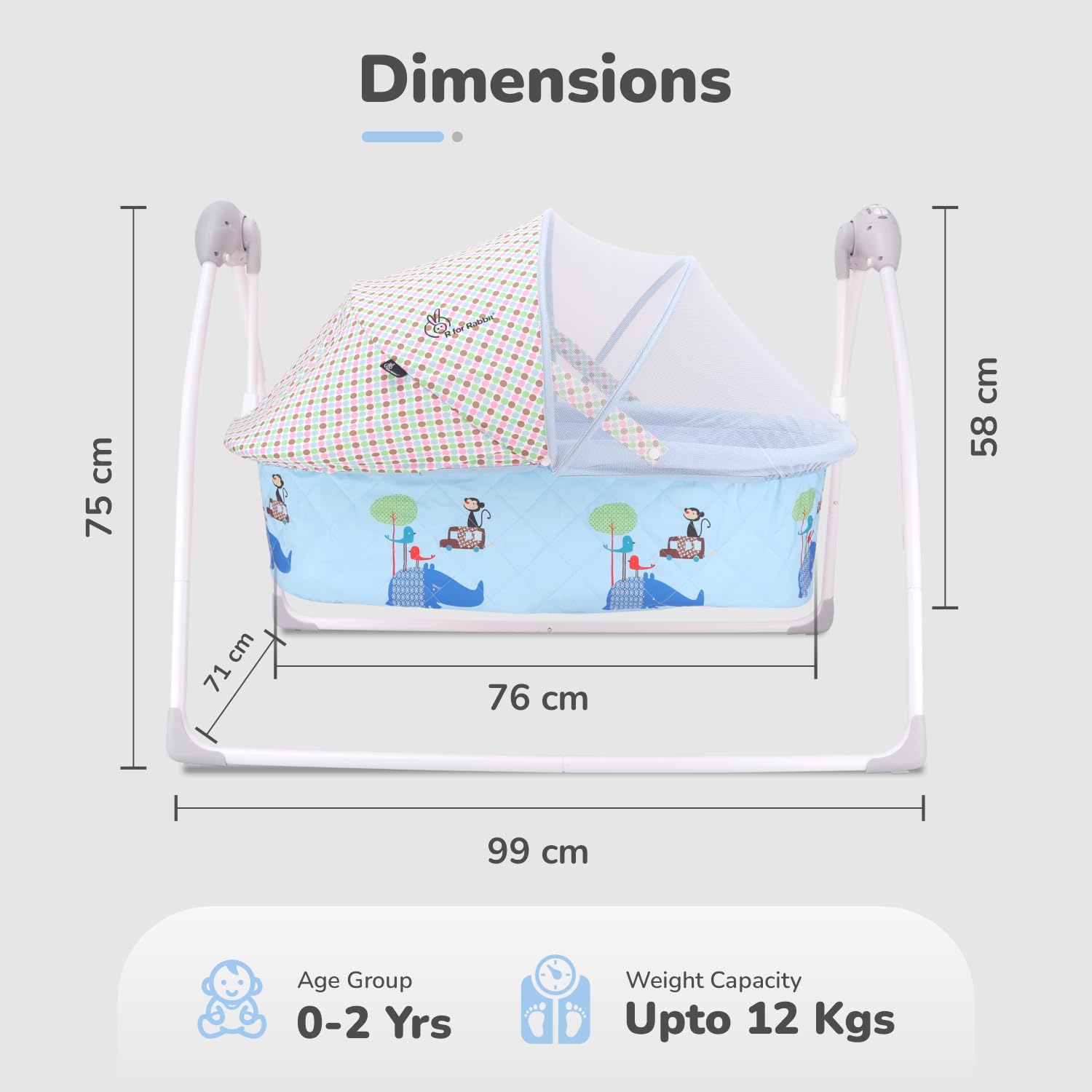

Image: Detailed dimensions of the R for Rabbit Lullabies Automatic Baby Cradle Swing.
9. Garanti og kundesupport
For warranty information, product support, or to report any issues, please contact R for Rabbit customer service. Refer to the product packaging or the R for Rabbit official webwebsted for kontaktoplysninger.
