1. Produktet er slutview
The FUNTECK Anti-Tangle Brush Bar is a replacement component designed for specific Dyson Motorbar cleaner heads. This brush bar features an anti-tangle design with specialized vanes to prevent hair and debris from wrapping around the roller, maintaining optimal cleaning performance. It is engineered to match the specifications of original Dyson parts for seamless integration and function.
Image 1.1: The FUNTECK Anti-Tangle Brush Bar, featuring its blue roller with red and black bristles and hair removal vanes.
2. Kompatibilitet
This replacement brush bar is specifically designed for Dyson vacuum cleaners equipped with the Motorbar Cleaner Head. It is compatible with the following Dyson models and part numbers:
- Dyson V11 Absolute Extra
- Dyson V11 Total Clean
- Dyson V11 Fluffy
- Dyson V11
- Dyson V12 Detect Slim Absolute (2022)
- Dyson V8 Absolute (2022)
- Dyson V8 Total Clean (2022)
It is compatible with Dyson part numbers 972182-01 og 972162-01, and specifically designed for the Motorbar Cleaner Head with part number 972500-01.
Image 2.1: Visual representation of compatible Dyson cleaner heads and a list of compatible vacuum models.
Important Note: This brush bar is NOT compatible with the following Dyson cleaner head types. Please verify your current head type before purchase to ensure proper fit.
- Direct drive head
- Digital Motorbar head
- High torque head
- XL High torque head
Billede 2.2: Eks.amples of Dyson cleaner heads that are NOT compatible with this replacement brush bar.
3. Installation
Follow these steps to replace the brush bar in your Dyson Motorbar cleaner head:
- Sluk: Ensure your Dyson vacuum cleaner is turned off and unplugged from the charger before beginning any maintenance.
- Remove Cleaner Head: Detach the cleaner head from the vacuum wand.
- Åbent endestykke: Locate the end cap or locking mechanism on the side of the cleaner head. Depending on your specific Motorbar head model, you may need to use a coin or a flat tool to unlock and open the end cap.
- Remove Old Brush Bar: Carefully slide out the existing brush bar from the cleaner head. Note its orientation for reference.
- Insert New Brush Bar: Align the new FUNTECK Anti-Tangle Brush Bar with the slot in the cleaner head. Ensure the end with the 3-prong connector (if applicable) slides into the corresponding receiver in the cleaner head. Push it firmly until it is fully seated.
- Secure End Cap: Close and lock the end cap or locking mechanism securely. Ensure it clicks into place or is tightened properly.
- Reattach Cleaner Head: Reattach the cleaner head to your vacuum wand.
- Prøve: Turn on your vacuum cleaner and test the cleaner head to ensure the brush bar rotates correctly.
Billede 3.1: En eksploderet view of a Dyson Motorbar cleaner head, showing the brush bar and its housing.
Billede 3.2: Nærbillede view of the brush bar, highlighting its 3-prong connection point.
4. Betjening
Once correctly installed, the FUNTECK Anti-Tangle Brush Bar operates automatically as part of your Dyson Motorbar cleaner head. Its primary function is to agitate carpet fibers and sweep debris from hard floors into the vacuum's suction path. The integrated anti-tangle vanes are designed to automatically clear hair and threads from the brush bar during operation, reducing the need for manual cleaning.
Image 4.1: The anti-tangle brush bar shown installed within a Dyson cleaner head, ready for use.
5. Vedligeholdelse
Regular maintenance of your brush bar ensures optimal performance and extends its lifespan:
- Rutinemæssig inspektion: Periodically remove the brush bar (refer to installation steps) and inspect it for any accumulated debris, hair, or blockages that the anti-tangle vanes might not have fully cleared.
- Rensning: Use scissors or a small brush to carefully remove any stubborn hair or threads wrapped around the bristles or vanes. Avoid using water or harsh cleaning agents on the brush bar.
- Tjek for skader: Inspect the bristles and vanes for signs of wear or damage. Worn bristles can reduce cleaning effectiveness.
- Geninstallation: After cleaning, ensure the brush bar is completely dry and then reinstall it correctly into the cleaner head.

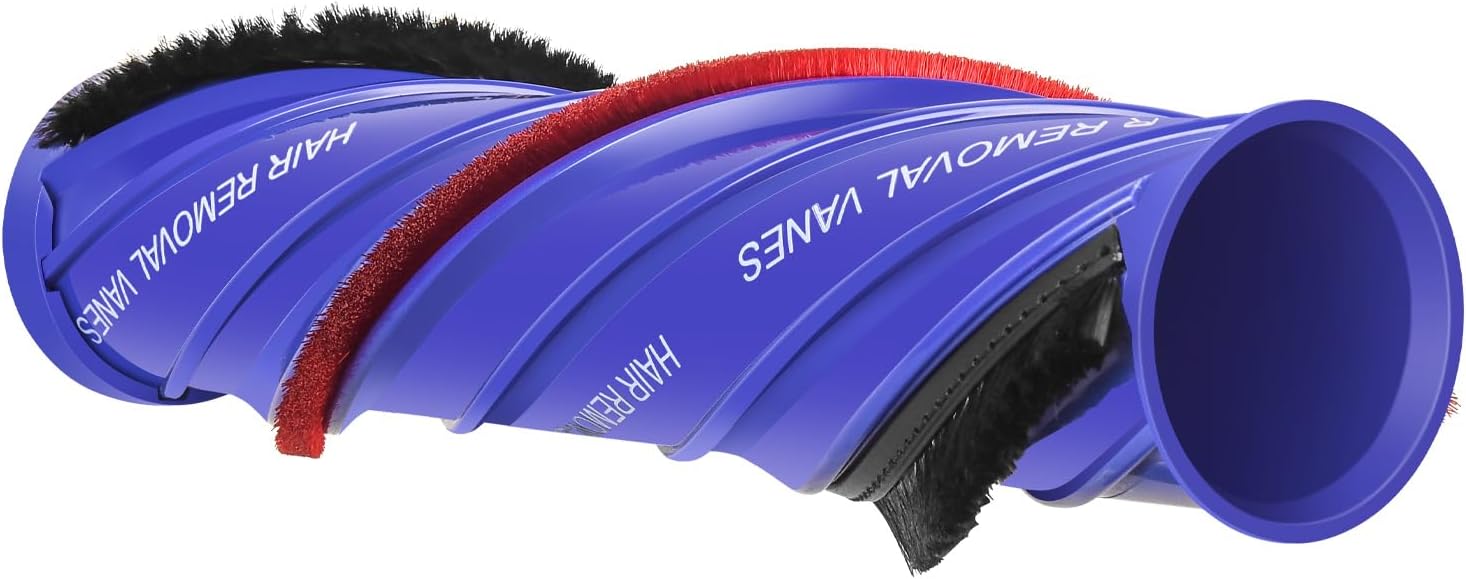

Billede 5.1: Detaljeret view of the hair removal vanes and bristles on the brush bar, designed to prevent tangles.
6. Fejlfinding
If you encounter issues with your FUNTECK Anti-Tangle Brush Bar, consider the following:
- Børstevalsen roterer ikke:
- Ensure the brush bar is correctly installed and the end cap is securely locked.
- Check for any obstructions (large debris, tangled hair) preventing rotation.
- Verify that your vacuum cleaner is powered on and the cleaner head is properly attached.
- Dårlig rengøringsevne:
- Inspect the brush bar for excessive wear on bristles or damage to the vanes.
- Ensure the brush bar is clean and free of debris.
- Brush Bar Does Not Fit:
- Double-check the compatibility section (Section 2) to confirm your Dyson model and cleaner head type are supported. This brush bar is specifically for Motorbar heads and not compatible with Direct Drive, Digital Motorbar, High Torque, or XL High Torque heads.
- Ensure you have the correct part number for your specific Dyson cleaner head.
7. Specifikationer
| Feature | Detalje |
|---|---|
| Fabrikant | FUNTECK |
| Varenummer | F-HG67-P2 |
| Varens vægt | 5.3 ounce |
| Produktmål (L x B x H) | 9.28 x 1.9 x 1.9 tommer (23.8 x 4.9 x 4.9 cm) |
| Varemodelnummer | F-HG67-P2 |
| Kompatibilitet | Dyson V10, V11, V12 Motorbar Cleaner Heads (Part No. 972500-01) |
| Speciel funktion | Anti-Tangle Hair Removal Vanes |

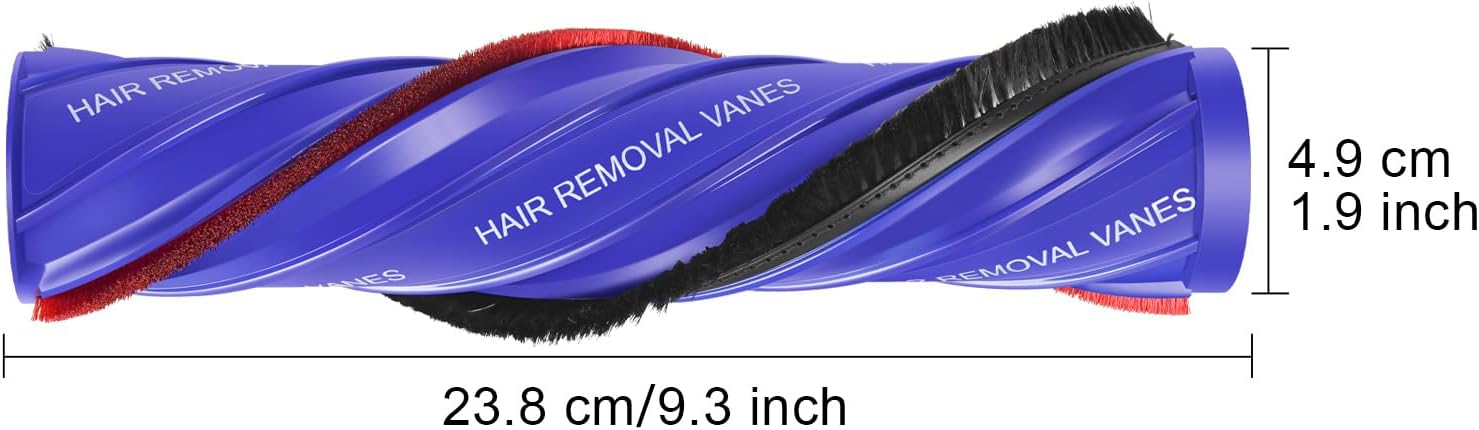

Image 7.1: Diagram illustrating the dimensions of the FUNTECK Anti-Tangle Brush Bar.
8. Garanti og support
For warranty information, technical support, or any inquiries regarding your FUNTECK Anti-Tangle Brush Bar, please contact FUNTECK customer service directly. Refer to the product packaging or the official FUNTECK webwebsted for kontaktoplysninger.
