1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your LEMEGA MSY6 Bluetooth Stereo System. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.

Image: The LEMEGA MSY6 Bluetooth Stereo System in Black Oak, showcasing its compact design and included remote control.

2. Sikkerhedsoplysninger

Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger dette produkt, for at reducere risikoen for brand, elektrisk stød og personskade.

• Udsæt ikke enheden for regn eller fugt.
• Bloker ikke nogen ventilationsåbninger.
• Sørg for, at strømadapteren er kompatibel med din lokale strømforsyning.
• Åbn ikke enheden. Overlad al service til kvalificeret personale.
• Hold enheden væk fra direkte sollys, varmekilder og stærke magnetfelter.

3. Hvad er der i æsken

Ved udpakning skal du kontrollere, at alle nedenstående varer er til stede og i god stand:

• 1 x LEMEGA MSY6 CD-afspiller FM-radio
• 1 x fjernbetjening
• 1 x lysnetadapter
• 1 x Brugermanual (dette dokument)

Image: A visual representation of the package contents, including the MSY6 unit, remote control, power adapter, and user manual.

4. Produktet er slutview

4.1 Kontrol og display på frontpanelet

The front panel features a 2.4-inch full-color TFT display, control buttons, and a central rotary knob for volume and menu navigation.

Image: The front of the LEMEGA MSY6 unit, highlighting the central display and various control buttons for easy operation.

• Vise: Shows current mode, track information, radio station, time, and menu options.
• Strøm-/lydstyrkeknap: Rotate to adjust volume, press to power on/off or confirm selections.
• Navigationsknapper: For navigating menus and skipping tracks.
• Mode knap: Switches between CD, FM, Bluetooth, USB, and Aux-in modes.
• Alarm/Sleep Buttons: For setting alarms and sleep timer.

4.2 Bagpaneltilslutninger

The rear panel provides essential ports for power, external audio devices, and antenna connection.

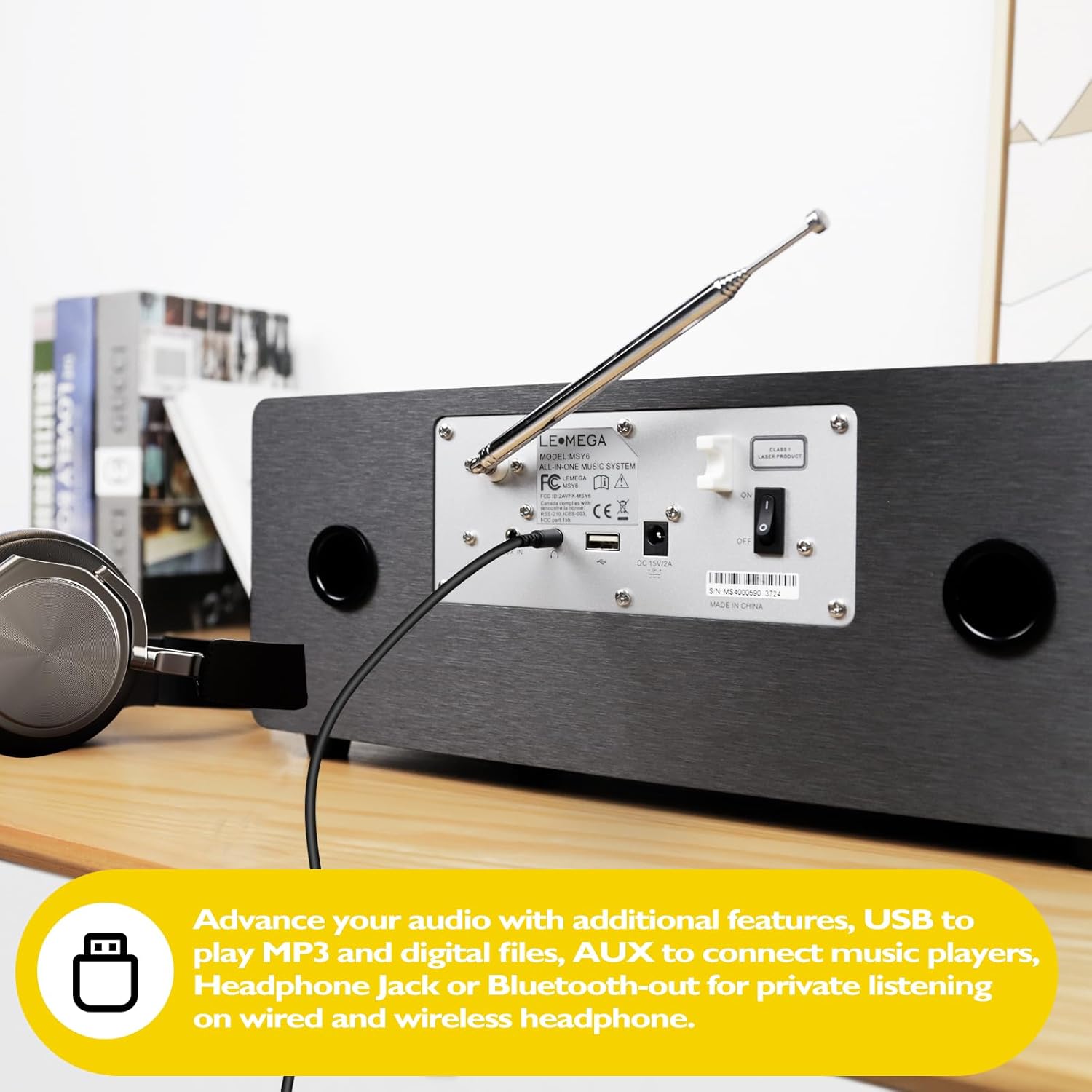

Image: The rear panel of the MSY6, illustrating the various input and output ports including USB and Aux-in.

• DC IN: Tilslut den medfølgende strømadapter her.
• USB-port: For playing MP3 and other digital audio files fra et USB-drev.
• AUX IN: Tilslut eksterne lydenheder med et 3.5 mm lydkabel.
• FM-antenne: Forlæng for optimal FM-radiomodtagelse.

4.3 Fjernbetjening

The full-function remote control allows convenient operation from a distance.

Image: The LEMEGA MSY6 unit positioned on a table, with its remote control clearly visible in the foreground.

Familiarize yourself with the buttons on the remote control for easy access to all functions.

5. Opsætning

1. Placering: Place the MSY6 on a stable, flat surface, ensuring adequate ventilation around the unit. Avoid placing it near heat sources or in direct sunlight.
2. Strømtilslutning: Connect the provided mains power adapter to the "DC IN" port on the rear of the unit, then plug the adapter into a wall outlet.
3. Antenne: Extend the FM antenna for optimal radio reception. Adjust its position if reception is poor.
4. Første gang tændt: Press the Power/Volume knob on the front panel or the Power button on the remote control to turn on the unit.

6. Driftstilstande

6.1 Betjening af cd-afspilleren

The MSY6 features a slot-in CD player for your audio CDs.

1. Insert a CD into the slot. The unit will automatically switch to CD mode and begin playback.
2. Use the Play/Pause, Stop, Skip Forward, and Skip Backward buttons on the unit or remote to control playback.

Image: The LEMEGA MSY6 with a CD being inserted into its slot-in CD player.

Video: Demonstrates the operation of the MSY6 CD Player, including disc insertion and basic playback.

6.2 FM-radiofunktion

Stil ind på dine yndlings FM-radiostationer.

1. Tryk på knappen Mode for at vælge FM Radio.
2. Brug navigationsknapperne til at søge efter stationer eller manuelt stille ind på en frekvens.
3. Press and hold a preset button (1-20) to save the current station. Press briefly to recall a saved station.

6.3 Bluetooth-lydstreaming

Tilslut din smartphone eller anden Bluetooth-aktiveret enhed for at streame lyd trådløst.

1. Press the Mode button to select Bluetooth Audio. The display will show "Bluetooth Pairing".
2. On your smart device, enable Bluetooth and select "LEMEGA MSY6" from the list of available devices.
3. Once paired, you can play music from your device through the MSY6.

Image: The LEMEGA MSY6 on a bedside table, demonstrating Bluetooth pairing with a smartphone.

Video: Shows the process of fast pairing a smart device via Bluetooth 5.3 to play music wirelessly.

6.4 USB Player Operation

Afspil MP3 og anden digital lyd files direkte fra et USB-drev.

1. Insert a USB drive into the USB port on the rear panel.
2. Press the Mode button to select USB. The unit will read the files og start afspilningen.
3. Use the navigation buttons to select tracks.

Video: Demonstrates how to play MP3 music files from a USB drive on the MSY6.

6.5 Aux-in Operation

Connect external audio sources like MP3 players or older devices.

1. Connect a 3.5mm audio cable from your external device's headphone jack or line-out to the AUX IN port on the rear panel of the MSY6.
2. Press the Mode button to select AUX IN.
3. Styr afspilning fra din eksterne enhed.

7. Avancerede funktioner

7.1 Dobbeltalarmer og sleeptimer

Set multiple alarms and use the sleep timer for convenience.

• Indstilling af alarmer: Press the Alarm button to enter alarm setup. Follow the on-screen prompts to set time, source (FM or alarm sound), and weekday/weekend modes.
• Sleep timer: Press the Sleep button to activate the sleep timer. Choose a duration (e.g., 15, 30, 60 minutes) after which the unit will automatically turn off.

7.2 Equalizer-indstillinger

Customize the audio output to your preference with the built-in equalizer.

1. Navigate to the System Settings menu on the display.
2. Select "Equalizer" to choose from preset EQ modes (Classic, Jazz, Pop, Rock, Normal) or create a custom EQ setting.

Video: Demonstrates how to access and adjust the personal EQ settings for various music styles like Classic, Jazz, or Pop.

7.3 Bluetooth Headphone Connection (Transmitter)

Stream audio from the MSY6 to your Bluetooth headphones for private listening.

1. Sørg for, at dine Bluetooth-hovedtelefoner er i parringstilstand.
2. On the MSY6, navigate to the Bluetooth Transmitter setting (refer to the full manual for exact menu path if not immediately visible).
3. Select your headphones from the list of found devices to connect.

Image: The LEMEGA MSY6 on a bedside table with a pair of Bluetooth headphones, illustrating the unit's ability to transmit audio wirelessly.

Video: Demonstrates the built-in Bluetooth transmitter function, allowing music to be streamed from the MSY6 to headphones.

8. Vedligeholdelse

• Rensning: Brug en blød, tør klud til at rengøre enhedens yderside. Brug ikke flydende rengøringsmidler eller slibende materialer.
• CD-pleje: Hold cd'er i kanterne. Rengør snavsede cd'er med en blød, fnugfri klud, og tør af fra midten og udad.
• Opbevaring: Hvis enheden opbevares i længere tid, skal den tages ud af stikkontakten og opbevares et køligt og tørt sted.

9. Fejlfinding

10. Specifikationer

Image: The product dimensions of the LEMEGA MSY6, indicating its length, width, and height.

Video: Illustrates the internal speaker components and highlights the 100W powerful stereo sound output of the MSY6.

11. Garanti og support

LEMEGA products are designed for reliability and performance. For warranty information and technical support, please refer to the warranty card included with your product or visit the official LEMEGA webwebsted.

Online support: Visit the LEMEGA Store on Amazon
