OnePlus Nord N30 5G brugermanual

Indledning

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your OnePlus Nord N30 5G smartphone. Please read this manual carefully to ensure proper use and to maximize the device's capabilities.

Billede: Foran og bagpå view of the OnePlus Nord N30 5G smartphone, showcasing dens design og kameramodul.

Opsætning

1. Udpakning og indledende inspektion

Fjern forsigtigt alle komponenter fra emballagen. Kontroller, at følgende dele er til stede:

• OnePlus Nord N30 5G Smartphone
• 50W oplader
• USB kabel
• SIM Ejector Tool
• Hurtigstartguide (hvis inkluderet)

2. Installation af SIM-kort og MicroSD-kort

The device supports a single SIM card and a microSDXC card for expandable storage. Locate the SIM tray on the side of the device. Use the provided SIM ejector tool to open the tray. Insert your Nano-SIM card and microSD card into the designated slots, ensuring correct orientation. Close the tray securely.

3. Første opstart og opsætning

Press and hold the Power button located on the side of the device until the OnePlus logo appears. Follow the on-screen prompts to complete the initial setup process, which includes selecting your language, connecting to a Wi-Fi network, and signing in to your Google account.

4. Opladning af enheden

Connect the 50W charger to the USB-C port at the bottom of the phone. Plug the charger into a power outlet. The device features 67W SUPERVOOC fast charging, allowing for rapid battery replenishment.

Billede: Intern view of the OnePlus Nord N30 5G, highlighting the 5000mAh battery and the charging connection point.

Betjeningsvejledning

1. Display og navigation

The OnePlus Nord N30 5G features a 6.72-inch LCD display with a 120Hz adaptive refresh rate, providing smooth scrolling and visual experience. Navigate the interface using touch gestures: tap to select, swipe to scroll, pinch to zoom.

Image: Close-up of the OnePlus Nord N30 5G display, emphasizing its large screen size and high refresh rate capabilities.

2. Kamerabrug

The device is equipped with a triple rear camera system, featuring a 108 MP main sensor with f/1.7 aperture, a 2 MP macro lens, and a 2 MP depth sensor. The front camera is 16 MP. Open the Camera application to capture photos and videos. Utilize the 9-in-1 pixel binning technology for brighter and more colorful images, especially in challenging lighting conditions.

Billede: Detaljeret view of the OnePlus Nord N30 5G's rear camera setup, highlighting the 108MP main sensor.

3. Lydfunktioner

The OnePlus Nord N30 5G includes dual stereo speakers for an enhanced audio experience. It also retains a 3.5mm audio jack for wired headphone connectivity. The device supports a 200% Ultra Volume Mode for increased audio output.

Image: A user holding the OnePlus Nord N30 5G, illustrating the device's use for audio consumption and its dual speaker capability.

4. Ydeevne og spil

Powered by the Qualcomm Snapdragon 695 processor and 8GB of RAM (with up to 8GB of expandable virtual RAM), the device is designed for smooth multitasking and gaming. OxygenOS based on Android 13 includes gamer-friendly features such as Quick Start, Game Tools, Game Focus Mode, and GPA Frame Stabilizer.

Image: A person engaged in mobile gaming on the OnePlus Nord N30 5G, demonstrating its performance capabilities for entertainment.

Image: Visual representation of the OnePlus Nord N30 5G's internal components, highlighting the Snapdragon processor and RAM for enhanced speed.

5. Forbindelse

The OnePlus Nord N30 5G supports 5G connectivity for North and South American networks (n2/n5/n12/n25/n66/n71/n41/n77/n78) and global 4G LTE bands. It also features Bluetooth 5.1 for wireless accessory connections.

Opretholdelse

1. Batteripleje

To prolong battery life, avoid exposing the device to extreme temperatures. Use only the provided 50W charger. For optimal performance, keep the battery charge between 20% and 80% when possible.

2. Softwareopdateringer

Regularly check for and install software updates to ensure your device has the latest features, security patches, and performance improvements. Updates are typically found in the device's Settings menu under "System" or "About phone."

3. Rengøring af enheden

Use a soft, lint-free cloth to clean the screen and body of the phone. Avoid using harsh chemicals or abrasive materials that could damage the finish or display.

4. Lagerstyring

The device comes with 128GB of internal storage. To manage storage, regularly clear cache, uninstall unused applications, and transfer large files (photos, videos) to cloud storage or the microSD card.

Fejlfinding

1. Problemer med netværksforbindelse

If you experience issues with network connectivity (calls, data), ensure your SIM card is properly inserted and your mobile data is enabled. Verify that your carrier supports the device's network bands. Some users have reported specific compatibility considerations with certain carriers like T-Mobile or MetroPCS; ensure your carrier's requirements are met for unlocked devices.

2. Hurtig batteridræning

High screen brightness, extensive use of demanding applications, and continuous background processes can lead to faster battery drain. Adjust screen brightness, close unused apps, and review battery usage in settings to identify power-consuming applications.

3. Device Performance Slowdown

If the device becomes slow or unresponsive, try restarting it. Clear app caches and ensure sufficient free storage space. If issues persist, consider a factory reset (back up your data first).

Specifikationer

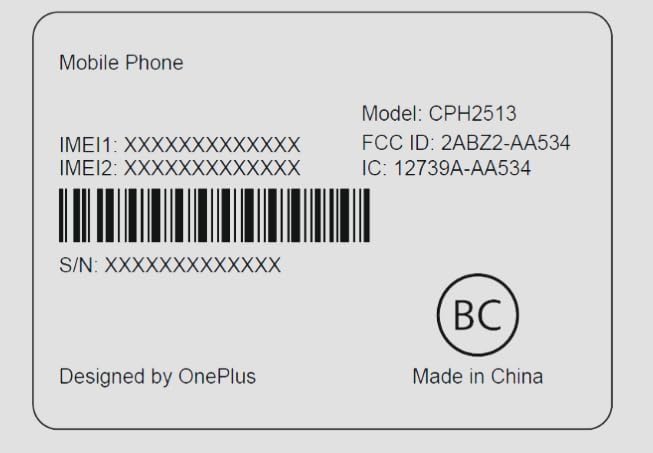

Image: Regulatory label for the OnePlus Nord N30 5G, showing model number CPH2513 and FCC ID: 2ABZ2-AA534.

Garanti og support

Please note that for the discontinued T-Mobile Unlocked Model, there is no manufacturer's warranty. For general support inquiries or further assistance, please refer to the official OnePlus support website or contact their customer service. Keep your purchase receipt for any potential service needs.
