ErGear Height Adjustable Desk User Manual

1. Produktet er slutview

The ErGear Height Adjustable Desk is an electric standing desk designed for computer workplaces, offering excellent stability and ergonomic flexibility. It features a sturdy steel frame with aviation lifting column connections, ensuring a firm foundation even at full height. The desk includes a memory function for convenient height adjustments and comes with a practical storage bag.

Image 1.1: The ErGear Height Adjustable Desk in a typical office setup, showcasing dens elegante design og ample arbejdsområde til flere skærme og tilbehør.

2. Sikkerhedsoplysninger

Vigtig sikkerhedsadvarsel: For at sikre sikker drift og forhindre skader, bedes du følge følgende retningslinjer:

• Overskrid ikke den maksimale vægtkapacitet for 80 kg (176 lbs) on the desk surface. Overloading can lead to instability and potential damage to the lifting mechanism.
• Hold børn og kæledyr væk fra skrivebordet under brug for at forhindre ulykker.
• Ensure there are no obstructions in the desk's path when adjusting height. Check for cables, chairs, or other objects that could be pinched or damaged.
• Du må ikke sidde eller stå på skrivebordet.
• Unplug the desk from the power outlet before cleaning or performing any maintenance.
• If the desk malfunctions or makes unusual noises, discontinue use immediately and consult the troubleshooting section or contact customer support.

Image 2.1: Illustration demonstrating the desk's robust 80KG load capacity, emphasizing the importance of not exceeding this limit for safe and reliable performance.

3. Pakkens indhold

Before assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support.

• Desktop Surface (1)
• Lifting Columns/Legs (2)
• Feet/Bases (2)
• Kontrolpanel (1)
• Kontrolboks (1)
• Power Adapter & Cable (1)
• Opbevaringspose (1)
• Hardware Kit (Screws, Allen wrenches, Cable ties)
• Instruktionsmanual (dette dokument)

4. Opsætning og montering

Assembly typically requires two people. Follow these general steps. Refer to the included assembly diagram for detailed instructions specific to your model.

1. Forbered arbejdsområde: Clear a large, flat area for assembly. Lay down a blanket or cardboard to protect the desktop surface from scratches.
2. Attach Lifting Columns to Desktop: Carefully place the desktop upside down. Attach the lifting columns to the pre-drilled holes on the underside of the desktop using the provided screws.
3. Fastgør fødder til løftesøjler: Secure the feet/bases to the bottom of the lifting columns.
4. Install Control Box and Control Panel: Mount the control box to the designated area under the desktop. Connect the control panel to the control box, and then connect the lifting columns to the control box. Ensure all cables are securely connected and routed neatly.
5. Installer opbevaringstaske: Attach the storage bag to the side of the desk as desired, typically using hooks or clips provided.
6. Tilslut strøm: Sæt strømadapteren i kontrolboksen og derefter i en stikkontakt.
7. Initial Calibration (if required): Some models may require an initial calibration. Refer to the specific assembly diagram for your model for details on how to perform this. Typically, this involves pressing and holding the "Down" button until the desk reaches its lowest point and slightly retracts.

Billede 4.1: Nærbillede view of the desk's side storage pockets, demonstrating their capacity for organizing various office supplies and documents. These pockets are typically attached during assembly.

5. Betjeningsvejledning

5.1. Højdejustering

The ErGear Height Adjustable Desk features an electric lifting system for smooth and precise height adjustments.

• Sådan hæver du skrivebordet: Tryk og hold på "Up" arrow button (▲) on the control panel. The desk will move upwards. Release the button when the desired height is reached.
• Sådan sænkes skrivebordet: Tryk og hold på "Down" arrow button (▼) on the control panel. The desk will move downwards. Release the button when the desired height is reached.

5.2. Hukommelsesfunktion

The desk's memory function allows you to save and recall preferred sitting and standing heights.

• To Save a Height Setting:
  1. Juster skrivebordet til den ønskede højde ved hjælp af Op/Ned-knapperne.
  2. Tryk på "M" (Memory) button. The display may flash or show "S-".
  3. Within a few seconds, press one of the numbered preset buttons (1, 2, 3 eller 4) to save the current height to that position. The display will confirm the save (e.g., "S-1").
• Sådan genkalder du en gemt højde:
  • Tryk blot på den tilsvarende nummererede forudindstillingsknap (1, 2, 3 eller 4Skrivebordet flytter sig automatisk til den gemte højde.

Image 5.1: Visual representation of the desk's adjustable height range, illustrating movement from a minimum of 71cm to a maximum of 119cm, allowing users to set ideal sit or stand positions.

6. Vedligeholdelse

Regular maintenance helps ensure the longevity and smooth operation of your ErGear desk.

• Rensning: Wipe the desktop surface and legs with a soft, damp klud. Undgå skrappe kemikalier eller slibende rengøringsmidler, der kan beskadige overfladen.
• Kabelstyring: Periodically check and organize cables to prevent tangling or interference with the lifting mechanism. Use the provided cable ties if necessary.
• Inspektion: Regularly inspect all screws and connections to ensure they are tight. Retighten if necessary.
• Vægtfordeling: Distribute weight evenly on the desktop to prevent strain on the lifting mechanism.

7. Fejlfinding

If you encounter issues with your ErGear desk, refer to the following common troubleshooting steps:

If the problem persists after trying these solutions, please contact ErGear customer support.

8. Specifikationer

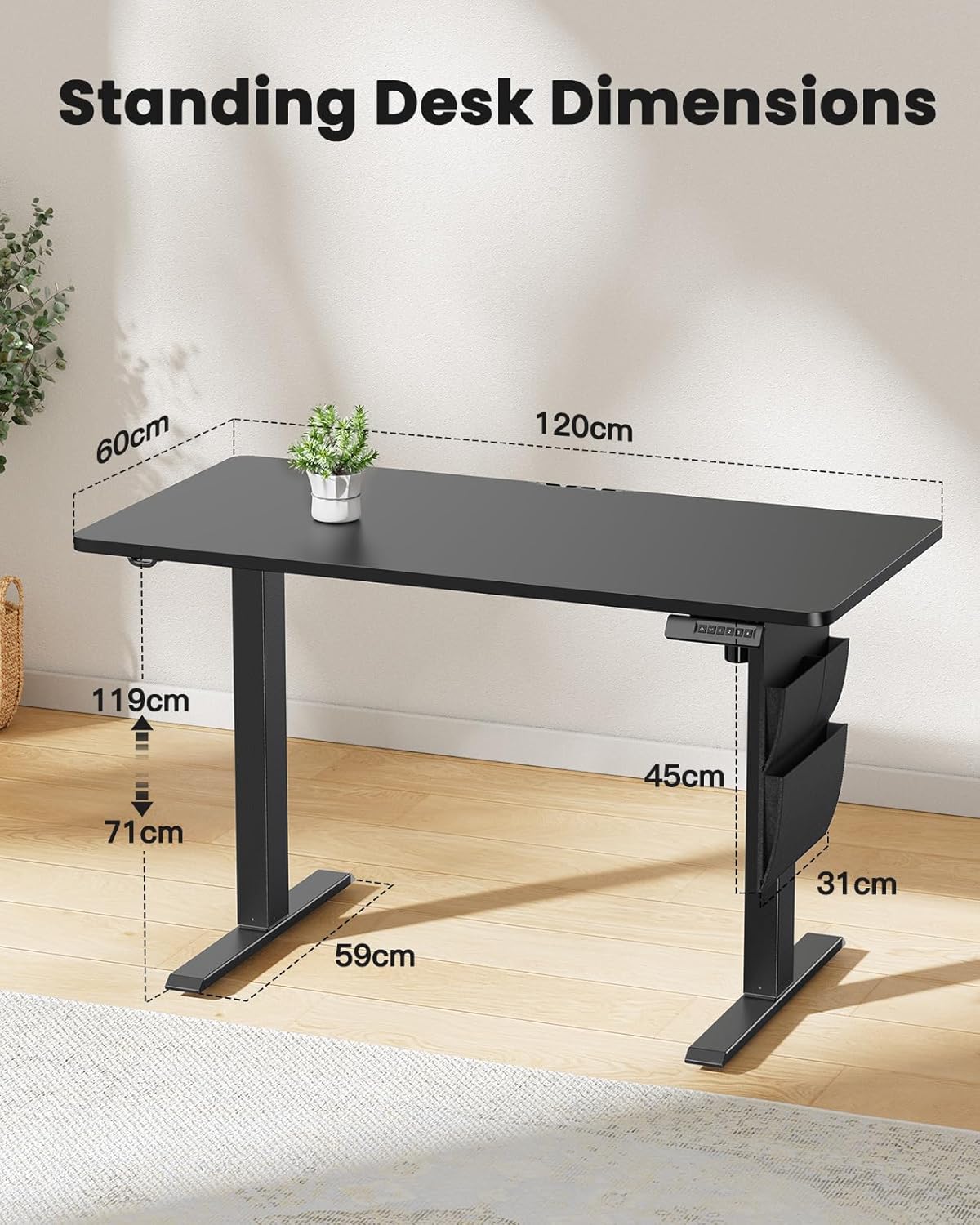

Image 8.1: Detailed diagram illustrating the key dimensions of the ErGear standing desk, including desktop width (120cm), depth (60cm), and height range (71cm to 119cm).

9. Garanti og support

ErGear products are designed for durability and performance. For any questions, technical assistance, or warranty claims, please contact ErGear customer support.

• Returpolitik: This product is eligible for a refund or replacement within 30 days of purchase, as per standard policy.
• Kontaktoplysninger: Please refer to the contact details provided on the ErGear official webwebstedet eller din købsdokumentation for at finde de mest opdaterede supportkanaler.
