NXGKET Genopladelige Walkie-talkies til Børn - Brugermanual

Indledning

Thank you for choosing the NXGKET Rechargeable Walkie Talkies. This set of four walkie talkies is designed for children, offering long-range communication with a built-in lithium-ion battery and USB Type-C charging. With 16 channels, these devices are ideal for outdoor games, camping, and hiking, providing a reliable way for children to stay connected.

Please read this manual thoroughly before operating the devices to ensure safe and optimal performance. Keep this manual for future reference.

Pakkens indhold

Pakken indeholder:

• 4 x NXGKET Rechargeable Walkie Talkies (Orange, Yellow, Blue, Purple)
• 1 x USB Type-C opladningskabel
• Brugervejledning (dette dokument)

Image: Contents of the NXGKET walkie talkie package, showing the four colorful units, charging cable, and box.

Produkt overview

Familiarize yourself with the components of your walkie talkie:

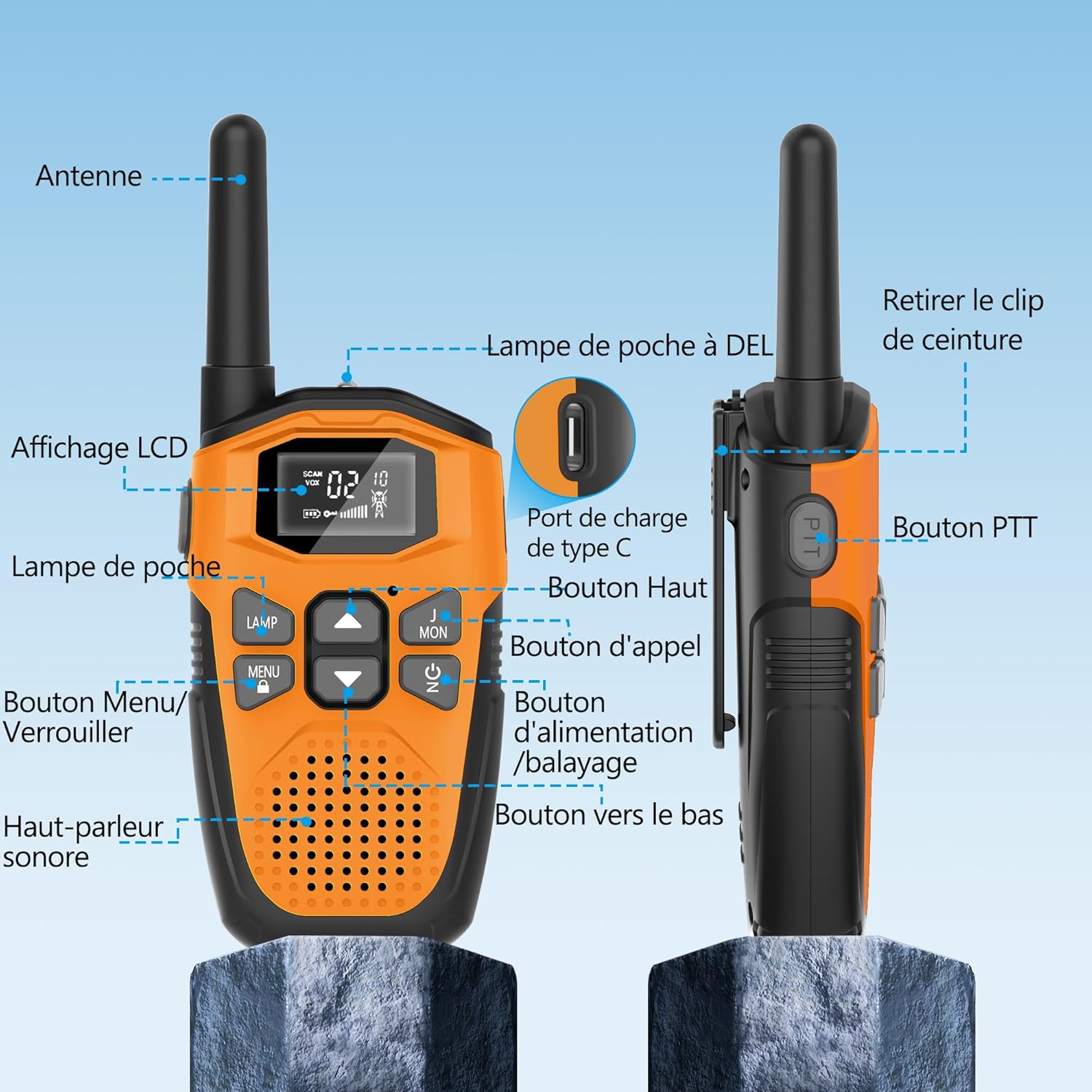

Image: Detailed diagram labeling the various parts of the walkie talkie, such as the antenna, LCD display, flashlight, PTT button, and charging port.

• Antenne: Til at sende og modtage signaler.
• LCD-skærm: Shows channel, volume, battery status, and other indicators.
• Lamp (Lommelygte): Indbygget LED-lys til belysning.
• MENU/LOCK Button: Accesses menu settings or locks/unlocks the keypad.
• Højttaler/mikrofon: Til lydudgang og -indgang.
• PTT (Push-to-Talk) knap: Tryk og hold nede for at sende din stemme.
• Op-knap: Navigates menu or increases values.
• Opkaldsknap: Sends a call tone to other walkie talkies.
• Tænd/scan-knap: Turns the device on/off or initiates channel scanning.
• Ned-knap: Navigates menu or decreases values.
• Type-C opladningsport: For connecting the USB Type-C charging cable.
• Bælteklips: For attaching the walkie talkie to clothing or a belt.

Billede: Detaljeret views highlighting the LCD display, speaker, charging port, and flashlight of the walkie talkie.

Opsætning

1. Første opladning

The walkie talkies come with a built-in 1200mAh rechargeable lithium-polymer battery. Before first use, it is recommended to fully charge the devices.

• Connect the supplied USB Type-C charging cable to the charging port on the walkie talkie.
• Tilslut den anden ende af kablet til en USB-strømadapter (medfølger ikke) eller en USB-port på computeren.
• The battery indicator on the LCD display will show charging status. A full charge typically takes about 2 hours.
• Once fully charged, the device can operate for approximately 24 hours of continuous use and up to 3 days on standby.

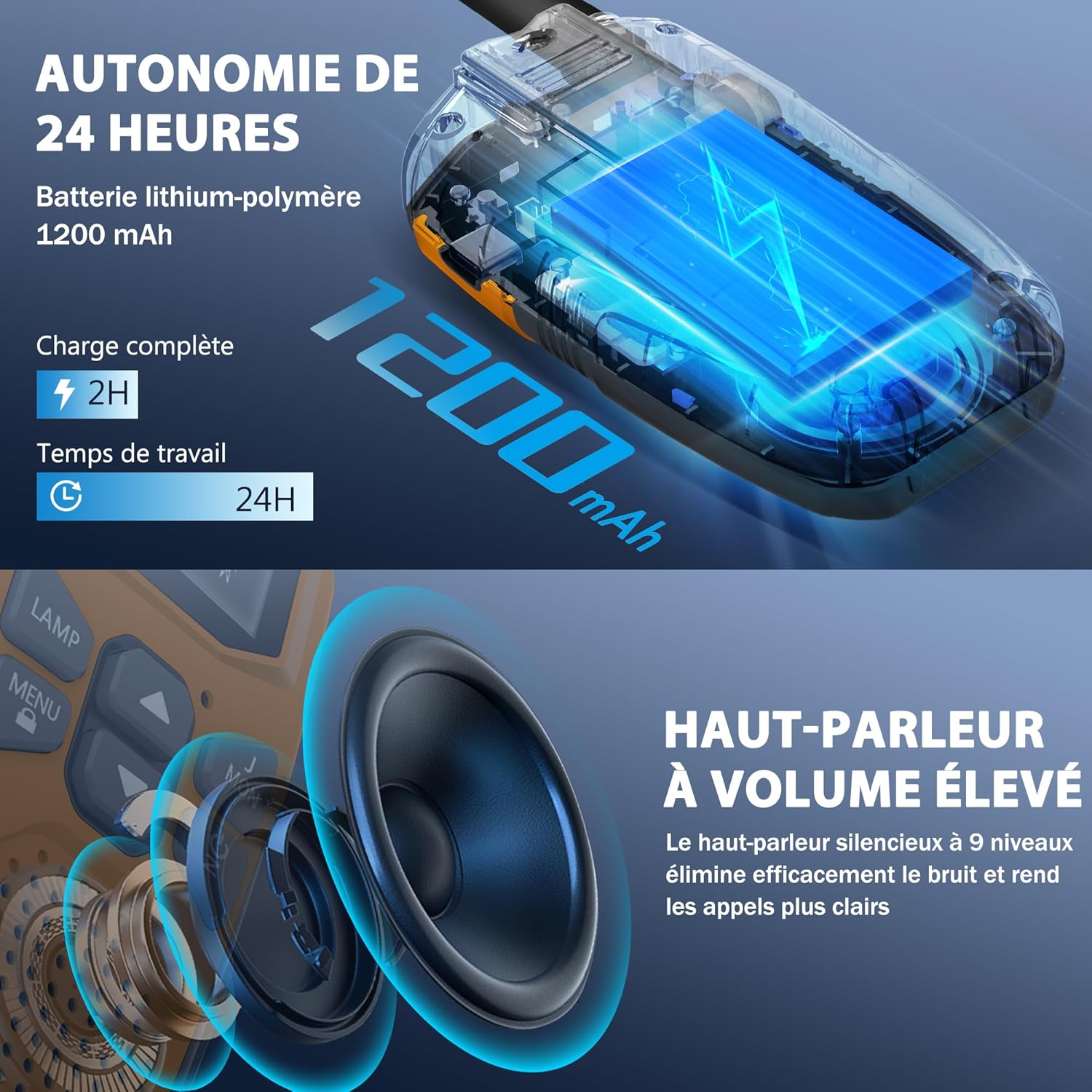

Image: Visual representation of the walkie talkie's 1200mAh battery and its charging and usage duration.

2. Montering af bælteclips

To attach the belt clip, align it with the slots on the back of the walkie talkie and slide it down until it clicks into place. To remove, push the release tab and slide the clip upwards.

Betjeningsvejledning

1. Tænd/sluk

Tryk og hold på Power/Scan button for 3 seconds to turn the walkie talkie on or off.

2. Justering af lydstyrke

Brug Up og Ned knapperne til at justere højttalerens lydstyrke. Lydstyrkeniveauet vises på LCD-skærmen.

3. Valg af en kanal

The walkie talkies have 16 channels. To communicate, all walkie talkies in your group must be on the same channel and privacy code.

1. Tryk på MENU button once. The channel number will flash on the LCD.
2. Brug Up or Ned knapperne til at vælge den ønskede kanal (1-16).
3. Tryk på MENU button again to confirm the channel selection, or wait a few seconds for it to automatically set.

4. Setting Privacy Codes (CTCSS/DCS)

The walkie talkies support 121 interference elimination codes (38 CTCSS codes and 83 DCS codes) to ensure private communication and reduce interference from other users on the same channel.

1. Når du har valgt en kanal, skal du trykke på MENU knappen to gange. Privathedskodenummeret vil blinke.
2. Brug Up or Ned buttons to select a privacy code (0-121). Code 0 means no privacy code is set.
3. Tryk på MENU knappen igen for at bekræfte, eller vent på automatisk indstilling.

5. Sender og modtager (PTT)

For at tale skal du trykke og holde nede PTT (Push-to-Talk) knappen på siden af ​​walkie-talkien. Tal tydeligt ind i mikrofonen. Slip PTT-knappen for at lytte efter et svar.

6. Ring til Tone

Tryk på Ring button to send a call tone to other walkie talkies on the same channel and privacy code, alerting them to your presence.

7. VOX (Voice Operated Exchange) - Hands-Free Operation

VOX allows you to transmit without pressing the PTT button. When VOX is enabled, the walkie talkie will automatically transmit when it detects your voice.

1. Tryk på MENU button until the VOX icon flashes on the LCD.
2. Brug Up or Ned buttons to select a VOX sensitivity level (1-3, with 3 being most sensitive). Select 'OFF' to disable VOX.
3. Trykke MENU for at bekræfte.

8. Lommelygtefunktion

Tryk på LAMP button to turn the built-in LED flashlight on or off. This can be used for emergency lighting or during nighttime activities.

9. Tastaturlås

For at forhindre utilsigtede ændringer af indstillingerne skal du trykke på og holde MENU/LÅS button for 3 seconds. A lock icon will appear on the LCD. Repeat the action to unlock the keypad.

Nøglefunktioner

• Extended Range Communication:

  These walkie talkies offer significant communication range. In open areas such as rural environments, suburbs, or coastal regions without obstructions, they can reach up to 5 kilometers (3.1 miles). In urban or village settings, the range is approximately 1.5 kilometers (0.9 miles). This allows users to stay connected without relying on mobile phone networks.



  Image: Visual representation of the walkie talkie's communication range in different environments.
• Klar lydkvalitet:

  Equipped with a high-volume speaker and noise reduction technology, these walkie talkies deliver clear and loud audio. The 9-level silent speaker effectively eliminates noise, ensuring rapid and clear responses during conversations.



  Billede: Detaljeret view of the walkie talkie's speaker, emphasizing its high volume and clear sound capabilities.

• Holdbart og let design:

  The walkie talkies feature a hard, anti-drop shell made from environmentally friendly, fall-resistant material, providing protection against accidental drops. Despite their robust construction, each unit is lightweight, weighing approximately 93g, and compact, measuring 16cm in height, 3cm in depth, and 2cm in width, making them easy for children to handle.

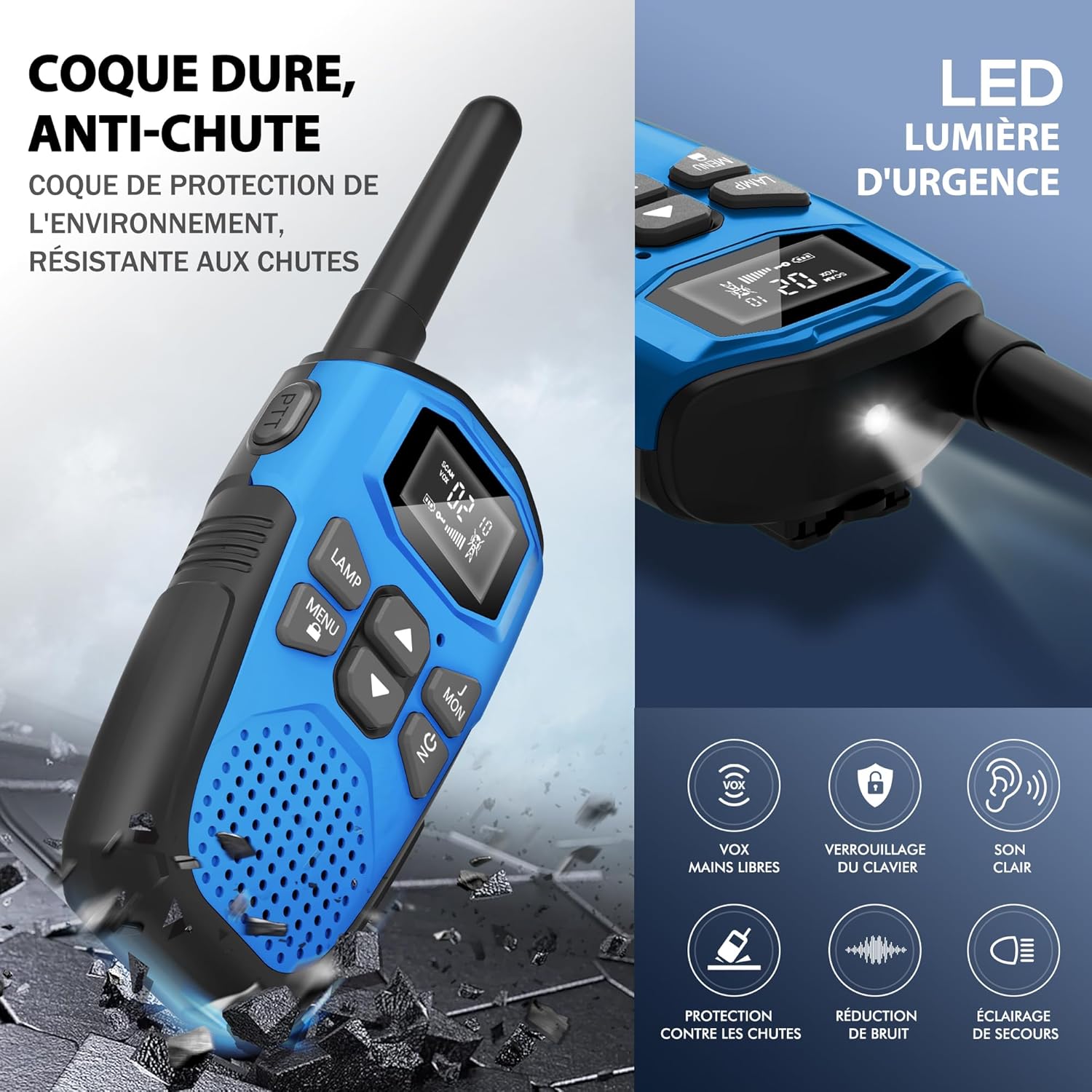

  Image: Depiction of the walkie talkie's durable, drop-resistant casing and a summary of its key features.



  Image: Dimensions and weight of the walkie talkie, highlighting its lightweight and slim design.

• Integreret LED-lommelygte: Each walkie talkie includes a built-in LED flashlight, which can serve as an emergency light source, making it suitable for outdoor adventures and nighttime exploration.
• Automatisk strømbesparelse: The devices are designed with an automatic power-saving feature to extend battery life during periods of inactivity.
• Advarsel om lavt batteri: An indicator will notify you when the battery level is low, prompting you to recharge the device.

Specifikationer

Opretholdelse

• Rensning: Brug en blød, damp klud til at rengøre walkie-talkiens yderside. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Opbevaring: Opbevar walkie-talkierne et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer, når de ikke er i brug.
• Batteripleje: To prolong battery life, avoid fully discharging the battery frequently. Recharge the devices regularly, even if not in constant use.
• Vandeksponering: These walkie talkies are not waterproof. Avoid exposing them to rain, splashes, or immersion in water.

Fejlfinding

Garanti og support

The NXGKET walkie talkies have been tested to meet CE certification standards.

Producentgaranti: A one-year warranty is provided by the manufacturer from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

Ekskluderinger: The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or exposure to water.

Kundesupport: For any questions, technical assistance, or warranty claims, please contact NXGKET customer service via the email address provided on your purchase receipt or through the retailer's support channels. Please have your model number (2AYV7YG-813) and purchase details ready when contacting support.
