THOMSON 43FG2S14 43-inch Full HD Google Smart TV

1. Introduktion

This manual provides essential information for the safe and efficient operation of your THOMSON 43FG2S14 43-inch Full HD Google Smart TV. Please read it thoroughly before using the television and retain it for future reference.

Figur 1.1: Forside view of the THOMSON 43FG2S14 TV.

Nøglefunktioner:

• Fuld HD opløsning: Experience clear and detailed images.
• Google TV: Personalized Smart TV experience with recommendations and multiple user profiles. Access content from various streaming services.
• Google Cast: Wirelessly stream movies, music, and videos from compatible devices.
• Backlit Premium Remote Control: Easy navigation even in low light, with a customizable favorite button.
• Triple Tuner (DVB-T, DVB-S, DVB-C): Receive TV signals via terrestrial antenna, satellite, or cable without additional equipment.
• Dolby Audio: Enjoy a dynamic sound experience with clear dialogue and immersive surround sound.
• Forbindelse: Multiple HDMI and USB ports, Bluetooth 5.1, Wi-Fi.

2. Opsætning

2.1 Udpakning og placering

Carefully remove the TV from its packaging. It is recommended to have two people for this process. Place the TV on a stable, flat surface or mount it on a wall using a compatible VESA mount (not included). Ensure adequate ventilation around the TV.

Figure 2.1: TV dimensions for placement planning.

2.2 Tilslutning af enheder

Connect your external devices such as set-top boxes, gaming consoles, or Blu-ray players to the TV's input ports. Refer to the diagram below for port locations.

Figur 2.2: Bagside view med tilslutningsporte.

• HDMI-porte (x3): For high-definition audio and video devices. One port supports ARC (Audio Return Channel).
• USB-porte (x2): Til tilslutning af USB-lagerenheder for at afspille medier eller til softwareopdateringer.
• LAN-port: Til kablet internetforbindelse.
• Antenneindgang: Connect your terrestrial antenna for DVB-T reception.
• Satellitindgang: Connect your satellite dish for DVB-S reception.
• CI+ slot: For inserting a Conditional Access Module (CAM) and smart card for encrypted channels.
• Lydudgang (optisk): Til tilslutning til eksterne lydsystemer.
• AV IN: Til tilslutning af ældre enheder ved hjælp af kompositvideo- og stereolydkabler.

2.3 Første opstart og førstegangsopsætning

After connecting all necessary cables, plug the power cord into an electrical outlet. Press the power button on the remote control or the TV. The TV will guide you through the initial setup process, including language selection, network connection (Wi-Fi or LAN), Google account login, and channel scanning.

3. Betjeningsvejledning

3.1 Google TV-grænseflade

Your THOMSON TV features the Google TV operating system, which organizes content from your various streaming services and apps into a personalized interface. You can create multiple user profiles for tailored recommendations.

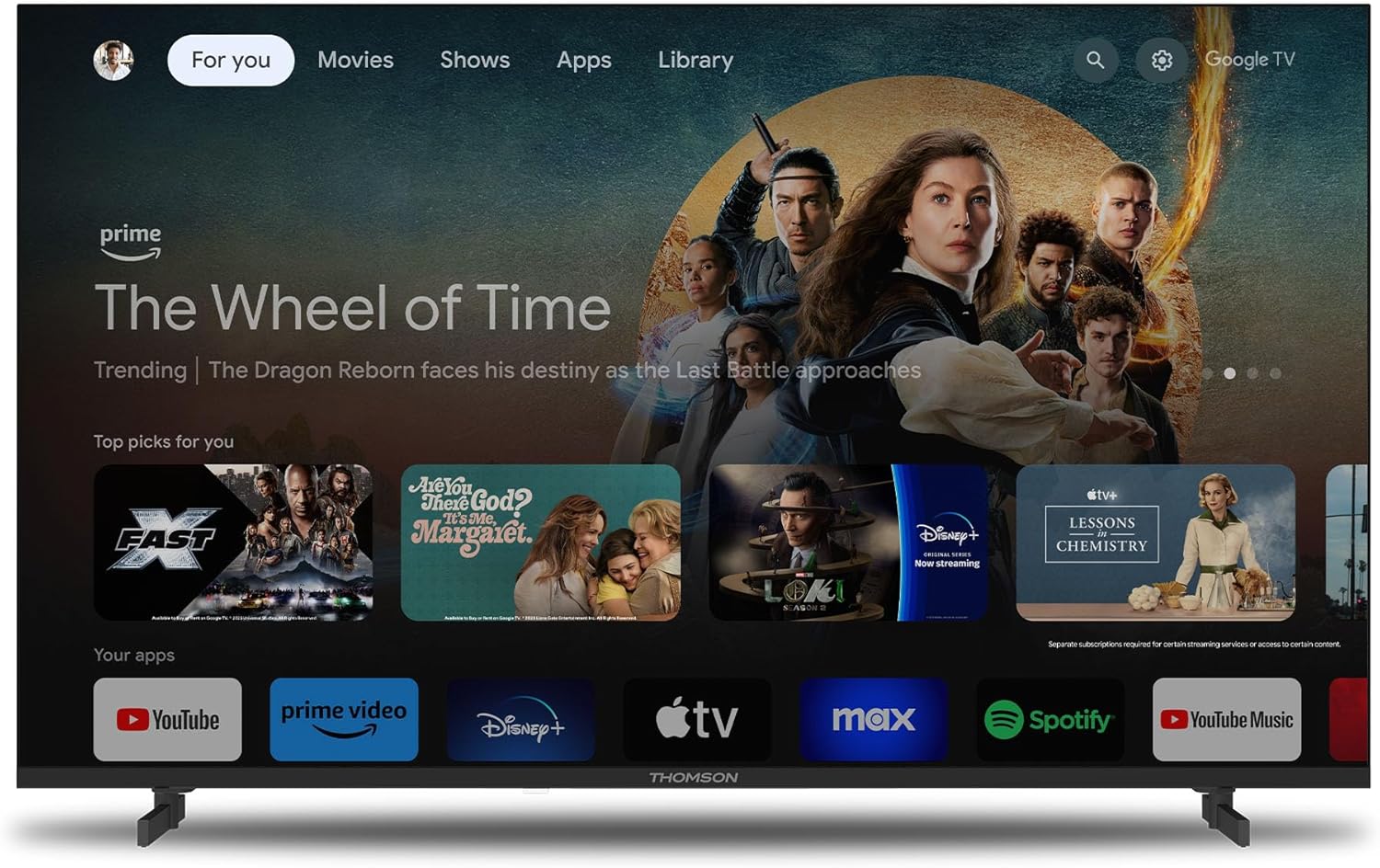

Figure 3.1: Google TV home screen.

3.2 Brug af fjernbetjening

The included remote control is backlit for easy use in dim lighting. It features dedicated buttons for popular streaming services and a customizable 'Favorite' button (star icon) to quickly access your preferred application.

3.3 Google Cast Functionality

Utilize Google Cast to wirelessly stream content from your compatible smartphone, tablet, or computer directly to your TV screen. Ensure both devices are connected to the same Wi-Fi network.

Figure 3.2: Google Cast in action.

3.4 Dolby Audio Experience

The TV integrates Dolby Audio technology to provide a rich and dynamic sound experience. This enhances dialogue clarity and creates an immersive audio environment for movies, music, and games.

Figure 3.3: Enhanced audio with Dolby Audio.

4. Vedligeholdelse

4.1 Rengøring af tv'et

Tag stikket ud af stikkontakten før rengøring. Brug en blød, tør klud til at tørre skærmen og kabinettet af. Tør let genstridige pletter afampen the cloth with water or a mild, non-abrasive screen cleaner. Never spray liquid directly onto the screen or cabinet.

4.2 Softwareopdateringer

Your TV may receive software updates periodically to improve performance and add new features. Ensure your TV is connected to the internet to receive these updates automatically or check for them manually through the TV's settings menu.

5. Fejlfinding

Hvis du støder på problemer med dit tv, bedes du læse følgende almindelige problemer og løsninger, før du kontakter support.

6. Specifikationer

Detailed technical specifications for the THOMSON 43FG2S14 TV:

• Mærke: Thomson
• Modelnummer: 43FG2S14
• Skærmstørrelse: 43 tommer (109 cm)
• Displayteknologi: LED
• Opløsning: 1080p fuld HD (1920 x 1080)
• Opdateringshastighed: 60 Hz
• Kontrastforhold: 1000:1
• Operativsystem: Google TV
• Lydteknologi: Dolby Audio, 5.1 Surround-konfiguration
• Tunere: DVB-T (Terrestrial), DVB-S (Satellite), DVB-C (Cable)
• Forbindelse:
  • 3 x HDMI ports (HDMI 1.4, one with ARC)
  • 2 x USB-porte
  • Bluetooth 5.1
  • Wi-Fi
  • LAN-port (Ethernet)
  • Optisk lydudgang
  • AV ind
  • CI+ slot
• Aspektforhold: 16:9
• Monteringstype: Wall Mountable (VESA compatible)
• Produktmål (L x B x H): 95.5 x 8.5 x 55.5 cm
• Vægt: 6 kg
• Inkluderede komponenter: Fjernbetjening

7. Garanti og support

7.1 Produktgaranti

Your THOMSON 43FG2S14 TV comes with a 3 års garanti, ensuring the quality and reliability of the product. Please retain your proof of purchase for warranty claims.

7.2 Kundesupport

For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your product packaging or visit the official Thomson support website. When contacting support, please have your model number (43FG2S14) and purchase details ready.
