1. Introduktion
Welcome to the Barnett Explorer XP370 Crossbow user manual. This guide provides essential information for the safe and effective use, maintenance, and troubleshooting of your new crossbow. The Explorer XP370 is designed for impressive power and performance, offering a compact, lightweight, and affordable solution for hunters. It features an anti-vibration foot stirrup, adjustable butt stock, and compression-molded limbs, enabling speeds up to 370 feet per second. Please read this manual thoroughly before assembly or operation.

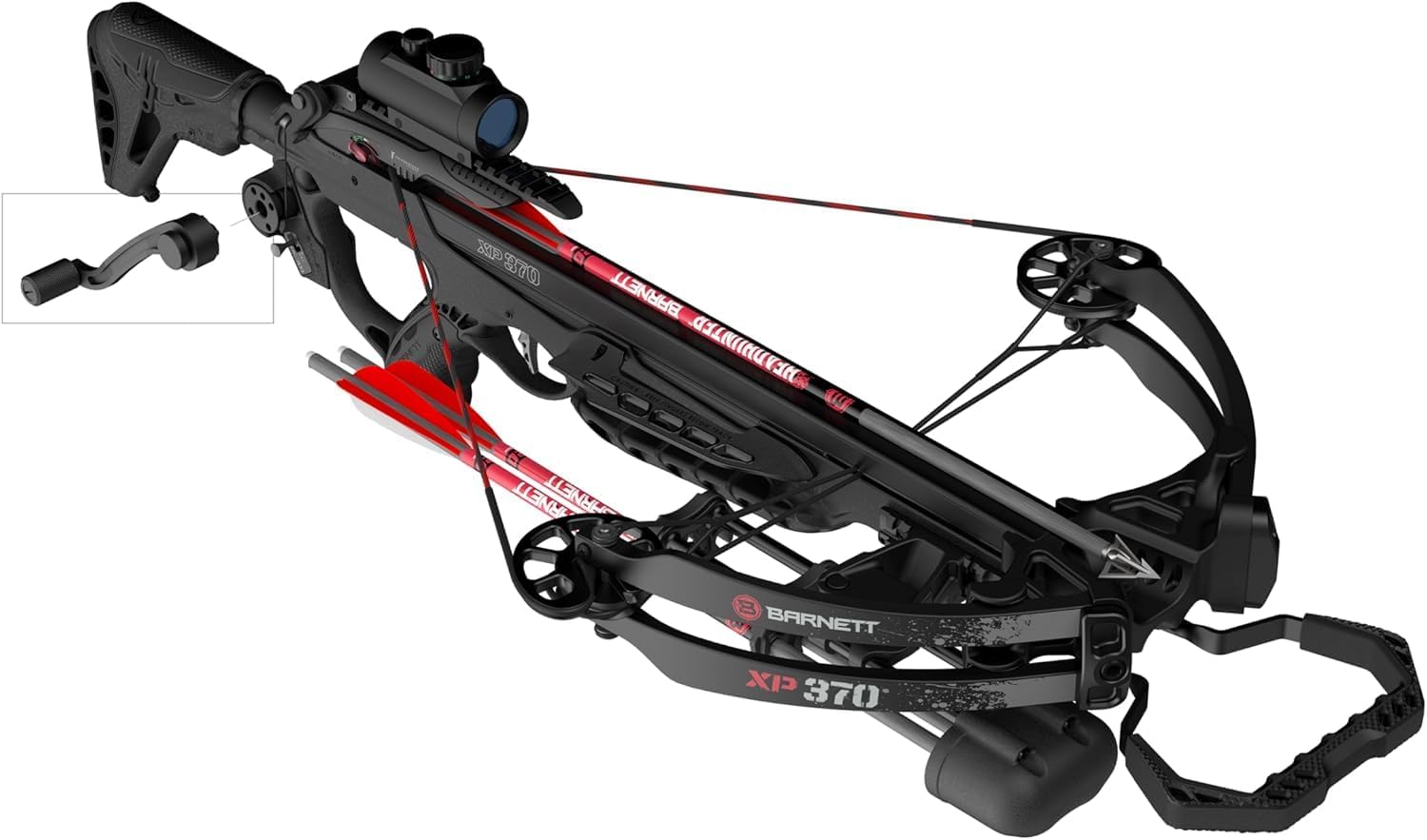

Figure 1: The Barnett Explorer XP370 Crossbow, showcasing its compact design and included components like the scope and quiver.
2. Inkluderede komponenter
Your Barnett Explorer XP370 package includes the following items:
- Explorer XP370 Crossbow
- Illuminated Red Dot Scope
- Two Headhunter Carbon Arrows (20")
- Pre-installed Crank Cocking Device (CCD)
- Lightweight Quick-Detach Quiver with Side-Mount Bracket
- Lubrication Wax
Figure 2: Visual representation of the accessories included with the Explorer XP370 crossbow package.
3. Opsætning og montering
3.1 Attaching the Quiver
Attach the lightweight quick-detach quiver to the side-mount bracket on the crossbow. Ensure it is securely fastened to hold your Headhunter bolts.
Figure 3: The side-mounted quiver securely holding arrows, ready for use.
3.2 Adjusting the Butt Stock
The Explorer XP370 features an adjustable butt stock for a comfortable and secure grip. Adjust the stock length to fit your shooting posture by pressing the adjustment button and sliding the stock to the desired position.
Figure 4: The adjustable butt stock, designed for user comfort and stability.
3.3 Foregrip and Finger Safety
Always ensure your fingers are positioned correctly on the foregrip, away from the string path. The foregrip is designed with a finger guard to prevent accidental contact with the string during firing.
Figure 5: The foregrip with integrated finger protection, crucial for safe operation.
4. Operating the Crossbow
4.1 Cocking the Crossbow
The Explorer XP370 is equipped with a pre-installed crank cocking device for easy and consistent cocking. Follow the instructions provided with the crank cocking device for safe and proper use. Ensure the crossbow is fully cocked and the safety is engaged before proceeding.
Figure 6: The 'Rope Hold' button, part of the cocking mechanism for the crossbow.
4.2 Loading Bolts
Use only Headhunter bolts (20" carbon arrows) with your Explorer XP370. Carefully place the bolt onto the rail, ensuring the nock is properly seated against the string. The anti-dry fire mechanism prevents the crossbow from firing without a bolt loaded.
4.3 Aiming and Firing
Utilize the illuminated red dot scope for precision targeting. Adjust the red dot brightness and position as needed for varying lighting conditions. Once your target is acquired and the area is clear, disengage the safety and gently squeeze the trigger to fire.
Figure 7: The ergonomic pistol grip and trigger assembly, designed for comfortable and precise shooting.
5. Vedligeholdelse
5.1 String and Cable Lubrication
Regularly apply the included lubrication wax to the crossbow string and cables to ensure smooth operation and extend their lifespan. Refer to the specific instructions for wax application.
5.2 Eftersyn
Before each use, inspect the crossbow for any signs of wear, damage, or loose components. Pay close attention to the string, cables, limbs, and rail. If any damage is found, do not use the crossbow and contact Barnett customer support.
5.3 Opbevaring
Store your crossbow in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure it is uncocked and unloaded before storage. Consider using a padded case for protection during transport and storage.
6. Fejlfinding
This section addresses common issues you might encounter with your Explorer XP370 crossbow. For problems not listed here, please contact Barnett customer support.
- Crossbow will not cock: Ensure the crank cocking device is properly engaged and operated according to its instructions. Check for any obstructions on the rail or string.
- Crossbow will not fire: Verify that a bolt is correctly loaded and seated against the string. The anti-dry fire mechanism prevents firing without a bolt. Ensure the safety is disengaged.
- Inaccurate shots: Check if the scope is securely mounted and properly sighted in. Inspect bolts for damage. Ensure proper shooting form and consistent cocking.
- Excessive string wear: Ensure regular lubrication of the string and cables. Inspect the rail for any burrs or rough spots that could cause friction.
7. Specifikationer
- Modelnavn: Explorer XP370 with CCD
- Mærke: BARNETT
- Farve: Sort
- Materiale: Metal
- Håndorientering: Ambidekstrøs
- Archery Draw Weight: 165 pund
- Archery Draw Length: 13.8 tommer
- Hastighed: Up to 370 feet per second (FPS)
- Emnedimensioner (LxBxH): 35 x 13 x 7 tommer
- Pakkevægt: 4.54 kilo
- Inkluderede komponenter: Cocking device, crossbow, headhunter bolt, quiver, scope
8. Garanti og support
8.1 Garantioplysninger
The Barnett Explorer XP370 Crossbow comes with a 5-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.
8.2 Kundesupport
For technical assistance, warranty claims, or any other inquiries, please visit the official BARNETT Store or contact their customer service department through the contact information provided on their website. You can find more information at the BARNETT Store on Amazon.
