Lifelong Electric Spin Mop LLHIESM01 Brugermanual

Indledning

This manual provides detailed instructions for the safe and efficient use of your Lifelong Electric Spin Mop LLHIESM01. Please read this manual thoroughly before operating the device and retain it for future reference.

Vigtige sikkerhedsinstruktioner

• Læs alle instruktioner før brug.
• Nedsænk ikke hovedenheden i vand.
• Keep away from children. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities.
• Brug kun det medfølgende opladningskabel og strømadapter.
• Sørg for, at opladningsporten er tør, før du tilslutter opladeren.
• Do not operate the mop if it has been damaged in any way.
• Opbevar moppen et tørt sted, når den ikke er i brug.
• Use only Lifelong approved attachments and accessories.

Produkt overview og komponenter

The Lifelong Electric Spin Mop LLHIESM01 is designed for efficient cleaning of various surfaces. Familiarize yourself with the components:

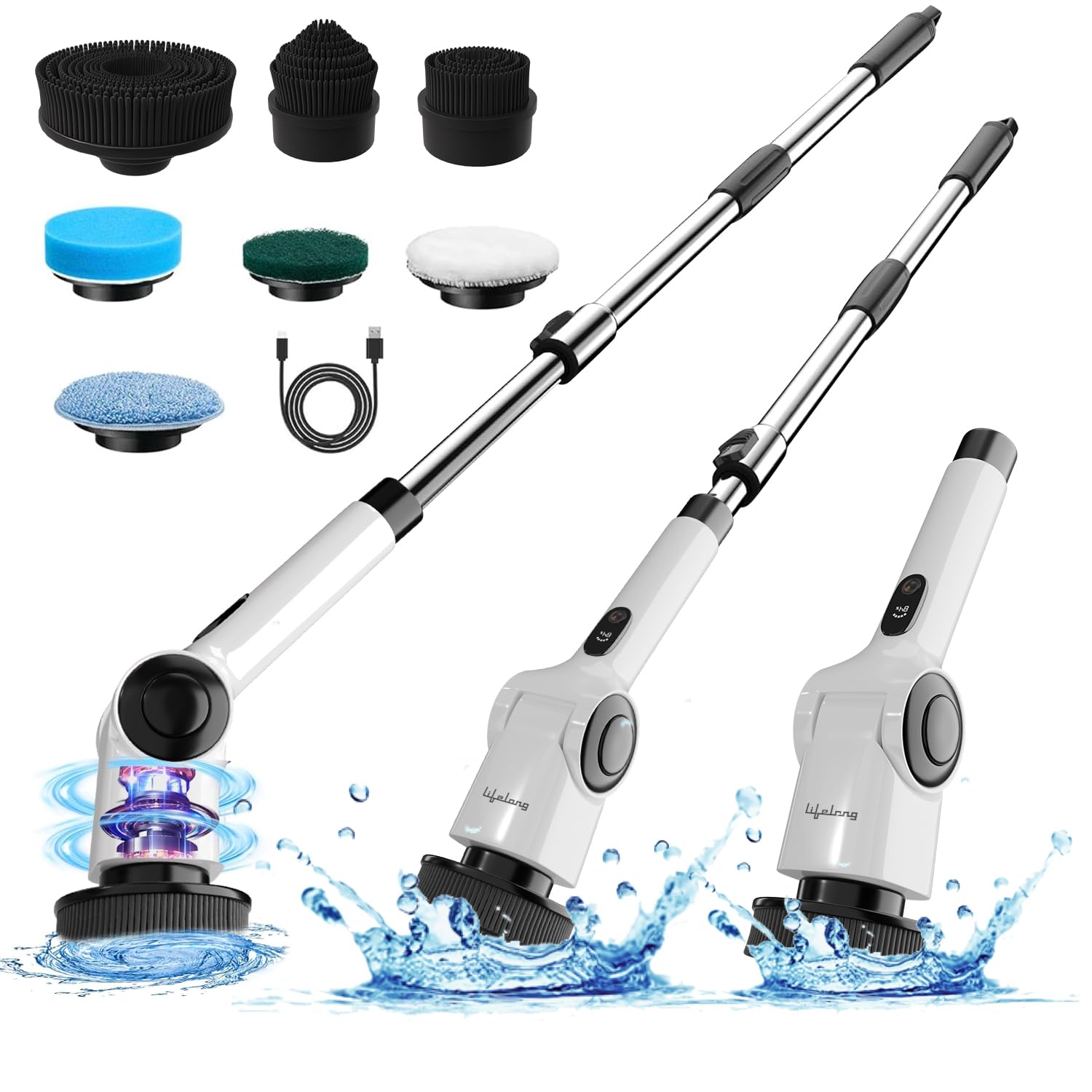

Figur 1: Lifelong Electric Spin Mop with all included accessories, including different brush heads, sponge pads, and a Type-C charging cable. The mop features an adjustable handle for extended reach.

Inkluderede komponenter:

• 1N Electric Spin Mop Main Unit
• Various Detachable Brush Heads (for tiles, grout, kitchen, windows, cars, sinks)
• Sponge Pads and Velcro Attachments
• Justerbart forlængerhåndtag
• 1N Type-C ladekabel
• 1N Brugermanual (dette dokument)
• 1N garantikort

Figur 2: A selection of detachable brush heads and pads, each designed for specific cleaning tasks such as tiles, grout, kitchen surfaces, windows, and delicate areas.

Opsætning og montering

1. Pakker ud: Fjern forsigtigt alle komponenter fra emballagen.
2. Fastgør håndtag: Connect the extension handle to the main mop unit. Ensure it clicks securely into place. The handle can be adjusted for length.
3. Vælg børstehoved: Choose the appropriate brush head or pad for your cleaning task. Align the brush head with the rotating base of the mop unit and press firmly until it locks.
4. Indledende opkrævning: Before first use, fully charge the mop. Refer to the "Charging the Device" section.

Figur 3: Detail of the adjustable handle, allowing users to extend or retract the mop for various cleaning heights and reaches.

Opladning af enheden

The Lifelong Electric Spin Mop is equipped with a Type-C charging port for convenience.

1. Locate the Type-C charging port on the mop unit.
2. Ensure the port is dry and free from debris.
3. Connect the provided Type-C charging cable to the mop and the other end to a suitable USB power adapter (not included) or a powered USB port.
4. LED-displayet viser opladningsstatus. En fuld opladning tager typisk 3-4 timer.
5. Når det er fuldt opladet, skal du frakoble kablet.

Figur 4: The mop's handle displaying the LED battery indicator, showing the current charge level and indicating when charging is complete.

Figur 5: The Type-C charging cable, used to recharge the mop's internal battery.

Operating the Electric Spin Mop

Tænd/sluk og hastighedsindstillinger:

1. Press the power button to turn the mop on. The LED display will illuminate.
2. Press the power button repeatedly to cycle through the 3-speed modes (2600 RPM, 3600 RPM, 4200 RPM). Select the appropriate speed for your cleaning task.
3. To turn off the mop, press and hold the power button until the unit powers down.

Figur 6: The control panel with the power button and LED display, used to activate the mop and select speed settings.

Justering af håndtaget:

The mop features an adjustable handle for versatile cleaning.

• Compact Mode (11 inches): Ideal for sinks, countertops, and tight spaces.
• Standard Reach (42 inches): Suitable for daily floor cleaning.
• Extended Reach (52 inches): For ceilings, high windows, and hard-to-reach areas.

To adjust the handle length, unlock the mechanism on the handle, extend or retract to the desired length, and then lock it securely.

Figur 7: Visual representation of the mop's adjustable handle in three different lengths: compact for small areas, standard for floors, and extended for high surfaces.

Rengøringstips:

• For best results, pre-treat heavily soiled areas.
• Use appropriate cleaning solutions for your surface type.
• Move the mop slowly over the surface, allowing the rotating brush to do the work.
• Change brush heads as needed for different tasks to prevent cross-contamination or damage to surfaces.

Vedligeholdelse og pleje

Rengøringsbørstehoveder:

• After each use, detach the brush head from the mop unit.
• Rinse the brush head under running water to remove dirt and debris.
• For stubborn grime, use a mild soap and water solution.
• Allow brush heads to air dry completely before storing or reattaching.

Cleaning the Mop Unit:

• Wipe the main mop unit and handle with a damp klæde. Nedsænk ikke hovedenheden i vand.
• Ensure the charging port is clean and dry.

Opbevaring:

Store the mop and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures.

Fejlfinding

Specifikationer

• Model: LLHIESM01
• Mærke: Livslang
• Strømkilde: Batteridrevet
• Batterikapacitet: 2500 mAh (Up to 90 minutes run time)
• Opladningstid: 3-4 hours (Type-C charging)
• Hastighedstilstande: 3 (2600 RPM, 3600 RPM, 4200 RPM)
• Justerbare håndtagslængder: 11 inches (Compact), 42 inches (Standard), 52 inches (Extended)
• Varens vægt: 1200 gram (1.2 kg)
• Produktdimensioner: 20.8D x 6.3W x 12.7H Centimeters (Main Unit)
• Speciel funktion: Portable, LED Display, 120° Bendable Head, IPX7 Rated Waterproof
• Overfladeanbefaling: Floor, Tiles, Grout, Kitchen, Bathroom, Windows, Cars, Furniture
• Oprindelsesland: Kina

Garanti og support

Your Lifelong Electric Spin Mop LLHIESM01 comes with a warranty. Please refer to the included Warranty Card for specific terms and conditions.

For technical support, service, or to inquire about replacement parts, please contact Lifelong customer care:

• Telefon: +91 9711558877
• E-mail: customercare@lifelongonline.com
• Producentens/importørens adresse: 5. sal, enhed nr. 508, DLF South Court, Saket District Center, Saket New Delhi, Indien - 110017
