1. Introduktion
This manual provides essential information for the safe and efficient operation of your Pretul DESI-36P2 3.6V Cordless Screwdriver. Please read it thoroughly before first use and keep it for future reference. This compact cordless screwdriver is designed for light-duty fastening tasks, featuring a two-position handle and an integrated LED work light.
Figur 1: Pretul DESI-36P2 Cordless Screwdriver. This image shows the screwdriver in its straight configuration, highlighting its compact design and yellow and black color scheme.
2. Sikkerhedsoplysninger
Overhold altid grundlæggende sikkerhedsforanstaltninger ved brug af elektrisk værktøj for at reducere risikoen for brand, elektrisk stød og personskade.
- Sikkerhed på arbejdsområdet: Hold dit arbejdsområde rent og godt oplyst. Rodede eller mørke områder inviterer til ulykker.
- Elektrisk sikkerhed: Udsæt ikke elværktøj for regn eller våde forhold. Vand, der trænger ind i et elværktøj, øger risikoen for elektrisk stød.
- Personlig sikkerhed: Vær opmærksom, hold øje med, hvad du laver, og brug din sunde fornuft, når du betjener et elværktøj. Brug ikke elværktøj, mens du er træt eller påvirket af stoffer, alkohol eller medicin.
- Brug og pleje af værktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din applikation. Det vil gøre arbejdet bedre og mere sikkert til den hastighed, som det er designet til.
- Batteripleje: Genoplad kun med den oplader, der er specificeret af producenten. En oplader, der er egnet til én type batteripakke, kan skabe en brandrisiko, når den bruges sammen med en anden batteripakke.
3. Produktkomponenter og funktioner
Familiarize yourself with the parts of your Pretul DESI-36P2 cordless screwdriver.

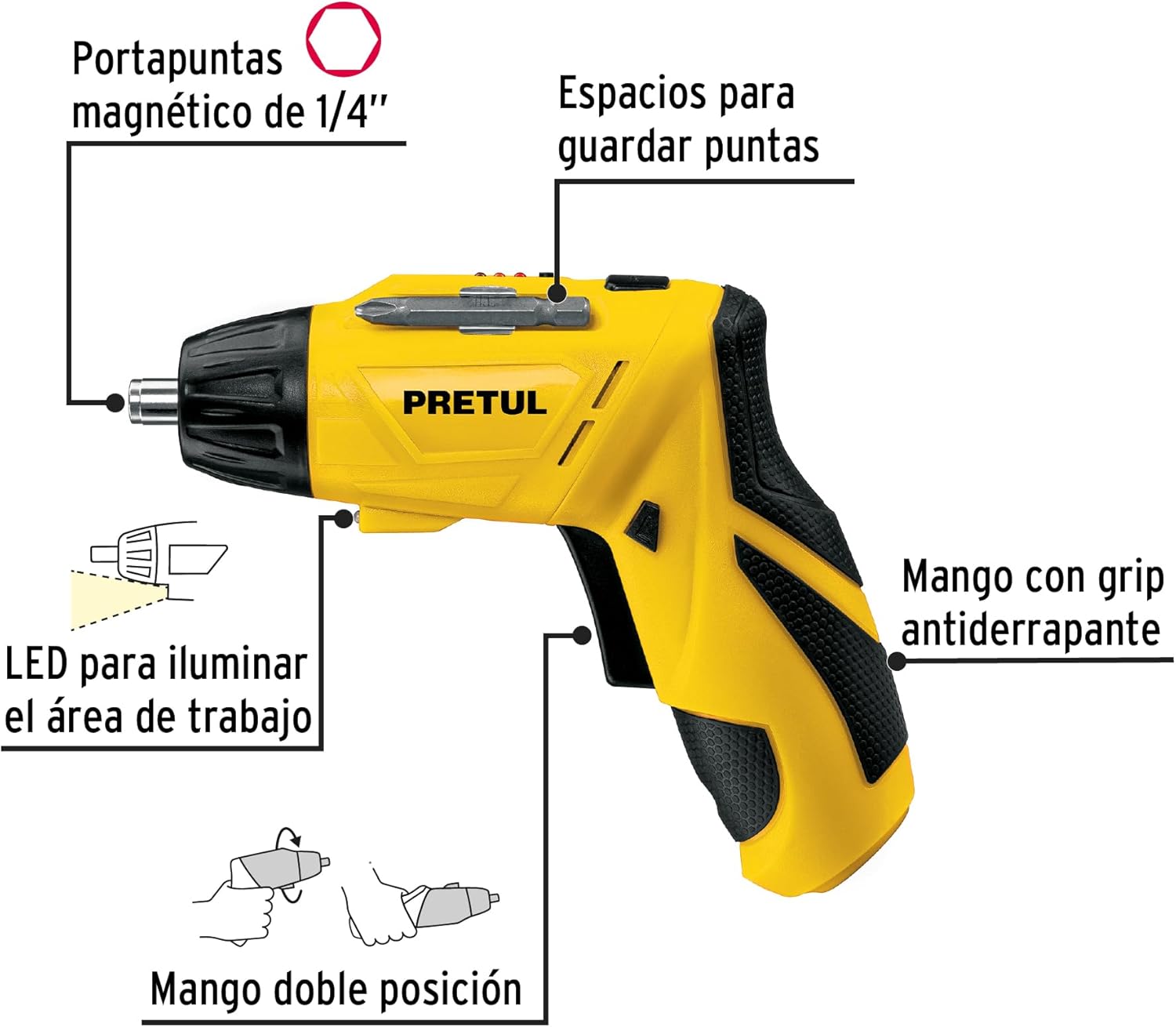

Figur 2: Key features of the Pretul DESI-36P2. This diagram illustrates the magnetic 1/4" bit holder, bit storage slots, anti-slip grip handle, LED work light, and the two-position handle mechanism.
- Magnetic 1/4" Hex Bit Holder: Securely holds screwdriver bits for quick changes.
- Bit Storage Slots: Conveniently located on the tool for storing extra bits.
- Anti-slip Grip Handle: Giver komfortabel og sikker håndtering under drift.
- LED arbejdslys: Illuminates the work area for improved visibility in dimly lit spaces.
- Two-Position Handle: Allows the screwdriver to be used in a straight or pistol-grip configuration for versatility and access in tight spaces.
- Frem/Baglæns kontakt: Controls the direction of rotation for tightening and loosening screws.
- Power knap: Activates the screwdriver.
4. Opsætning
4.1 Indledende opladning
Before first use, fully charge the screwdriver's internal battery. Connect the charger to a standard electrical outlet and then to the charging port on the screwdriver. The charging indicator (if present) will show the charging status. Disconnect the charger once the battery is fully charged.
4.2 Attaching Screwdriver Bits
- Select the appropriate 1/4" hex screwdriver bit for your task.
- Insert the bit firmly into the magnetic bit holder at the front of the screwdriver until it is securely seated.
- To remove a bit, simply pull it out from the holder.
4.3 Adjusting Handle Position
The screwdriver features a two-position handle for enhanced versatility:
- Pistol Grip: Standard configuration for most tasks.
- Straight Grip: For reaching into confined spaces. To change the handle position, firmly grasp the handle and the body of the screwdriver, then pivot the handle until it locks into the desired position.
5. Betjeningsvejledning
5.1 Tænd/sluk
Press and hold the power button to activate the screwdriver. Release the button to stop operation. The LED work light will activate when the power button is pressed.
5.2 Selecting Rotation Direction
Use the forward/reverse switch, typically located near the trigger, to select the desired rotation direction:
- Push the switch to the left for forward rotation (tightening screws).
- Push the switch to the right for reverse rotation (loosening screws).
- Ensure the switch is in the center position to lock the tool and prevent accidental activation.
5.3 fastgørelsesskruer
- Ensure the correct bit is installed and the rotation direction is set to forward.
- Place the bit onto the screw head, applying gentle pressure.
- Press the power button to start driving the screw. Release the button once the screw is fully seated or the desired torque is reached.
5.4 Løsning af skruer
- Ensure the correct bit is installed and the rotation direction is set to reverse.
- Place the bit onto the screw head, applying gentle pressure.
- Press the power button to start loosening the screw. Release the button once the screw is free.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden på dit værktøj.
- Rensning: Hold værktøjets ventilationsåbninger rene og fri for snavs. Brug en blød, tøramp klud til at rengøre ydersiden. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
- Bitsholder: Periodically inspect the bit holder for wear or damage. Clean any accumulated dust or metal shavings.
- Batteriopbevaring: Store the screwdriver in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, ensure the battery is partially charged (around 50%).
- Inspektion: Regularly check for loose screws, damaged cords (if applicable), or any other conditions that may affect safe operation.
7. Fejlfinding
Hvis du støder på problemer med din skruetrækker, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Skruetrækkeren tænder ikke. | Batteriet er afladet. | Oplad batteriet helt. |
| Screwdriver lacks power. | Batteriet er lavt. | Genoplad batteriet. |
| Bit slips from screw head. | Forkert borestørrelse eller slidt bor. | Brug den korrekte borestørrelse; udskift slidte bor. |
| Handle does not lock into position. | Not fully pivoted. | Ensure the handle is fully pivoted until it clicks into place. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, skal du kontakte kundesupport.
8. Specifikationer
Technical specifications for the Pretul DESI-36P2 Cordless Screwdriver.
Figur 3: Dimensions of the Pretul DESI-36P2. This image shows the screwdriver with measurements indicating a length of 17.5 cm and a height of 13 cm.
| Feature | Specifikation |
|---|---|
| Modelnummer | DESI-36P2 (26402) |
| Mærke | pris |
| Strømkilde | Batteri |
| Batteri Voltage | 3.6 volt |
| Hastighed | 230 RPM |
| Moment | 3E+1 Pound-inches (approximately 30 in-lbs) |
| Bit Holder | 1/4" Hex Magnetic |
| Materiale | Plast, Metal |
| Dimensioner (L x H) | 17.5 cm x 13 cm (approximate, based on image) |
| Vægt | 530 g (0.53 kg) |
| Inkluderede komponenter | 5 Phillips bits 1" (PH1, PH2, PH3), Charger, 2 Phillips bits 2" (PH1, PH2), 1/4" Magnetic extension |
9. Garanti og support
The Pretul DESI-36P2 Cordless Screwdriver comes with a 1 års garanti fra købsdatoen. Gem venligst din købsbevis i tilfælde af garantikrav.
Figur 4: Product packaging showing the included components and a "1 year warranty" seal.
For technical support, service, or warranty inquiries, please contact Pretul customer service through their official channels or the retailer where the product was purchased.
