BPXX Bluetooth termisk forsendelsesetiketprinter D463B brugermanual

1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your BPXX Bluetooth Thermal Shipping Label Printer, Model D463B. This printer is designed for efficient and clear printing of various thermal labels, including 4x6 inch shipping labels, with a resolution of 203 DPI. It supports both Bluetooth connectivity via the 'Ezlabel' mobile application and USB connection to computers.

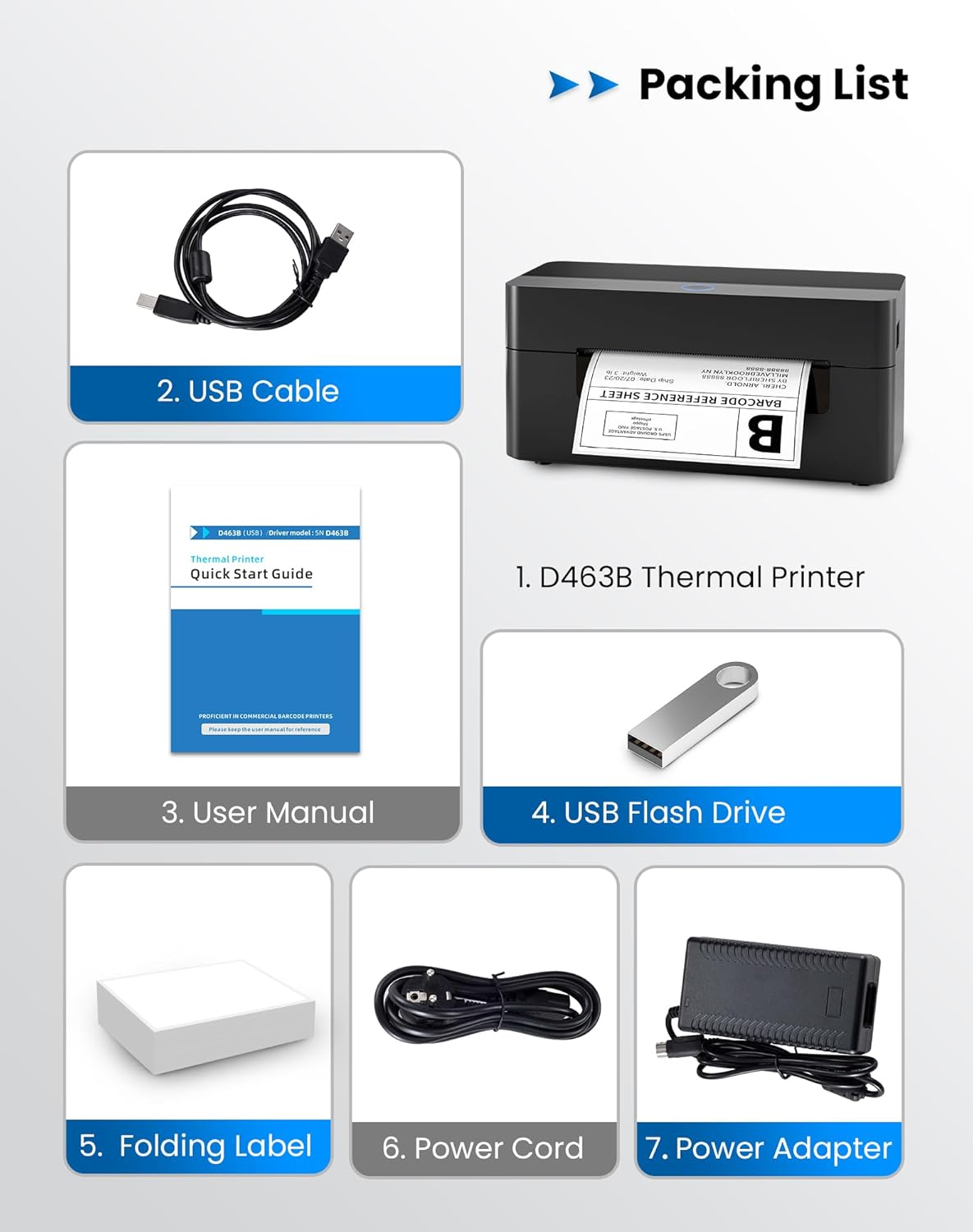

2. Pakkeliste

Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke:

• 1 x BPXX D463B Thermal Printer
• 1 x USB-kabel
• 1 x brugermanual
• 1 x USB Flash Drive (containing drivers)
• 1 x Folding Label (sample roll)
• 1 x strømkabel
• 1 x strømadapter

3. Opsætningsvejledning

3.1 Hardwareforbindelse

1. Connect the power adapter to the printer's power port and plug the power cord into an electrical outlet.
2. Open the printer cover and load the thermal labels. Ensure the labels are facing the correct direction for printing and are properly aligned within the guide rails.
3. Luk printerdækslet forsvarligt.

3.2 Installation af software og drivere

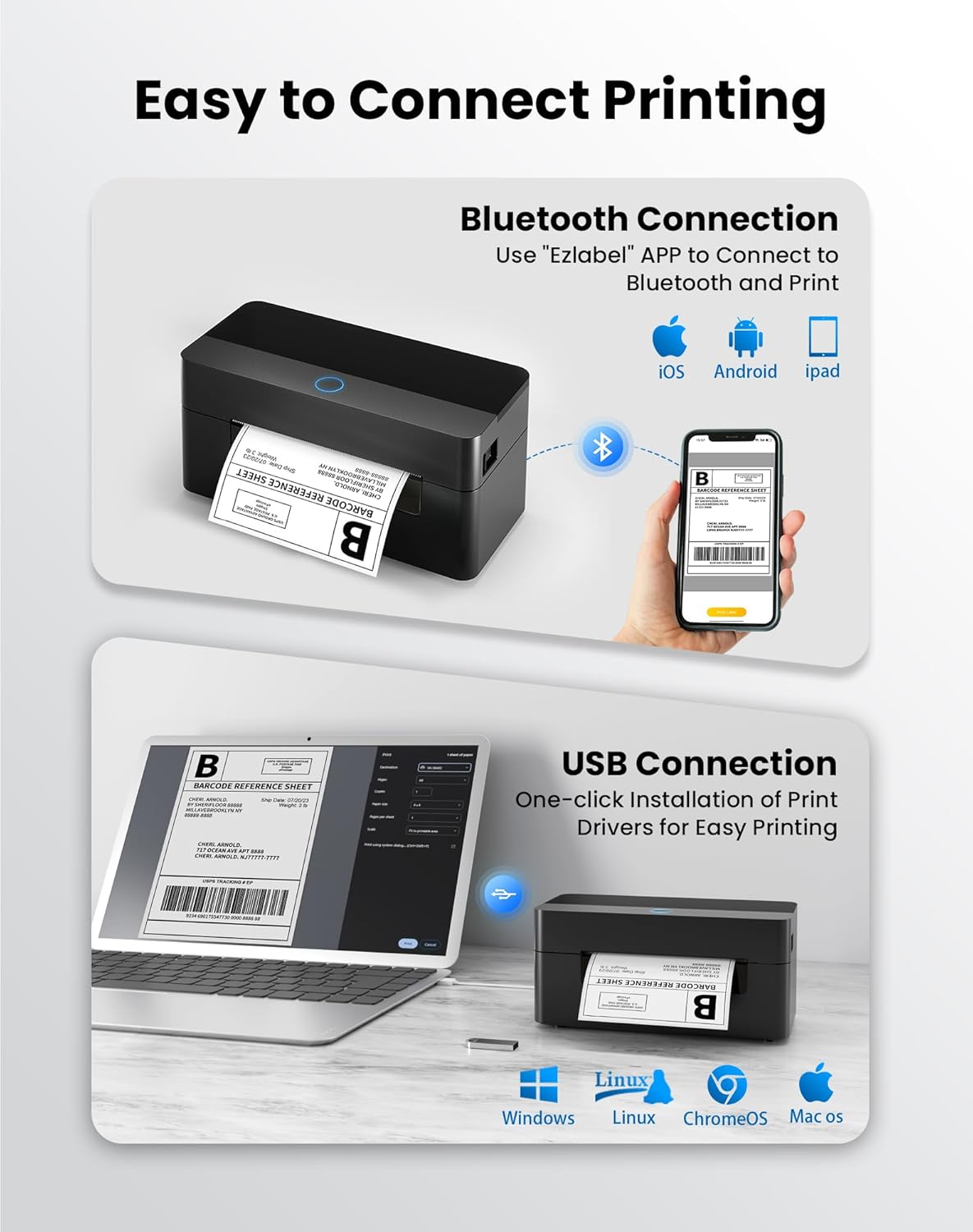

3.2.1 Mobile App (Bluetooth Connection)

For mobile printing, download the 'Ezlabel' application from your device's app store (available for iOS and Android).

1. Søg efter 'Ezlabel' in the App Store (iOS) or Google Play Store (Android).
2. Download og installer applikationen.
3. Aktiver Bluetooth på din mobilenhed.
4. Open the 'Ezlabel' app and follow the in-app instructions to connect to your BPXX D463B printer via Bluetooth.

3.2.2 Computer Driver (USB Connection)

For computer printing, install the appropriate drivers for your operating system (Windows, Mac OS, Linux, ChromeOS). Drivers are provided on the included USB flash drive or can be downloaded from the official webwebsted.

• Insert the provided USB flash drive into your computer.
• Locate and run the installer for your operating system.
• Følg vejledningen på skærmen for at fuldføre driverinstallationen.
• Alternatively, download drivers from: BPXX Driver Download

4. Betjeningsvejledning

4.1 Ilægning af etiketter

Ensure the thermal labels are loaded correctly for optimal printing. The printer supports thermal labels with widths ranging from 1 to 4.5 inches, including standard 4x6 inch shipping labels.

1. Åbn printerens topdæksel.
2. Place the roll of thermal labels into the label compartment, ensuring the printable side faces upwards.
3. Feed the first label through the printer's output slot until it is slightly extended.
4. Juster etiketstyrene, så de passer perfekt til bredden på dine etiketter, uden at være for stramme.
5. Close the top cover. The printer will automatically detect the label size and calibrate.

4.2 Printing via Bluetooth (Mobile App)

1. Ensure the printer is powered on and connected to the 'Ezlabel' app via Bluetooth.
2. Open the 'Ezlabel' app on your mobile device.
3. Select or create your desired label design. The app includes preset templates for various label sizes.
4. Confirm print settings such as label size and quantity.
5. Initiate the print command from the app.

4.3 Printing via USB (Computer)

1. Slut printeren til din computer ved hjælp af det medfølgende USB-kabel.
2. Ensure the printer drivers are correctly installed.
3. Open the document or application from which you wish to print (e.g., a PDF viewer, shipping software).
4. Select the BPXX D463B printer from your printer options.
5. Adjust print settings as needed (e.g., paper size to 4x6 inches for shipping labels).
6. Send the print command.

4.4 Supported Platforms and Print Quality

The BPXX D463B printer is compatible with major shipping carriers and e-commerce platforms, facilitating the printing of shipping labels, return labels, and postage labels.

• Shipping Carriers: FedEx, UPS, USPS, DHL, EasyPost, etc.
• E-commerce Platforms: Amazon, Shopify, Etsy, eBay, Walmart, etc.

The printer utilizes a high-quality thermal print head and advanced algorithms to deliver clear and sharp barcodes and text at 203 DPI resolution. It achieves a high-speed output of 152mm/s, capable of printing approximately 72 4x6 inch shipping labels per minute.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger printerens levetid.

• Rengøring af printhovedet: Use an alcohol swab or a specialized thermal printer cleaning pen to gently wipe the print head. Ensure the printer is off and cooled down before cleaning.
• Rengøring af ydersiden: Tør printerens yderside af med en blød, tør klud.amp klæde. Undgå at bruge skrappe kemikalier eller slibende materialer.
• Fjernelse af støv: Periodically use compressed air to clear any dust or paper debris from inside the label compartment.

6. Fejlfinding

If you encounter issues with your BPXX D463B printer, refer to the following common problems and solutions:

• Printeren svarer ikke:
  • Ensure the power cord is securely connected and the printer is turned on.
  • For Bluetooth connection, verify that Bluetooth is enabled on your device and the printer is paired within the 'Ezlabel' app.
  • For USB connection, check the USB cable connection and ensure drivers are correctly installed. Try a different USB port or cable.
• Poor Print Quality (Faint/Streaky Prints):
  • Rengør printhovedet som beskrevet i afsnittet Vedligeholdelse.
  • Sørg for at bruge termiske etiketter af høj kvalitet.
  • Check print density settings in the 'Ezlabel' app or printer preferences on your computer.
• Etiketter fremføres ikke korrekt:
  • Verify that labels are loaded correctly and aligned with the guide rails.
  • Sørg for, at der ikke er nogen forhindringer i etiketbanen.
  • Perform a label calibration from the printer settings or app if available.
• Printer Offline Error:
  • Genstart både printeren og din computer/mobilenhed.
  • Re-establish the Bluetooth or USB connection.
  • Check printer status in your operating system's printer settings.

7. Produktspecifikationer

8. Garanti og support

The BPXX D463B Thermal Shipping Label Printer comes with a limited warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or contact BPXX customer support.

For technical assistance, troubleshooting, or any inquiries regarding your product, please contact BPXX customer support through the official webwebstedet eller kontaktoplysningerne på din produktemballage.
