Indledning
Thank you for choosing the CHEREEKI Wireless Gamepad for PS-4. This controller is designed to enhance your gaming experience on PS-4, PS4 Slim, and PS4 Pro consoles, offering precise control, immersive feedback, and comfortable design. This manual provides detailed instructions on setting up, operating, maintaining, and troubleshooting your new gamepad.
Image: The CHEREEKI Wireless Gamepad in white, showcasindens ergonomiske design.
Produkt overview
Familiarize yourself with the various components and buttons of your CHEREEKI Wireless Gamepad.

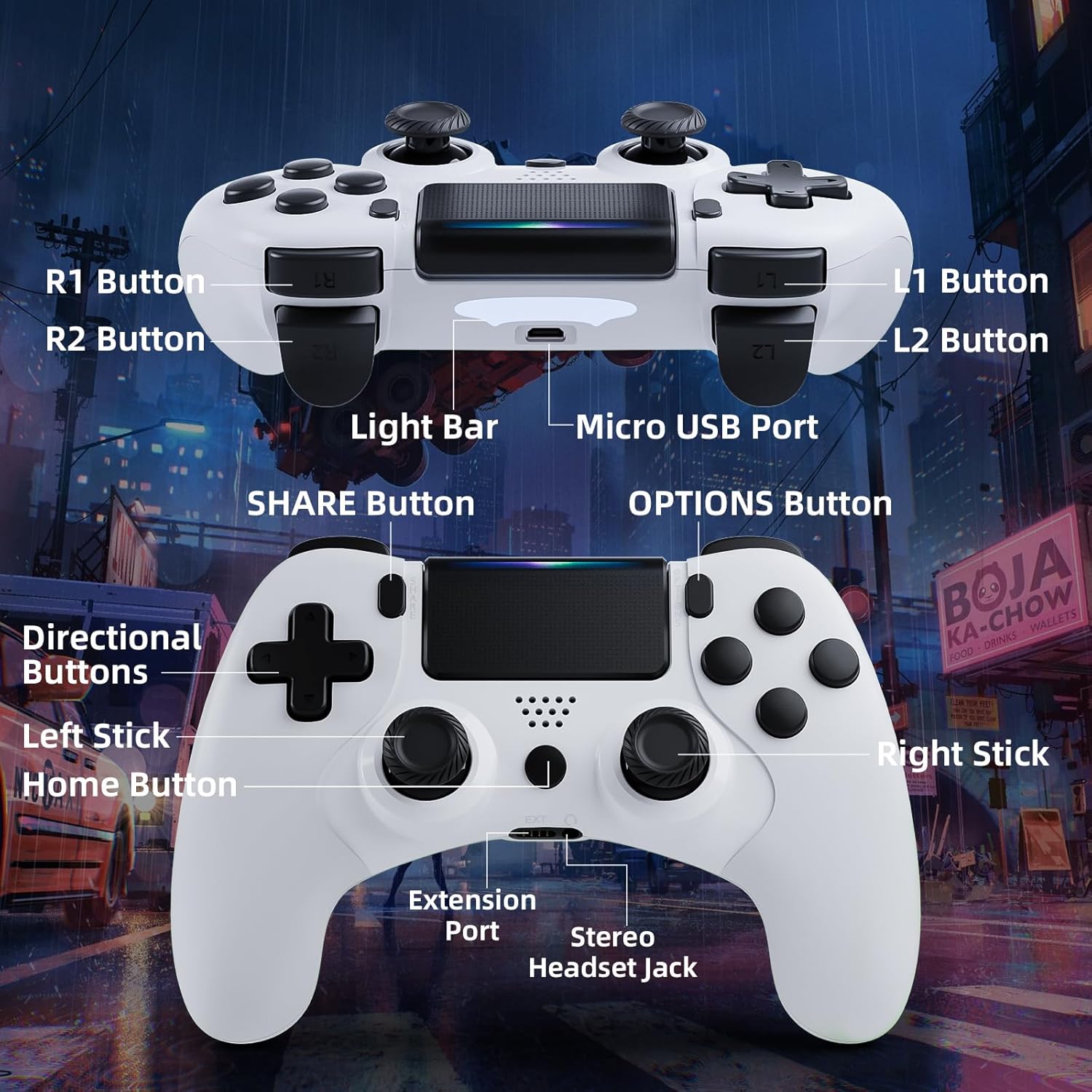

Image: Detailed diagram of the CHEREEKI Wireless Gamepad, highlighting its various buttons and ports for easy identification.
Controllerkomponenter:
- R1 Button: Højre skulderknap.
- R2 Button: Højre udløserknap.
- L1 Button: Knap til venstre skulder.
- L2 Button: Venstre udløserknap.
- Lysbjælke: Indicates controller status and player number.
- Micro USB -port: For charging and initial wired connection.
- DEL-knap: For sharing gameplay videos and screenshots.
- INDSTILLINGER-knap: Access in-game menus and options.
- Retningsknapper (D-Pad): Til retningsbestemt input.
- Venstre stok: Analog stick for movement.
- Hjemknappen: PS button, for turning on/off the console and accessing the PS menu.
- Højre pind: Analog stick for camera control or aiming.
- Udvidelsesport: For compatible accessories.
- Stereoheadset-stik: Til tilslutning af et headset.
Opsætning
1. Initial Connection and Pairing
The controller must be connected via USB cable for the first time to pair with your PS-4 console. This establishes the connection for future wireless use.
- Ensure your PS-4 console is powered on.
- Connect the Micro USB cable to the controller's Micro USB Port and the other end to a USB port on your PS-4 console.
- Tryk på Hjem-knap (PS button) on the controller. The light bar will flash and then glow steadily, indicating successful pairing.
- Once paired, you can disconnect the USB cable to use the controller wirelessly.
2. Opladning af gamepad'en
The CHEREEKI Wireless Gamepad features a built-in 600 mAh rechargeable battery.
- Connect the controller to your PS-4 console or a standard USB charger using the Micro USB cable.
- The light bar will slowly pulse orange while charging.
- Opladning tager typisk 2-3 timer for en fuld opladning.
- Once fully charged, the light bar will turn off.
Image: Illustration showing the controller's charging time of 2 hours and play time of 7 hours on a full charge.
3. Kompatibilitet
This controller is compatible with PS-4, PS4 Slim, and PS4 Pro consoles.
Image: Visual representation of the controller's wide compatibility with PS4, PS4 Slim, and PS4 Pro consoles.
Betjeningsvejledning
1. Grundlæggende kontroller
The gamepad features standard PS-4 button layouts for intuitive gameplay.
- Analoge pinde: Use the Left Stick for character movement and the Right Stick for camera control or aiming.
- Retningsknapper (D-Pad): For precise directional input in menus or specific game actions.
- Handlingsknapper (Trekant, Cirkel, Kryds, Firkant): Perform in-game actions as defined by the game.
- Shoulder and Trigger Buttons (L1, L2, R1, R2): Used for various actions like shooting, aiming, or interacting.
2. Motion Sensor (Gyro) Control
The built-in 6-axis motion sensor allows for intuitive control by tilting and rotating the controller.
- In supported games, you can use motion control for actions like steering, aiming, or adjusting viewing vinkler.
- Experiment with tilting the controller to achieve faster turns, adjust viewing angles, or aim more accurately.
Image: Illustration demonstrating the Gyro Motion Control feature, allowing for faster turning, viewing angle adjustment, and accurate aiming.
3. Double Vibration Feedback
Experience immersive gameplay with the dual motor vibration feature, providing tactile feedback for in-game events.
- The controller will vibrate to simulate impacts, explosions, and other in-game sensations.
- Vibration intensity may vary based on game design.
Image: Illustration of the Double Motor Vibration feature, showing the internal motors that provide immersive haptic feedback during gameplay.
4. Touchpad Functionality
The integrated touchpad allows for new ways to interact with games and navigate menus.
- Tap, swipe, or click the touchpad as required by specific games or system functions.
5. DEL-knap
The SHARE button allows you to easily share your gameplay moments.
- Tryk på DEL -knap to access the Share menu, where you can upload screenshots or video clips to social media, or start a broadcast.
6. Stereo Headset Jack
Connect your compatible 3.5mm headset to the Stereo Headset Jack for in-game audio and voice chat.
- Plug your headset into the port located at the bottom of the controller.
- Adjust audio settings via the PS-4 system menu.
7. Ergonomisk design
The controller is designed for comfort during extended gaming sessions.
Image: Depiction of the controller's ergonomic design, showing how it comfortably fits the shape of the hand for prolonged use.
Opretholdelse
Proper care will extend the life of your CHEREEKI Wireless Gamepad.
- Rensning: Brug en blød, tør klud til at tørre controlleren af. Ved genstridigt snavs, tør letampRengør kluden med vand. Undgå skrappe kemikalier eller slibende rengøringsmidler.
- Opbevaring: Opbevar controlleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Batteripleje: To maintain battery health, avoid fully discharging the controller frequently. If storing for a long period, charge the battery to about 50% every few months.
- Håndtering: Avoid dropping the controller or exposing it to excessive force, which can damage internal components.
Fejlfinding
If you encounter issues with your gamepad, refer to the following common problems and solutions.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Controller does not connect wirelessly or connection is unstable. | Not properly paired; too far from console; interference. |
|
| Controller does not charge or holds charge for a short time. | Faulty cable; power source issue; battery degradation. |
|
| Knapperne reagerer ikke eller er klistrede. | Debris under buttons; physical damage. |
|
| Ingen vibrationsfeedback. | Vibration disabled in game/system settings; game does not support vibration. |
|
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | STK-4006L |
| Kompatibilitet | PS-4, PS4 Slim, PS4 Pro |
| Forbindelse | Wireless (Bluetooth), Wired (Micro USB) |
| Wireless Range | Op til 8 meter |
| Batteritype | Indbygget litium-ion-batteri |
| Batterikapacitet | 600 mAh |
| Opladningstid | Ca. 2-3 timer |
| Spilletid | Op til 7 timer |
| Dimensioner (L x B x H) | 17.4 x 13 x 7.6 cm (ca. 6.85 x 5.12 x 2.99 tommer) |
| Vægt | 210 gram (ca. 0.46 lbs) |
| Sensorer | 6-axis motion sensor (gyroscope, accelerometer) |
| Vibration | Dual motor vibration |
| Input/Output | Touchpad, Stereo Headset Jack, Extension Port |
Garanti og support
For warranty information, please refer to the documentation included with your purchase or visit the official CHEREEKI webGarantibetingelserne kan variere afhængigt af region og forhandler.
If you require technical support or have questions not covered in this manual, please contact the seller or CHEREEKI customer service through their official channels. Provide your model number (STK-4006L) and a detailed description of your issue for faster assistance.
