Indledning
The Jimmy WB63 Mattress Vacuum Cleaner is designed for deep cleaning mattresses, sofas, and rugs, targeting dust mites, allergens, and fine particles. It combines powerful suction with advanced sterilization technologies to promote a healthier home environment.
Image: The Jimmy WB63 Mattress Vacuum Cleaner, showcasing its compact design and dust collection bin.
Produktegenskaber
- Kraftig 420W motor: Delivers 15Kpa suction for effective deep cleaning.
- UV-C-sterilisering: Equipped with a UV-C light to help eliminate dust mites and bacteria.
- Dual Cyclone Filtration: Patented system designed to maintain strong suction and reduce clogging.
- Intelligent Dust Detection: Features an LED display with a dust sensor for real-time monitoring of cleaning status.
- Varmlufttørring: Heating technology helps eliminate moisture, preventing mite growth.
- Nem vedligeholdelse: Removable dust cup and filters for simple cleaning and upkeep.

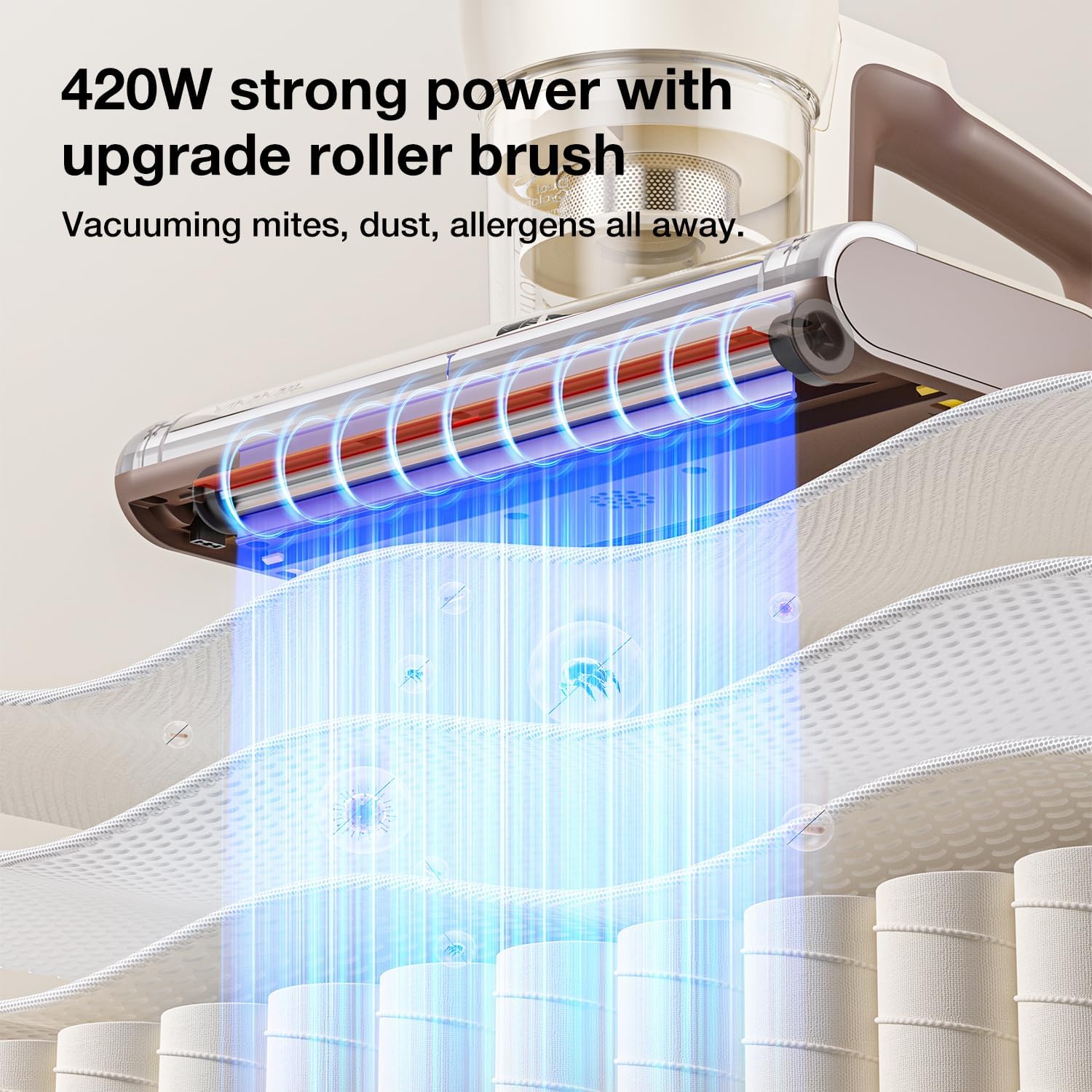

Billede: Overview of key features including strong power, UV light, dual cyclonic filtration, smart dust sensor, and hot wind technology.
Opsætning og montering
The Jimmy WB63 is designed for straightforward setup. Ensure all packaging materials are removed before first use.
- Udpak komponenter: Carefully remove the vacuum cleaner, power cord, and any accessories from the packaging.
- Undersøg for skader: Check all parts for any signs of damage. Do not use the appliance if it is damaged.
- Fastgør støvkop: Ensure the dust cup is securely attached to the main unit. It typically locks into place with a twist or click mechanism.
- Indsæt filter: Verify that the HEPA filter is correctly inserted into the dust cup assembly.
- Tilslut strøm: Plug the power cord into a suitable electrical outlet. The appliance is corded and requires continuous power during operation.
Image: Certifications for the Jimmy WB63, indicating product quality and safety standards.
Betjeningsvejledning
Follow these steps for effective cleaning with your Jimmy WB63 Mattress Vacuum Cleaner:
- Tænd: Press and hold the power button for 2 seconds to start the vacuum cleaner.
- Vælg tilstand (hvis relevant): If your model has multiple modes (e.g., soft, strong, UV, tap), select the desired mode using the mode selection button.
- Begynd rengøring: Gently glide the vacuum cleaner across the surface you wish to clean (mattress, sofa, rug). The intelligent dust sensor will provide real-time feedback on the cleaning status via the LED display.
- Utilize UV-C Light: The integrated UV-C light activates automatically when the vacuum is in contact with a surface, providing sterilization.
- Varmluftfunktion: The hot air drying function helps to dehumidify the surface, further inhibiting dust mite growth.
- Monitor Dust Level: Observe the dust cup to see the amount of debris collected. Empty when it reaches the MAX line.
- Sluk: Press and hold the power button for 2 seconds to turn off the appliance after use.
Image: Close-up of the LED screen and smart dust sensor, showing real-time monitoring of cleaning status.
Video: Official demonstration of the Jimmy WB63 Mattress Vacuum Cleaner in use, highlighting its features and operation.
Opretholdelse
Regular maintenance ensures optimal performance and extends the lifespan of your Jimmy WB63 Mattress Vacuum Cleaner.
- Tøm støvbeholder: After each use, or when the dust reaches the MAX line, detach the dust cup by twisting it counter-clockwise and empty its contents into a waste bin.
- Rens filtre: The HEPA filter and metal mesh filter should be cleaned regularly. Rotate the HEPA filter counter-clockwise to remove it. Tap it gently to remove dust. Wash with water if necessary and ensure it is completely dry before reinserting.
- Rengør rullebørste: Periodically check the roller brush for tangled hair or debris. Use the provided cleaning brush tool to cut and remove any tangled hair. The roller brush can be detached for thorough cleaning.
- Aftør udvendigt: Use a soft, dry cloth to wipe the exterior of the vacuum cleaner. Do not use harsh chemicals or abrasive cleaners.
Image: Illustration of the dual cyclonic filtration technology, showing how it separates dust effectively.
Fejlfinding
If you encounter any issues with your Jimmy WB63, refer to the table below for common problems and solutions.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Power cord not plugged in; power outlet malfunction | Ensure cord is securely plugged in; test outlet with another appliance. |
| Svagt sug | Dust cup full; filters clogged; nozzle/hose blocked | Empty dust cup; clean/replace filters; check for and remove blockages. |
| UV-C lys virker ikke | Not in contact with surface; lamp fejlfunktion | Ensure vacuum is pressed firmly against the surface; contact customer support if issue persists. |
| Usædvanlig støj | Blockage in roller brush or nozzle; motor issue | Check for and remove blockages; contact customer support. |
Specifikationer
- Mærke:
- Jimmy
- Model:
- WB63
- Magt:
- 420W
- Sugekraft:
- 15Kpa
- Filtertype:
- HEPA filter
- Støvkopkapacitet:
- 0.4 liter
- Særlige funktioner:
- UV-C Sterilization, Intelligent Dust Detection, Hot Wind Function, Dual Cyclone Design, Easy Maintenance
- Produktdimensioner:
- 12.44 cm L x 10.24 cm B x 7.6 cm H
- Varens vægt:
- 4 pund
- Støjniveau:
- 78 decibel
Garanti og support
The Jimmy WB63 Mattress Vacuum Cleaner comes with a standard manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please refer to the warranty card included in your packaging or visit the official Jimmy webwebsted.
Du kan også besøge Jimmy-butikken på Amazon for yderligere produktinformation og tilbehør.
