Akko 5075B Plus Mekanisk Keyboard Brugervejledning

Indledning

This instruction manual provides comprehensive information for the setup, operation, maintenance, and troubleshooting of your Akko 5075B Plus Mechanical Keyboard. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Pakkens indhold

Upon unboxing your Akko 5075B Plus Mechanical Keyboard, verify that all the following items are included:

• Akko 5075B Plus Mekanisk Keyboard
• Keycap aftrækker
• USB-C til USB-A-kabel
• Additional Cyan Keycaps (for customization)
• Værktøj til fjernelse af kontakter

Image: The Akko 5075B Plus Mechanical Keyboard in black with yellow legends, alongside a single mechanical switch. This illustrates the primary product and its core component.

Opsætning

Tilslutningsmuligheder

The Akko 5075B Plus keyboard offers versatile connectivity to suit various setups:

• Wired (USB-C): Connect the provided USB-C to USB-A cable from the keyboard's top-left port to your computer's USB-A port. This mode also charges the keyboard.
• Bluetooth 5.0/3.0: Supports connection to multiple devices (up to 3). Refer to your device's Bluetooth pairing instructions.
• 2.4 GHz trådløs: Utilize the included USB-A receiver for a stable wireless connection. The receiver is conveniently stored in a dedicated slot on the underside of the keyboard.

Billede: Et overheadbillede view of the Akko 5075B Plus keyboard with icons representing Bluetooth, Type-C wired, and 2.4GHz wireless connectivity. A tablet, smartphone, and laptop are shown, indicating multi-device compatibility.

Operativsystemkompatibilitet

The keyboard features a switch on its underside to select between Mac and Windows operating system layouts, ensuring proper key functionality for your preferred environment.

Image: A close-up of the keyboard's underside, highlighting the physical switch for selecting between Mac, USB (wired), and Windows modes.

Højdejustering

Two flip-out feet are located on the bottom of the keyboard, allowing you to adjust the typing angle for improved ergonomics and comfort.

Billede: En detaljeret view of the keyboard's underside, showing one of the flip-out feet in its extended position, designed to elevate the keyboard for a more comfortable typing angle.

Betjeningsvejledning

Keycap Profile og Materiale

The Akko 5075B Plus features PBT Double Shot ASA Profile keycaps. This profile offers a unique, contoured shape with a subtle texture, providing a comfortable and durable typing experience. The shine-through design allows RGB lighting to illuminate the legends effectively.

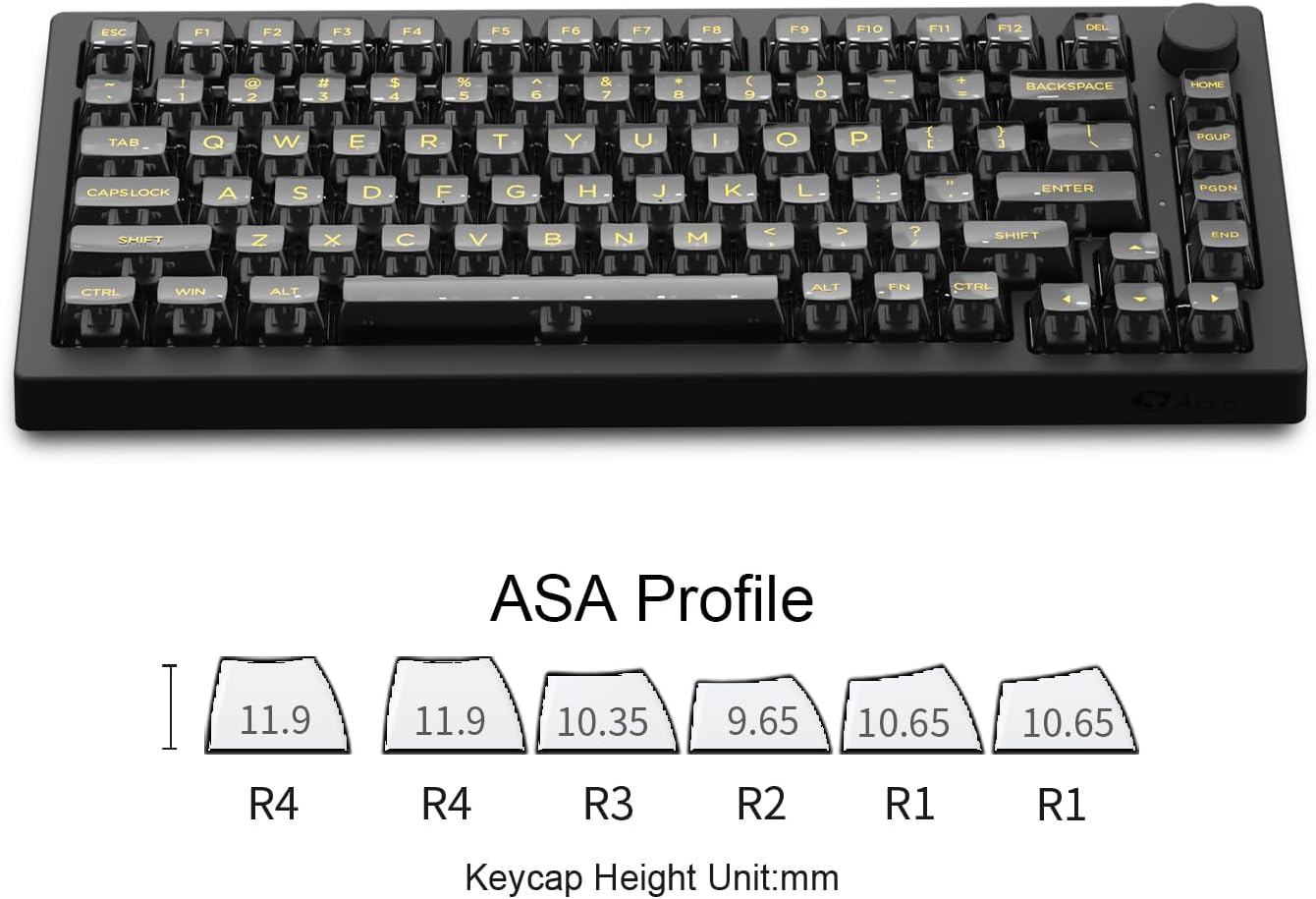

Image: A diagram illustrating the ASA keycap profile, showing the varying heights and contoured shapes of different key rows (R1, R2, R3, R4) in millimeters.

Image: A close-up of the keyboard's keycaps, emphasizing their transparent PC material which enhances the lighting performance.

Hot-swap-switche

The keyboard is equipped with 5-pin hot-swappable sockets, allowing users to easily change mechanical switches without soldering. This feature is beneficial for customizing the typing feel or replacing a malfunctioning switch.

Image: A hand using a tool to remove a mechanical switch from the keyboard, demonstrating the hot-swappable feature.

RGB Backlighting and Knob Control

The Akko 5075B Plus features vibrant RGB backlighting with 20 different effects, including per-key RGB support. It also includes side-LED RGB lighting. The dedicated knob on the top right corner allows for quick adjustment of computer audio volume and RGB backlight levels.

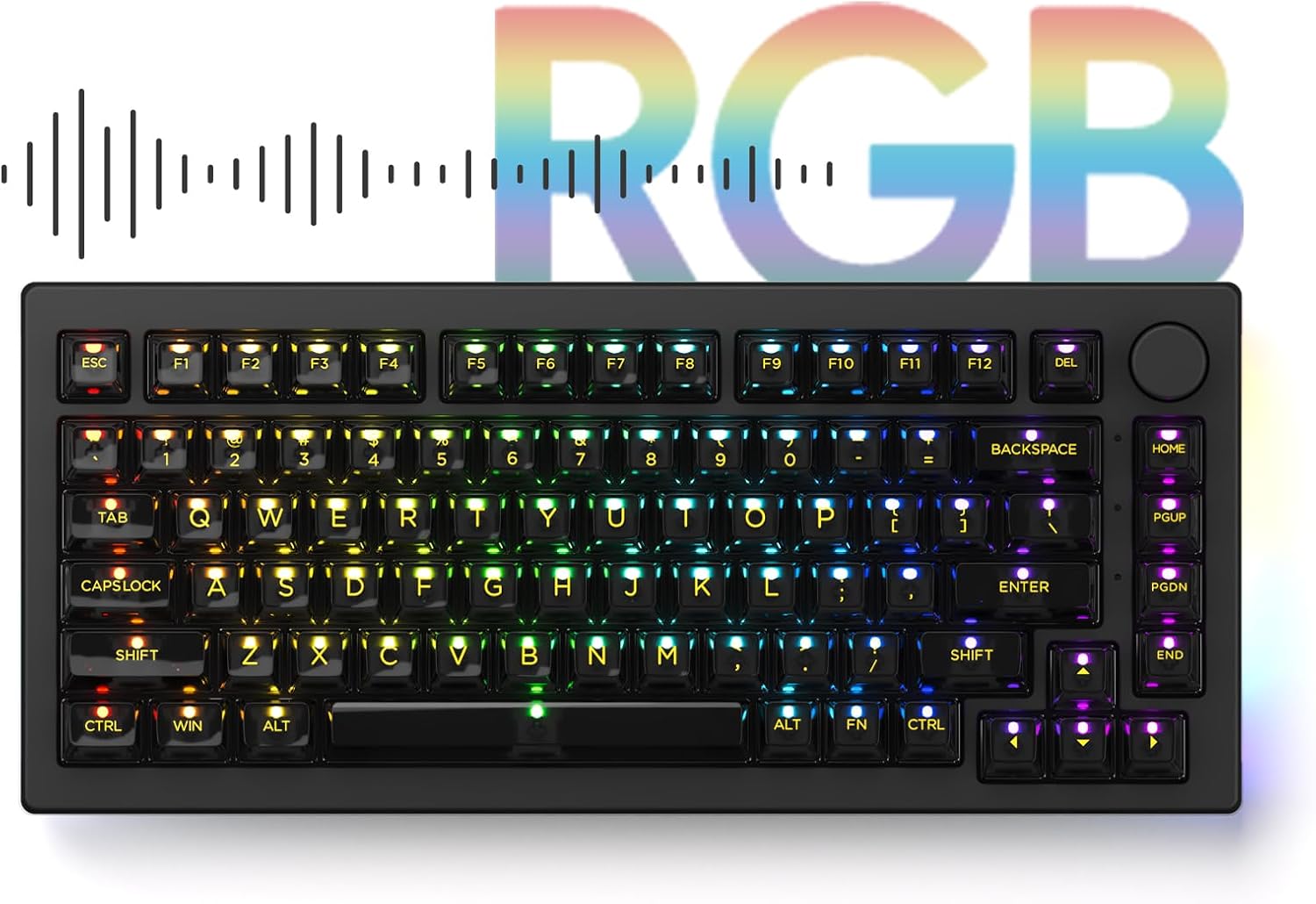

Image: The Akko 5075B Plus keyboard illuminated with a rainbow of RGB colors, showcasing its extensive lighting capabilities.

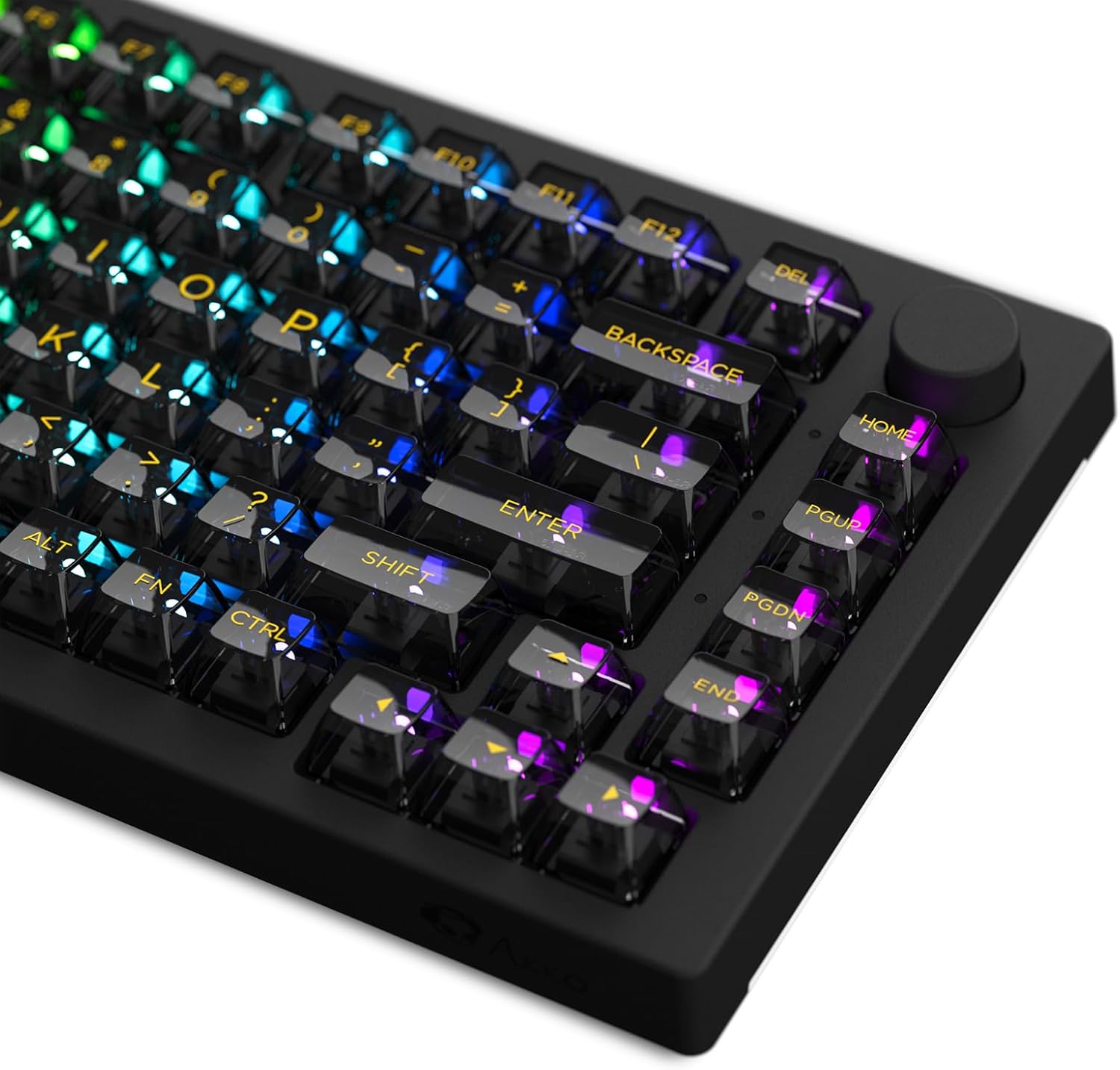

Image: A close-up of the keyboard's keys, showing the vibrant RGB lighting shining through the keycap legends.

Akko Cloud Driver Software

For advanced customization of RGB lighting effects, key remapping, and macro creation, download the Akko Cloud Driver software for PC or Mac. Connect the keyboard via USB-C or 2.4GHz wireless to access these features.

Image: A screenshot of the Akko Cloud Driver software interface, displaying options for main settings, lighting customization, and macro programming for the keyboard.

Opretholdelse

Rensning

Regularly clean your keyboard to maintain its appearance and functionality. Use a soft, lint-free cloth to wipe down the keycaps and chassis. For deeper cleaning, you may remove keycaps using the provided keycap puller.

Keycap and Switch Removal

To remove keycaps, gently use the keycap puller to grip the keycap and pull upwards. To remove switches, use the switch removal tool to depress the clips on the sides of the switch and pull upwards. Ensure the keyboard is disconnected or powered off before performing these actions.

Image: A hand using a tool to remove a mechanical switch from the keyboard, demonstrating the hot-swappable feature.

Fejlfinding

• Tastaturet reagerer ikke: Ensure the USB cable is securely connected or that the wireless receiver is properly inserted and the keyboard is powered on. Check the OS switch on the underside.
• Problemer med Bluetooth-parring: Ensure the keyboard is in Bluetooth mode and discoverable. Remove previous pairings on your device and try reconnecting.
• RGB-belysning virker ikke: Check the brightness settings using the knob or the Akko Cloud Driver software. Ensure the keyboard is powered on.
• Nøgler registreres ikke: Hvis en bestemt tast ikke virker, kan du prøve at udskifte kontakten med en, du ved, at den virker, for at afgøre, om kontakten eller soklen er defekt.

For further assistance, refer to the Akko Cloud Driver software's support section or visit the official Akko webwebsted.

Specifikationer

Garanti og support

For detailed warranty information and technical support, please visit the official Akko webwebstedet eller kontakt deres kundeservice. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

Officiel Akko Webwebsted: www.akkogear.com
