1. Introduktion
The VEDINDUST 8K 2-Port 3-Monitor DisplayPort KVM Switch (Model SW622) is designed to enhance your workspace efficiency by allowing two computers to share three DisplayPort monitors and four USB 3.0 peripheral devices. This device supports high resolutions up to 8K@60Hz and 4K@144Hz, providing a clear and immersive visual experience. It is ideal for users who need to manage multiple computers with a single set of peripherals and displays, supporting both extended and duplicate display modes.
Please read this manual thoroughly before installation and operation to ensure proper usage and optimal performance of your KVM switch.
2. Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- 1x VEDINDUST 8K 2-Port 3-Monitor DisplayPort KVM Switch (Model SW622)
- 2x USB 3.0 A-til-A-kabler
- 1x Wired Remote Controller
- 1x DC 12V strømadapter
- 1x brugermanual
Image: Contents of the VEDINDUST KVM Switch package, including the main unit, necessary cables, remote, power adapter, and documentation.
3. Produktet er slutview
The KVM switch features a robust design with clearly labeled ports for easy connection. Below is a diagram illustrating the input and output ports:
Image: Detailed connection diagram of the KVM switch, highlighting input ports for two PCs (PC1 IN, PC2 IN) and output ports for three monitors (OUT A, OUT B, OUT C), along with USB 3.0 ports and control interfaces.
Frontpanel:
- USB 3.0 Ports (1-4): Connect your USB peripherals such as keyboard, mouse, printer, USB flash drive, etc.
- PC1/PC2 Switch Button (SW): Press to switch between Computer 1 and Computer 2.
- LED-indikatorer: Show which computer is currently selected.
- Kontrolport: Connect the wired remote controller for convenient switching.
Bagside:
- DC 12V: Power input port. Connect the provided power adapter.
- PC1 IN (DP1 A, DP1 B, DP1 C, USB3.0): Connect to Computer 1's three DisplayPort outputs and one USB 3.0 port.
- PC2 IN (DP2 A, DP2 B, DP2 C, USB3.0): Connect to Computer 2's three DisplayPort outputs and one USB 3.0 port.
- OUT A, OUT B, OUT C: Connect to your three DisplayPort monitors.
4. Opsætningsvejledning
Følg disse trin for at konfigurere din KVM-switch:
- Sluk for enheder: Ensure both computers and all monitors are powered off before making any connections.
- Tilslut skærme: Connect your three DisplayPort monitors to the KVM switch's UD A, UD B, og UD C ports using DisplayPort cables (not included).
- Tilslut computere (PC1):
- Connect Computer 1's three DisplayPort outputs to the KVM switch's DP1 A, DP1 B, og DP1 C havne.
- Tilslut Computer 1's USB 3.0-port til KVM-switchens USB3.0 (PC1 IN) port using one of the provided USB 3.0 A-to-A cables.
- Tilslut computere (PC2):
- Connect Computer 2's three DisplayPort outputs to the KVM switch's DP2 A, DP2 B, og DP2 C havne.
- Tilslut Computer 2's USB 3.0-port til KVM-switchens USB3.0 (PC2 IN) port using the second provided USB 3.0 A-to-A cable.
- Tilslut USB-tilbehør: Connect your keyboard, mouse, and other USB 3.0 devices to the four USB 3.0 Ports (1-4) på frontpanelet af KVM-switchen.
- Tilslut kablet fjernbetjening (valgfrit): Plug the wired remote controller into the Kontrollere porten på frontpanelet.
- Tænd: Connect the DC 12V power adapter to the KVM switch's DC 12V port and then plug it into a power outlet. Power on the KVM switch, then power on your monitors and computers.
Vigtig bemærkning: Ensure that your computers are capable of supporting triple monitor output. To verify, connect your computers directly to three monitors without the KVM switch. If all three monitors display correctly, your computer supports multi-display output.
Image: A visual guide to connecting two personal computers to the KVM switch, which then routes signals to three monitors and allows shared USB peripherals.
5. Betjeningsvejledning
The VEDINDUST KVM switch offers two methods for switching between connected computers:
Method 1: Front Panel Button
- Find SW button on the front panel of the KVM switch.
- Tryk på SW button to toggle between Computer 1 and Computer 2. The corresponding LED indicator (PC1 or PC2) will illuminate to show the active computer.
Method 2: Wired Remote Controller
- If connected, use the wired remote controller for convenient switching.
- Press the button on the remote controller to switch between Computer 1 and Computer 2. This allows you to place the KVM switch out of sight, keeping your desktop tidy.
Image: An individual utilizing a triple-monitor setup powered by the KVM switch, illustrating an efficient multi-computer workstation.
6. Display Modes (Extended & Duplicate)
The KVM switch supports both extended and duplicate display modes, provided your connected computers support these functionalities.
Udvidet tilstand:
In extended mode, each of your three monitors displays a different part of your desktop, effectively expanding your workspace. You can drag windows across all three screens.
Duplikattilstand:
In duplicate mode, all three monitors display the exact same content, mirroring your main screen. This is useful for presentations or sharing content simultaneously.
Image: Visual representation of extended display mode, where each monitor shows unique content, and duplicate display mode, where all monitors mirror the same content.
Configuring Display Modes:
To configure your display mode (Extended or Duplicate) on Windows, press the Windows-tasten + P and select your desired option. For other operating systems, refer to their respective display settings.
7. Fejlfinding
Hvis du støder på problemer med din KVM-switch, kan du se følgende almindelige problemer og løsninger:
- Ingen visning på skærme:
- Ensure the KVM switch is powered on and the DC 12V adapter is securely connected.
- Verify all DisplayPort cables are correctly and firmly connected between computers, KVM switch, and monitors.
- Confirm that your computers support triple monitor output by connecting them directly to the monitors.
- Try reducing the resolution or refresh rate of your monitors to see if a signal appears.
- Flimrende eller ustabil skærm:
- Check DisplayPort cable quality. Use high-quality, certified DisplayPort 1.4 cables, especially for 8K or high refresh rate resolutions.
- Sørg for, at dine grafikkortdrivere er opdaterede.
- Reduce the display resolution or refresh rate to see if the issue persists.
- USB-enheder virker ikke:
- Ensure the USB 3.0 A-to-A cables are securely connected from both computers to the KVM switch.
- Try connecting the USB device directly to the computer to confirm it is functional.
- Some high-power USB devices may require external power or a powered USB hub.
- Skifteforsinkelse:
- A brief delay during switching is normal as the system re-establishes connections. If the delay is excessive (e.g., 10+ seconds), ensure all cables are properly seated and the KVM switch has stable power.
8. Specifikationer
Below are the technical specifications for the VEDINDUST 8K 2-Port 3-Monitor DisplayPort KVM Switch (Model SW622):
| Feature | Specifikation |
|---|---|
| Model | SW622 |
| Mærke | VEDINDUST |
| Indgangsporte | 2 x PC (3x DisplayPort 1.4, 1x USB 3.0 per PC) |
| Udgangsporte | 3 x DisplayPort 1.4 (for monitors), 4 x USB 3.0 (for peripherals) |
| Video opløsning | Up to 8K@60Hz, 4K@144Hz (backward compatible) |
| USB Transfer Speed | 5Gbps (USB 3.0), backward compatible with USB 2.0/1.1 |
| Skiftemetoder | Front Panel Button, Wired Remote Controller |
| Strømforsyning | DC 12V / 2.5A |
| Dimensioner (L x B x H) | 18 x 5 x 8 cm (cirka) |
| Produktets vægt | 600 g |
| Driftstilstand | TÆND SLUK |
| Understøttet OS | Windows 7/8/9/10/11, Vista/XP, macOS, Linux (Plug and Play) |
Image: Visual confirmation of 8K@60Hz and 4K@120Hz resolution support with DisplayPort 1.4.

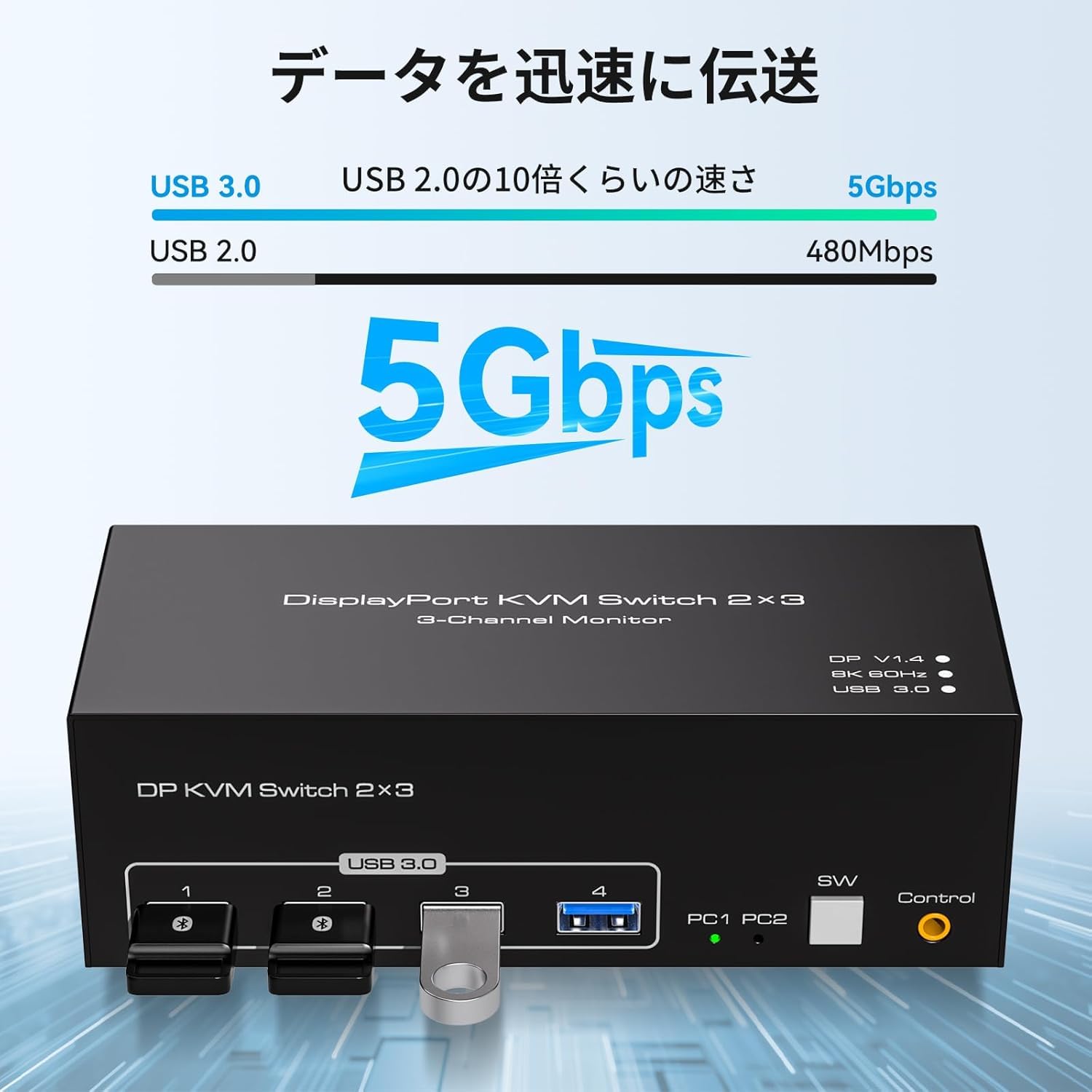

Image: Comparison of USB 3.0 and USB 2.0 data transfer speeds, emphasizing the 5Gbps capability of USB 3.0.
9. Vedligeholdelse
For at sikre din KVM-switchs levetid og optimale ydeevne skal du følge disse vedligeholdelsesretningslinjer:
- Rensning: Brug en blød, tør klud til at rengøre enheden. Undgå at bruge flydende rengøringsmidler eller slibende materialer.
- Miljø: Keep the KVM switch in a cool, dry place, away from direct sunlight, excessive heat, and moisture.
- Kabelstyring: Ensure all cables are neatly organized and not under excessive tension to prevent damage to ports or cables.
- Magt: Brug altid den medfølgende DC 12V strømadapter. Brug af en forkert adapter kan beskadige enheden.
10. Garanti og support
VEDINDUST products are manufactured with high-quality materials and undergo strict quality control. For any questions, technical support, or warranty claims, please contact VEDINDUST customer service through the platform where you purchased the product. Please provide your order number and product model (SW622) for faster assistance.
