1. Introduktion
Thank you for choosing the TIO Turbo MAX Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
The TIO Turbo MAX is designed for adult riders, offering powerful dual motors, long-range battery life, and advanced safety features for an exhilarating and reliable riding experience.
2. Nøglefunktioner
- Dobbelt motorkraft: Equipped with two motors, delivering a maximum power of 2800W for speeds up to 65-70 km/h and a climbing capacity of up to 30°.
- Extended Range Battery: A long-lasting lithium battery provides an impressive range of up to 62 km on a single charge.
- Advanced Suspension System: Features quadruple front suspension and double rear suspension for a smooth and stable ride across various terrains.
- Omfattende belysning: Includes three multi-purpose front lights, side lights, and additional reinforcement lights on the base for enhanced visibility in all conditions.
- Smart Connectivity & Controls: Integrated Bluetooth, 3-speed adjustment control, dedicated light control, and a horn for a personalized and safe riding experience.
- Anti-Theft Security: Comes with an anti-theft alarm system for added security.
Billede: Overview of TIO Turbo MAX features, including cargo rack, lighting, voltage meter, and suspension system.
3. Pakkens indhold
Sørg for, at alle følgende komponenter er til stede ved udpakning:
- TIO Turbo MAX Electric Scooter
- Aftageligt sæde
- Batterioplader
- Brugervejledning (dette dokument)
- Justeringsværktøjer
- Remote Control Keys (2)
4. Opsætning og montering
4.1 Udfoldning af scooteren
- Tag forsigtigt scooteren ud af emballagen.
- Locate the folding mechanism on the stem. Release the latch to unfold the main mast.
- Raise the handlebar stem until it locks securely into place. Ensure the locking mechanism is fully engaged.
- Adjust the handlebar height to your preference by loosening the quick-release clamp, forlænge eller trække stilken tilbage, og derefter stramme kl.amp.
4.2 Attaching the Seat (Optional)
The TIO Turbo MAX comes with a removable seat for added comfort during longer rides.
- Insert the seat post into the designated slot on the scooter's deck.
- Adjust the seat height to your comfort level and secure it using the provided clamp.
- To remove the seat, simply reverse these steps.
Image: Close-up of the scooter's digital display, integrated Bluetooth speaker, and the removable seat.
4.3 Indledende opladning
Before your first ride, fully charge the scooter's battery. Connect the charger to the charging port on the scooter and then to a power outlet. The indicator light on the charger will change (e.g., from red to green) when charging is complete.
5. Betjeningsvejledning
5.1 Tænd/sluk
- To power on, insert the key into the ignition and turn it to the ON position. The display will illuminate.
- To power off, turn the key to the OFF position and remove it.
- The remote control keys can also be used to arm/disarm the anti-theft alarm and remotely start/stop the scooter.
Image: Handlebar controls, including the ignition with remote keys, dual motor activation button, speed mode selector, and light/horn switches.
5.2 At køre på scooter
- Starter: Place one foot on the deck and push off with the other foot to gain initial momentum. Once moving, gently press the throttle lever to engage the motor.
- Hastighedstilstande: Use the speed control button on the handlebar to switch between the 3 available speed modes (e.g., Eco, Standard, Sport) to match your riding conditions and desired performance.
- Dual Motor Activation: For maximum power and climbing ability, activate the dual motor mode using the dedicated button on the handlebar.
- Bremsning: The scooter is equipped with front and rear disc brakes. Squeeze the brake levers on the handlebars to slow down or stop. Apply both brakes gently and evenly for controlled stopping.
- Belysning: Use the light control switch to turn on/off the front lights, side lights, and turn signals. Activate the horn as needed for safety.
5.3 Bluetooth-forbindelse
The integrated Bluetooth system allows you to connect your smartphone to the scooter's speaker. Power on the scooter, activate Bluetooth on your phone, and pair with "TIO Turbo MAX". You can then play music through the scooter's speaker.
Video: A detailed demonstration of the TIO Turbo MAX Electric Scooter's features, including lighting, suspension, folding mechanism, handlebar controls, and dual motor activation. This video provides a comprehensive overview of the scooter's functionality.
6. Sikkerhedsretningslinjer
- Always wear a helmet and appropriate safety gear (knee pads, elbow pads) while riding.
- Familiarize yourself with local regulations regarding electric scooter usage.
- Kør ikke i kraftig regn, på glatte overflader eller under ekstreme vejrforhold.
- Hold en sikker afstand til andre køretøjer og fodgængere.
- Regularly check tire pressure, brakes, and all fasteners before each ride.
- Undgå at køre under påvirkning af alkohol eller stoffer.
- The maximum weight capacity for this scooter is 150 kg. Do not exceed this limit.
7. Vedligeholdelse
7.1 Rengøring
Tør scooteren af med reklameamp cloth after each use. Avoid using high-pressure water jets or harsh chemicals, as these can damage electronic components.
7.2 Pleje af batterier
- Charge the battery regularly, even if the scooter is not in use, to prolong its lifespan.
- Batteriet må ikke overoplades eller tømmes helt.
- Opbevar scooteren et køligt og tørt sted væk fra direkte sollys og ekstreme temperaturer.
7.3 Tire and Brake Inspection
- Check tire pressure regularly and inflate to the recommended PSI.
- Inspect brake pads and discs for wear. Replace them if they show significant wear or damage.
8. Fejlfinding
This section addresses common issues you might encounter with your TIO Turbo MAX Electric Scooter.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Scooteren tænder ikke. | Battery is low or depleted; Key not fully inserted/turned; Power cable loose. | Charge the battery; Ensure key is fully turned to ON; Check all cable connections. |
| Reduceret rækkevidde eller effekt. | Low tire pressure; Battery not fully charged; Riding in high-power mode constantly; Overloaded. | Inflate tires to correct pressure; Fully charge battery; Use lower speed modes; Ensure rider weight is within limits. |
| Bremserne føles svage. | Slidte bremseklodser; Løst bremsekabel; Luft i det hydrauliske system (hvis relevant). | Inspect and replace brake pads; Adjust brake cable tension; Consult a professional for hydraulic brake issues. |
| Usædvanlige lyde under kørslen. | Loose components; Debris in wheels/brakes; Suspension issue. | Inspect all fasteners and tighten as needed; Clean wheels and brakes; Check suspension for damage. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact TIO customer support for assistance.
9. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | TURBO MAX |
| Mærke | TIO |
| Motorkraft | Dual Motor, Max 2800W |
| Max hastighed | 65-70 km/t |
| Max rækkevidde | Op til 62 km |
| Klatrekapacitet | Op til 30° |
| Batteritype | Lithium-ion (1 påkrævet, inkluderet) |
| Max vægtkapacitet | 150 kilo |
| Hjulstørrelse | 10 tommer |
| Hjul materiale | Gummi |
| Bremse type | Disc Brakes (Front & Rear) |
| Affjedring | Quadruple Front, Double Rear |
| Rammemateriale | Aluminium |
| Farve | Sort med røde accenter |
| Funktioner | Built-in speaker, Adjustable handlebar, Removable seat, Speed control, Foldable, Anti-theft alarm, Multiple lights |
| Dimensioner (pakke) | 128 x 58 x 26 cm |
| Vægt (pakke) | 39 kg |
Image: Visual representation of key performance specifications: 62 km range, 65-70 km/h max speed, 2600W max power, 30° climbing, 150 kg load capacity.
10. Garanti og support
Your TIO Turbo MAX Electric Scooter comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, spare parts, or any inquiries, please contact TIO customer service through the official TIO webwebsted eller din forhandler.
For more information and to explore other TIO products, visit the TIO Brand Store.
11. Additional Visuals
Video: Dynamic footage showcasing the TIO Turbo MAX Electric Scooter in action, highlighting its design, features like disc brakes and suspension, and riders enjoying the experience. This video emphasizes the scooter's performance and aesthetic appeal.

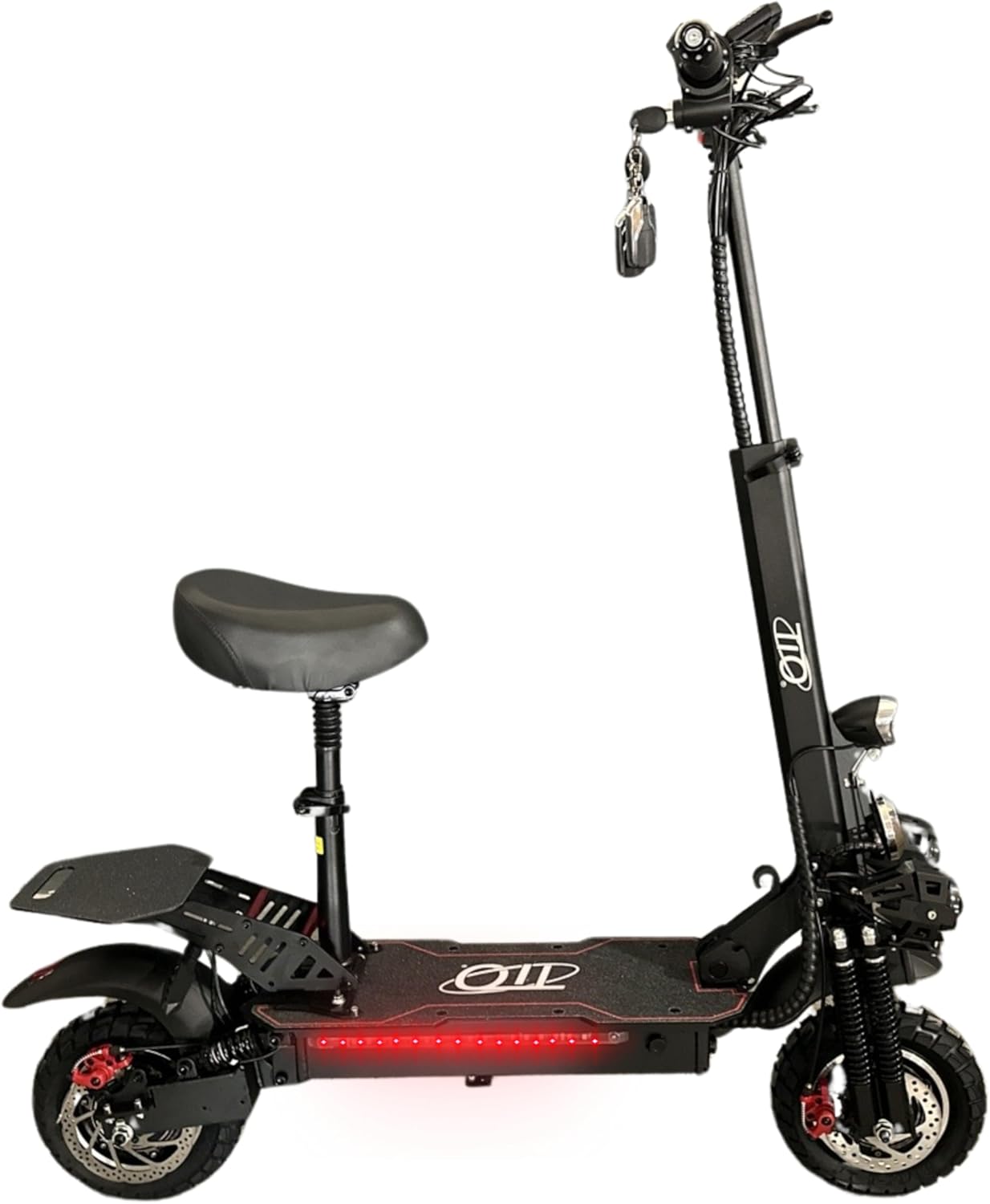

Billede: Fuld view of the TIO Turbo MAX Electric Scooter, showcasing its robust design and key components.

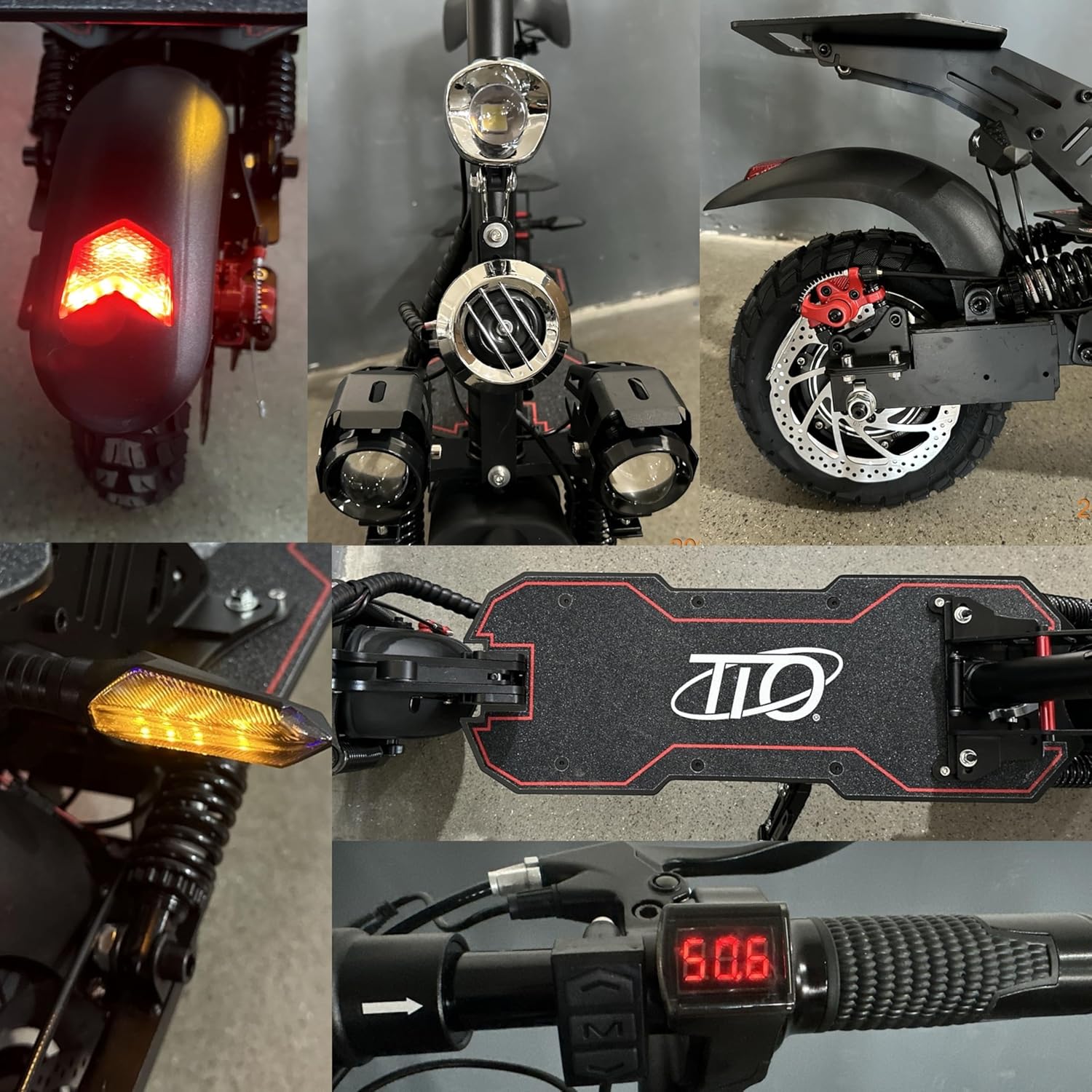

Image: A collage of detailed close-ups of the scooter's components, including lights, brakes, suspension, and controls.
Image: The TIO Turbo MAX Electric Scooter in its folded configuration, highlighting its portability.
