1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your GLOBE Electric 4-Light LED Integrated Track Lighting. This modern fixture features a matte white finish, slim profile, and adjustable pivoting track heads, designed to provide versatile and efficient illumination for various indoor spaces.
Nøglefunktioner omfatter:
- Integrated LED technology: 37W total (9.25W per shade), 1600 lumens total (400 lumens per shade), 90 CRI, 3000 Kelvin (soft white).
- Adjustable pivoting track heads for directional lighting.
- Dimmable functionality (dimmer switch not included).
- Slim, unobtrusive design suitable for modern interiors.
- Nem installation med medfølgende monteringsbeslag.

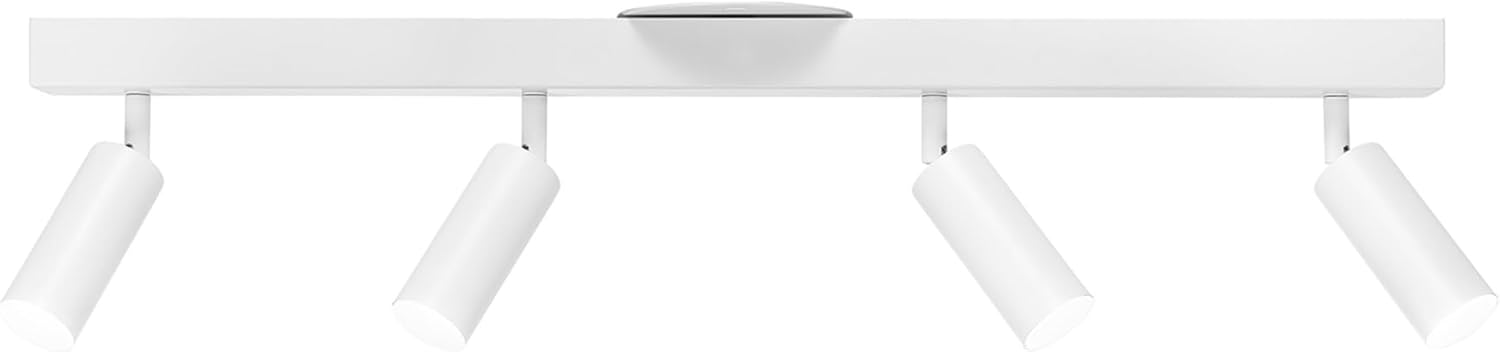

Figur 1.1: Overview of the GLOBE Electric 4-Light LED Integrated Track Lighting in matte white.
2. Opsætning og installation
Before beginning installation, ensure the power supply to the fixture location is turned off at the circuit breaker to prevent electrical shock. All mounting hardware required for installation is included.
2.1 Kontrol før installation
- Verify that all components listed in the packaging are present and undamaged.
- Ensure the electrical box is securely mounted and capable of supporting the fixture's weight.
- Confirm the fixture's dimensions are suitable for your intended space.
Figure 2.1: Product dimensions, showing a length of 28 inches (71.1 cm) and a height of 7 inches (18 cm).
2.2 Monteringsvejledning
- Sluk for strømmen ved hovedafbryderen.
- Fastgør monteringsbeslaget til el-boksen ved hjælp af de medfølgende skruer.
- Connect the fixture's electrical wires to the corresponding household wires (black to black, white to white, ground to ground) using wire nuts.
- Carefully tuck the wires into the electrical box.
- Align the fixture base with the mounting bracket and secure it with the decorative nuts or screws.
- Ensure the fixture is flush with the ceiling and securely fastened.
- Genopret strømmen ved hovedafbryderen.
Figur 2.2: Underside view of the track lighting, showing the four individual light heads and their attachment points to the main bar.
3. Betjeningsvejledning
Once installed, your GLOBE Electric Track Lighting is ready for use.
3.1 Grundlæggende betjening
- Turn the light on or off using your standard wall light switch.
3.2 Justering af lysretning
The individual track heads are designed to pivot, allowing you to direct light precisely where needed. Gently grasp each cylindrical shade and pivot it to the desired angle. Avoid excessive force to prevent damage to the pivoting mechanism.
Figure 3.1: Close-up illustrating the adjustable pivoting motion of the individual light heads.
3.3 Dæmpningsfunktionalitet
This track light is fully dimmable. To utilize the dimming feature, you must install a compatible dimmer switch (not included) in place of your standard wall switch. Consult a qualified electrician if you are unsure about installing a dimmer switch.
Figure 3.2: Details of the integrated LED, showing 3000 Kelvin color temperature, 1600 lumens total output, and 37 watts power consumption.
4. Vedligeholdelse
The GLOBE Electric Track Lighting requires minimal maintenance. Follow these guidelines to ensure longevity and optimal performance:
- Rensning: Before cleaning, ensure the power is turned off at the circuit breaker. Use a soft, dry cloth to wipe down the fixture. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
- LED-levetid: The integrated LED lights are designed for long-term use and are not replaceable.
- Inspektion: Periodically check for any loose connections or signs of wear. If any issues are observed, consult a qualified electrician.
5. Fejlfinding
If you encounter issues with your track lighting, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm til armaturet; løse ledninger; defekt vægafbryder. | Kontroller afbryderen. Sørg for, at alle ledningsforbindelser er sikre. Test vægkontakten. |
| Lyset flimrer eller dæmpes ujævnt. | Inkompatibel lysdæmper; løse ledninger; strømsvingninger. | Ensure dimmer switch is LED compatible. Check wiring connections. Consult an electrician if power fluctuations persist. |
| Buzzing sound when dimmed. | Incompatible dimmer switch; electrical interference. | Replace dimmer with a high-quality, LED-specific dimmer. Ensure proper grounding. |
| Light heads do not pivot smoothly. | Obstruction; mechanism damage. | Check for any physical obstructions. Do not force movement. |
6. Specifikationer
| Attribut | Værdi |
|---|---|
| Mærke | GLOBUS |
| Modelnavn | Bianca |
| Varenummer | 64000120 |
| Farve | White, Bianca (Matte White Finish) |
| Materiale | Metal |
| Stil | Moderne |
| Lysarmatur Form | Projektørlys |
| Værelsestype | Living Room (suitable for Kitchen, Bedroom, Hallway, Office, Den) |
| Produktdimensioner | 4.8 cm L x 28 cm B x 7 cm H |
| Indendørs/Udendørs brug | Indendørs |
| Strømkilde | Hardwired |
| Speciel funktion | Dæmpbar |
| Lyskildetype | Integreret LED |
| Antal lyskilder | 4 |
| Voltage | 120 volt |
| Lys farve | White (3000 Kelvin - Soft White) |
| Varens vægt | 3.52 pund |
| Wattage | 37 watt |
| Lysstyrke | 1600 lumen |
| Monteringstype | Loftmontering |
| Inkluderede komponenter | Monteringshardware |
| Montering påkrævet | Ingen |
| UPC | 058219211212 |
7. Garanti og support
Dette produkt sælges med Ingen garanti as per the manufacturer's specifications. For any product inquiries, technical assistance, or support, please contact GLOBE Electric customer service directly. Refer to the product packaging or the official GLOBE Electric webhjemmeside for de seneste kontaktoplysninger.
It is recommended to retain your purchase receipt for any potential support needs.
