GAMDIAS TALOS M3 MESH WH E-ATX Mid Tower Gaming PC Case Instruction Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your GAMDIAS TALOS M3 MESH WH E-ATX Mid Tower Gaming PC Case. Please read this manual thoroughly before beginning assembly to ensure proper setup and optimal performance. Retain this manual for future reference.

2. Sikkerhedsoplysninger

Overhold følgende sikkerhedsforanstaltninger under installation og drift:

• Afbryd altid strømforsyningen fra stikkontakten, inden du udfører nogen form for installation eller vedligeholdelse.
• Håndter komponenter med forsigtighed for at forhindre beskadigelse.
• Avoid exposing the case to moisture or extreme temperatures.
• Sørg for tilstrækkelig ventilation omkring kabinettet for at forhindre overophedning.
• Hold små dele og værktøj væk fra børn.

3. Pakkens indhold

Bekræft at alle komponenter er til stede i pakken:

• GAMDIAS TALOS M3 MESH WH PC Case
• Tilbehørsæske (skruer, afstandsstykker, kabelbindere osv.)
• Brugervejledning (dette dokument)
• Pre-installed 140mm PWM ARGB Fans (x2)
• Pre-installed 120mm PWM ARGB Fan (x1)

4. Opsætning og installation

4.1. Komponent overview

Familiarize yourself with the main features and layout of the PC case.

Figur 4.1: Forside view of the GAMDIAS TALOS M3 MESH WH PC case, showcasing its tempered glass side panel and pre-installed ARGB fans.

4.2. Airflow and Cooling Configuration

The TALOS M3 MESH WH is designed for optimal airflow to keep your components cool.

Figure 4.2: Diagram illustrating the optimized airflow design of the TALOS M3 MESH series, highlighting the mesh front panel and fan configuration for enhanced cooling.

Figur 4.3: Nærbillede view of the perforated front panel with 5.0mm air vents, designed for superior air intake.

Figure 4.4: Illustration of the three pre-installed ARGB PWM fans (two 140mm, one 120mm) and the integrated 6-port PWM ARGB fan hub for lighting and fan speed control.

Figure 4.5: Diagram detailing the cooling compatibility, including support for 360/280mm radiators and CPU cooler height up to 180mm.

4.3. Interior Accommodation and Component Installation

Sagen tilbyder ample space for various high-end components.

4.3.1. Installation af bundkort og grafikkort

The TALOS M3 MESH WH supports E-ATX, ATX, Micro ATX, and Mini ITX motherboards. It accommodates VGA cards up to 390mm in length and CPU coolers up to 180mm in height.

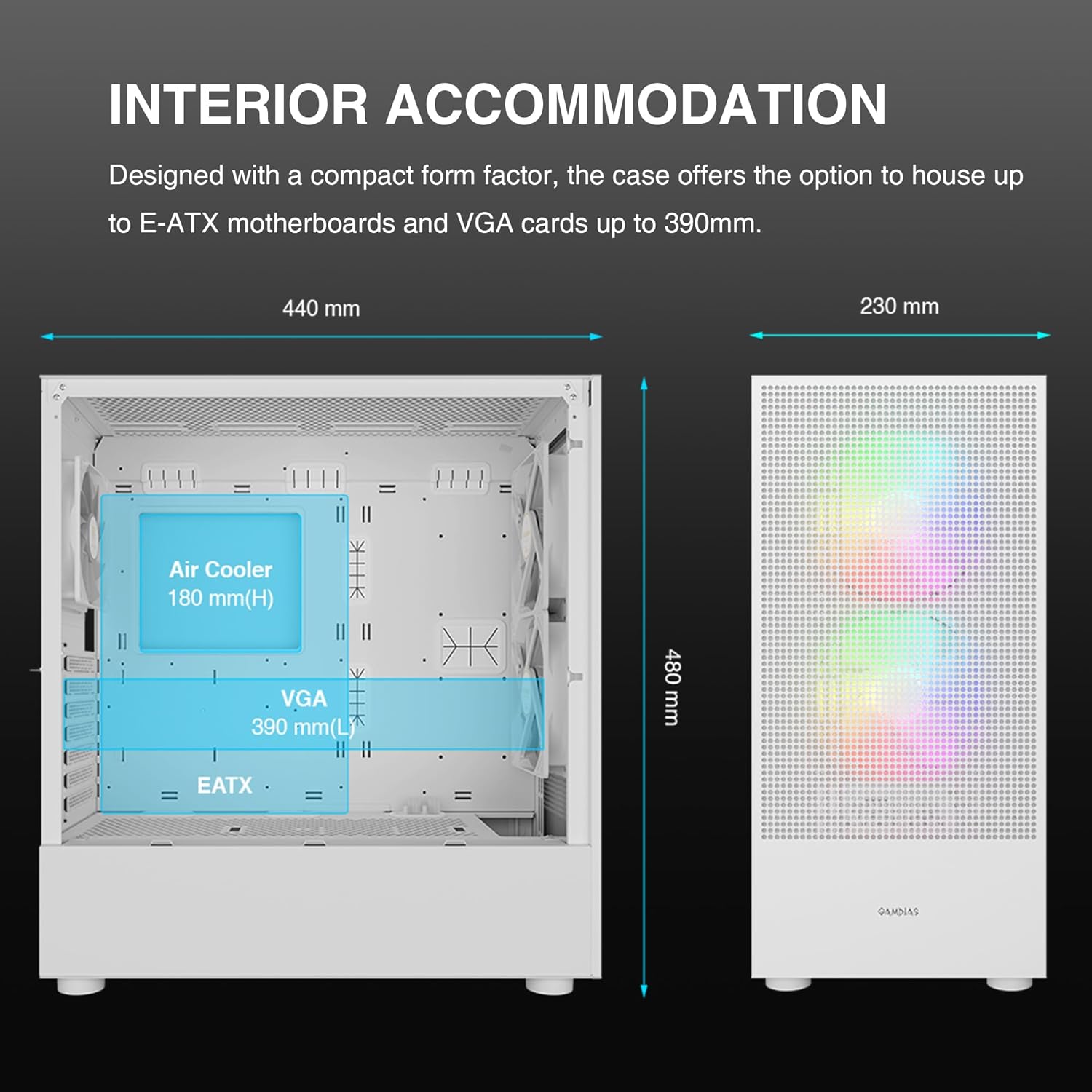

Figur 4.6: Intern view of the case showing space for E-ATX motherboards, VGA cards up to 390mm, and CPU coolers up to 180mm.

4.3.2. Installation af lagerdrev

The case provides flexible options for installing SSDs and HDDs.

Figure 4.7: Internal layout highlighting flexible storage options for SSDs and HDDs, along with PSU length support up to 200mm.

4.3.3. Forbindelser til frontpanelet (I/O)

Connect the front panel cables to your motherboard according to your motherboard's manual.

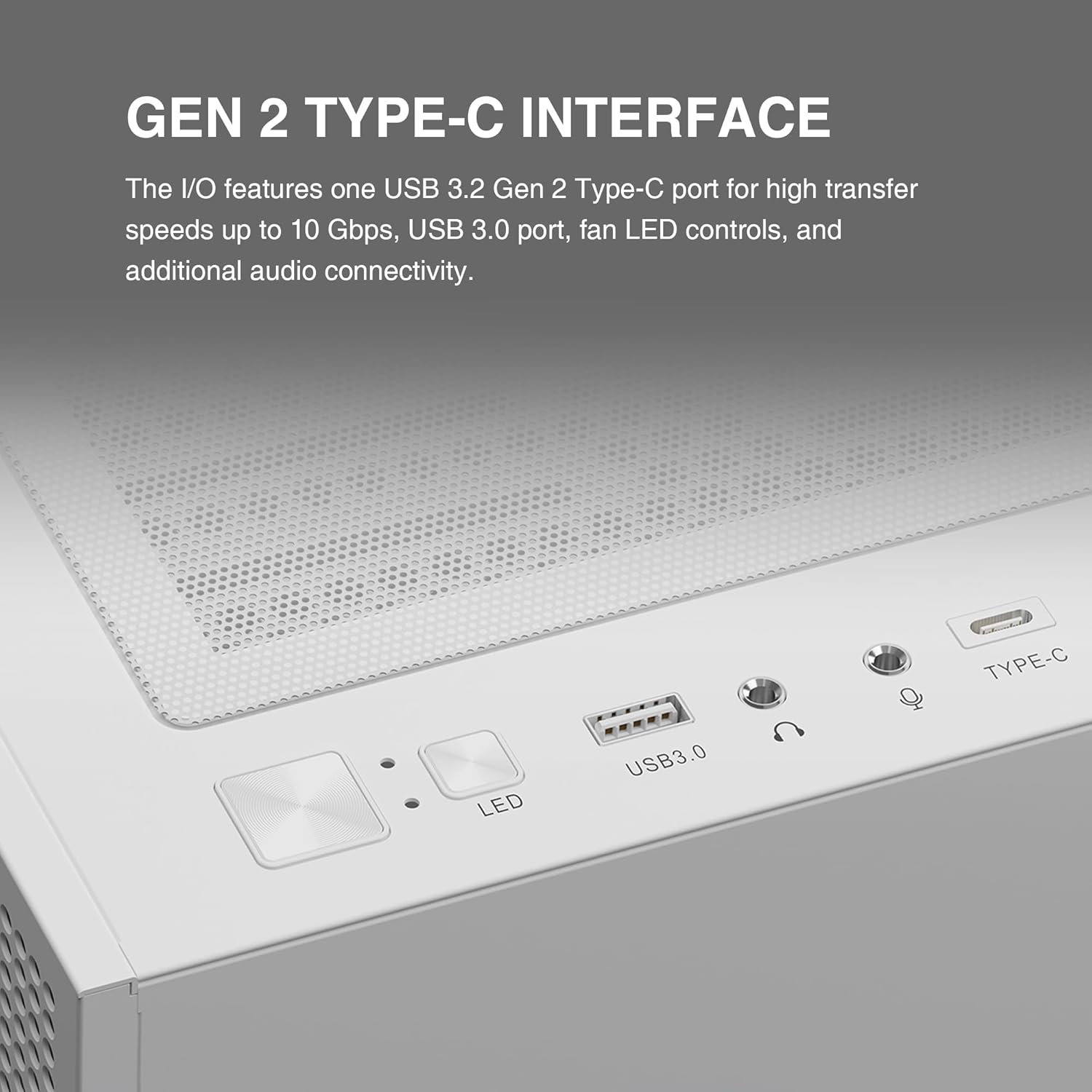

Figure 4.8: Close-up of the top I/O panel featuring a USB 3.2 Gen 2 Type-C port, USB 3.0 port, fan LED controls, and audio jacks.

5. Betjeningsvejledning

Once all components are installed and connected, you can power on your system. The pre-installed ARGB fans can be controlled via the integrated fan hub and compatible motherboard software or the dedicated LED control button on the front I/O panel.

• Power knap: Tryk for at tænde eller slukke systemet.
• LED knap: Press to cycle through various ARGB lighting effects for the pre-installed fans. Hold to sync with motherboard ARGB software (if supported).
• USB-porte: Use for connecting peripherals and external devices.

6. Vedligeholdelse

Regular maintenance helps ensure the longevity and performance of your PC case and components.

6.1. Rensning

The TALOS M3 MESH WH features magnetic dust filters for easy cleaning.

Figure 6.1: Illustration showing the magnetic dust filters located on the top, front, and bottom of the case for easy cleaning.

• Støvfiltre: Regularly remove and clean the magnetic dust filters located on the top, front, and bottom of the case. Use compressed air or a soft brush to remove accumulated dust.
• Ydre: Tør de udvendige overflader af med en blød, damp klæde. Undgå slibende rengøringsmidler.
• Indre: Periodically use compressed air to clear dust from internal components and fan blades. Ensure the system is powered off and unplugged before cleaning the interior.

7. Fejlfinding

Hvis du støder på problemer, kan du se følgende almindelige fejlfindingstrin:

• Systemet tænder ikke: Check all power connections, including the power supply unit (PSU) to the wall outlet, the PSU to the motherboard, and the front panel power switch cable to the motherboard.
• Ventilatorer drejer ikke/RGB virker ikke: Verify that the fan cables are correctly connected to the fan hub and that the fan hub is powered. Ensure ARGB cables are properly connected to the motherboard or controller. Check motherboard software settings for fan and RGB control.
• USB-porte fungerer ikke: Ensure the USB header cables from the front I/O panel are securely connected to the correct headers on your motherboard.
• Overophedning: Confirm that all fans are spinning correctly and are oriented for proper airflow. Ensure dust filters are clean and there is adequate space around the case for ventilation.

8. Specifikationer

9. Garanti og support

GAMDIAS products are designed and manufactured to the highest quality standards. For warranty information and technical support, please refer to the official GAMDIAS webwebsted eller kontakt deres kundeservice.

For additional resources and user manuals, please visit the official GAMDIAS webwebsted:

GAMDIAS TALOS M3 MESH WH User Manual (PDF)

GAMDIAS Official Webwebsted
