1. Introduktion
Thank you for choosing the HITIME XVX Shine Through PBT Keycaps. This set is designed to enhance your mechanical keyboard with a unique aesthetic and improved typing experience. Featuring a 131-key Cherry profile with a Blue Kanagawa Theme, these keycaps are crafted using dye-sublimation and double-shot techniques for durability and vibrant, long-lasting legends. This manual provides essential information for installation, usage, maintenance, and troubleshooting.
2. Produktfunktioner
- Imaginative Design: Artwork painted on side-printed keycaps provides a unique aesthetic. Optimized for keyboards with south-facing LEDs to allow light to shine through the legends.
- Dye-Sublimated PBT: Made from high-grade, textured PBT material for enhanced durability and resistance to shine buildup over time.
- Double Shot Legends: Ensures legends will not wear out and allows keyboard backlighting to shine through clearly.
- Cherry Profile: Engineered for an ergonomic and comfortable typing experience, reducing fatigue during extended use.
- Bred kompatibilitet: This 131-key set is compatible with most 60%, 65%, 75%, 80%, 96%, and 100% mechanical keyboards (e.g., 61/64/68/84/75/87/96/980/104/108 key layouts).
Visual Overview
Figur 2.1: Overview of the XVX Shine Through PBT Keycaps installed on a mechanical keyboard, showcasing the Blue Kanagawa Theme.
Figure 2.2: Demonstration of the shine-through functionality with RGB lighting off (left) and RGB lighting on (right), highlighting the illuminated side-printed legends.
Figure 2.3: The keycaps integrated into a keyboard setup, illustrating the clean and minimalist design aesthetic.
Figur 2.4: En detaljeret view of the 5-sided dye-sublimated keycaps, showcasing the intricate theme design.

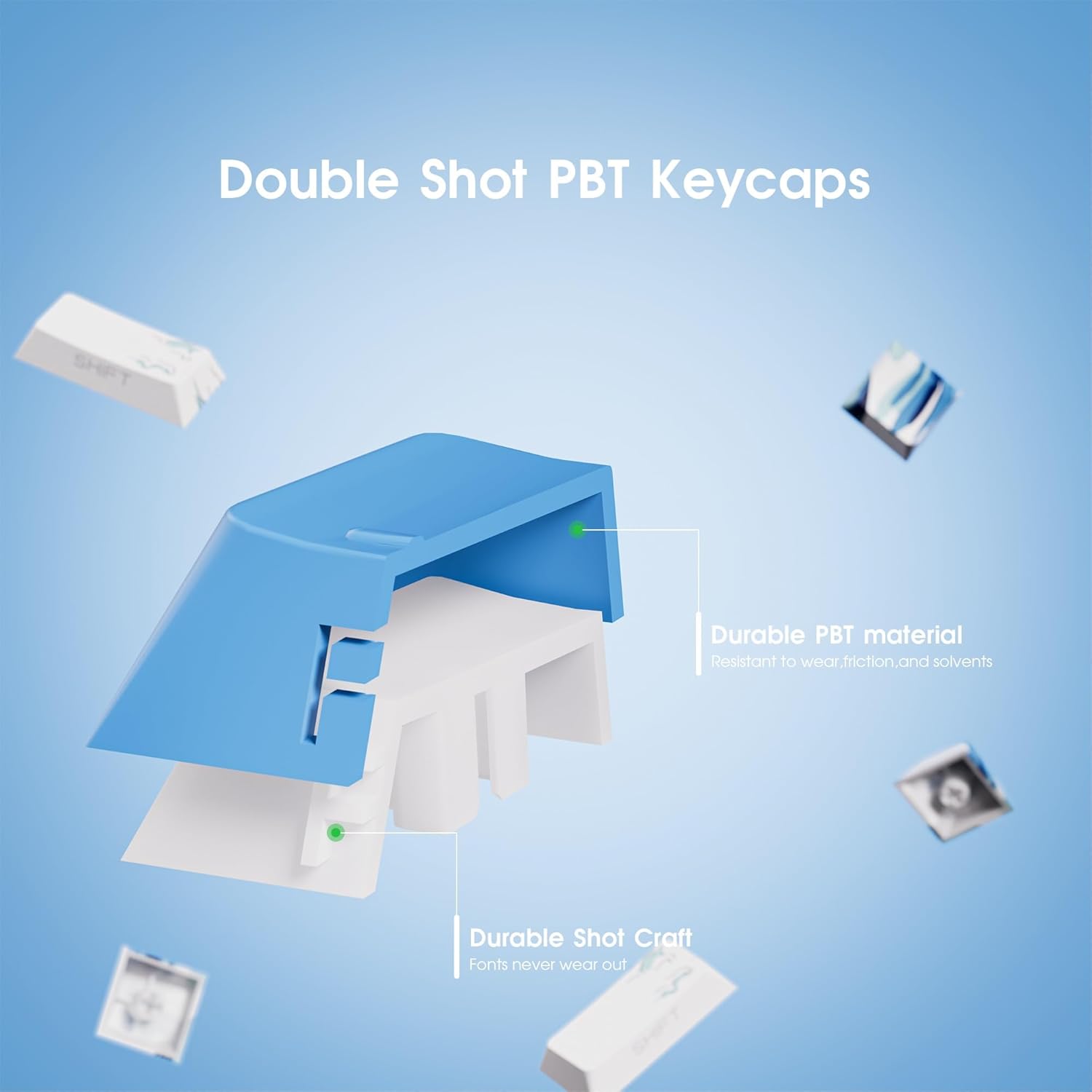

Figure 2.5: An exploded diagram demonstrating the durable double-shot construction of the PBT keycaps, ensuring legends do not wear out.
Figure 2.6: A comprehensive layout of the 131-keycap set, illustrating the side-printed legends and their shine-through capability.
3. Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- 1x 131-key custom keycap set (Blue Kanagawa Theme)
- 1x Keycap aftrækker
4. Installationsvejledning
Følg disse trin for at installere dine nye tastaturer:
- Forbered dit tastatur: Disconnect your mechanical keyboard from its power source.
- Fjern eksisterende taster: Use the included keycap puller to carefully remove your current keycaps. Grip the keycap firmly with the puller and pull straight up to avoid damaging the switch stem.
- Identificer placeringen af tastaturet: Refer to the layout diagram (Figure 2.6) and your keyboard's layout to correctly place each new keycap. Pay attention to the different sizes and profiles of keys (e.g., Spacebar, Shift, Enter, Ctrl, Alt).
- Installer nye taster: Align each new keycap with the corresponding switch stem and press down gently until it clicks into place. Ensure the keycap is seated securely and evenly.
- Test funktionalitet: Once all keycaps are installed, reconnect your keyboard and test each key to ensure proper function and fit. Verify that backlighting shines through the side-printed legends as expected, especially if your keyboard has south-facing LEDs.
Note: This keycap set is designed for mechanical keyboards with standard Cherry MX style switches or compatible clones.
5. Brug og betjening
These keycaps are designed for standard typing and gaming use on compatible mechanical keyboards. The Cherry profile offers a comfortable and familiar typing angle, while the PBT material provides a durable, non-glossy surface. The side-printed, shine-through legends ensure visibility of characters, particularly in low-light conditions when backlighting is active.
6. Vedligeholdelse
To maintain the appearance and longevity of your keycaps:
- Regelmæssig rengøring: Brug en blød børste eller trykluft til at fjerne støv og snavs mellem tasterne.
- Dyb rengøring: For more thorough cleaning, carefully remove the keycaps using the keycap puller. Wash them gently with mild soap and lukewarm water. Rinse thoroughly and allow them to air dry completely before re-installing. Avoid harsh chemicals or abrasive materials, which can damage the PBT material or legends.
- Undgå overdreven kraft: When removing or installing keycaps, use the provided tool and apply even pressure to prevent damage to the keycaps or keyboard switches.
7. Fejlfinding
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Keycap does not fit or feels loose. | Incorrect keycap size/profile for the switch or keyboard layout. Switch stem may be damaged. | Ensure the correct keycap is being used for its position. Verify your keyboard's layout compatibility. Inspect the switch stem for damage. |
| Legends do not shine through clearly. | Keyboard LEDs are not south-facing. Backlighting is off or too dim. | These keycaps are optimized for south-facing LEDs. Ensure keyboard backlighting is enabled and set to an appropriate brightness. |
| Keycap feels sticky or unresponsive. | Dirt or debris under the keycap. | Remove the keycap and clean the switch and keycap interior. |
8. Specifikationer
| Attribut | Detalje |
|---|---|
| Mærke | HITIME |
| Modelnummer | xh-ck-shh-ql |
| Materiale | Polybutylenterephthalat (PBT) |
| Keycap Profile | Cherry Profile |
| Antal nøgler | 131 |
| Udskrivningsmetode | Dye-Sublimation (5-sided) & Double Shot |
| Farvetema | Blue Kanagawa Theme |
| Kompatibilitet | Most 60%/65%/75%/80%/96%/100% mechanical keyboards |
| Varens vægt | 13.4 ounce |
| Pakkedimensioner | 9.69 x 5.79 x 1.65 tommer |
9. Garanti og support
Your HITIME XVX Shine Through PBT Keycaps come with a worry-free 18 måneders garanti. If you encounter any issues or require assistance, please contact our customer service. We are committed to providing friendly and responsive support to ensure your satisfaction.
For further inquiries or support, please refer to the contact information provided with your purchase or visit the official HITIME store page on Amazon: HITIME Store.
