Indledning
The Caliber RMD035DAB-FBA is a versatile 1DIN car radio designed to enhance your in-car audio experience. It features an integrated DAB+/FM tuner for crystal clear radio reception, Bluetooth for hands-free calling and audio streaming, and multiple media playback options including USB and Micro SD cards. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your device.
Figure 1: Caliber RMD035DAB-FBA Car Radio Front View
Nøglefunktioner
- DAB+ tuner: Enjoy crystal clear and interference-free digital radio reception.
- FM Tuner with RDS-EON: Standard FM radio reception with enhanced data services.
- Bluetooth-forbindelse: For hands-free calling and wireless audio streaming.
- USB & Micro SD Playback: Supports music playback from USB drives and Micro SD cards up to 32GB.
- 2.1A USB Charging: Conveniently charge your smartphone or other devices.
- Aux-ind: Tilslut eksterne lydenheder via et 3.5 mm jackstik.
- RCA-udgang: Til tilslutning af ekstern amplivførere.
- Audio Format Support: Compatible with MP3, WMA, APE, FLAC, and AAC audio formats.
- Standard 1 DIN Size: Easy installation in most vehicles.
Figur 2: Overview of Product Features and Connectivity Options
Opsætning og installation
This unit is designed for standard 1 DIN installation. Professional installation is recommended to ensure proper wiring and functionality.
1. Kontrol før installation
- Ensure your vehicle has a standard 1 DIN opening.
- Verify that your vehicle's wiring harness is compatible with the ISO connection provided.
- Disconnect the vehicle's negative battery terminal before starting installation to prevent electrical shorts.

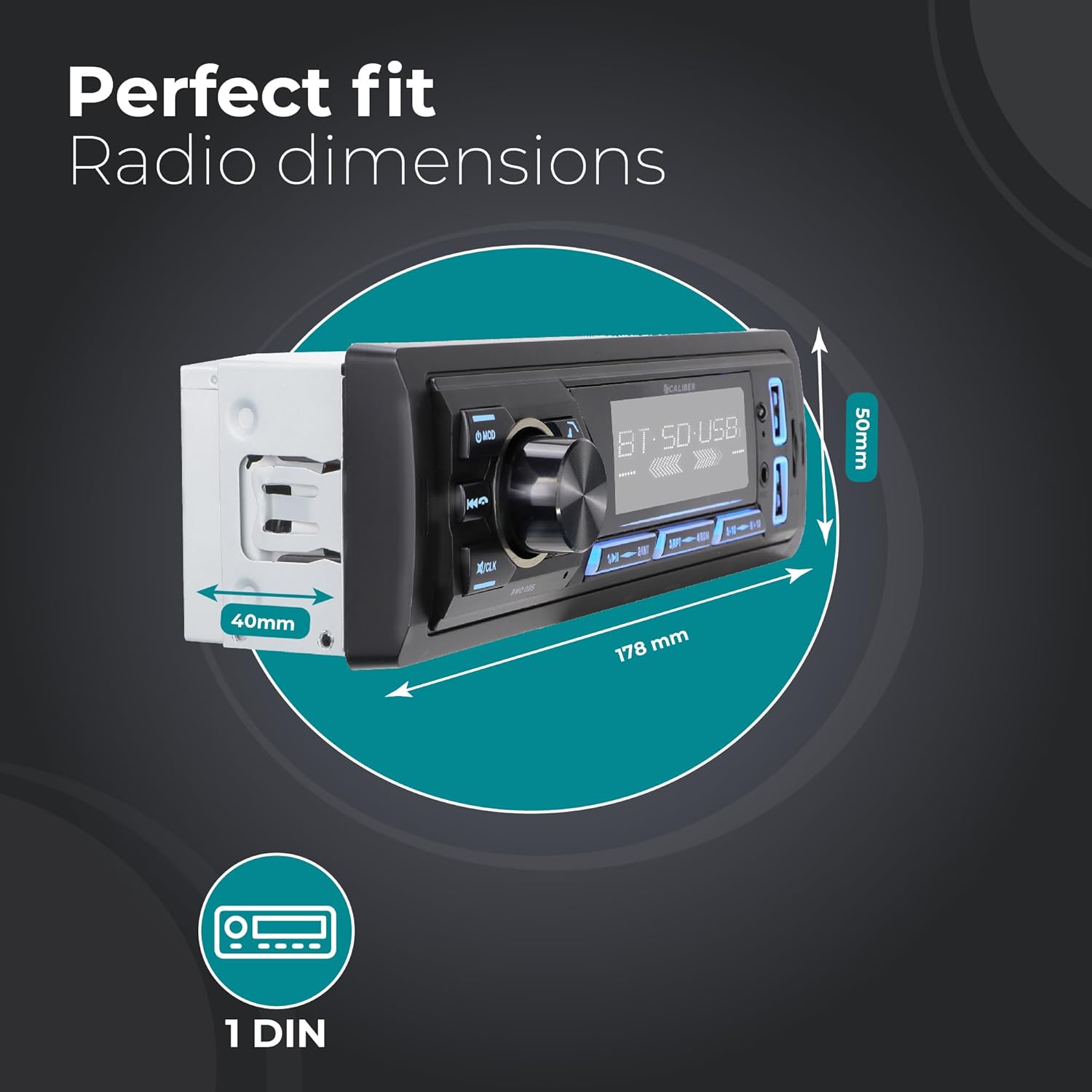

Figure 3: Car Radio Dimensions for Installation
2. Ledningsforbindelser
Connect the following wires according to the ISO standard and your vehicle's wiring diagram:
- Yellow (Constant Power): Connect to a constant 12V supply.
- Red (Accessory Power): Connect to a switched 12V supply (ignition).
- Sort (jord): Connect to a good chassis ground point.
- Blue (Antenna/Ampfjernbetjening): Connect to power antenna or external ampfjernbetjening til lifer.
- Højttalerkabler: Connect to your vehicle's speakers (e.g., White/White-Black for Front Left, Grey/Grey-Black for Front Right, Green/Green-Black for Rear Left, Purple/Purple-Black for Rear Right).
- DAB+ antenne: Connect the included DAB+ antenna to the dedicated DAB antenna input on the rear of the unit. Position the antenna for optimal reception.
- RCA udgange: Hvis du bruger en ekstern amplifier, connect RCA cables from the unit's RCA outputs to the amplifiers indgange.
3. Montering af enheden
- Slide the metal mounting sleeve into the vehicle's dashboard opening until it locks into place.
- Carefully slide the car radio unit into the mounting sleeve until it clicks securely.
- Tilslut køretøjets negative batteripol igen.
Betjeningsvejledning
1. Grundlæggende kontroller
- Tænd/sluk: Tryk på MOD Tryk kortvarigt på knappen for at tænde enheden. Tryk og hold nede for at slukke.
- Lydstyrkekontrol: Drej den store centrale knap for at justere lydstyrken.
- Valg af tilstand: Tryk på MOD button repeatedly to cycle through available modes (DAB+, FM, Bluetooth, USB, SD, AUX).
- Stum: Briefly press the volume knob to mute/unmute audio.
- Indstilling af ur: Tryk og hold på /CLK knappen for at gå ind i indstillingstilstanden for uret. Brug lydstyrkeknappen til at justere timer/minutter, og tryk på knappen for at bekræfte.
2. Radio Operation (DAB+/FM)
- Valg af bånd: I radiotilstand skal du trykke på BND button to switch between FM1, FM2, FM3, DAB1, DAB2, DAB3.
- Automatisk scanning: Tryk og hold på BND button to perform an automatic scan and store strong stations.
- Manuel indstilling: Brug ◀◀ (forrige nummer) og ▶▶ (next track) buttons for manual tuning.
- Forudindstillede stationer: Tryk på knapperne 1 til 6 to select a stored preset station. To store a station, tune to the desired frequency, then press and hold one of the preset buttons (1-6) until you hear a beep.
Figure 4: DAB+ Digital Radio Experience
3. Bluetooth-betjening
- Parring:
- Vælg Bluetooth-tilstand ved hjælp af MOD button. The display will show "BT".
- Aktiver Bluetooth på din mobilenhed, og søg efter tilgængelige enheder.
- Select "Caliber RMD035DAB" (or similar name) from the list. If prompted for a PIN, enter "0000".
- Når parringen er afsluttet, viser displayet "CONNECTED".
- Håndfri opkald:
- Besvar opkald: Tryk på ☎ (phone) button.
- Afslut opkald: Tryk på ☎ (phone) button again.
- Afvis opkald: Tryk og hold på ☎ (phone) button.
- Genopkald: I Bluetooth-tilstand skal du trykke på ☎ (phone) button twice to redial the last number.
- Bluetooth Audio Streaming (A2DP):
- Once paired, audio from your device will stream to the car radio.
- Brug ◀◀ og ▶▶ knapper til at springe spor over.
- Use the volume knob to adjust playback volume.
Figure 5: Bluetooth Audio Streaming Interface
4. USB and Micro SD Playback
- Insert a USB drive into the USB port or a Micro SD card into the SD card slot. The unit will automatically switch to USB/SD mode and begin playback.
- Brug ◀◀ og ▶▶ knapper til at springe spor over.
- Tryk på 1/▶▶ knappen for at afspille/pause.
- The unit supports MP3, WMA, APE, FLAC, and AAC audio formats.
5. AUX-in Operation
- Connect an external audio device (e.g., MP3 player) to the AUX-in port on the front panel using a 3.5mm audio cable.
- Vælg AUX-tilstand ved hjælp af MOD knap.
- Control playback and volume from the connected external device.
6. USB Charging Function
- The dedicated USB charging port (2.1A) allows you to charge your smartphone or other USB-powered devices.
- Simply connect your device's USB charging cable to the charging port.
Figur 6: Placering af USB-opladeport
Opretholdelse
- Rensning: Brug en blød, tør klud til at rengøre enhedens frontpanel. Ved genstridigt snavs, dampen the cloth slightly with water. Do not use abrasive cleaners or solvents.
- Temperatur: Undgå at udsætte enheden for ekstreme temperaturer, direkte sollys i længere perioder eller høj luftfugtighed.
- Ventilation: Ensure the unit has adequate ventilation to prevent overheating. Do not block ventilation openings.
- Udskiftning af sikring: If the unit does not power on, check the fuse located on the rear of the unit. Replace with a fuse of the same rating (typically 10A).
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Forkert ledningsføring; Sprunget sikring; Lavt batteriniveau. | Check power and ground connections. Replace fuse if blown. Check vehicle battery. |
| Ingen lyd | Volume too low; Mute activated; Speaker wires disconnected/shorted. | Skru op for lydstyrken. Deaktiver lydløs. Kontroller højttalerledningerne. |
| Dårlig radiomodtagelse (FM) | Antenna not connected; Weak signal area; Damaged antenna. | Ensure antenna is properly connected. Try tuning to a stronger station. Inspect antenna for damage. |
| Poor radio reception (DAB+) | DAB+ antenna not connected/positioned correctly; Out of DAB+ service area. | Ensure DAB+ antenna is connected and positioned optimally (e.g., on windshield). Check DAB+ coverage in your area. |
| Bluetooth ikke parring | Unit not in pairing mode; Device Bluetooth off; Incorrect PIN. | Ensure unit is in Bluetooth mode. Turn Bluetooth on/off on device. Enter "0000" if prompted for PIN. |
| USB/SD afspiller ikke | Ikke understøttet file format; Beskadiget files; USB/SD card not inserted correctly; Card capacity too large. | Sikre files are supported (MP3/WMA/APE/FLAC/AAC). Reinsert USB/SD. Use cards up to 32GB. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Kaliber |
| Model | RMD035DAB-FBA |
| Type | 1 DIN Car Radio |
| Forbindelsesteknologi | Bluetooth, USB |
| Særlige funktioner | Built-In Bluetooth, RCA Output, FM Tuner, DAB+, Hands-Free Calling, USB Charging (2.1A) |
| Kompatible enheder | Smartphone, Tablet, Personal Computer |
| Lydudgangstilstand | Stereoanlæg |
| Konfiguration af højttalerens surroundlydkanal | 4.0 |
| Output Wattage | 4 x 55 watt |
| Understøttede lydformater | MP3, WMA, APE, FLAC, AAC |
| USB/Micro SD Capacity | Op til 32 GB |
| Produktmål (L x B x H) | 17.8 x 4 x 5 cm (7.01 x 1.57 x 1.97 tommer) |
| Varens vægt | 500 g (1.1 lbs) |
Garanti og support
Specific warranty details for the Caliber RMD035DAB-FBA are not provided in this manual. Please refer to the warranty card included with your product packaging or visit the official Caliber website for the most up-to-date warranty information and customer support contacts.
For technical assistance or service inquiries, please contact Caliber customer support through their official channels.
