SmallRig All-in-One Universal Quick Release Phone Video Rig Kit Pro

Indledning

The SmallRig All-in-One Universal Quick Release Phone Video Rig Kit Pro (Model 4704-CF) is designed to provide a comprehensive and professional solution for mobile phone video shooting. This kit enhances stability, audio quality, and lighting, allowing creators to achieve high-quality video production with ease. It features a quick-release design for tool-free installation and versatile expansion options for various accessories.

Komponenter og pakkeindhold

The 4704-CF kit includes a range of essential accessories to support professional mobile videography. All components are designed for quick and easy assembly.

Image: All components included in the SmallRig All-in-One Kit, showing the phone cage, handles, tripod, LED light, microphone, and various cables and adapters.

Pakkeindhold:

• Universal Quick Release Phone Cage x 1
• Rotatable Quick Release Side Handle with Wireless Control x 1
• Rotatable Quick Release Side Handle x 1
• Quick Release Metal Tabletop Tripod x 1
• P96 Mini LED Video Light x 1
• Shotgun Microphone x 1
• Power Bank Clamp x 1
• 2-in-1 USB-C PD Fast Charging and Audio Adapter x 1
• Lightning to USB-C Adapter x 1
• Velcro Cable Ties x 1
• Brugervejledning x 2
• Bæretaske x 1

Opsætning

Follow these steps to assemble and prepare your SmallRig Phone Video Rig Kit for use.

Billede: Eksploderet view demonstrating the quick-release, tool-free installation of the various components onto the phone cage.

Monteringsvejledning:

1. Attach the Phone Cage to the Tripod: Secure the Universal Quick Release Phone Cage onto the Quick Release Metal Tabletop Tripod using the integrated quick-release mechanism. Ensure it clicks securely into place.
2. Indsæt din telefon: The phone cage supports phones with a width of 2.52 to 3.46 inches (64mm to 88mm). You can secure your phone either via MagSafe magnetic suction (for compatible iPhones) or by using the included universal phone clip. Ensure your phone is firmly seated in the cage.


   Image: Details on how to install a phone into the cage, showing both MagSafe and clamp methods, and compatible phone sizes.

3. Fastgør håndtagene: Slide the Rotatable Quick Release Side Handles onto the quick-release interfaces on either side of the phone cage. The handles can be rotated 360 degrees for comfortable grip and quick switching between side and top handle modes.
4. Monter LED-lyset: Attach the P96 Mini LED Video Light to one of the cold shoe mounts on the top of the phone cage.
5. Mount the Shotgun Microphone: Attach the Shotgun Microphone to another cold shoe mount on the top of the phone cage. Connect the microphone to your phone using the appropriate cable (USB-C to 3.5mm, or use the Lightning adapter if needed).
6. Attach the Power Bank Clamp (Valgfri): If using an external power bank, attach the Power Bank Clamp to a suitable mounting point on the rig and secure your power bank.

Betjeningsvejledning

This section provides guidance on how to effectively use the various components of your SmallRig Phone Video Rig Kit.

Using the Phone Cage:

• The phone cage provides a stable and secure platform for your smartphone, minimizing shake during handheld recording.
• Its robust design protects your phone while offering multiple attachment points for accessories.

Using the Rotatable Quick Release Side Handles:

The dual handles offer enhanced stability and ergonomic grip for extended shooting sessions.

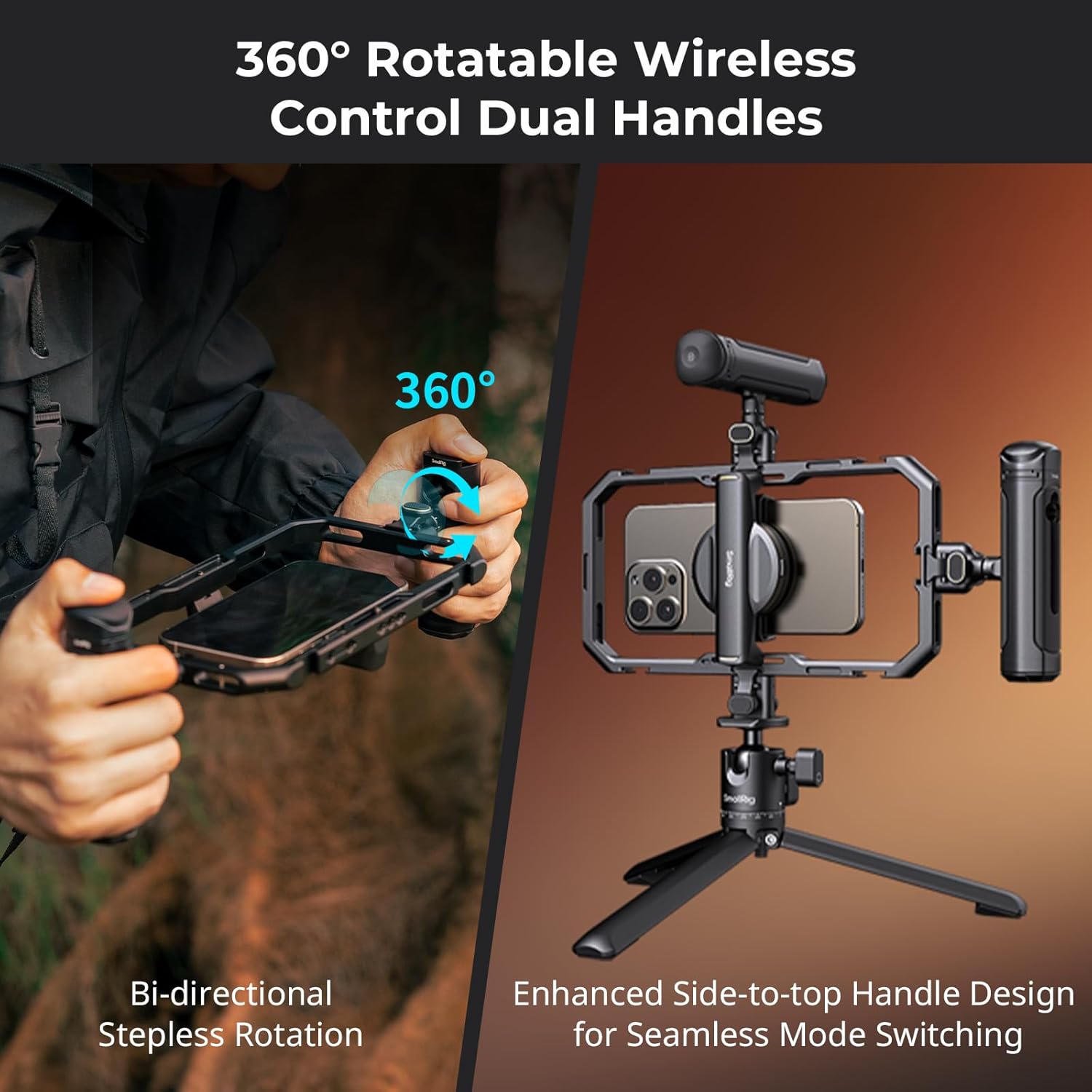

Image: Demonstrates the bi-directional stepless rotation of the handles and their ability to switch between side and top handle modes.

• Wireless Control Handle: One handle includes a wireless control button for starting and stopping video recording or taking photos remotely, reducing camera shake. Ensure it is paired with your phone via Bluetooth.
• 360° rotation: Adjust the handles to any angle for comfortable holding, whether shooting horizontally or vertically.
• Quick Mode Switching: Easily detach and reattach handles to switch between handheld and tripod modes, or to convert to a top handle configuration.

Using the P96 Mini LED Video Light:

The LED light provides adjustable illumination for various shooting conditions.

Image: Close-up of the P96 LED light and shotgun microphone, highlighting the light's color temperature range and the microphone's cardioid pickup pattern.

• Lysstyrkekontrol: Adjust the brightness from 0% to 100% using the control dial on the light.
• Farvetemperatur: The light offers a color temperature range from 2700K (warm) to 6500K (cool). Adjust to match ambient lighting or create desired effects.
• Opladning: Charge the LED light using a USB-C cable. A full charge provides approximately 105 minutes of operation.

Using the Shotgun Microphone:

The microphone is designed to capture clear, directional audio.

• Kardioid afhentningsmønster: The microphone primarily picks up sound from directly in front of it, reducing background noise from the sides and rear. This is ideal for interviews or focusing on a specific sound source.
• Forbindelse: Connect the microphone to your phone's audio input using the provided cables and adapters.

Using the Quick Release Metal Tabletop Tripod:

The tripod provides a stable base for stationary shots and can be used as a compact grip.

• Brug af bordplade: Extend the legs for stable placement on flat surfaces.
• Handheld Grip: Fold the legs together to use the tripod as a comfortable handheld grip for low-angle shots or increased stability.
• 360° Panoramic Ball Head: The integrated ball head allows for precise positioning and smooth 360-degree panning.

Kompatibilitet

The Universal QR Phone Cage is designed for wide compatibility with various smartphone models.

• Phone Width: Compatible with mobile phones with a width ranging from 2.52 to 3.46 inches (64mm to 88mm).
• Examples: This includes models such as iPhone 16 / 15 / 14 / 13 series, Samsung Galaxy S24 / S23 / S22 series, Huawei Mate 60 / 40 series, Google Pixel 8 / 7 / 6 series, and many others within the specified width range.
• Etui kompatibilitet: The phone cage supports the use of mobile phones with cases.
• Monteringsmuligheder: Phones can be secured via MagSafe magnetic suction (for compatible iPhones) or through the included universal mobile phone clip.

Versatile Expansion Options

The SmallRig Phone Cage is equipped with numerous interfaces for expanding your setup with additional accessories.

Image: Visual representation of the 1/4"-20 threaded holes, cold shoe mounts, quick release interfaces, and strap slots available on the phone cage.

• 1/4"-20 gevindhuller (x16): For attaching a wide range of camera accessories such as magic arms, monitors, or additional lights.
• Cold Shoe-beslag (x5): Ideal for mounting microphones, LED lights, or other cold shoe compatible accessories.
• Hurtigudløsergrænseflader (x6): For rapid attachment and detachment of quick-release compatible accessories, including the side handles.
• Strap Slots (x2): For attaching a wrist strap or shoulder strap for added security and portability.
• 67mm Filter Expansion Ports: Supports the addition of external filters (filters and filter adapters sold separately).
• Udvidelsesdock fastgørelsesport: For future expansion with dedicated SmallRig accessories.

Opretholdelse

Proper maintenance ensures the longevity and optimal performance of your SmallRig kit.

• Rensning: Use a soft, dry cloth to wipe down the metal and plastic surfaces. For stubborn dirt, a slightly damp en klud kan bruges, efterfulgt af øjeblikkelig tørring. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Store the kit in its carrying case in a cool, dry place away from direct sunlight and extreme temperatures.
• Håndtagsmekanismer: Periodically check the quick-release mechanisms and damping adjustments on the handles to ensure smooth operation. A built-in Allen wrench is provided in one handle for on-the-go adjustments.
• Battery Care (LED Light): For the LED light, ensure it is charged regularly, especially if stored for long periods, to maintain battery health.

Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på, og giver løsninger.

Specifikationer

Detailed technical specifications for the SmallRig All-in-One Universal Quick Release Phone Video Rig Kit Pro.

Garanti og support

SmallRig products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty details, including duration and coverage, please refer to the warranty card included with your product or visit the official SmallRig webwebsted.

For technical support, troubleshooting assistance, or inquiries regarding replacement parts, please contact SmallRig customer service through their official website or the retailer where the product was purchased. Have your model number (4704-CF) and purchase information ready when contacting support.
