Brugervejledning til Pecron E500LFP bærbar kraftstation

1. Introduktion

The Pecron E500LFP Portable Power Station is a versatile and reliable power solution designed for various applications, including home use, RV trips, camping, and emergency backup. Featuring a 576Wh LiFePO4 battery and 600W AC output, it provides stable and efficient power for multiple devices. This manual provides detailed instructions for safe and effective operation, maintenance, and troubleshooting of your E500LFP unit.

Figure 1.1: The Pecron E500LFP Portable Power Station, a compact and robust power solution.

2. Sikkerhedsoplysninger

Please read and understand all safety warnings and instructions before using the Pecron E500LFP. Failure to follow these guidelines may result in electric shock, fire, serious injury, or property damage.

• Enheden må ikke skilles ad, repareres eller modificeres.
• Avoid exposure to rain, moisture, or direct sunlight for prolonged periods.
• Holdes væk fra varmekilder, åben ild og brandfarlige materialer.
• Sørg for korrekt ventilation under brug for at forhindre overophedning.
• Do not operate if the unit or cables are damaged.
• Opbevares utilgængeligt for børn og kæledyr.
• Dispose of the battery and unit according to local regulations.

Figure 2.1: The E500LFP features a built-in Battery Management System (BMS) for enhanced safety and stable power delivery.

3. Pakkens indhold

Bekræft at alle varer er inkluderet i din pakke:

• Pecron E500LFP Power Station (x1)
• AC-opladekabel (x1)
• Bilopladningskabel (x1)
• Tilbehørstaske (x1)
• Brugervejledning (x1)

4. Produktet er slutview

The Pecron E500LFP is equipped with various ports and features for maximum utility.

4.1. Porte og funktioner

• AC-udgang (x2): For standard household appliances (600W Pure Sine Wave).
• USB-A-udgang (x2): For charging smartphones, tablets, and other USB devices.
• USB-C-udgang (x1): 100W Power Delivery for fast charging compatible devices.
• Cigarport (x1): 12V DC output for car appliances.
• DC 5525-udgang (x2): Til specifikke DC-drevne enheder.
• Wireless Charger (x1): Convenient charging pad on top of the unit.
• LED lys: Integrated light for illumination in dark environments.
• LCD-skærm: Viser batteriniveau, input/output watttage, remaining time, and alarms.

Figur 4.1: Overview of the 9 versatile output options available on the E500LFP.

Figur 4.2: Detaljeret view of the LCD display, showing various indicators and information.

5. Opsætning

5.1. Første opladning

Before first use, fully charge your Pecron E500LFP. This ensures optimal battery performance and longevity.

1. Connect the AC Charging Cable to the AC input port on the power station.
2. Plug the other end of the AC Charging Cable into a standard wall outlet.
3. The LCD display will indicate charging status. The unit is fully charged when the battery icon is full and the input wattage falder til nul.

A full charge via AC can take approximately 1.5 hours.

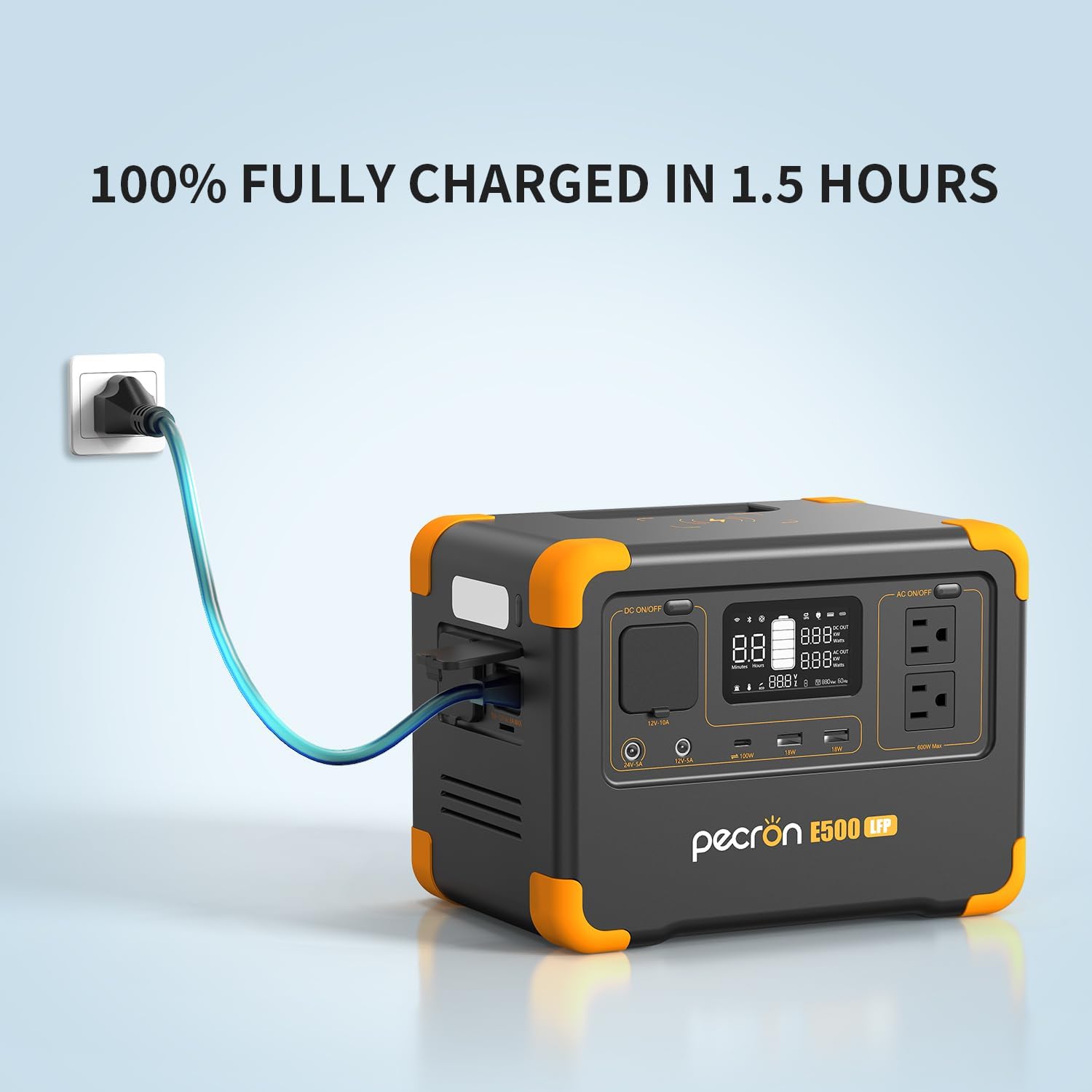

Figure 5.1: The E500LFP can be fully charged in approximately 1.5 hours using AC fast charging.

6. Betjeningsvejledning

6.1. Tænd/sluk

To power on the unit, press and hold the main power button for 5 seconds. The LCD display will illuminate. To power off, press and hold the main power button again until the display turns off.

6.2. Brug af AC-stikkontakter

1. Sørg for, at kraftværket er tændt.
2. Press the "AC ON/OFF" button to activate the AC outlets. The AC indicator on the display will light up.
3. Plug your AC-powered device into one of the AC outlets.
4. When finished, press the "AC ON/OFF" button again to turn off the AC outlets and conserve power.

6.3. Using USB and DC Outputs

1. Sørg for, at kraftværket er tændt.
2. For USB-A, USB-C, Cigar Port, or DC 5525 outputs, simply plug in your device. These ports are typically active when the unit is on.
3. For wireless charging, place your compatible device on the designated wireless charging pad on top of the unit.

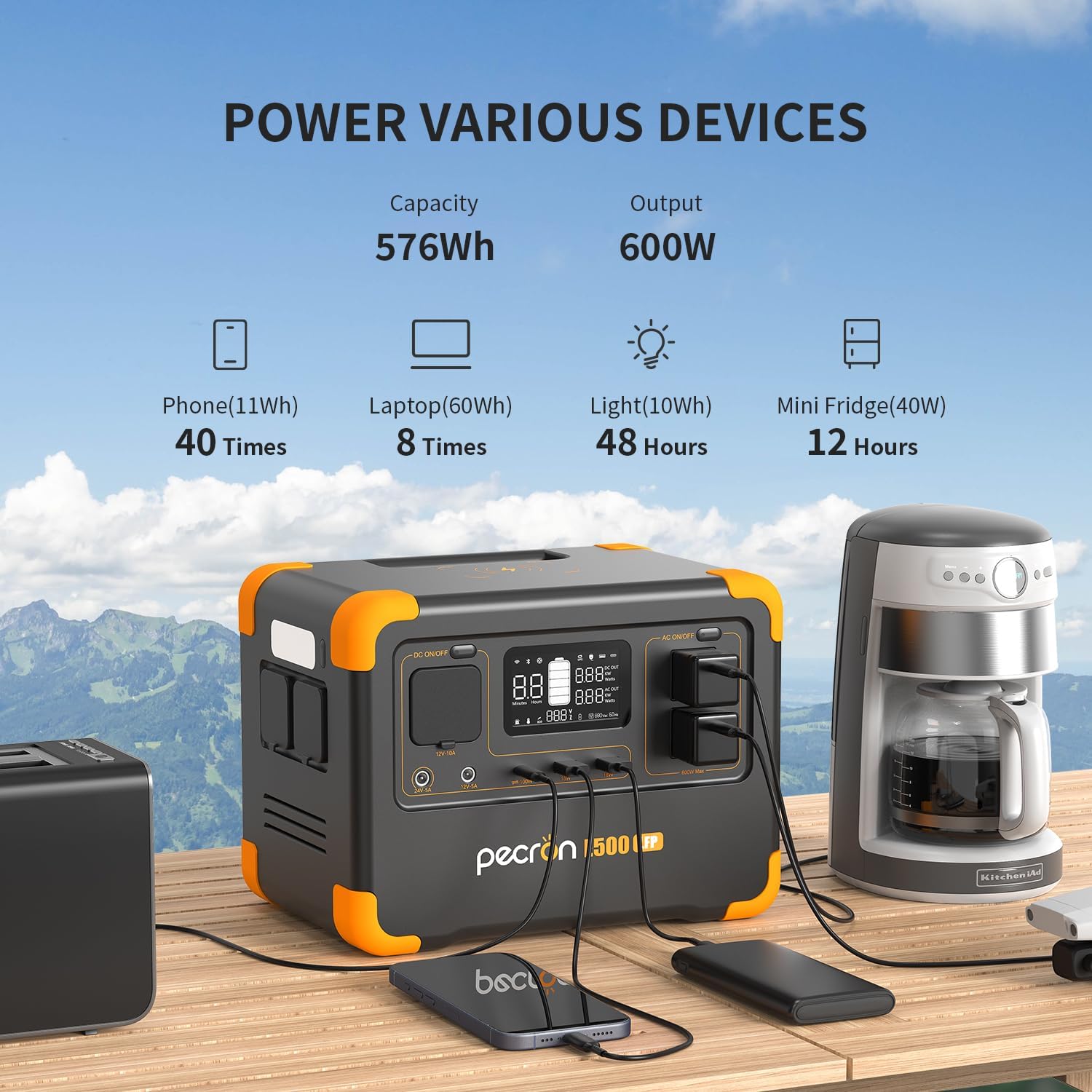

Figure 6.1: The E500LFP can power a wide range of devices, from phones and laptops to mini-fridges.

Figure 6.2: The portable design makes it ideal for outdoor activities like camping.

Figure 6.3: The integrated LED light provides convenient illumination for various situations.

6.4. UPS funktion

The E500LFP features an Uninterruptible Power Supply (UPS) function, allowing it to switch to battery power within 8-20ms in case of a power outage. This helps prevent data loss for connected devices.

Figure 6.4: The UPS function ensures continuous power supply to critical devices during outages.

7. Opladning af kraftværket

The Pecron E500LFP offers multiple charging methods:

• AC vægudtag: Fully charges in approximately 1.5 hours with 500W AC fast charging.
• USB-C: Can be charged via USB-C in approximately 6 hours.
• Solpanel: Compatible with 100W solar panels, charging in approximately 6 hours (solar panel sold separately).
• Bilopladning: Charges from your vehicle's 12V outlet in approximately 6 hours.

Figure 7.1: The E500LFP supports multiple charging methods for convenience.

8. Vedligeholdelse

8.1. Opbevaring

To ensure the longevity of your E500LFP:

• Turn off the unit and store it in a dry, well-ventilated place at normal room temperature.
• For long-term storage, it is recommended to discharge the battery to 30% every three months and recharge it to 60% to sustain the battery life.

Figure 8.1: Proper storage guidelines for the Pecron E500LFP.

8.2. Batterilevetid

The E500LFP utilizes LiFePO4 battery technology, which offers a longer lifespan compared to traditional lithium-ion batteries. It can retain 80% of its original capacity after 3500 complete charge cycles.

Figure 8.2: The LiFePO4 battery ensures extended durability and cycle life.

9. Fejlfinding

Hvis du støder på problemer med din Pecron E500LFP, kan du se følgende almindelige problemer og løsninger:

10. Specifikationer

11. Garanti og support

Pecron tilbyder en 2+1 års problemfri garanti for the E500LFP Portable Power Station. For any inquiries, technical assistance, or warranty claims, please contact Pecron customer service.

Customer Service: Available 24 hours a day, 7 days a week.

For mere information, besøg den officielle Pecron-butik: Pecron Amazon Store

12. Produktvideo

Watch the official product video for a visual guide on the Pecron E500LFP Portable Power Station's features and uses.
