Scheppach HS254 Bordrundsav Brugermanual

Indledning

Thank you for choosing the Scheppach HS254 Table Saw. This powerful and versatile tool is designed for precise cutting of various wood materials, including beams, profile boards, and planks, as well as for longitudinal and miter cuts. Equipped with a 2200 W motor, soft start, and overload protection, it ensures efficient and safe operation.

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your Scheppach HS254 Table Saw. Please read this manual thoroughly before initial use to ensure proper handling and to maximize the lifespan of your tool. Keep this manual for future reference.

Figur 1: Overview of the Scheppach HS254 Table Saw with its robust stand and extended table surface.

Sikkerhedsinstruktioner

Always observe the following safety precautions to prevent electric shock, fire, and serious injury. Familiarize yourself with all controls and proper use of the machine before operation.

• Personlig sikkerhed: Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and a dust mask. Do not wear loose clothing or jewelry that could get caught in moving parts.
• Sikkerhed på arbejdsområdet: Hold dit arbejdsområde rent og godt oplyst. Rodede eller mørke områder indbyder til ulykker. Brug ikke elværktøj i eksplosive atmosfærer, f.eks. i nærheden af ​​brandfarlige væsker, gasser eller støv.
• Elektrisk sikkerhed: Sørg for, at strømforsyningen matcher voltage specified on the tool. Avoid body contact with earthed or grounded surfaces. Do not abuse the cord; never use it for carrying, pulling, or unplugging the power tool.
• Brug og pleje af værktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din anvendelse. Tag stikket ud af strømkilden, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøj.
• Specifik sikkerhed for bordrundsav
  • Always use the blade guard and splitter.
  • Brug en skubbepind eller skubbeblok, når du laver smalle snit.
  • Ræk aldrig ind over eller bag savklingen.
  • Ensure the workpiece is firmly supported and guided.
  • Do not remove cut-off pieces until the blade has stopped.
  • Maintain a safe distance from the blade.
• Opretholdelse: Regularly inspect the saw blade for sharpness and damage. Keep all guards and safety devices in place and in working order.

Pakkens indhold

Ved udpakning skal du kontrollere, at alle komponenter er til stede og ubeskadigede. Hvis der mangler eller er beskadigede dele, skal du straks kontakte din forhandler.

• Scheppach HS254 Table Saw unit
• Saw blade (254 mm diameter, 24 teeth)
• Cross-cut gauge
• Longitudinal stop (rip fence)
• Skub pind
• Table extensions (left and right)
• Monteringshardware og -værktøj (hvis relevant)
• Brugermanual

Opsætning og montering

The Scheppach HS254 Table Saw requires some assembly before first use. Follow these steps carefully to ensure proper and safe setup.

1. Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Gem emballagematerialerne til eventuel fremtidig transport eller opbevaring.
2. Montering af stativ: Assemble the robust steel sheet base according to the provided diagrams. Ensure all bolts are securely tightened for stability.
3. Mounting the Saw Unit: Securely attach the table saw unit to the assembled stand. Verify that it is stable and level.
4. Installing Table Extensions: Attach the table extensions to both sides of the main table. These extensions are crucial for supporting larger workpieces.
5. Montering af knive: If the saw blade is not pre-installed, follow the instructions to securely mount the 254 mm saw blade. Ensure the blade's rotation direction matches the arrow on the saw.
6. Guard and Fence Installation: Install the blade guard, splitter, and both the cross-cut gauge and longitudinal stop (rip fence). Ensure they move freely and lock securely.
7. Strømtilslutning: Connect the power cable to a suitable 230V AC power outlet. Ensure the power switch is in the "OFF" position before plugging in.

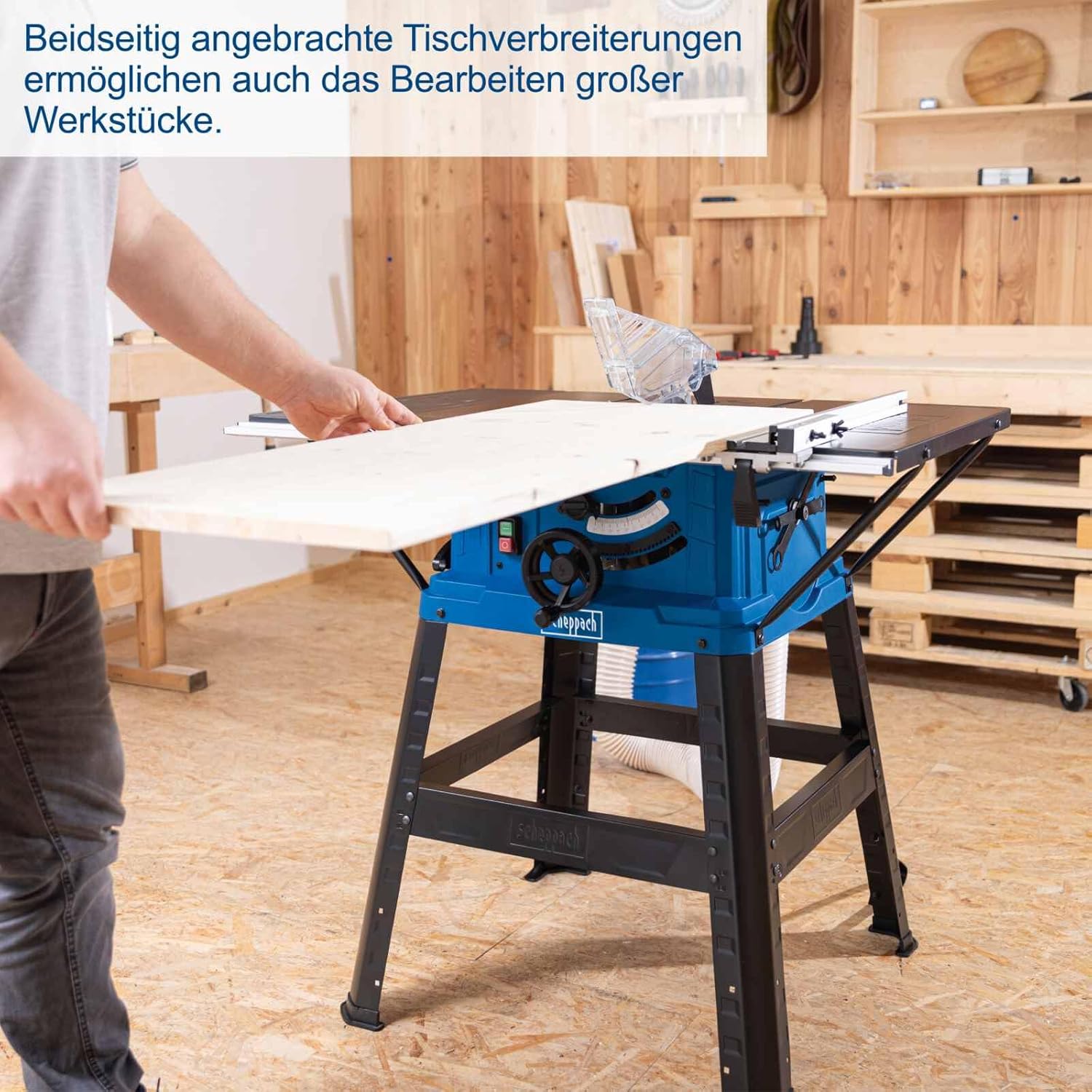

Figure 2: Table extensions installed, allowing for the processing of large workpieces.

Betjeningsvejledning

This section details the operation of your Scheppach HS254 Table Saw for various cutting tasks.

1. Tænd/sluk

• To turn on the saw, press the green "ON" button. The 2200W motor features a soft start function for smooth power-up.
• To turn off the saw, press the red "OFF" button.
• The saw is equipped with overload protection to prevent damage to the motor. If the motor stops due to overload, turn off the saw, allow it to cool, and reduce the cutting load.

Figure 3: Illustration of the soft start function and blade rotation speed (5300 rpm).

2. Adjusting Blade Height

Use the handwheel to comfortably and continuously adjust the saw blade's height. For optimal cutting, the blade should extend slightly above the workpiece.

• Maximum cutting height at 90° is 85 mm.
• Maximum cutting height at 45° is 63 mm.

3. Adjusting Blade Angle (Miter Cuts)

The saw blade can be continuously tilted from 0° to 45° for precise miter cuts.

• Loosen the locking mechanism for angle adjustment.
• Use the angle scale to set the desired angle.
• Tighten the locking mechanism securely before cutting.

Figure 4: Adjusting the saw blade for precise miter cuts (0-45°).

4. Using the Rip Fence (Longitudinal Cuts)

The longitudinal stop (rip fence) is used for making accurate parallel cuts along the length of the workpiece.

• Position the rip fence to the desired width using the scale on the table.
• Lock the rip fence firmly in place.
• Always use a push stick when feeding the workpiece, especially for narrow cuts.

Figure 5: Close-up of the rip fence and continuous scale for precise workpiece processing.

5. Using the Cross-Cut Gauge

The cross-cut gauge is adjustable from -60° to +60° and is ideal for precise cross-cuts and angled cuts across the width of the workpiece.

• Insert the cross-cut gauge into the miter slot on the table.
• Adjust the angle as required and lock it.
• Hold the workpiece firmly against the gauge and feed it smoothly through the blade.

Figur 6: Eksamples of cuts: beams, profile boards, longitudinal cuts, miter cuts, and general board cuts.

6. Støvudsugning

The Scheppach HS254 features an integrated connection for dust extraction. Connect a suitable dust extractor to keep your work area clean and reduce airborne dust.

Opretholdelse

Regelmæssig vedligeholdelse sikrer din bordrundsavs lange levetid og sikker drift.

• Rensning: After each use, disconnect the saw from power and clean off sawdust and debris from the table, blade guard, and motor housing. Use a brush or compressed air.
• Bladinspektion: Regularly check the saw blade for sharpness, missing teeth, or cracks. A dull or damaged blade can cause kickback and poor cut quality. Replace damaged blades immediately.
• Smøring: Periodically lubricate moving parts such as the blade height and angle adjustment mechanisms as recommended in the full service manual (if applicable).
• Fastgørelseskontrol: Periodically check all nuts, bolts, and screws for tightness. Tighten any loose fasteners.
• Opbevaring: Store the table saw in a dry, secure location, out of reach of children and unauthorized users.

Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på med din bordrundsav.

Specifikationer

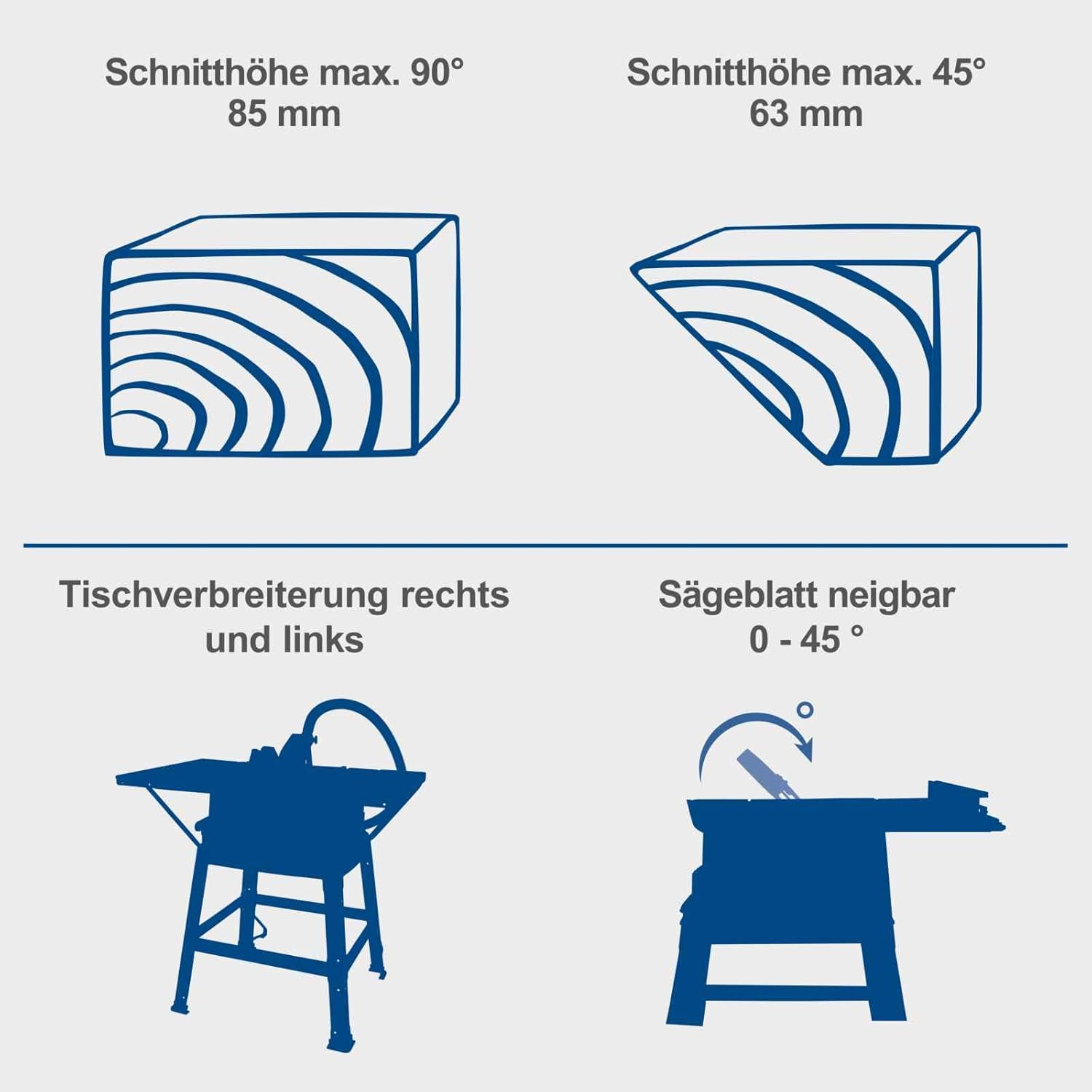

Figure 7: Visual representation of maximum cutting heights at 90° and 45°, and blade tilt range.

Garanti og support

Scheppach products are manufactured to high quality standards. In the unlikely event of a defect, please refer to your purchase documentation for warranty details. For technical support, spare parts, or service inquiries, please contact your authorized Scheppach dealer or visit the official Scheppach webwebsted for kontaktoplysninger.

Please have your model number (HS254 / 5901326901) and purchase date available when contacting support.
