HOMCOM Vibrating Massage Office Chair with Heat

1. Sikkerhedsoplysninger

Læs venligst alle instruktioner omhyggeligt inden montering og brug. Gem denne manual til senere brug.

• Vægtgrænse: Overskrid ikke den anbefalede maksimale vægt på 120 kg.
• Stabilitet: Ensure the chair is on a stable, level surface before use. When using the reclining or tilting features, ensure proper balance to prevent tipping.
• Elektriske komponenter: The massage and heating functions are electrical. Do not expose the remote control or power cord to water or excessive moisture. Disconnect from power when not in use or before cleaning.
• Børn og kæledyr: Keep children and pets away from the chair's moving parts and electrical components.
• Forsamling: Follow all assembly instructions precisely. Do not use power tools for assembly unless specifically instructed, as this may damage components.
• Inspektion: Regularly inspect all bolts and screws to ensure they are tight. Re-tighten if necessary.
• Tiltænkt brug: This chair is designed for indoor office use. Do not use it for purposes other than its intended design.

2. Pakkens indhold

Kontroller, at alle komponenter er til stede, før monteringen påbegyndes. Hvis der mangler eller er beskadigede dele, skal du kontakte kundesupport.

• Ryglæn
• Sædepude
• Armlæn (2)
• Gas Lift cylinder
• Base (5-stjernet)
• Hjul (5)
• Mekanismeplade
• Remote Control with Power Adapter
• Hardwarepakke (skruer, skiver, unbrakonøgle)
• Instruktionsmanual

3. Monteringsvejledning

Refer to the included manual for detailed step-by-step assembly. The following provides a general overview.

1. Fastgør hjul til basen: Insert the five casters into the holes at the end of each leg of the 5-star base. Push firmly until they click into place.
2. Indsæt gasløft: Placer gasløftecylinderen i det midterste hul på den samlede base.
3. Fastgør mekanismepladen til sædet: Secure the mechanism plate to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism faces the front of the seat.
4. Fastgør armlæn: Fasten the armrests to the sides of the seat cushion and the backrest using the designated screws. Ensure they are oriented correctly.
5. Tilslut ryglænet til sædet: Align the backrest with the seat and secure it using the remaining screws.
6. Placer det samlede sæde på gasliften: Placer forsigtigt det samlede sæde og ryglæn på gasløftcylinderen, og sørg for, at det er centreret og stabilt.
7. Tilslut strøm: Plug the remote control cable into the chair's port and connect the power adapter to a suitable electrical outlet.

4. Betjeningsvejledning

4.1. Højdejustering

To adjust the seat height, locate the lever on the right side under the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up slightly and pull the lever up. Release the lever to lock the height.

4.2. Hvilefunktion

The chair features a 125° reclining backrest. To recline, pull the lever on the left side of the chair upwards and lean back to your desired angle. Release the lever to lock the backrest in position. To return to an upright position, pull the lever and lean forward.

4.3. Vippefunktion

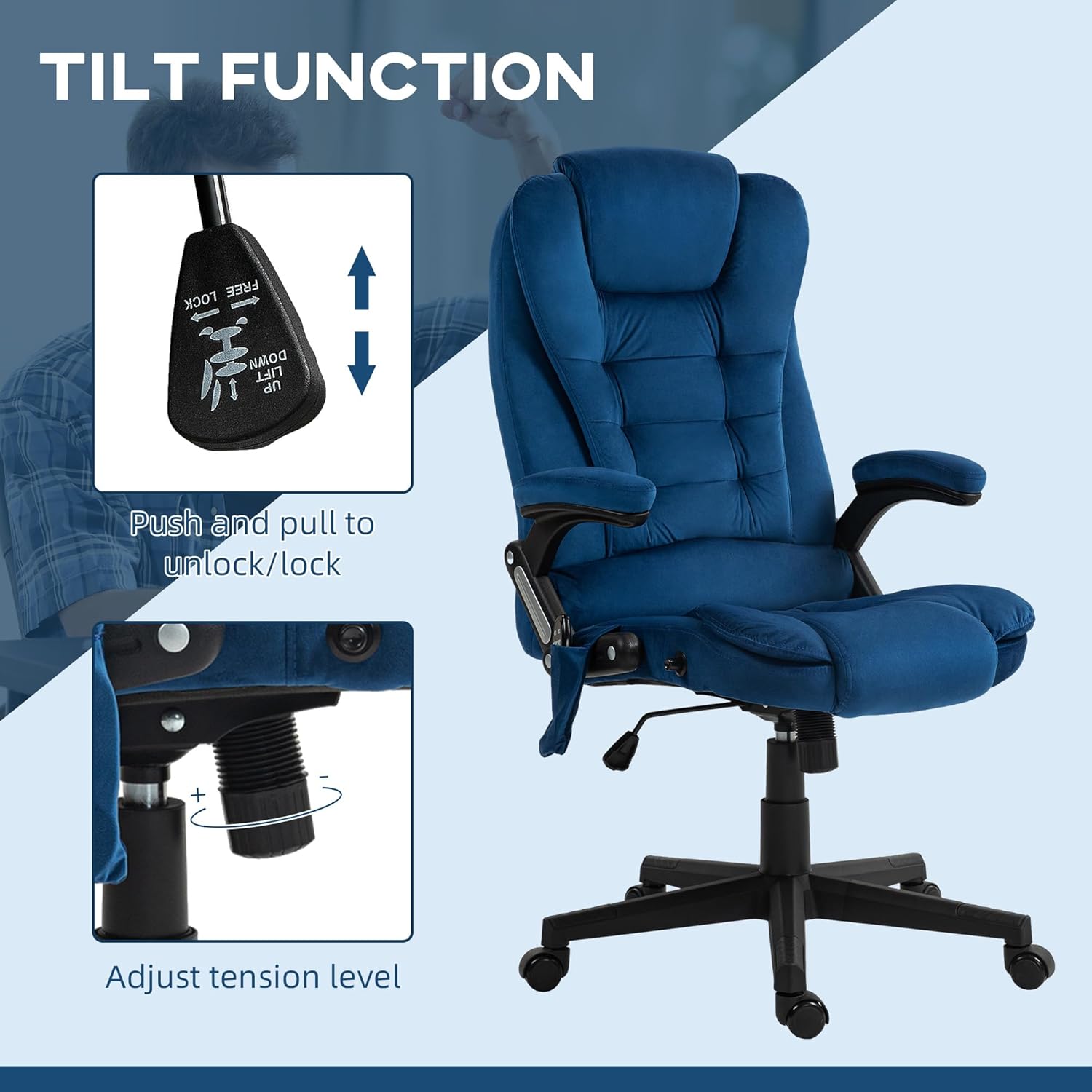

To enable the tilt function, pull the same lever used for height adjustment (on the right side) outwards. The chair will then allow for a rocking motion. Push the lever inwards to lock the chair in an upright position. The tension of the tilt can be adjusted by rotating the round knob located under the front of the seat.

4.4. Drejefunktion

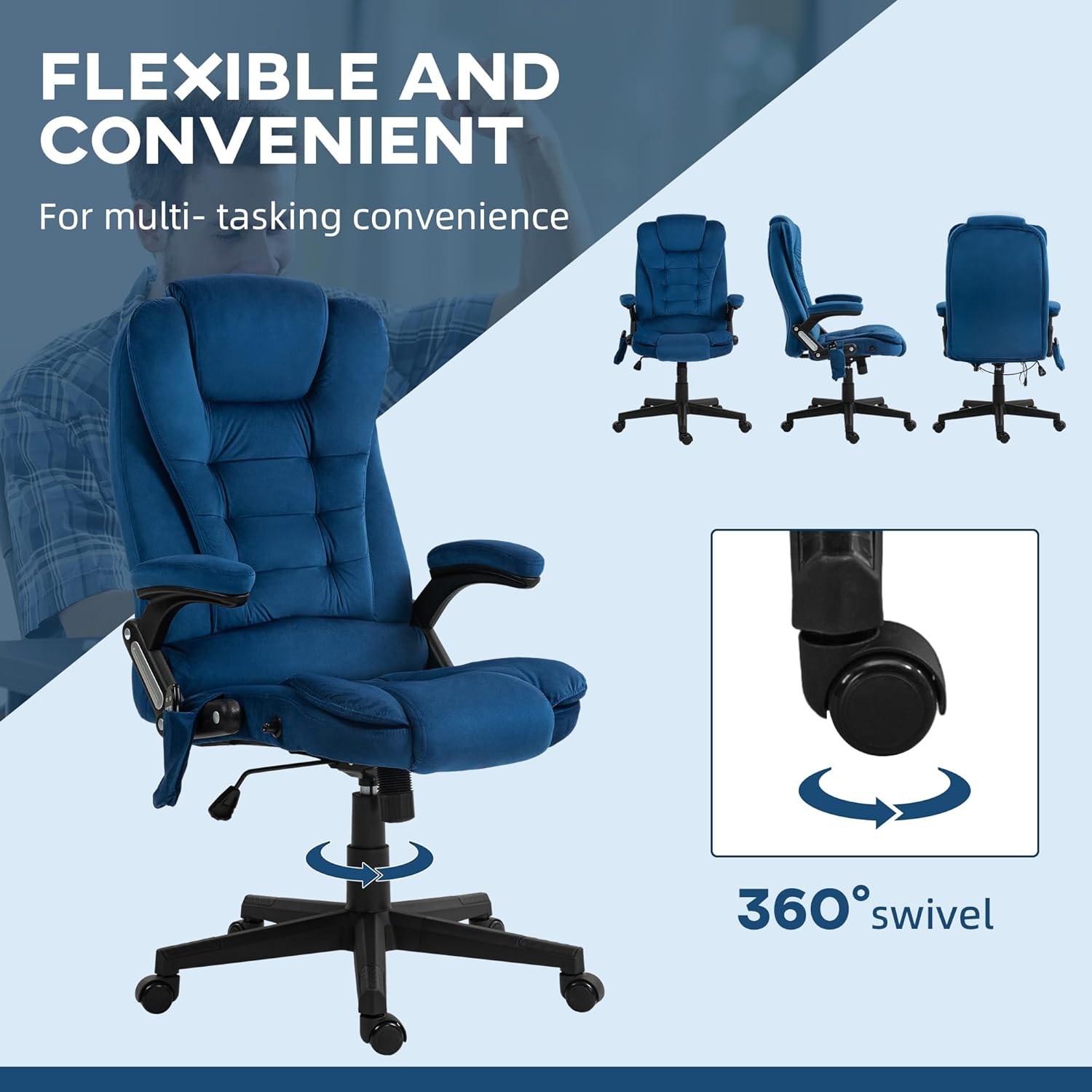

The chair is equipped with a 360° swivel function, allowing for easy rotation without moving the base.

4.5. Vibration Massage and Heat Function

The chair features a six-point vibration massage system and a lumbar heating element, controlled by the included remote. The remote can be stored in the side pocket of the chair.

• Tænd/sluk: Press the power button on the remote to activate or deactivate the massage and heat functions.
• Massagetilstande: Select from various massage modes (M1, M2, M3) to customize the vibration pattern.
• Intensitet: Adjust the vibration intensity (Low, Medium, High) to your preference.
• Målzoner: Choose specific areas for massage, such as the back, lumbar, or thighs.
• Varme funktion: Activate the heat function for soothing warmth in the lumbar area.
• Timer: Set a timer for the duration of the massage session.

5. Vedligeholdelse

• Rensning: Tør af med annonceamp cloth. For velvet-feel fabric, use a soft brush or vacuum cleaner to remove dust and debris. Avoid harsh chemicals or abrasive cleaners.
• Regelmæssig inspektion: Periodically check all screws and bolts to ensure they are securely tightened. Re-tighten as needed to maintain stability and safety.
• Opbevaring: Opbevar stolen et tørt, køligt sted væk fra direkte sollys og ekstreme temperaturer.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

For warranty information, technical support, or to order replacement parts, please contact HOMCOM customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Fabrikant: Aosom LLC

Webwebsted: www.aosom.com (Generel producent webwebsted, specifik produktsupport kan variere)
