1. Introduktion
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hisense WD5Q1542BB Washer and Dryer. Please read this manual thoroughly before using the appliance and retain it for future reference.
The Hisense WD5Q1542BB is a fully automatic washer and dryer combination unit designed for household use, featuring a 15 kg washing capacity and 10 kg drying capacity, Inverter Technology, and a Steam Function for enhanced fabric care.
2. Sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød eller personskade.
- Sørg for, at apparatet er korrekt jordet.
- Brug ikke apparatet, hvis det er beskadiget eller ikke fungerer korrekt.
- Hold børn og kæledyr væk fra apparatet under drift.
- Vask eller tør ikke genstande, der er blevet rengjort i, vasket i, gennemblødt i eller plettet med brandbare eller eksplosive stoffer.
- Tag stikket ud af apparatet, før du rengør eller udfører vedligeholdelse.
- Refer to the installation instructions for proper water and electrical connections.
3. Produktet er slutview
The Hisense WD5Q1542BB is a versatile appliance combining washing and drying functions in a single unit. Key features include:
- All-in-One Washer Dryer: Conveniently wash and dry your clothes in one appliance.
- Steam funktion: Refreshes clothes, reduces wrinkles, and eliminates 99.9% of bacteria and allergens.
- Inverter teknologi: Ensures durability, quiet operation, and energy efficiency.
- Quick Wash 15': A rapid 15-minute wash cycle for small loads (1 kg).
- Pause og tilføj: Allows you to pause the cycle and add or remove items.
- Automatisk diagnostik: Displays error codes to facilitate quick troubleshooting.
- Trommerengøring: A dedicated cycle for maintaining drum hygiene.
Figur 3.1: Forside view of the Hisense WD5Q1542BB Washer and Dryer, showcasing dets elegante sorte design og kontrolpanel.
Figure 3.2: Close-up of the control panel, featuring a rotary dial for program selection and a digital display for cycle information.
4. Opsætning
4.1 Udpakning og inspektion
- Fjern forsigtigt alle emballagematerialer, inklusive polystyrenbasen og eventuelle beskyttelsesfilm.
- Inspect the appliance for any damage incurred during transit. Report any damage immediately to your retailer.
- Remove the transit bolts from the rear of the machine. These bolts secure the drum during transport and must be removed before operation. Refer to the user manual for detailed instructions on transit bolt removal.
4.2 Placering og nivellering
- Placer apparatet på en fast, plan overflade.
- Adjust the leveling feet to ensure the machine is stable and perfectly level. An unlevel machine can cause excessive vibration and noise.
4.3 Vandtilslutning
- Connect the supplied fill hose to the water inlet valve(s) on the back of the machine and to your household water supply. Ensure connections are tight to prevent leaks.
- Position the drain hose into a suitable drain or standpipe, ensuring it is securely fastened and not kinked.
4.4 Elektrisk tilslutning
- Plug the power cord into a grounded 127 Volt electrical outlet.
- Brug ikke forlængerledninger eller adaptere.

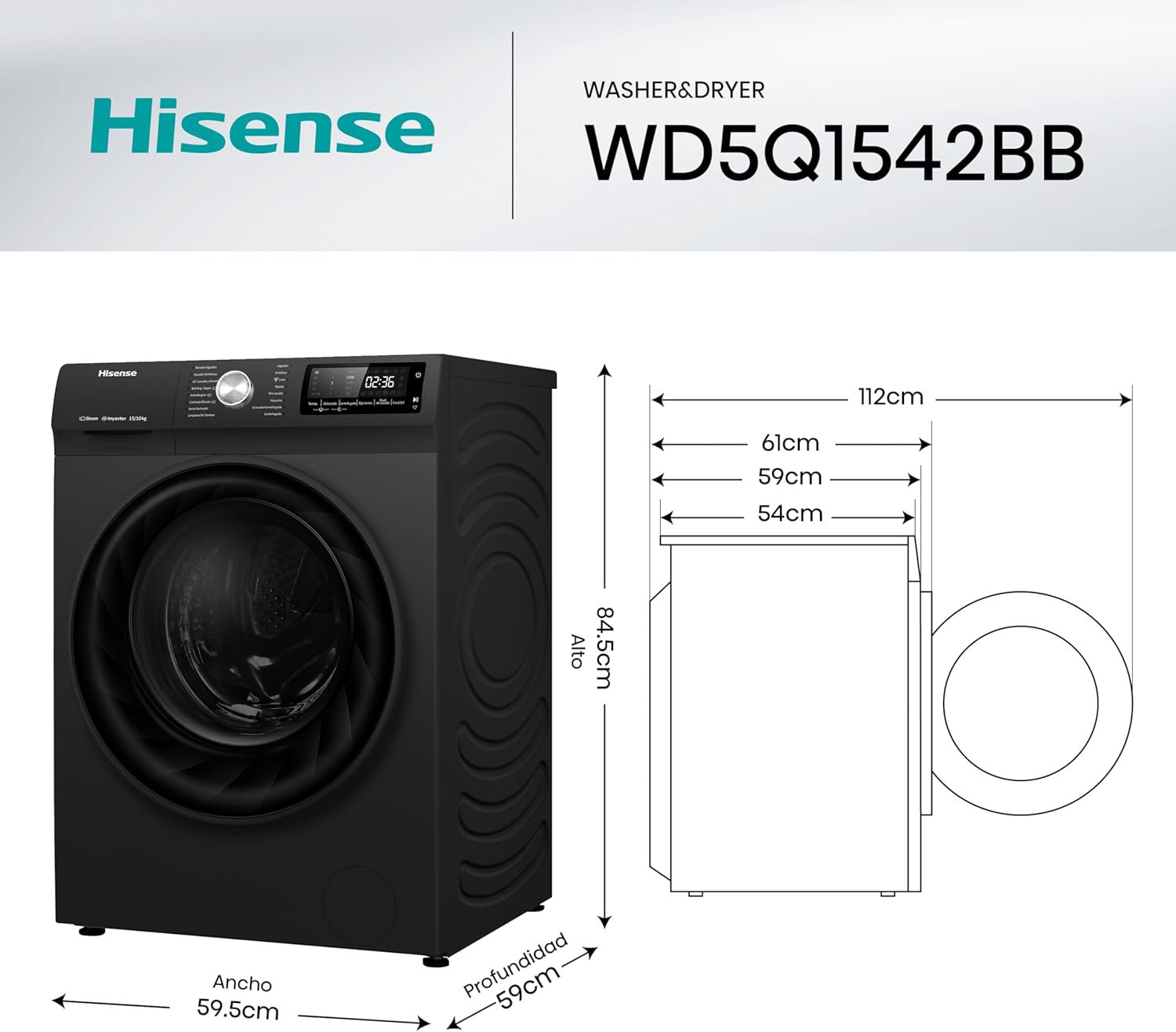

Figure 4.1: Dimensional diagram of the appliance, indicating height (84.5 cm), width (59.5 cm), and depth (59 cm) for installation planning.
5. Betjeningsvejledning
5.1 Ilægning af vasketøj
- Open the front door and load laundry into the drum. Do not overload the machine.
- Luk døren godt.
Figure 5.1: The washer and dryer with its front door open, revealing the stainless steel drum ready for loading laundry.
5.2 Tilsætning af vaskemiddel og tilsætningsstoffer
- Træk dispenserskuffen ud.
- Add appropriate amounts of detergent, fabric softener, and bleach to their respective compartments.
- Luk forsigtigt dispenserskuffen.
5.3 Valg af et program
- Turn the program selector dial to choose the desired wash or wash & dry cycle (e.g., Cotton, Synthetics, Quick Wash 15', Steam Function).
- Adjust additional options such as temperature, spin speed, or drying level using the control panel buttons.
Figure 5.2: Illustration of the Quick Wash 15' cycle, ideal for lightly soiled items requiring a fast wash.
Figure 5.3: The Steam Function in action, releasing steam into the drum to refresh fabrics and reduce allergens.
5.4 Start af cyklussen
- Tryk på Start/Pause-knappen for at starte den valgte cyklus.
- To use the Pause & Add function, press the Start/Pause button during the initial stages of a wash cycle. The door will unlock, allowing you to add or remove items. Press Start/Pause again to resume.
Figure 5.4: Demonstrating the Pause & Add feature, allowing users to conveniently add forgotten garments during a cycle.
6. Vedligeholdelse
6.1 Rengøring af ydersiden
- Tør de udvendige overflader af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
6.2 Rengøring af sæbeskuffen
- Regularly remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse under running water.
6.3 Tromlerensning
- Utilize the dedicated Drum Clean cycle periodically to remove detergent residue and bacteria from the drum.
6.4 Filterrensning
- Clean the lint filter (for drying) and drain pump filter regularly as instructed in the full user manual to ensure optimal performance and prevent blockages.
7. Fejlfinding
If you encounter issues with your appliance, refer to the following common troubleshooting steps. For more complex problems, consult the full user manual or contact customer support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Apparatet starter ikke | No power, door not closed, Start/Pause not pressed | Check power supply, ensure door is latched, press Start/Pause button. |
| Overdreven vibration/støj | Transit bolts not removed, machine not level, uneven load | Fjern transportboltene, juster nivelleringsfødderne, fordel vasketøjet igen. |
| Vandlækage | Loose hose connections, clogged drain filter | Spænd slangeforbindelserne, rengør afløbspumpens filter. |
| Tøjet tørrer ikke ordentligt | Overloaded, clogged lint filter, incorrect program | Reduce load size, clean lint filter, select appropriate drying program. |
Figure 7.1: The Auto Diagnostic feature helps identify issues by displaying error codes, simplifying troubleshooting.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | WD5Q1542BB |
| Mærke | Hisense |
| Vaskekapacitet | 15 kilo |
| Tørrekapacitet | 10 kilo |
| Mål (D x B x H) | 61 x 59.5 x 84.5 cm |
| Produktets vægt | 74 kilo |
| Voltage | 127 volt |
| Maksimal spinhastighed | 1400 RPM |
| Kontroltype | Push button, Rotary Dial |
| Få adgang til placering | Frontbelastning |
| Trommemateriale | Rustfrit stål |
| Dispenserindstillinger | Bleach, Detergent, Fabric Softener |
| Særlige funktioner | Drum Clean, Steam Function, Quick Wash 15', All-in-One Washer Dryer, Inverter Technology |
| Inkluderede komponenter | Drain Hose, Fill Hose, User Manual, Warranty Card |
Figure 8.1: Illustration highlighting the Inverter Technology motor, which contributes to the appliance's efficiency and quiet operation.
9. Garanti og support
Your Hisense WD5Q1542BB Washer and Dryer comes with a warranty. Please refer to the included Warranty Card for specific terms, conditions, and duration of coverage.
For technical assistance, service requests, or to obtain a replacement user manual, please contact Hisense customer support. Contact information can typically be found on the Warranty Card or the official Hisense webwebsted.
When contacting support, please have your model number (WD5Q1542BB) and serial number ready.
