HTC TWS9 Ægte Trådløse Bluetooth-øretelefoner 9 Brugermanual

1. Introduktion

This manual provides detailed instructions for the proper use and maintenance of your HTC TWS9 True Wireless Bluetooth Earbuds 9. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

2. Hvad er der i æsken

• HTC TWS9 True Wireless Bluetooth Earbuds (Left and Right)
• Opladningsetui
• USB opladningskabel
• Brugermanual

3. Produktet er slutview

The HTC TWS9 earbuds feature a compact, in-ear design with a transparent charging case. They are equipped with Bluetooth 5.3 for stable connectivity and offer touch controls for various functions.

Image: HTC TWS9 True Wireless Bluetooth Earbuds 9 in purple, shown with their transparent charging case. The earbuds are visible inside the open case, and also separately above it.

Image: A person holding the HTC TWS9 charging case, highlighting its transparent lid design. The earbuds are visible inside the case.

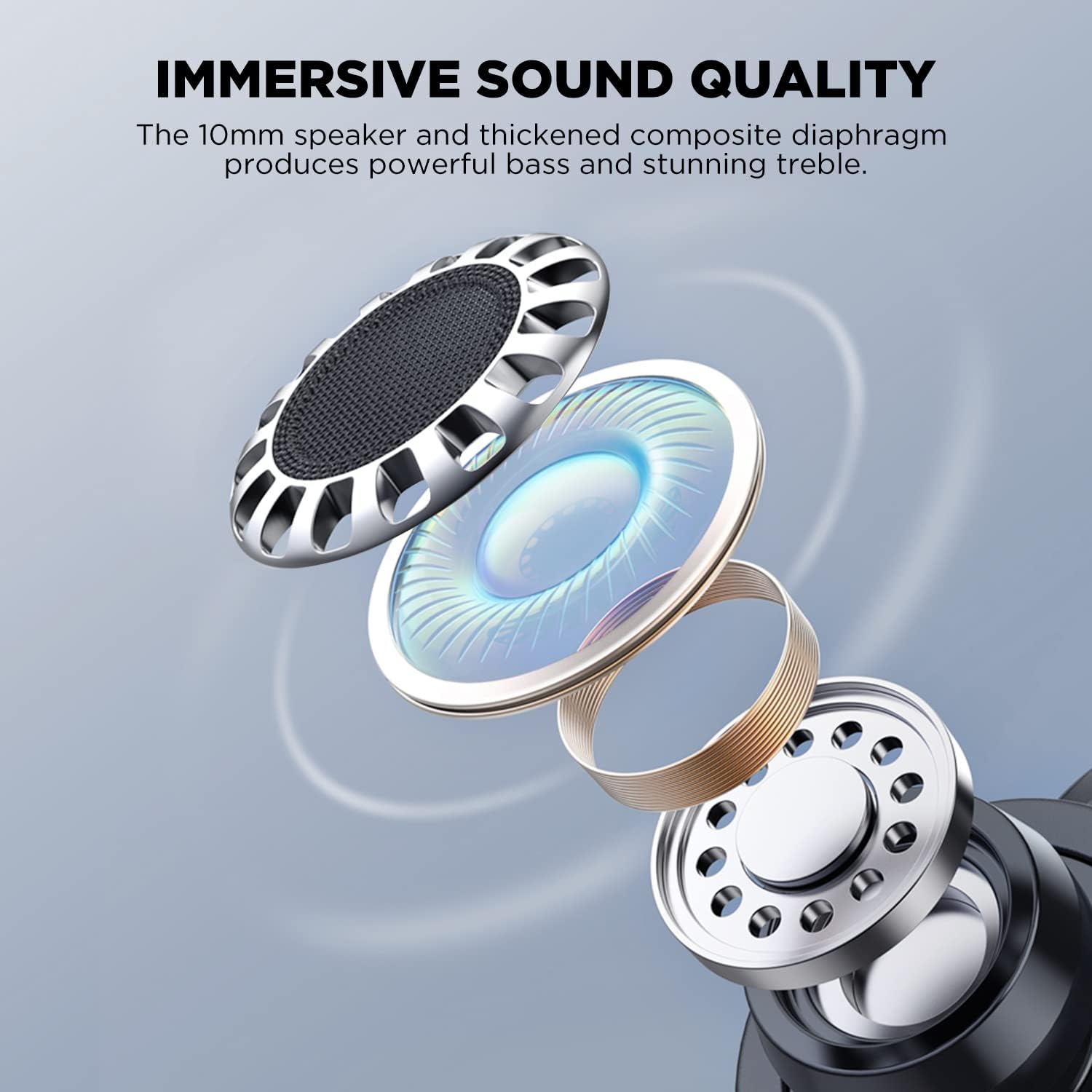

Image: An exploded diagram illustrating the internal components of an HTC TWS9 earbud, including the 10mm speaker and composite diaphragm, designed for sound quality.

4. Opsætning

4.1. Opladning af øretelefoner og etuiet

Before first use, fully charge the earbuds and charging case. The case supports both wired (USB-C) and wireless charging.

1. Placer ørepropperne i opladningsetuiet. Sørg for, at de er korrekt isat.
2. Kablet opladning: Connect the provided USB charging cable to the charging port on the case and to a power source.
3. Trådløs opladning: Place the charging case on a compatible wireless charging pad. The charging indicator light on the case will illuminate.
4. Charging typically takes approximately 43 minutes for a fast charge.

Image: The HTC TWS9 charging case placed on a wireless charging pad, indicating its wireless charging capability.

4.2. Parring med en enhed

The HTC TWS9 earbuds utilize Bluetooth 5.3 for a fast and stable connection.

1. Sørg for, at din enheds Bluetooth er aktiveret.
2. Åbn opladningsetuiet, og fjern ørepropperne. De vil automatisk gå i parringstilstand.
3. On your device, search for Bluetooth devices and select "HTC TWS9" from the list.
4. Once connected, the earbuds will automatically pair with your device upon removal from the case for subsequent uses.

Image: A smartphone screen displaying the Bluetooth settings, showing "HTC TWS9" as a connected device, illustrating the one-step pairing process.

5. Betjeningsvejledning

5.1. Tryk på Kontrolelementer

The HTC TWS9 earbuds feature intuitive touch controls on each earbud for managing audio playback and calls.

• Afspil/pause: Tryk én gang på en af ​​øretelefonerne.
• Næste nummer: Tryk og hold den højre øretelefon i 2 sekunder.
• Forrige nummer: Tryk og hold venstre øretelefon nede i 2 sekunder.
• Besvar opkald: Tryk én gang på en af ​​øretelefonerne.
• Afslut opkald: Tryk én gang på en af ​​øretelefonerne.
• Afvis opkald: Tryk og hold en af ​​øretelefonerne nede i 2 sekunder.
• Spiltilstand: Tap and hold either earbud for 2 seconds (to toggle).
• Stemmeassistent: Tryk tre gange på begge øretelefoner.

Image: A visual guide to the smart touch controls on the HTC TWS9 earbuds, detailing actions for game mode, voice assistant, music playback, and call management.

5.2. Spiltilstand

Activate Game Mode for an ultra-low latency experience (40ms), ideal for gaming. Toggle Game Mode using the touch controls as described above.

Image: A smartphone displaying a mobile game, with the HTC TWS9 earbuds and their open charging case nearby, illustrating the use of Game Mode for low-latency audio.

5.3. Sådan tager du ørepropperne på

The earbuds are designed for an ergonomic fit. Insert them gently into your ear canal and rotate slightly until they feel secure and comfortable.

Image: A person wearing an HTC TWS9 earbud, demonstrating its ergonomic design and how it fits in the ear.

6. Batteri og opladning

The HTC TWS9 earbuds offer extended playtime and convenient charging options.

• Spilletid for øretelefoner: Op til 6.5 timer på en enkelt opladning (ved 50 % volumen).
• Samlet spilletid med opladningsetui: 18 til 24 timer.
• Hurtig opladning: Cirka 43 minutter for en fuld opladning.
• Trådløs opladning: The charging case is compatible with most wireless charging pads.

Image: An infographic detailing the battery performance of the HTC TWS9 earbuds, including 43 minutes for fast charging, 6.5 hours of playtime, and 18 hours with the charging case.

7. Vedligeholdelse

Korrekt vedligeholdelse sikrer dine øreproppers levetid og ydeevne.

• Rensning: Rengør regelmæssigt ørepropperne og opladningsetuiet med en blød, tør klud. Undgå at bruge skrappe kemikalier eller slibende materialer.
• Opbevaring: Når ørepropperne ikke er i brug, skal de opbevares i deres opladningsetui for at beskytte dem og holde dem opladede.
• Vandtæthed: The earbuds are water-resistant, making them suitable for sports and gym use. However, they are not waterproof; avoid submerging them in water.

8. Fejlfinding

Hvis du støder på problemer, kan du bruge følgende almindelige løsninger:

• Ørepropper parrer ikke: Ensure Bluetooth is enabled on your device and the earbuds are in pairing mode. Try resetting the earbuds by placing them back in the case and then removing them again.
• Ingen lyd: Kontrollér lydstyrkeniveauet på din enhed, og sørg for, at ørepropperne er korrekt tilsluttet.
• Opladningsproblemer: Verify that the charging cable is securely connected or that the wireless charging pad is functioning correctly. Ensure the earbuds are properly seated in the case.
• Touch-kontroller reagerer ikke: Ensure your fingers are clean and dry. A quick tap or firm press may be required depending on the function.

9. Specifikationer

10. Officiel produktvideo

11. Garanti og support

For warranty information and customer support, please refer to the documentation included with your product or visit the official HTC support website. Contact information for customer service is typically provided in the Quick Start Guide or on the product packaging.
