TAMIYA 1/10 RC Toyota Celica GT-Four ST185 TT-02 Limited Edition Instruction Manual

Indledning

This manual provides detailed instructions for the assembly, operation, and maintenance of your TAMIYA 1/10 scale RC Toyota Celica GT-Four ST185 (TT-02 Chassis) model kit. Please read this manual thoroughly before beginning assembly or operation to ensure correct usage and optimal performance.

Image 1: The TAMIYA 1/10 RC Toyota Celica GT-Four ST185 TT-02 Limited Edition model car, showcasing its white pre-painted body and detailed exterior.

Sikkerhedsoplysninger

ADVARSEL:

Before starting assembly, ensure all instructions are read and understood. If a child is assembling the model, a supervising adult must also read the building instructions. Assembly involves tools, including knives; exercise special care to prevent injury. If difficulties arise during assembly, consult a supervising adult, an experienced RC modeler, or a specialist dealer.

Use tools only for their intended purpose. Incorrect use carries a risk of injury. If paints and/or glue (not included in the kit) are used, follow their respective instructions. Keep the kit away from small children. Prevent children from putting components in their mouth or placing plastic bags over their heads.

Pakkens indhold

The TAMIYA 1/10 RC Toyota Celica GT-Four ST185 kit includes the following components:

• High-quality, pre-painted polycarbonate body (Toyota Celica GT-Four ST185)
• TT-02 Chassis components
• 540 elmotor
• Elektronisk hastighedsregulator (ESC)
• Detailed illustrated instruction manual

Note: This is a model kit. Additional items are required for operation and are not included in this package. Refer to the "Required Accessories" section for details.

Billede 2: En overview of the TAMIYA TT-02 chassis and the pre-painted Toyota Celica GT-Four body, highlighting key features like the shaft-driven 4WD system.

Opsætning og montering

The TAMIYA TT-02 chassis is designed for robust performance and ease of assembly. Follow the detailed illustrated instructions provided in the kit for step-by-step guidance.

Nødvendigt tilbehør (medfølger ikke):

• Remote control system with receiver
• Styreservo
• 7.2 V NiMH battery pack
• Compatible battery charger
• Tools for assembly (e.g., hobby knife, screwdrivers, pliers)
• Paints and glue (if customizing or for specific details not pre-painted)

Montering forbiview:

1. Chassis konstruktion: Assemble the TT-02 chassis components, including the frame, suspension arms, and drive shafts. The TT-02 features a 4WD all-wheel drive system with double wishbone suspension and suspension struts on all four wheels.
2. Motor- og ESC-installation: Mount the included 540 electric motor and electronic speed controller onto the chassis according to the instructions.
3. Montering af styreservo: Install your chosen steering servo to control the front wheels.
4. Radio System Setup: Connect the receiver to the ESC and steering servo. Ensure proper binding with your remote control transmitter.
5. Wheel and Tire Assembly: Attach the wheels and tires to the chassis.
6. Kropsmontering: Secure the pre-painted Toyota Celica GT-Four body to the chassis. The body is designed for a faithful representation of the original vehicle.

Billede 3: En underside view of the TT-02 chassis, showing the layout of the motor, electronic speed controller, battery compartment, and 4WD drivetrain components.

Image 4: Close-up of the front section of the RC Toyota Celica GT-Four, highlighting the detailed grille, bumper, and pop-up headlight design.

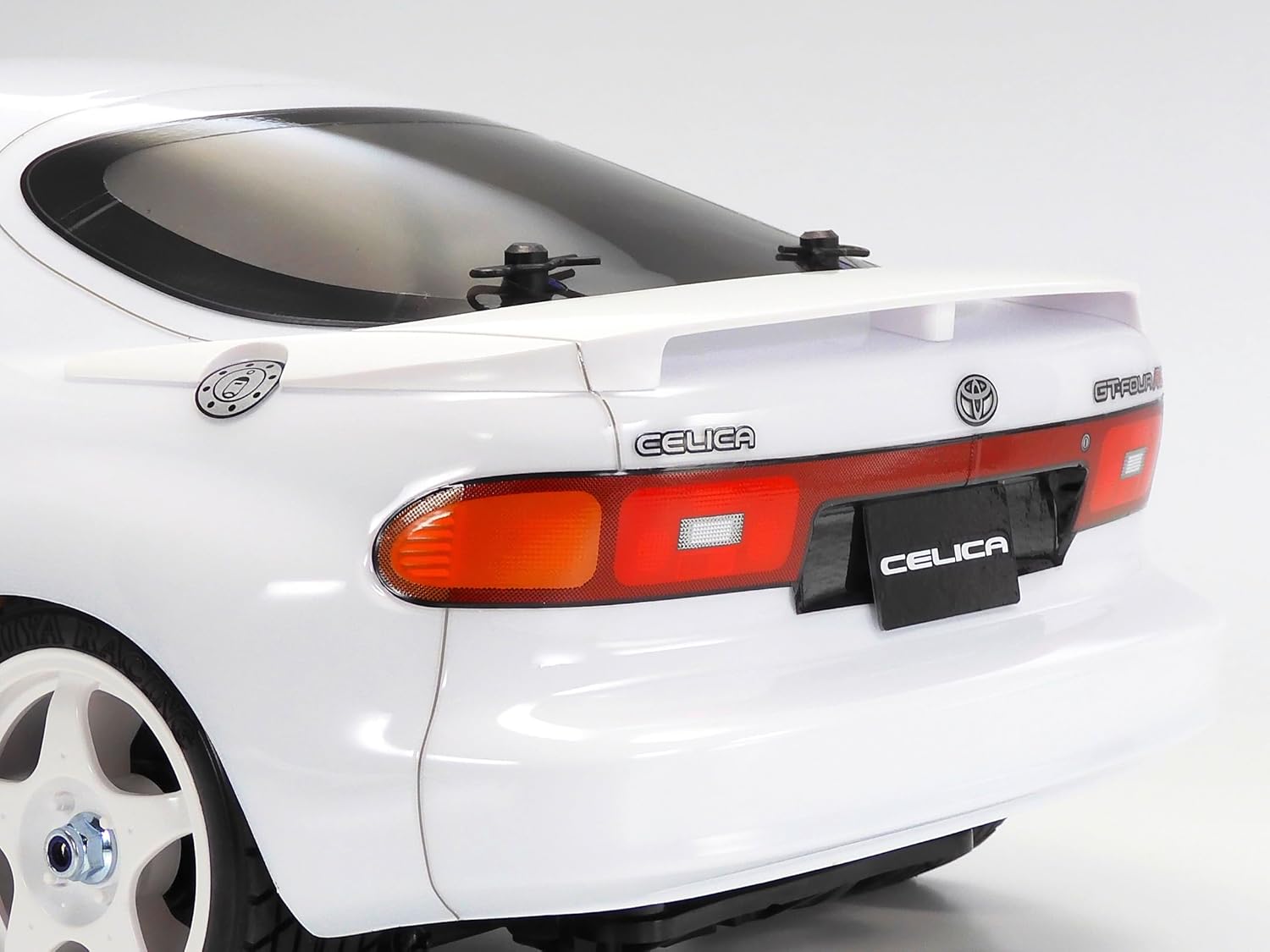

Image 5: Close-up of the rear section of the RC Toyota Celica GT-Four, showing the detailed taillights, rear bumper, and integrated spoiler.

Image 6: Detail of the side mirror on the TAMIYA RC Toyota Celica GT-Four body, illustrating the attention to scale details.

Betjeningsvejledning

Once assembled and all required accessories are installed and charged, your TAMIYA RC Toyota Celica GT-Four is ready for operation.

1. Batteri installation: Ensure the 7.2V NiMH battery pack is fully charged and securely installed in the chassis battery compartment.
2. Senderens strømtilslutning: Tænd først din fjernbetjeningssender.
3. Tænd for køretøjet: Turn on the electronic speed controller (ESC) switch on the vehicle.
4. Funktionskontrol: Verify that steering and throttle respond correctly to transmitter inputs. Adjust trim settings on your transmitter if necessary for straight driving.
5. Kørsel: Operate the vehicle in an open, safe area, away from people, pets, and obstacles. Avoid wet conditions or extreme temperatures.
6. Sluk-sekvens: Always turn off the vehicle's ESC first, then turn off the remote control transmitter.

The TT-02 chassis allows for adjustments to wheelbase, ground clearance, track, and gear ratio. Consult the detailed instruction manual for specific tuning procedures to optimize performance for different driving conditions.

Opretholdelse

Regular maintenance ensures the longevity and performance of your RC model.

• Rensning: After each use, clean the chassis and body to remove dirt, dust, and debris. Use a soft brush or compressed air. Avoid using water directly on electronics.
• Inspektion: Periodically inspect all screws, nuts, and bolts for tightness. Check for any damaged or worn parts, especially in the suspension and drivetrain.
• Smøring: Apply appropriate RC-specific lubricants to moving parts such as gears and bearings as recommended in the detailed manual.
• Batteripleje: Store batteries in a cool, dry place. Follow manufacturer guidelines for charging and discharging to prolong battery life.
• Motorpleje: Keep the motor free from debris. If the motor performance degrades, consider cleaning or replacing the motor brushes (if applicable) or the motor itself.

Fejlfinding

This section addresses common issues you might encounter with your TAMIYA RC model.

For more complex issues, refer to the detailed instruction manual included with your kit or contact TAMIYA customer support.

Specifikationer

Garanti og support

For warranty information, technical support, or replacement parts, please refer to the official TAMIYA website or contact your local TAMIYA distributor. Keep your purchase receipt as proof of purchase.

Officiel TAMIYA Webwebsted: www.tamiya.com
