Silva Explore 5 Headlamp Brugermanual

1. Produktet er slutview

The Silva Explore 5 is a versatile and robust headlamp designed for various outdoor activities. It features a powerful 700-lumen output, a durable IP68 waterproof and dustproof design, and a convenient USB-C rechargeable battery. The headlamp incorporates Silva Intelligent Light technology, combining long-reach spotlight and close-range floodlight for optimal visibility and reduced head movements.

Figure 1: Silva Explore 5 Headlamp. This image shows the black Silva Explore 5 headlamp with its adjustable headband, featuring the Silva logo and IP68 rating.

Nøglefunktioner:

IP68 vandtæt og støvtæt: Fully protected against dust ingress and submersible in 1 meter of water for at least 30 minutes.
700 Lumens output: Powerful illumination for various outdoor conditions.
USB-C genopladelig: Integrated 2.0 Ah battery with convenient USB-C charging.
Three LED Colors: White for general use, Red for night vision preservation, and Orange for map reading.
Silva Intelligent Light: Optimized light distribution with a combination of long-reach spotlight and close-range floodlight.
Batteriindikator: 4-level battery indicator for easy power monitoring.
Stødbestandig: Reinforced lamp housing with rubber protection.

2. Opsætning

2.1 Opladning af batteriet

Before first use, fully charge the Silva Explore 5 headlamp. Connect the included USB-C cable to the charging port on the headlamp and plug the other end into a USB power source (e.g., wall adapter, computer USB port). The 4-level battery indicator will show the charging progress.

USB-C opladningsport — Figure 2: USB-C Charging Port and Ventilation. This image highlights the USB-C charging port and the ventilation channel on the headlamp enhed.

2.2 Attaching and Adjusting the Headlamp

The Silva Explore 5 comes with an adjustable headband and can also be mounted on a helmet using the included helmet clip and adhesive tape.

Pandebånd: The 30 mm flexible and wide headband provides extra stability. It features an anti-slip silicone string on the inside to keep it securely in place, even when wet. Adjust the large buckles to fit comfortably around your head.
Hjelm montering: Use the provided helmet clip and adhesive tape to securely attach the headlamp to your helmet.

Lamp unit can be tilted up to 90 degrees, allowing you to adjust the light beam direction for different terrains and activities.

Figure 3: Helmet Clip and Adjustable Tilt. This image illustrates how the headlamp can be attached to a helmet and its ability to tilt up to 90 degrees.

Figure 4: Headband Features. This image highlights the large buckles for easy adjustment, the anti-slip silicone string, and the wide headband for stability.

3. Betjeningsvejledning

3.1 Power On/Off and Lock Function

Overskriftenamp features a large on/off button, designed for easy use even when wearing gloves.

Sådan tænder/slukker du: Press the large power button once.
Låsefunktion: To prevent accidental activation in a pocket or backpack, hold the power button for 3 seconds to lock or unlock the lamp.

Figure 6: Battery Indicator and IP68 Rating. This image displays the 4-step battery indicator lights and the IP68 waterproof/dustproof marking on the side of the headlamp.

3.2 Brightness Levels and Light Modes

The Silva Explore 5 offers four distinct brightness levels to suit various needs:

Mode	Lumen	Brændetid	Lysafstand
Maks	700 lm	2-3 timer	115 m
Med Høj	300 lm	4.5-5 timer	75 m
Med lav	100 lm	10 timer	20 m
Min	15 lm	50 timer	8 m

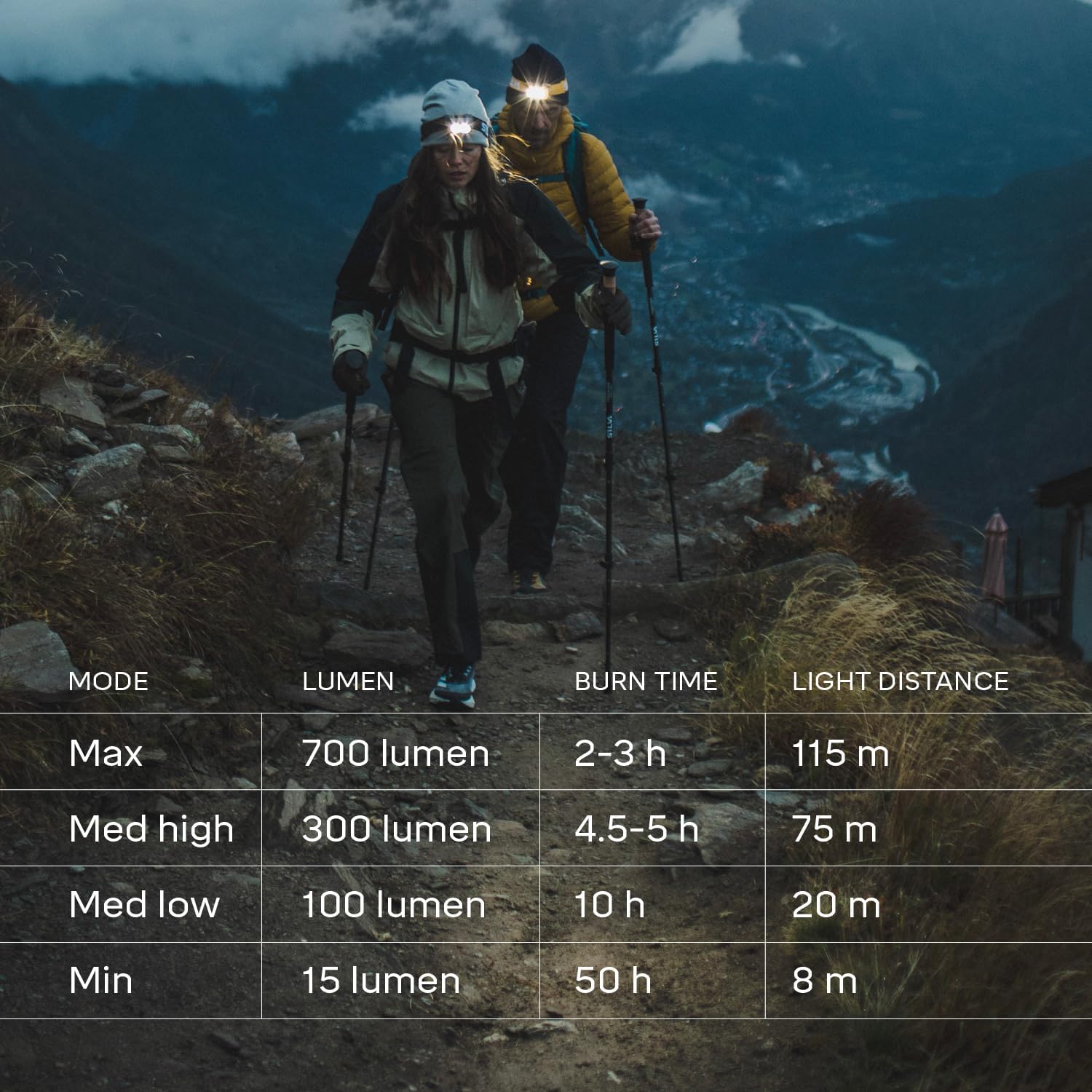

Brightness Modes Table — Figure 7: Brightness Modes and Performance. This image visually represents the different light modes (Max, Med High, Med Low, Min) along with their corresponding lumen output, burn time, and light distance.

3.3 LED-farver

Overskriftenamp features three distinct LED colors for different applications:

White Light (2x LEDs): Standard illumination for all types of outdoor activities.
Red Light (1x LED): Helps to preserve night vision, ideal for situations where you need to maintain your eyes' adaptation to darkness.
Orange Light (1x LED): Optimal for reading maps, as it enhances contrast and reduces glare.

Figure 8: Three LED Colors. This image shows the headlamp emitting orange, white, and red light, illustrating the different LED color options.

3.4 Silva Intelligent Light

Silva Intelligent Light technology combines a long-reach spotlight with a close-range floodlight. This unique combination reduces head movements, minimizes fatigue, and improves balance during fast movements, making it a perfect light source for various activities.

4. Vedligeholdelse

4.1 Rengøring

To clean your Silva Explore 5 headlamp, tør den af med annonceamp cloth. Do not use harsh chemicals or abrasive materials, as these may damage the unit. Ensure the USB-C port cover is securely closed before cleaning or exposing to water.

4.2 Pleje af batterier

Overskriftenamp is equipped with an integrated Lithium-ion battery. For optimal battery life, avoid fully discharging the battery frequently. Recharge the battery regularly, especially if the headlamp vil ikke blive brugt i en længere periode.

4.3 Opbevaring

Opbevar hovedlamp in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the lock function is activated to prevent accidental power-on during storage.

5. Fejlfinding

5.1 Fælles problemer

Headlamp tænder ikke: Ensure the battery is charged. Check if the lock function is activated (hold the power button for 3 seconds to unlock).
Lysudbyttet er svagt: The battery might be low. Recharge the headlamp.
Opladningsproblem: Sørg for, at USB-C-kablet er korrekt tilsluttet til begge hovedtelefoneramp and the power source. Try a different USB-C cable or power source.

If you encounter persistent issues not covered here, please refer to the manufacturer's webwebsted eller kontakt kundesupport.

6. Specifikationer

Specifikation	Detalje
Mærke	Silva
Modelnummer	38454
Vægt	218 g
Batteri	1 Non-standard Lithium-ion battery (included)
Lyskilde	LED
Lysstrøm	700, 300, 100 & 15 lm
Max Light Distance	115 meter
Vandmodstand	IP68 (Vandtæt)
Særlige funktioner	Adjustable light mode, Rechargeable, Dust resistant, Adjustable strap
Inkluderede komponenter	Headband, Battery, USB Cable

7. Garanti og support

Specific warranty information for the Silva Explore 5 headlamp is not provided within this manual. For details regarding warranty coverage, terms, and conditions, please refer to the official Silva webwebstedet eller kontakt dit købssted.

For technical support or further assistance, please visit the Silva official support channels. Information regarding spare parts availability is not available in this document.
