Accsoon CoMo trådløst headset-intercomsystem brugermanual

1. Introduktion

The Accsoon CoMo Wireless Headset Intercom System is a 1.9GHz full-duplex communication solution designed for small to medium-sized teams requiring real-time, clear, and reliable audio communication. This system supports up to 9 users, offering an operating range of 1312 feet (400 meters) and features Environmental Noise Cancellation (ENC) for optimal performance in various environments. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your CoMo intercom system.

Image: The Accsoon CoMo Wireless Headset Intercom System, showcasing one host headset, four remote headsets, and various accessories including batteries, charger, ear cushions, microphone windscreens, and storage solutions.

2. Hvad er der i æsken

Upon unboxing your Accsoon CoMo Wireless Headset Intercom System, please verify that all the following components are included:

• 1 Host Headset
• 4 Remote Headsets
• 10 Batterier
• 1 Batterioplader
• 2 Battery Storage Boxes
• 5 Headset Ear Cushions
• 5 Mikrofoner
• 5 Headset Storage Bags
• 1 Storage Container
• 1 Brugervejledning

Image: A visual representation of the package contents, including the host headset, remote headsets, batteries, charger, and other accessories.

3. Produktfunktioner

The Accsoon CoMo system is engineered with several key features to enhance your team's communication:

• Wireless Stable Transmission: Utilizes 1.9 GHz frequency for reliable, interference-free communication up to 1312 ft (400 m).
• Crystal-clear Audio with ENC: Features Environmental Noise Cancellation (ENC) technology to actively reduce ambient noise, ensuring clear speech even in loud environments.
• Long-lasting Replaceable Batteries: Each system includes 10 batteries, providing up to 10 hours of runtime for the host headset (with 4 remotes connected) and 13 hours for remote headsets.
• Let og behageligt design: Ergonomically designed headsets weighing only 257g (with battery), suitable for long-term wear and adjustable for various head sizes. Can be worn on either the left or right ear.
• Expandable Team Communication: The system can be expanded from 1 host + 4 remotes to support up to 9 users simultaneously.
• Flip-to-mute-mikrofon: An intuitive design feature that mutes the microphone when positioned at ±45°, allowing for quick and seamless audio control.

Billede: En overview of the Accsoon CoMo system's key features, including wireless stability, transmission range, flip-to-mute microphone, dual-mic ENC, external antenna design, full-duplex communication, extended battery life, and support for up to 9 users.

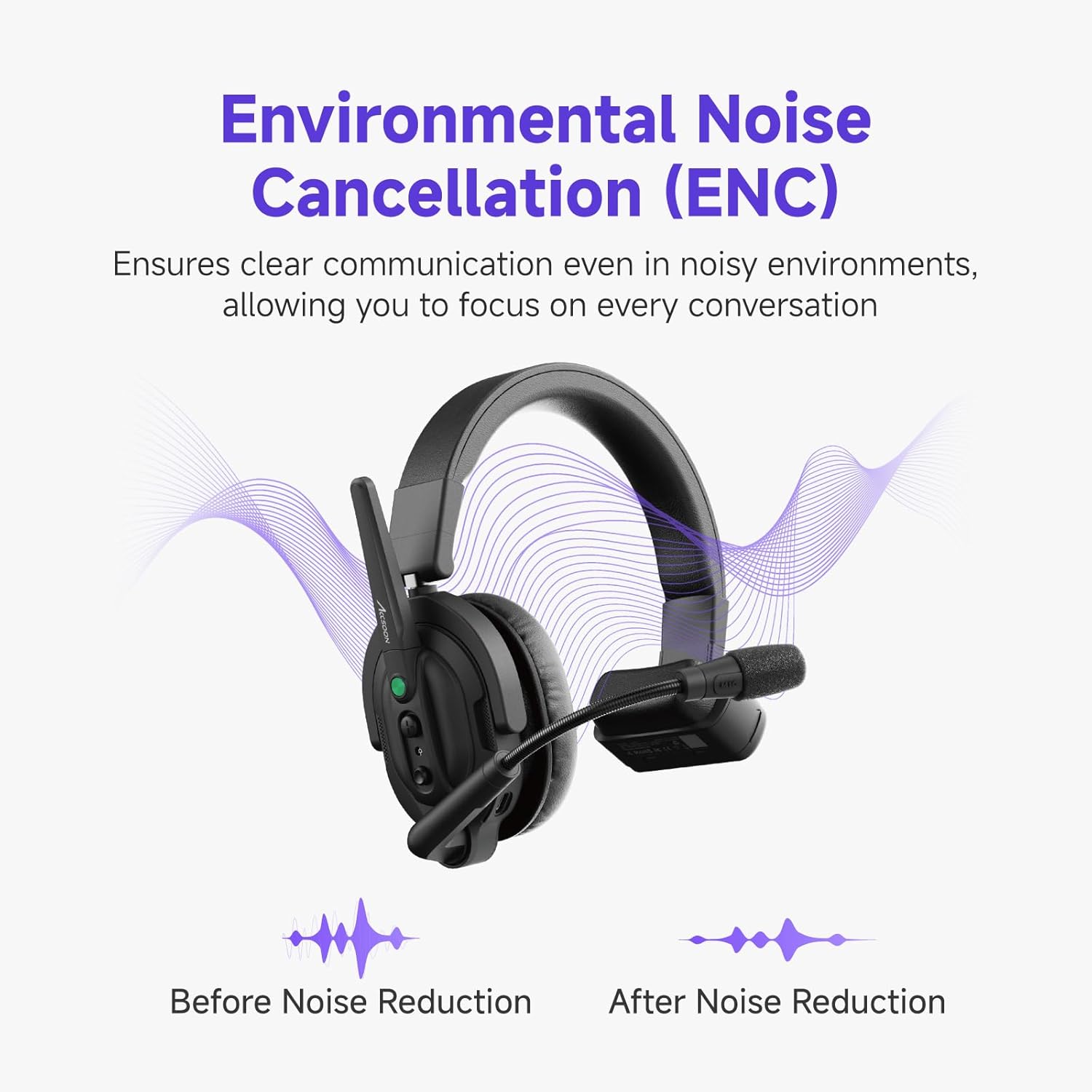

Image: A visual representation of the Environmental Noise Cancellation (ENC) feature, showing sound waves before and after noise reduction, highlighting clearer communication.

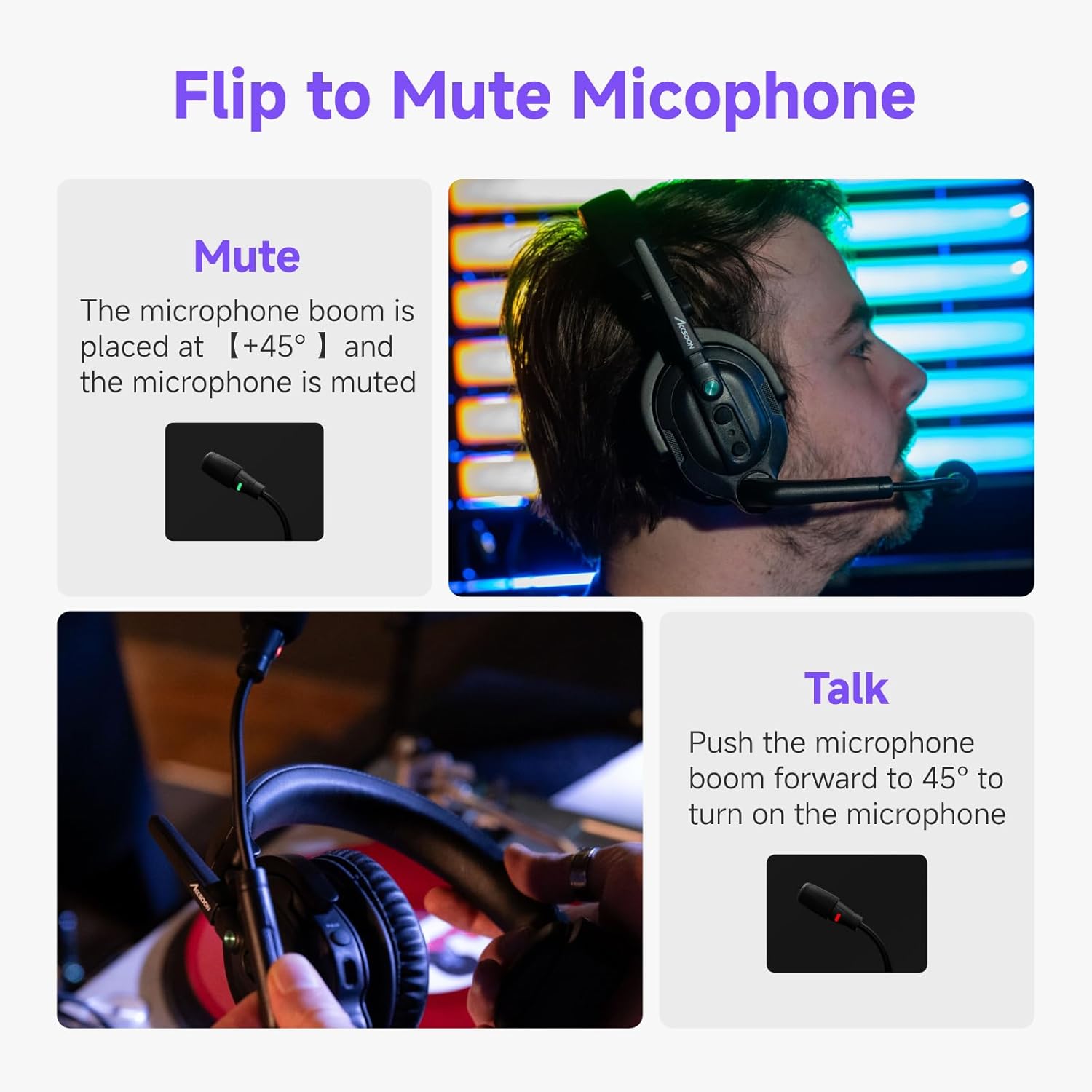

Image: Demonstration of the flip-to-mute microphone feature, showing the microphone in both talk and mute positions.

4. Opsætning

4.1. Opladning af batterierne

1. Insert the provided Lithium Ion batteries into the battery charger.
2. Connect the charger to a power source. The indicator lights on the charger will show the charging status.
3. A full charge typically takes approximately 2 hours. Ensure batteries are fully charged before first use for optimal performance.

4.2. Installing Batteries into Headsets

1. Locate the battery compartment on each headset.
2. Open the compartment and insert a charged battery, ensuring correct polarity.
3. Luk batterirummet forsvarligt.

4.3. Tænd/sluk

• To power on, press and hold the power button on each headset until the indicator light illuminates.
• For at slukke skal du trykke på tænd/sluk-knappen og holde den nede, indtil indikatorlampen slukker.

4.4. Initial Pairing (Host and Remote Headsets)

The host headset acts as the central communication hub. Remote headsets connect to the host. Refer to the specific pairing instructions in the included user manual for detailed steps, as pairing procedures can vary slightly.

• Typically, you will power on the host headset first.
• Then, power on the remote headsets.
• The system is designed for automatic connection within range once paired. If manual pairing is required, look for a 'PAIR' button or specific button combination on the headsets.

5. Betjening af systemet

5.1. Kommunikation

• Once headsets are powered on and connected, full-duplex communication is active, allowing all connected users to speak and listen simultaneously.
• Ensure the microphone boom is positioned correctly near your mouth for optimal voice pickup.

5.2. Microphone Mute Function

The CoMo system features a convenient flip-to-mute function:

• Til stum your microphone, position the microphone boom upwards to approximately ±45° from its active position. The microphone indicator light will change to confirm mute status.
• Til slå lyden til and talk, push the microphone boom forward to its active position (typically straight down or slightly angled towards your mouth).

5.3. Lydstyrkejustering

Use the volume control buttons located on the headset to adjust the listening volume to a comfortable level.

5.4. Batteriniveauindikator

When the battery power is less than 10%, the indicator light on the headset will flash slowly in red, and an audible voice reminder of low power will be provided.

6. Vedligeholdelse

6.1. Rensning

• Wipe the headsets and accessories with a soft, dry cloth.
• Brug ikke skrappe kemikalier, rengøringsopløsningsmidler eller stærke rengøringsmidler.
• Regularly replace microphone windscreens and ear cushions for hygiene and optimal audio quality.

6.2. Batteripleje

• Always use the provided charger and batteries.
• Opbevar batterierne på et køligt, tørt sted, når de ikke er i brug.
• Undgå at aflade batterier helt ofte for at forlænge deres levetid.

6.3. Opbevaring

When not in use, store the headsets and accessories in the provided storage container or bags to protect them from dust and damage.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

Accsoon products are designed for reliability and performance. For specific warranty information regarding your Accsoon CoMo Wireless Headset Intercom System, please refer to the warranty card included in your package or visit the official Accsoon webwebsted.

For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact Accsoon customer support through their official channels. You can often find support contact information on the manufacturer's webhjemmeside eller gennem den forhandler, hvor produktet blev købt.

Du kan også besøge Accsoon Store on Amazon for yderligere produktinformation og ressourcer.
