ULTIMEA Aura A40 U2601 7.1ch Virtual Surround Sound Bar Instruction Manual

1. Introduktion

This manual provides detailed instructions for the setup, operation, and maintenance of your ULTIMEA Aura A40 U2601 7.1ch Virtual Surround Sound Bar. Please read this manual thoroughly before using the product to ensure proper functionality and to maximize your audio experience.

The ULTIMEA Aura A40 is designed to deliver an immersive 7.1-channel virtual surround sound experience, featuring a soundbar, a subwoofer, and four surround speakers. It includes advanced technologies like SurroundX for precise audio and BassMX for enhanced bass, along with smart app control for personalized sound adjustments.

2. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

• 1 x ULTIMEA Aura A40 Soundbar
• 1 x subwoofer
• 4 x Surround Speakers
• 1 x Power Adaptor for Soundbar
• 1 x Power Adaptor for Surround Speaker
• 1 x Rear Surround Cable (6m)
• 1 x Digital Optical Cable
• 1 x Front Left Surround Cable (2m)
• 1 x Front Right Surround Cable (2m)
• 1 x fjernbetjening (batterier medfølger ikke)
• 1 x Brugermanual (dette dokument)
• 12 x Wall Mount Kit (Screws and anchors)
• 6 x vægbeslag
• 6 x Mounting Screw for Speakers

3. Produktet er slutview

3.1 Systemkomponenter

The ULTIMEA Aura A40 system consists of a main soundbar, a subwoofer, and four compact surround speakers. The soundbar integrates three main channels for clear dialogue, while the four surround speakers create a virtual surround sound field.

Image: The complete ULTIMEA Aura A40 7.1ch Virtual Surround Sound Bar system, including the soundbar, subwoofer, and four surround speakers, along with a smartphone displaying the control app.

3.2 Soundbar Features

The soundbar houses the left, center, and right channels. It features intuitive touch controls on the top panel and various input ports on the rear for connectivity.

Billede: En eksploderet view of the ULTIMEA Aura A40 soundbar, showcasing its internal full-range drivers for immersive audio.

3.3 Subwoofer Features

The 4-inch wired subwoofer provides deep bass, enhancing the overall audio experience with BassMX technology.

Image: The ULTIMEA Aura A40 4-inch wired subwoofer, designed to deliver powerful bass.

3.4 surroundhøjttalere

The system includes four surround speakers: two wired front speakers and two wireless rear speakers. These speakers are crucial for creating the virtual surround sound field.

Image: A living room setup demonstrating the placement of the two front and two rear surround speakers for optimal sound distribution.

4. Opsætning og forbindelser

4.1 Højttalerplacering

For optimal 7.1ch virtual surround sound, position the soundbar centrally below your TV. Place the two wired front surround speakers to the left and right of the soundbar. Position the two wireless rear surround speakers behind your listening area, to the left and right. The subwoofer can be placed anywhere convenient, preferably near the soundbar.

Image: An illustration of the recommended placement for the ULTIMEA Aura A40 7.1 Surround Sound System in a living room, showing sound waves emanating from each speaker.

4.2 Kabelbaserede forbindelser

Connect the soundbar and the two front surround speakers using the provided front surround cables (FR & FL). The subwoofer connects to the soundbar via a wired connection.

Image: A close-up of the soundbar's rear panel, highlighting the Optical, USB, AUX, FR (Front Right), FL (Front Left), SUB OUT, and DC IN ports.

4.3 Wireless Pairing for Rear Speakers

Connect the two rear surround speakers using the rear surround cable. Power the rear right surround speaker to enable wireless pairing with the soundbar. If pairing does not occur automatically, follow these steps:

1. Hold OMGIVE button on the remote control for 5 seconds until "SUR" flashes on the soundbar display.
2. Hold PAR button on the rear right speaker for 5 seconds until its light flashes.
3. Once successfully paired, the light on the rear right speaker will remain solid.

4.4 Lydindgangsmuligheder

The soundbar supports multiple audio input methods:

• Optisk: For high-quality digital audio from your TV or other devices. Use the included Digital Optical Cable.
• AUX: For analog audio connections using a 3.5mm audio cable (not included).
• USB: Til afspilning af lyd files direkte fra en USB-lagerenhed.
• Bluetooth 5.3: Til trådløs lydstreaming fra kompatible enheder.

Note: This soundbar system does not support HDMI connections.

5. Betjeningsvejledning

5.1 Tænd/sluk

Press the power button on the soundbar or the remote control to turn the system on or off.

5.2 Indgangsvalg

Tryk på KILDE button on the remote control or the soundbar to cycle through available input modes (Optical, AUX, USB, Bluetooth).

5.3 Lydstyrkekontrol

Brug + og - buttons on the soundbar or remote control to adjust the master volume. Individual speaker levels can be adjusted via the app or remote.

5.4 ULTIMEA Smart App Control

The ULTIMEA Home app provides comprehensive control over your soundbar system. Download the app from your smartphone's app store.

Image: A smartphone screen displaying the ULTIMEA app's 10-band equalizer interface, allowing for precise audio frequency adjustments.

5.4.1 Equalizer-indstillinger

The app allows you to switch between multiple EQ modes and customize sound profiles:

• 10-bånds equalizer: Fine-tune audio frequencies for a personalized sound.
• 121 Preset EQ Matrices: Explore various sound styles tailored for different content like Bass, Pop, Classical, and Rock.
• 6 Tailored EQ Modes: Select from Movie, Music, Voice, Sport, Game, and Night modes for optimized performance.

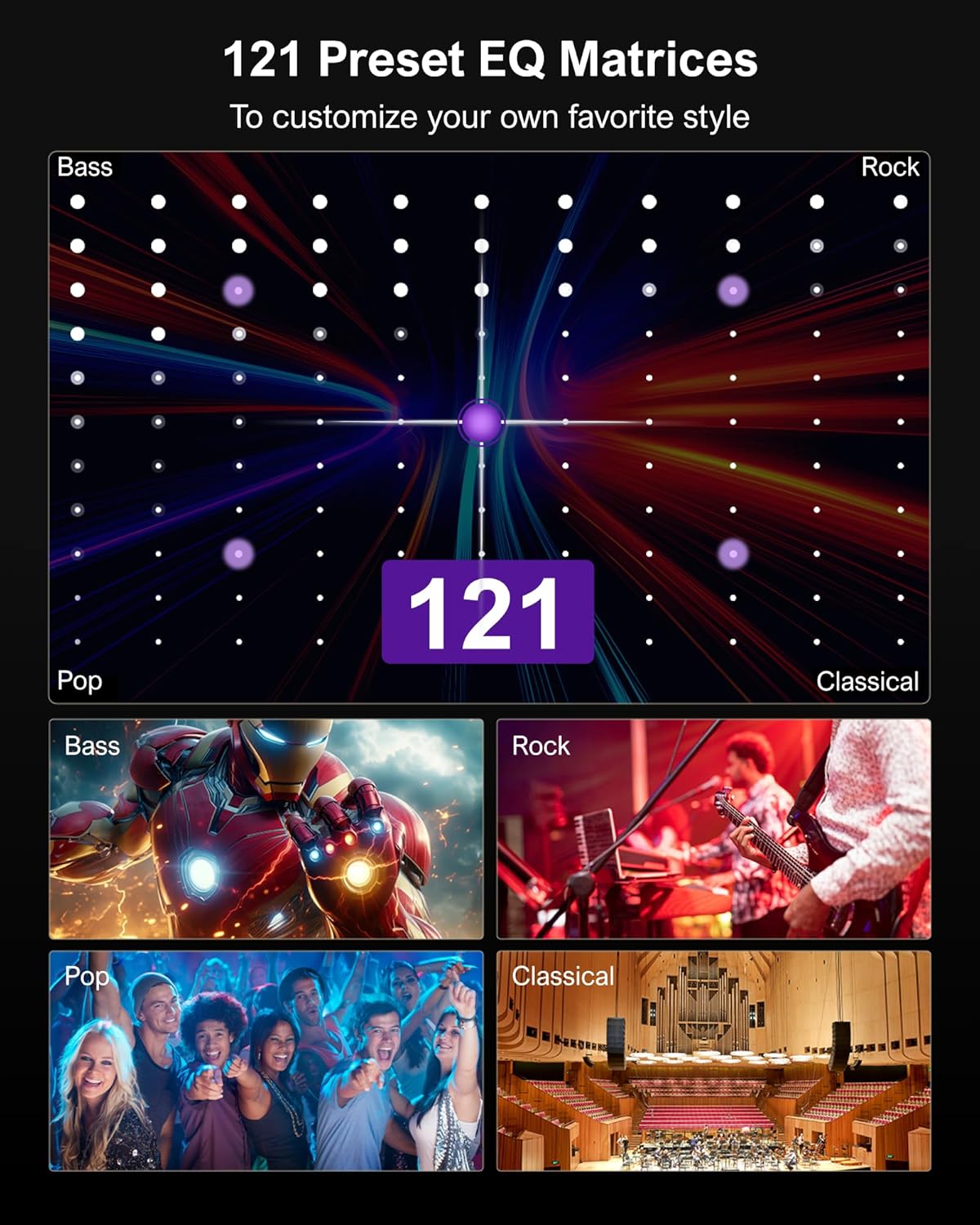

Image: A visual representation of the 121 preset EQ matrices available through the ULTIMEA app, offering diverse sound customization options for different genres.

5.4.2 OTA Upgrades

The app supports Over-The-Air (OTA) firmware upgrades to ensure your system always has the latest features and performance enhancements.

5.5 Adjustable Surround Levels

The system features 13 adjustable surround levels, allowing you to fine-tune the intensity of the surround effect from the rear speakers.

6. Specifikationer

7. Support og garanti

For technical support, troubleshooting, or warranty inquiries, please refer to the contact information provided in your product packaging or visit the official ULTIMEA webwebsted.

The product comes with a limited warranty. Please retain your proof of purchase for warranty claims.
