XOSS XR01 Smart Bike Baglygte Brugermanual

Indledning

The XOSS XR01 Smart Bike Tail Light is designed to enhance cycling safety with its intelligent features and durable construction. This manual provides detailed instructions for the proper use, installation, and maintenance of your XR01 tail light.

Image: The XOSS XR01 Smart Bike Tail Light, a compact black device with a red lens, designed for rear visibility on bicycles.

Produktegenskaber

• Automatic Switch & Brake Sensor: The XR01 automatically turns off after 30 seconds of inactivity and turns on when riding vibration is detected. Upon braking, brightness increases for 3 seconds to alert following vehicles, enhancing safety.
• Rechargeable & TYPE-C: Equipped with a 260 mAh TYPE-C rechargeable lithium battery, providing 7 to 16 hours of use (mode dependent) after a 1-hour full charge. Standby time is up to 3 months.
• 4 Modes & Mode Memory: Features four lighting modes: slow flash, breathing flash, fast flash, and steady on. The light remembers the last used mode for convenience.
• Innovative Optical Lenses: Utilizes an innovative optical lens for high visibility and an anti-glare function, ensuring safety without affecting the vision of others.
• IPX6 & Easy to Install: IPX6 waterproof rating allows use in heavy rain. Supports two mounting methods (saddle rail and seat post) and installs in seconds without tools.

Pakkens indhold

Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke:

Image: Contents of the XOSS XR01 package, including the tail light, mounting accessories, and charging cable.

• XOSS XR01 Smart Bike Tail Light
• USB-C ladekabel
• Saddle Rail Mount
• Sadelpindsmontering
• Rubber Bands/Zip Ties for mounting

Opsætning og installation

Opladning af enheden

Before first use, fully charge the XR01 tail light. Connect the provided USB-C cable to the charging port on the light and plug the other end into a USB power source (e.g., computer, wall adapter). The indicator light will show charging status.

Image: The XOSS XR01 tail light connected to a laptop via its USB-C charging cable.

Monteringsmuligheder

The XR01 offers two primary mounting methods:

Image: Comparison of saddle mounting and seatpost mounting options for the XOSS XR01 tail light.

1. Montering af sadelskinne:
   • Attach the saddle rail mount to the rails under your bicycle seat.
   • Slide the XR01 tail light onto the mount until it clicks securely into place.
2. Montering af sadelpind:
   • Secure the seat post mount to your bicycle's seat post using the provided rubber bands or zip ties.
   • Slide the XR01 tail light onto the mount until it clicks securely into place.

Ensure the light is firmly attached and facing directly backward for optimal visibility.

Operation

Tænd/sluk

• Manuel til/fra: Press and hold the power button located on the top of the light for approximately 2 seconds to turn the light on or off.
• Automatic On/Off (Vibration Sensing): The XR01 will automatically turn on when it detects riding vibration and turn off after 30 seconds of inactivity.

Image: The XOSS XR01 tail light demonstrating its automatic turn on/off feature based on vibration detection.

Mode Switching and Brightness Control

With the light on, short press the power button to cycle through the four lighting modes:

• Langsom flash
• Åndedrætsflash
• Hurtig flash
• Konstant på

Image: Visual representation of the four lighting modes: Normally On, Breathing Flash, Fast Flash, and Slow Flash.

To adjust brightness (when the light is off), long press the button to cycle through Low, Medium, and High brightness settings. The light will remember your last selected mode and brightness.

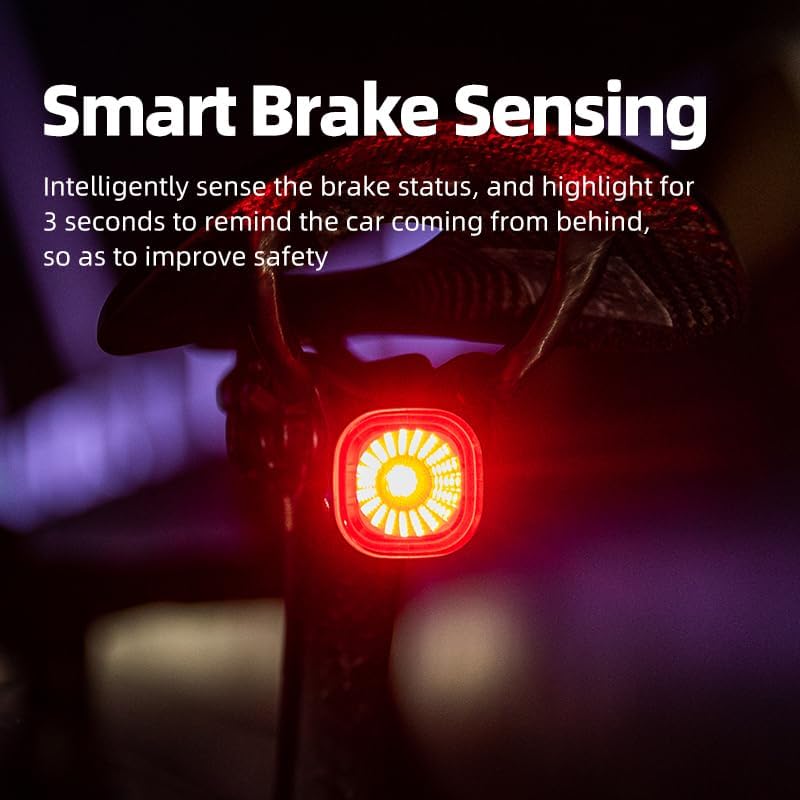

Brake Sensing

The XR01 features an intelligent brake sensing function. When the light detects a sudden deceleration (braking), its brightness will automatically increase for 3 seconds to provide a clear warning to vehicles behind you, significantly improving safety.

Image: The XOSS XR01 tail light mounted on a bike, illustrating the smart brake sensing feature with increased brightness.

Opretholdelse

Batteripleje

• Recharge the battery regularly, especially if the light has not been used for an extended period.
• Undgå at aflade batteriet helt for at forlænge dets levetid.
• Brug kun det medfølgende USB-C-kabel eller et tilsvarende certificeret kabel til opladning.

Rengøring og opbevaring

• Tør lyset af med en blød, damp klud til at fjerne snavs og snavs. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Opbevar lyset på et køligt, tørt sted, når det ikke er i brug.

Vandtæthed (IPX6)

The XR01 is rated IPX6 waterproof, meaning it is protected against high-pressure water jets from any direction. It can withstand heavy rain, but it is not designed for submersion in water.

Image: The XOSS XR01 tail light being sprayed with water, demonstrating its IPX6 waterproof rating.

Fejlfinding

• Lyset tænder ikke: Ensure the battery is charged. Press and hold the power button for 2 seconds.
• Light not responding: Try charging the device. If issues persist, contact customer support.
• Bremseføleren virker ikke: Ensure the light is mounted securely and is not obstructed. Test in a controlled environment.
• Kort batterilevetid: Ensure the light is fully charged. Battery performance can vary with mode usage and temperature.

Specifikationer

Garanti og support

For warranty information or technical support, please contact XOSS customer service through the official webwebstedet eller din købsplatform. Gem dit købsbevis til garantikrav.
