OBSBOT Tail Air Bundle Instruktionsmanual

Indledning

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your OBSBOT Tail Air Bundle. This bundle includes the OBSBOT Tail Air 4K smart streaming PTZ camera, a SanDisk Extreme 128 GB microSDXC card, and a Pearstone Standard Series HDMI to HDMI High-Speed Ethernet Cable.

The OBSBOT Tail Air is designed to provide high-quality video capture and streaming with advanced AI tracking capabilities, making it suitable for remote work, content creation, and conference environments.

Hvad er der i æsken

Kontroller venligst, at alle nedenstående varer er til stede i din pakke:

• 1x OBSBOT Tail Air Camera (OSB-2108-CW)
• 1x opbevaringsetui
• 1x USB-C Male to Dual USB-C Female Splitter
• 1x USB-C-kabel
• 1x USB-C to USB-A Adapter
• 1x SanDisk Extreme 128 GB microSDXC Card (SDSQXA1-128G-AN6MA)
• 1x Pearstone Standard Series HDMI to HDMI High-Speed Ethernet Cable (PEHDA106), 6'

Image: Contents of the OBSBOT Tail Air Bundle, showing the camera, SanDisk Extreme 128 GB microSDXC card, and Pearstone 6' HDMI cable.

Opsætning

1. Kameraplacering

Place the OBSBOT Tail Air camera on a stable, flat surface or mount it on a compatible tripod. Ensure the camera has a clear line of sight to the area you intend to capture.

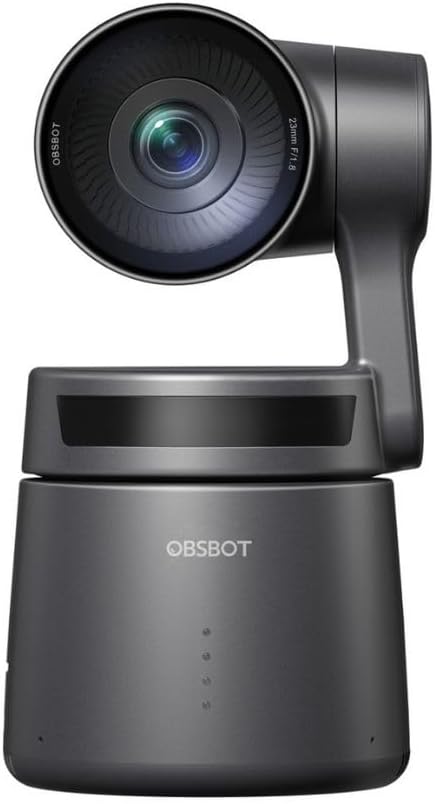

Billede: Forside view of the OBSBOT Tail Air camera, showing the lens and base.

2. Strømtilslutning

1. Connect the USB-C cable to the camera's USB-C port.
2. Connect the other end of the USB-C cable to a power source (e.g., a USB wall adapter or computer USB port). Use the provided USB-C to USB-A adapter if your power source only has USB-A ports.
3. The camera's indicator lights will illuminate upon successful power connection.

Image: OBSBOT Tail Air camera with its blue indicator lights active, signifying power or operational status.

3. Installation af microSD-kort

To enable local recording, insert the SanDisk Extreme 128 GB microSDXC card into the camera's microSD card slot. Ensure the card is inserted with the correct orientation until it clicks into place.

Image: SanDisk Extreme 128 GB microSDXC card, suitable for high-speed data storage.

4. Tilslutningsmuligheder

The OBSBOT Tail Air offers multiple connectivity options:

• USB: Connect the camera to a computer via USB-C for use as a webkamera eller til dataoverførsel.
• HDMI: Use the Pearstone HDMI cable to connect the camera's micro-HDMI output to a display or capture card for high-quality video output.
• Ethernet/PoE: For network connectivity and Power over Ethernet (PoE), an optional adapter is required. This enables NDI|HX3 support for professional streaming setups.
• Wi-Fi: Connect the camera to your wireless network for remote control and streaming via the OBSBOT app.

Billede: Bagside view of the OBSBOT Tail Air camera, highlighting its various connectivity ports including USB-C and micro-HDMI.

Image: Pearstone Standard Series HDMI to HDMI High-Speed Ethernet Cable, 6 feet in length.

Operating the OBSBOT Tail Air

1. Første opstart

Once powered, the camera will perform a self-calibration. The lens will pan and tilt to its home position. Wait for the indicator lights to stabilize before proceeding.

2. OBSBOT App Control

For full control and advanced features, download the official OBSBOT app on your smartphone or tablet. Connect the camera to the app via Wi-Fi or USB.

• Fjernbetjening: Pan, tilt, and zoom the camera remotely.
• AI-sporing: Activate and manage AI human, animal, or object tracking.
• Gesture Control 2.0: Learn and utilize various hand gestures for quick control of tracking, recording, and zoom.
• Indstillinger: Adjust video resolution (up to 4K), frame rate, exposure, white balance, and other camera parameters.

3. AI Tracking Features

The Tail Air features advanced AI tracking:

• Menneskelig sporing: Automatically follows a designated person, keeping them centered in the frame.
• Animal Tracking: Capable of tracking pets or other animals.
• Objektsporing: Can track specific objects, useful for demonstrations or product showcases.

To activate tracking, use the OBSBOT app or specific gesture controls.

4. Optagelse og streaming

• Lokal optagelse: Video footage can be recorded directly to the inserted microSD card.
• Livestreaming: The camera supports direct streaming to platforms via the OBSBOT app or through NDI|HX3 (with optional adapter) for professional broadcast setups.
• Lydindgang: Utilize the 3.5mm audio input jack for external microphone connection to enhance audio quality.

Opretholdelse

1. Rensning

• Brug en blød, tør klud til at rengøre kamerahuset.
• For the lens, use a lens cleaning cloth and specialized lens cleaning solution. Avoid abrasive materials.
• Brug ikke stærke rengøringsmidler eller opløsningsmidler.

2. Opbevaring

When not in use, store the camera in its provided storage case in a cool, dry place, away from direct sunlight and extreme temperatures.

3. Firmwareopdateringer

Regularly check for firmware updates via the OBSBOT app to ensure optimal performance and access to new features. Follow the app's instructions carefully during updates.

Fejlfinding

Specifikationer

Garanti og support

For warranty information and technical support, please refer to the official OBSBOT webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.

OBSBOT Official Webwebsted: www.obsbot.com
