Laney FRFR 412 elektrisk kabinet brugermanual

Indledning

The Laney FRFR 412 is a 2600W Full Range, Flat Response (FRFR) powered cabinet designed to deliver accurate and uncolored amplification for digital guitar and bass modeling rigs. Its advanced features, including Laney's LA·IR Impulse Response technology, ensure a consistent and high-fidelity sound reproduction across various performance environments. This manual provides essential information for the safe and effective operation of your FRFR 412 cabinet.

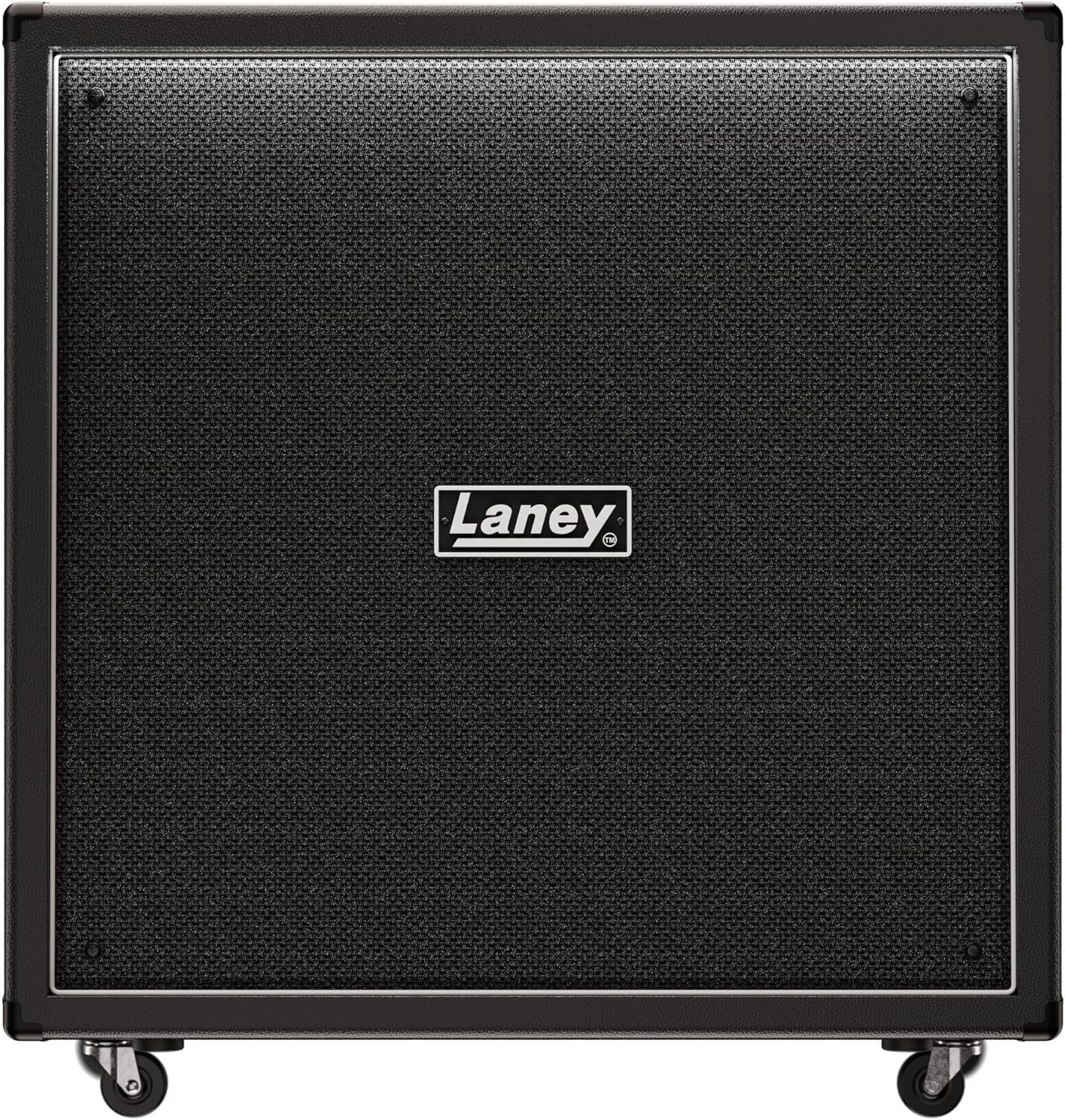

Figur 1: Front view of the Laney FRFR 412 Powered Cabinet, showcasing its robust grille and Laney logo.

Vigtige sikkerhedsinstruktioner

• Læs disse instruktioner grundigt, inden du tager enheden i brug.
• Gem disse instruktioner til fremtidig reference.
• Overhold alle advarsler på produktet og i denne manual.
• Følg alle instruktioner.
• Brug ikke dette apparat i nærheden af ​​vand.
• Rengør kun med en tør klud.
• Bloker ikke ventilationsåbninger. Installer i overensstemmelse med producentens anvisninger.
• Må ikke installeres i nærheden af ​​varmekilder såsom radiatorer, varmeapparater, komfurer eller andre apparater (inklusive ampløftere), der producerer varme.
• Undgå at omgå sikkerhedsformålet med det polariserede stik eller stik med jordforbindelse. Et polariseret stik har to knive, hvor den ene er bredere end den anden. Et stik med jordforbindelse har to knive og et tredje jordstik. Det brede blad eller det tredje ben er tilvejebragt for din sikkerhed. Hvis det medfølgende stik ikke passer i din stikkontakt, skal du kontakte en elektriker for at få udskiftet den forældede stikkontakt.
• Beskyt netledningen mod at blive trådt på eller klemt, især ved stik, stikkontakter og det sted, hvor de kommer ud af apparatet.
• Brug kun tilbehør/tilbehør specificeret af producenten.
• Træk stikket ud af dette apparat under tordenvejr, eller når det ikke skal bruges i længere perioder.
• Overlad al service til kvalificeret servicepersonale. Service er påkrævet, når apparatet er blevet beskadiget på nogen måde, såsom strømforsyningsledning eller stik er beskadiget, væske er blevet spildt, eller genstande er faldet ind i apparatet, apparatet har været udsat for regn eller fugt, ikke fungerer normalt , eller er blevet droppet.

Pakkens indhold

Markér venligst feltet for følgende elementer:

• Laney FRFR 412 Powered Cabinet
• Strømkabel
• Brugervejledning (dette dokument)

Opsætning

1. Placering

Position the FRFR 412 cabinet on a stable, level surface. Ensure adequate ventilation around the unit. The cabinet is equipped with casters for easy movement; ensure they are locked when the cabinet is in its final position to prevent accidental movement.

Figur 2: Side view illustrating the integrated handles and casters for transport.

2. Tilslutning af strøm

Connect the supplied power cable to the AC input on the rear panel of the FRFR 412 and then to a suitable grounded power outlet. Ensure the power switch is in the OFF position before connecting.

3. Lydforbindelser

The FRFR 412 offers various input and output options for integration with your modeling rig or other audio equipment.

Figur 3: Rear panel connections including Input, Line Out, and Emulated DI Out.

• Input: Connect your modeling amplifier's output or other audio source to the XLR/TRS combo input. This input accepts both balanced and unbalanced signals.
• Line Out: Use the Line Out (XLR) to send the cabinet's signal to a mixing console, audio interface, or another powered speaker.
• Emulated DI Out: The Emulated DI Out (XLR) provides a signal with Laney's LA·IR cabinet emulation applied, ideal for direct recording or front-of-house mixing.
• USB: The USB port allows for connection to a computer for firmware updates and potential future features.

Operating the FRFR 412

1. Tænd/sluk

After all connections are made, switch on your modeling rig or audio source first, then switch on the FRFR 412 using the power switch on the rear panel. When powering down, switch off the FRFR 412 first, then your audio source.

2. Kontroller og indikatorer

• Bind: Adjusts the overall output level of the cabinet. Start with a low volume setting and gradually increase to your desired level.
• LA·IR (Laney Advance Impulse Response): This technology utilizes 56-bit FIR filters for high-quality cabinet emulation. The FRFR 412 features dual selectable digital IRs for both the cabinet output and the Emulated DI Out, allowing for versatile tonal shaping.
• Klipindikator: An LED indicator will illuminate if the input signal is too hot, indicating potential clipping. Reduce the input level from your source if this occurs.

3. Optimizing Sound

The FRFR 412 is designed to provide a transparent amplification of your digital rig's tone. Experiment with the volume control and the settings on your modeling unit to achieve the desired sound. Utilize the LA·IR features to fine-tune the cabinet's response to your preference.

Opretholdelse

• Rensning: Disconnect the power before cleaning. Use a soft, dry cloth to wipe down the exterior of the cabinet. Do not use abrasive cleaners, solvents, or waxes.
• Opbevaring: When not in use for extended periods, store the cabinet in a dry, cool environment, away from direct sunlight and extreme temperatures.
• Transportere: Use the integrated handles and casters for transport. Ensure the cabinet is secured during transit to prevent damage.

Fejlfinding

Specifikationer

Garanti og support

Laney products are designed and manufactured to the highest standards. For warranty information and technical support, please refer to the warranty card included with your product or visit the official Laney Amplifikation webwebsted. Gem din købsbevis til garantikrav.

For customer support regarding this product, you may also refer to the seller's support options, which typically include a 30-day easy return policy and customer support services.

Online ressourcer: For the latest drivers, firmware updates, and additional product information, please visit the official Laney webwebsted.
