AFEXOA ZH083K Digital Sunrise Alarm Clock User Manual

Indledning

Tak for købetasing the AFEXOA ZH083K Digital Sunrise Alarm Clock. This device is designed to enhance your waking and sleeping experience with its natural sunrise simulation, customizable alarm sounds, multi-color night light, and sleep aid features. Please read this manual carefully to ensure proper use and optimal performance of your new alarm clock.

Pakkens indhold

• AFEXOA ZH083K Digital Sunrise Alarm Clock
• USB strømkabel
• Brugermanual

Produkt overview

Familiarize yourself with the components and controls of your AFEXOA ZH083K alarm clock.

Billede 1: Front view of the AFEXOA ZH083K Digital Sunrise Alarm Clock, showing the digital time display and control buttons on the top panel. The light dome is visible above the fabric-covered speaker base.

Kontrolknapper:

• DIMMER: Adjusts the brightness of the clock display.
• TID: Bruges til at indstille det aktuelle klokkeslæt.
• ALARM: Used for setting and activating the alarm.
• ALARM TIL / FRA: Slår alarmfunktionen til/fra.
• SLEEP TIMER: Activates and adjusts the sleep timer function.
• , Adjusts values (time, brightness, volume) up or down.
• Pæreikon: Controls the night light/mood light.
• Snooze knap: Located on the bottom, activated by pressing down the clock.

Opsætning

1. Strømtilslutning

Connect the provided USB power cable to the alarm clock and plug it into a suitable USB power adapter (not included) or a USB port. The clock display will illuminate.

2. Indstilling af det aktuelle klokkeslæt

1. Tryk og hold på TID button until the hour display starts flashing.
2. Brug +/- knapper for at justere timen.
3. Tryk på TID knappen igen for at bekræfte timeindstillingen og gå videre til minutjustering.
4. Brug +/- knapper for at justere minutterne.
5. Tryk på TID knappen én gang til for at gemme tidsindstillingen.

Betjeningsvejledning

1. Setting the Alarm and Sunrise Simulation

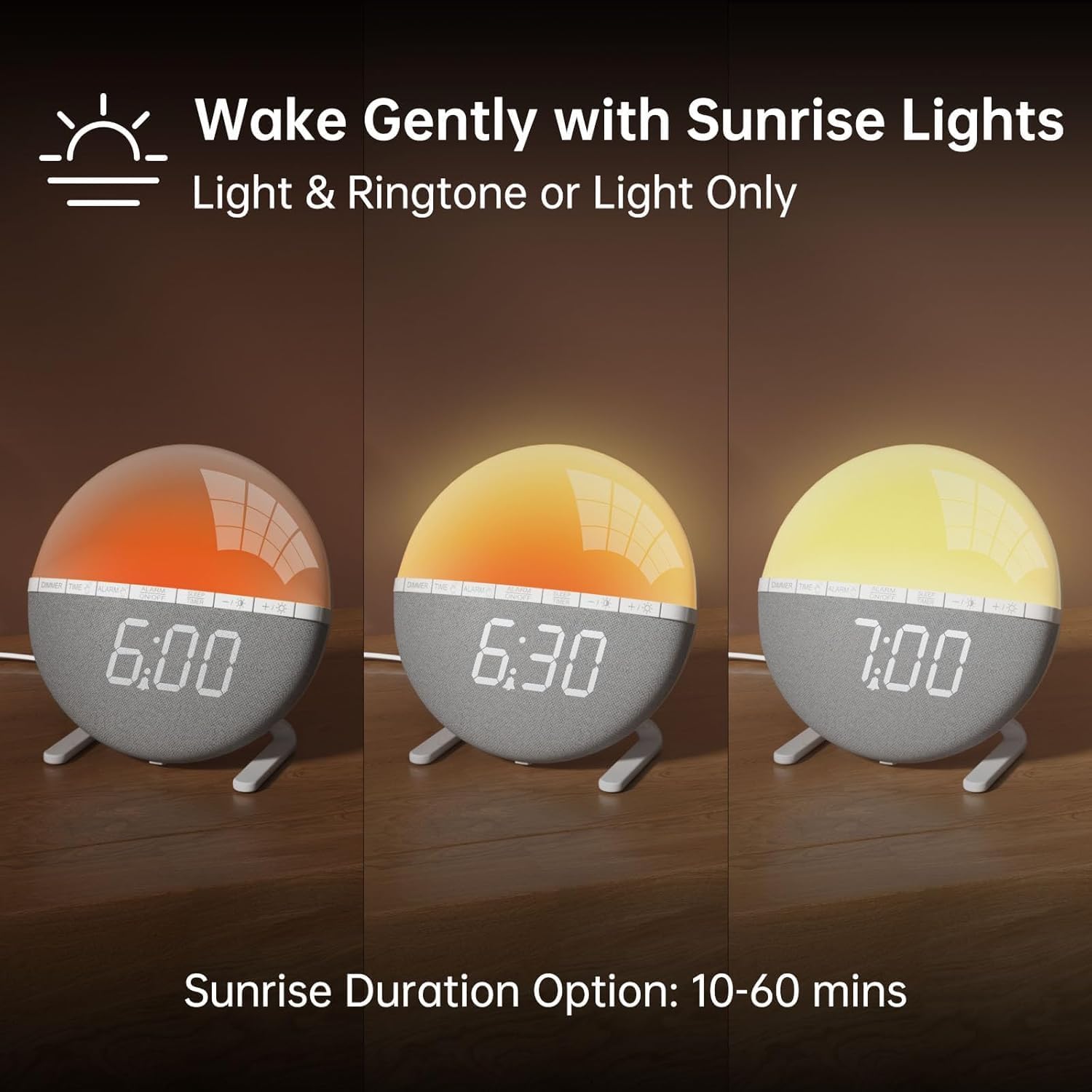

Billede 2: Illustration of the sunrise simulation feature, showing the light gradually changing from dim red to bright yellow over a period, with time indications of 6:00, 6:30, and 7:00.

1. Tryk og hold på ALARM button until the alarm time display starts flashing.
2. Brug +/- knapperne for at indstille den ønskede alarmtime.
3. Tryk på ALARM knappen for at bekræfte timeindstillingen og gå videre til minutjustering.
4. Brug +/- knapperne til at indstille de ønskede alarmminutter.
5. Tryk på ALARM button to confirm the minutes and proceed to sunrise duration setting.
6. Brug +/- buttons to select the sunrise simulation duration (10-60 minutes). This is the period before your set alarm time when the light will gradually brighten.
7. Tryk på ALARM button to confirm the duration and proceed to alarm sound selection.
8. Brug +/- buttons to cycle through the 7 available alarm sounds or select "OFF" for light-only alarm.
9. Tryk på ALARM button to confirm the sound and proceed to volume adjustment.
10. Brug +/- buttons to set the alarm volume (10 levels).
11. Tryk på ALARM button once more to save all alarm settings.

For at aktivere eller deaktivere alarmen skal du trykke på ALARM TIL / FRA knappen. Et alarmikon vises på displayet, når den er aktiveret.

Billede 3: A visual representation of the seven built-in wake-up ringtones, including icons for Beep, Bell, Birds, and four types of Soft Music. It also shows a 10-level volume adjustment bar.

2. Snooze-funktion

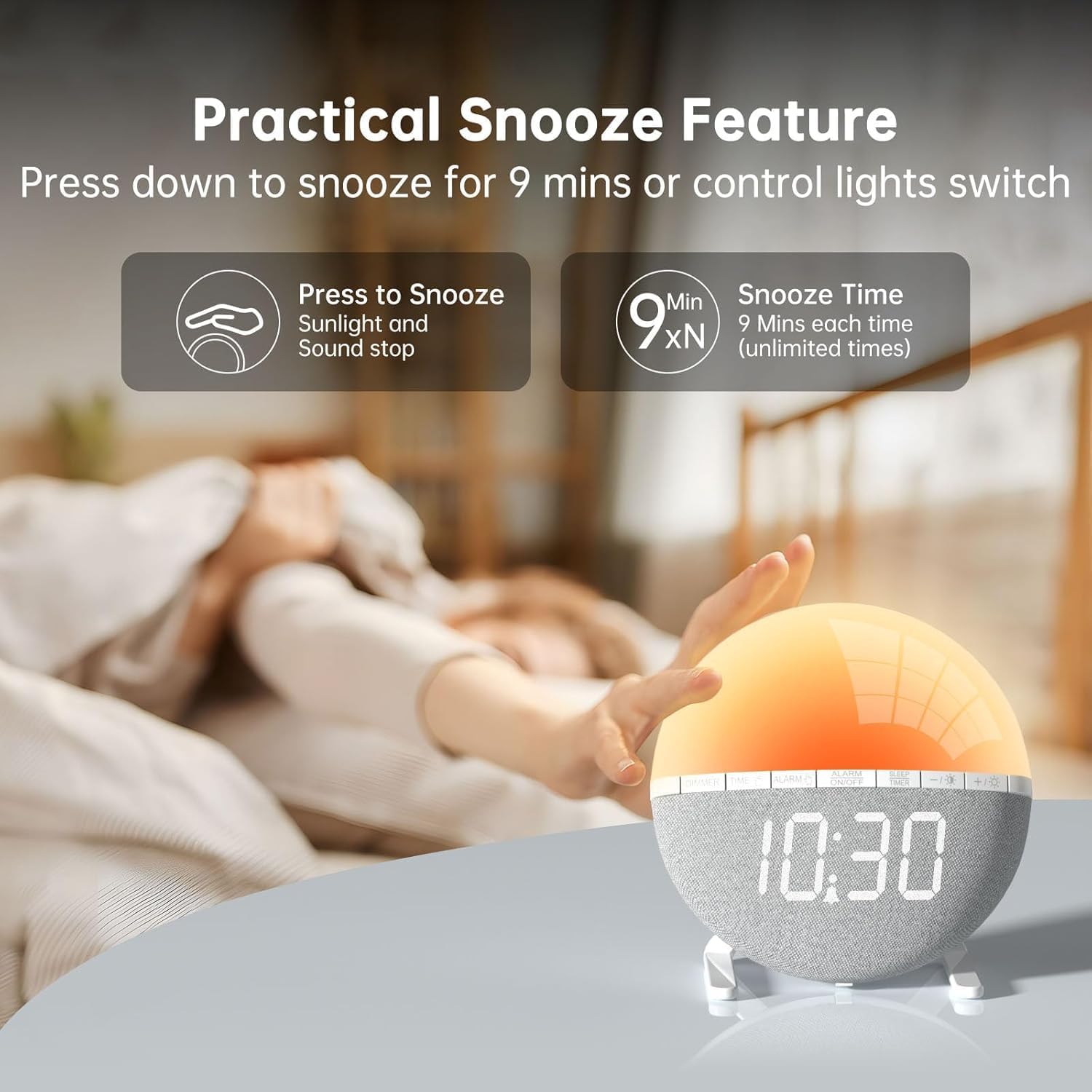

Billede 4: A hand pressing down on the top of the alarm clock to activate the snooze function. Text indicates that pressing down snoozes for 9 minutes and can also control the light switch.

When the alarm sounds, gently press down on the top of the alarm clock to activate the snooze function. The alarm will pause for 9 minutes and then sound again. This can be repeated an unlimited number of times.

3. Night Light / Mood Light

Billede 5: A display of the various solid color and RGB mood light options available on the alarm clock, shown as a spectrum of colors from light blue to purple, with the clock displaying each color.

1. Tryk på Pæreikon knappen for at tænde natlyset.
2. Tryk på Pæreikon button repeatedly to cycle through the 7 solid colors and 2 mixed RGB mood light options.
3. Brug +/- buttons to adjust the brightness of the selected light (10 levels).
4. Tryk og hold på Pæreikon button to turn off the night light.

4. Sleep timer

Billede 6: An image illustrating the sleep aid function with an auto-off timer, showing options for 15m, 30m, 60m, 90m, and 120m. The alarm clock is shown emitting a soft, warm light.

The sleep timer allows the light to gradually dim and turn off after a set period, aiding in sleep.

1. Tryk på SLEEP TIMER knap.
2. Brug +/- buttons to select the desired sleep timer duration (15, 30, 60, 90, or 120 minutes). The light will gradually dim and turn off after the selected time.
3. Tryk på for at annullere sleep-timeren SLEEP TIMER button repeatedly until the timer is off, or press and hold the button.

5. Justering af displayets lysstyrke

Billede 7: Four images of the alarm clock demonstrating different display brightness levels, from off to full brightness, highlighting the dimmable and eye-caring features.

Tryk på DIMMER button to cycle through the 4 display brightness levels: 0% (off), 5%, 50%, and 100%. This allows you to adjust the display visibility according to your preference, especially at night.

Opretholdelse

• Rengør enheden med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Hold enheden væk fra vand og høj luftfugtighed.
• Undgå at tabe enheden eller udsætte den for kraftige stød.
• Forsøg ikke selv at skille enheden ad eller reparere den. Kontakt kundesupport, hvis der opstår problemer.

Fejlfinding

Specifikationer

• Model: ZH083K
• Mærke: AFEXOA
• Dimensioner: 9.5 x 3.81 x 9.5 cm
• Vægt: 400 g
• Materiale: Plast
• Skærmtype: Digital
• Strømkilde: Elkabel (USB)
• Særlige funktioner: Sunrise Simulation, Mood Light, Color-Changing Night Light, Loud Alarm, Snooze, Sleep Timer, Dimmable Display

Garanti og support

The AFEXOA ZH083K Digital Sunrise Alarm Clock comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the product packaging or contact your retailer. If you encounter any issues or have questions regarding your product, please contact AFEXOA customer support through the retailer's platform or the official brand webwebsted for hjælp.

Gem venligst din købskvittering som købsbevis i tilfælde af garantikrav.
