Topwish 2-Zone Induction Cooktop User Manual

1. Introduktion

Thank you for choosing the Topwish 2-Zone Induction Cooktop. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.

This induction cooktop is designed for modern kitchens, offering precise temperature control, energy efficiency, and advanced safety features for an optimal cooking experience.

2. Sikkerhedsinstruktioner

Generel sikkerhed:

• Læs alle instruktioner før brug af apparatet.
• Sørg for, at apparatet er korrekt installeret af en kvalificeret tekniker.
• Rør ikke ved varme overflader. Brug håndtag eller knopper.
• For at beskytte mod elektrisk stød må ledningen, stik eller apparatet ikke nedsænkes i vand eller anden væske.
• Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn.
• Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af.
• Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Brug af tilbehør, der ikke er anbefalet af apparatets producent, kan forårsage skader.
• Må ikke bruges udendørs.
• Lad ikke ledningen hænge ud over kanten af ​​bordet eller bordpladen eller røre ved varme overflader.
• Må ikke placeres på eller i nærheden af ​​en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
• Sæt altid stikket i apparatet først, og sæt derefter ledningen i stikkontakten. For at afbryde forbindelsen skal du slukke for en vilkårlig knap og derefter tage stikket ud af stikkontakten.
• Brug ikke apparatet til andet end tilsigtet brug.

Induction Specific Safety:

• Brug kun køkkengrej, der er egnet til induktionstilberedning.
• Anbring ikke metalgenstande såsom knive, gafler, skeer og låg på kogepladens overflade, da de kan blive varme.
• Persons with pacemakers or similar medical devices should consult their doctor before using an induction cooktop.
• After use, the cooktop surface will retain residual heat. The residual heat indicator will warn you. Avoid touching the hot surface.

3. Produktet er slutview og funktioner

The Topwish 2-Zone Induction Cooktop (Model EUXB-EIH-002) is designed for efficient and safe cooking. It features two independent cooking zones, precise touch controls, and multiple safety functions.

Image of the Topwish 2-Zone Induction Cooktop in use, showing a pan with food cooking on one of the induction zones. The cooktop features a sleek black glass surface and touch controls.

Nøglefunktioner:

• 2 Induction Zones: Two independent cooking zones for versatile meal preparation.
• Samlet udgangseffekt: Up to 3500 Watts for rapid heating.
• 9 Power Stages: Præcis kontrol over tilberedningstemperaturen for forskellige retter.
• Boost funktion: Instantaneous power boost for rapid heating, ideal for boiling water quickly.
• Touch Control: Responsive and easy-to-operate touch interface for adjusting settings.
• Timer Function (1-99 minutes): Set cooking times accurately; heating stops automatically when the set time is reached.
• Restvarmeindikator: 'H' symbol warns when the cooktop surface is still hot after use, preventing burns.
• Overophedningsbeskyttelse: Automatically cuts off power if the cooktop detects excessively high temperatures, preventing damage.
• Børnelås: Locks the control panel to prevent accidental operation or misuse by children.
• Holdbar overflade: Shock-resistant and scratch-resistant glass surface, easy to clean.

Diagram illustrating the power specifications of the Topwish 2-Zone Induction Cooktop. It highlights the two cooking zones: a 200mm zone with 1800W (2300W Boost) and a 165mm zone with 1200W (1500W Boost), totaling 3500 Watts.

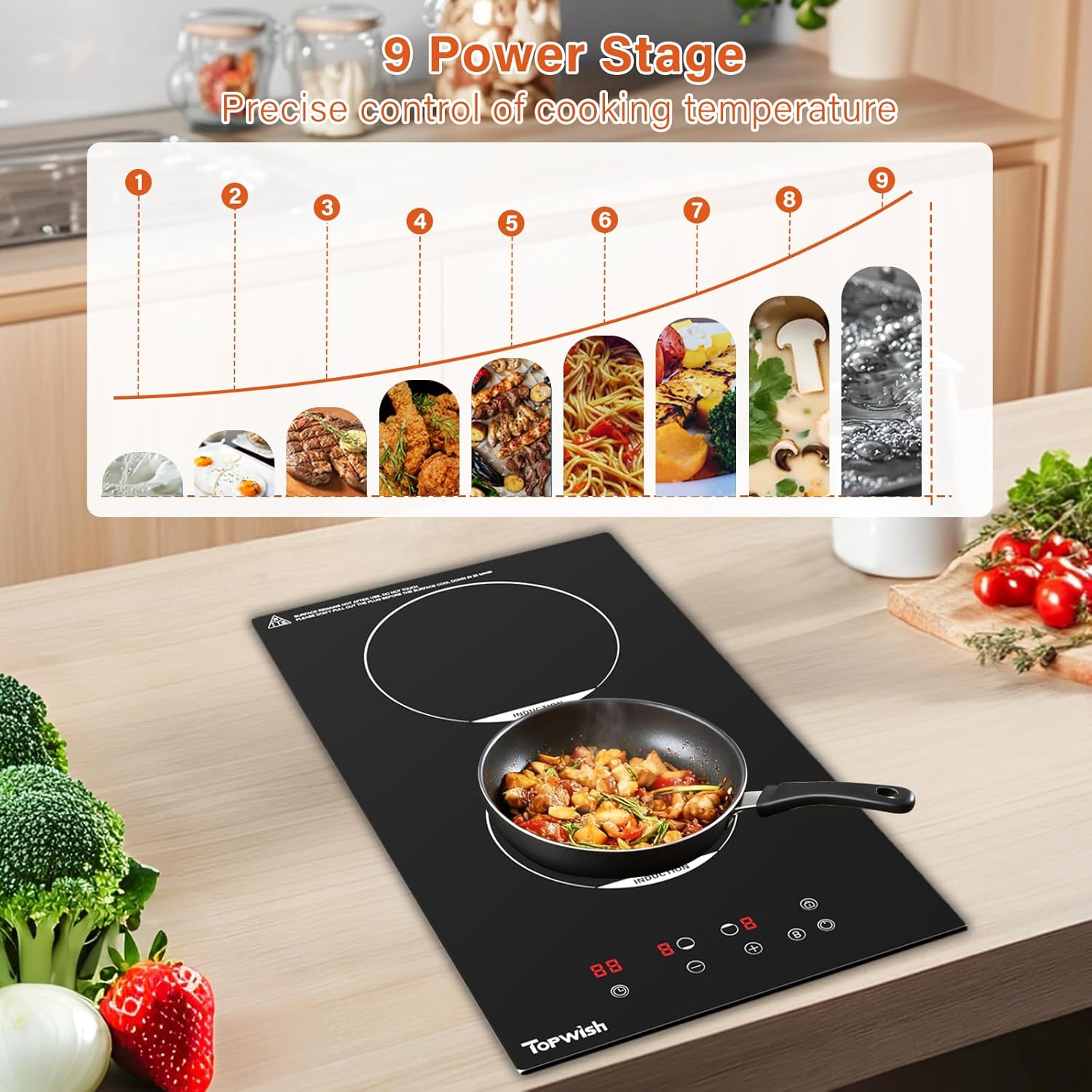

Visual representation of the 9 power stages available on the Topwish Induction Cooktop, demonstrating precise control over cooking temperature for various dishes.

4. Installationsvejledning

The Topwish Induction Cooktop is designed for built-in installation. Proper installation is crucial for safety and optimal performance. It is recommended that installation be performed by a qualified electrician or installer.

Installationskrav:

• Udskæring til bordplade: Ensure the countertop has a cut-out of 265mm x 495mm.
• Ventilation: Adequate ventilation space must be maintained around and below the appliance.
• Strømforsyning: The cooktop requires a 220-240V~, 50-60Hz electrical supply. Ensure the circuit is properly grounded and rated for the cooktop's power consumption.
• Klarering: Maintain minimum clearances from adjacent surfaces and overhead cabinets as per local building codes.

Installationstrin (generelt):

1. Prepare the countertop opening according to the specified dimensions.
2. Ensure the area below the cooktop is clear and allows for proper airflow.
3. Carefully lower the cooktop into the prepared opening.
4. Connect the electrical supply according to the wiring diagram provided with the appliance and local electrical codes.
5. Secure the cooktop in place using the provided mounting clips or brackets.
6. Test the appliance to ensure all functions operate correctly.

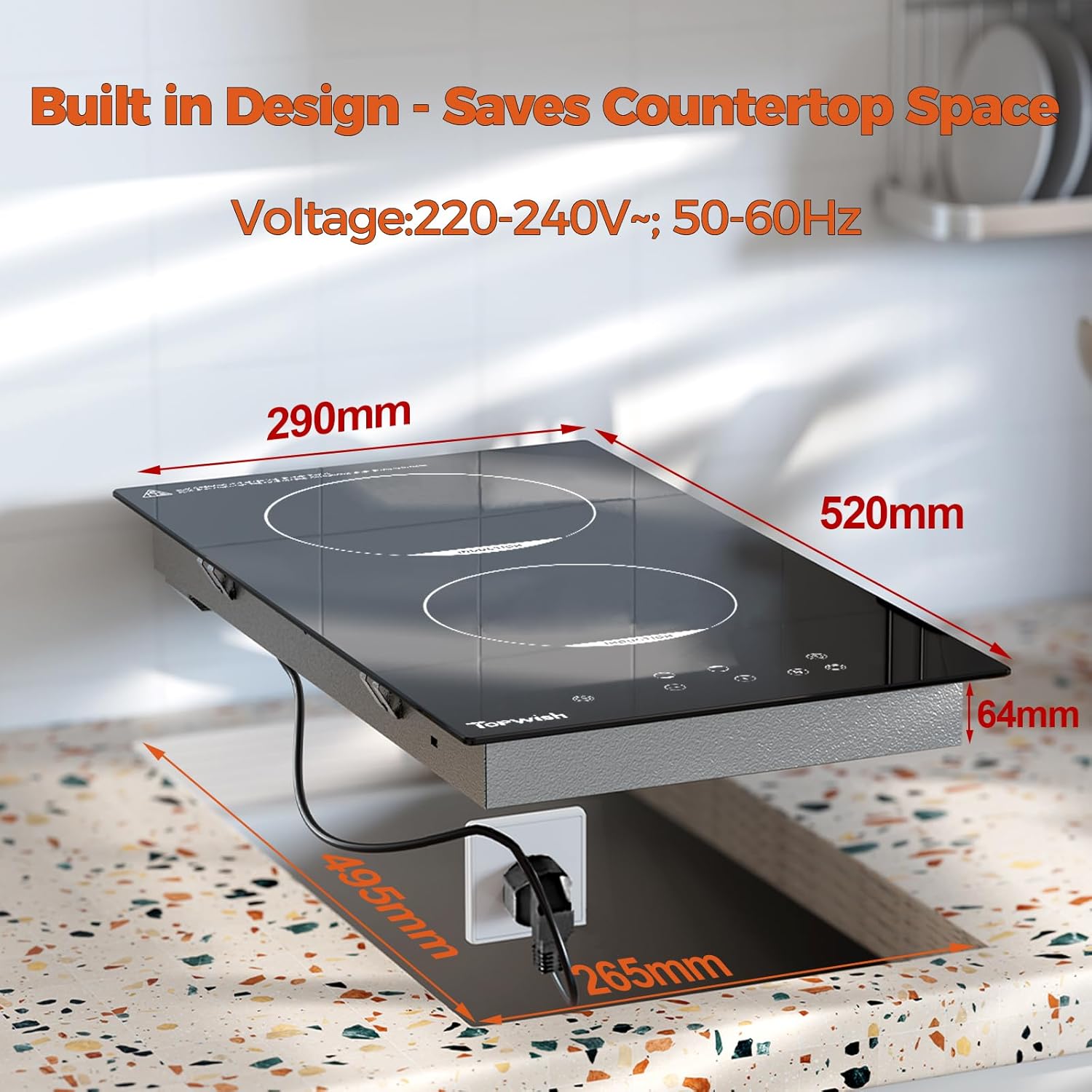

Diagram illustrating the built-in design of the Topwish Induction Cooktop, including its overall dimensions (290mm x 520mm x 64mm) and the required cut-out dimensions for installation (265mm x 495mm).

5. Betjeningsvejledning

The Topwish Induction Cooktop features intuitive touch controls for easy operation.

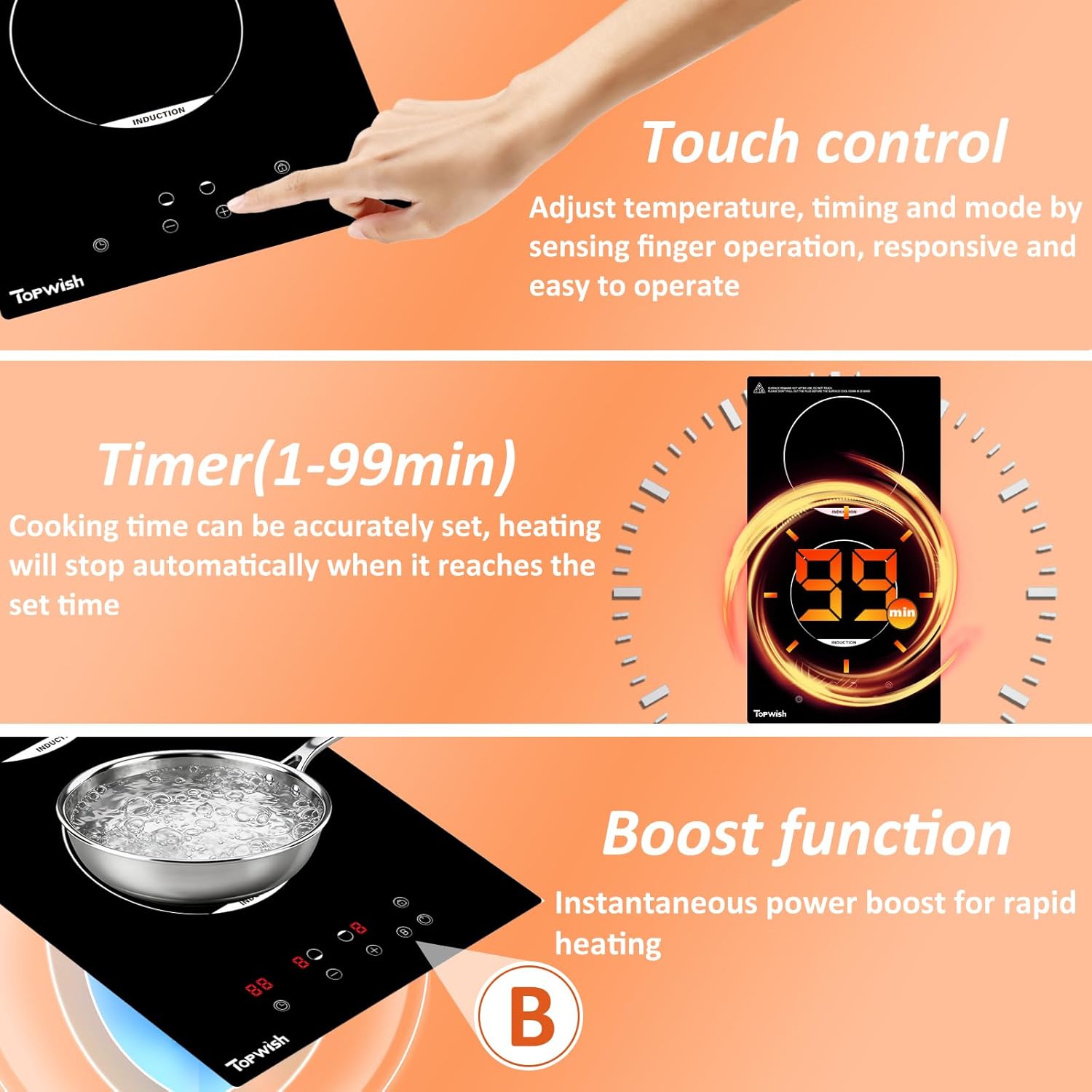

Nærbillede view of the Topwish Induction Cooktop's control panel, detailing the touch control interface, the 1-99 minute timer function, and the Boost function for rapid heating.

Grundlæggende betjening:

1. Tænd/sluk: Touch the power symbol to turn the cooktop on or off.
2. Vælg kogezone: After powering on, select the desired cooking zone by touching its corresponding control.
3. Juster effektniveau: Brug knapperne '+' og '-' til at justere effektniveauet fra 1 til 9.

Særlige funktioner:

• Boost funktion: To activate the Boost function for a selected zone, touch the 'B' button. This provides maximum power for a short period, ideal for quickly boiling liquids. The Boost function will automatically reduce power after a set time or can be manually deactivated.
• Timer funktion: Select a cooking zone, then touch the timer button. Use '+' and '-' to set the desired cooking time (1-99 minutes). The zone will automatically turn off when the timer expires.
• Børnelås: To activate the child lock, touch and hold the lock symbol for a few seconds. The controls will be disabled. To deactivate, touch and hold the lock symbol again.

Sikkerhedsindikatorer:

• Restvarmeindikator ('H'): After a cooking zone is turned off, an 'H' will appear on the display if the surface is still hot. Do not touch the surface until the 'H' disappears.
• Overophedningsbeskyttelse: If the cooktop detects an unsafe temperature, it will automatically shut down. Allow the appliance to cool before resuming operation.

Illustrations of key safety features: the residual heat reminder (H symbol) to warn of hot surfaces, overheat protection that automatically cuts power, and the child lock function to prevent accidental operation.

6. Kompatibilitet med køkkenudstyr

Induction cooktops require specific types of cookware. The base of the cookware must be magnetic to work with the induction technology.

Egnet køkkengrej:

• Jern: Cast iron, enameled iron.
• Rustfrit stål: Magnetic stainless steel.
• Magnetic Pan: Any pan with a magnetic base.

Uegnet køkkengrej:

• Copper, Aluminum, Glass, Ceramic, Earthenware, or any non-magnetic materials.

How to Test Cookware: Use a magnet. If the magnet sticks firmly to the bottom of the pan, it is suitable for induction cooking.

Guide for choosing the right cookware for the induction hob, demonstrating that magnetic cookware (iron, stainless steel, enameled, magnetic pan) is suitable, while non-magnetic materials (copper, aluminum, glass, earthenware) are not.

7. Rengøring og vedligeholdelse

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Topwish Induction Cooktop.

Cleaning the Cooktop Surface:

• Sørg altid for, at kogepladen er slukket og helt afkølet, inden rengøring.
• Wipe the glass surface with a soft cloth or sponge and a mild detergent.
• For stubborn stains, use a ceramic hob cleaner and a scraper designed for glass surfaces.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals, as they can scratch or damage the surface.
• Tør overfladen grundigt efter rengøring for at undgå vandpletter.

Generel vedligeholdelse:

• Kontroller jævnligt netledningen for tegn på beskadigelse.
• Ensure proper ventilation around the appliance is maintained.
• Do not place heavy objects on the cooktop surface that could cause damage.

Image highlighting the durability and ease of maintenance of the cooktop, featuring its easy-to-clean surface, shock resistance, and scratch-resistant properties.

8. Fejlfinding

If you encounter issues with your Topwish Induction Cooktop, refer to the following common troubleshooting steps. If the problem persists, contact customer support.

Almindelige problemer og løsninger:

• Kogepladen tænder ikke:
  • Check if the cooktop is properly plugged into a working power outlet.
  • Kontroller, at afbryderen ikke er udløst.
  • Sørg for, at tænd/sluk-knappen er trykket korrekt.
• Kogezonen varmer ikke op:
  • Ensure the cookware is suitable for induction (magnetic base).
  • Check if the cookware is centered on the cooking zone.
  • Verify that the power level is set above zero.
• Display shows 'H':
  • This indicates residual heat. The surface is still hot. Wait for it to cool down.
• Cooktop shuts off unexpectedly:
  • This could be due to overheat protection. Allow the cooktop to cool down.
  • Ensure there is no object covering the ventilation openings.
• Børnesikring er aktiv:
  • Touch and hold the lock symbol for a few seconds to deactivate it.

9. Tekniske specifikationer

10. Garanti og support

For warranty information and customer support, please refer to the documentation included with your product packaging or contact Topwish customer service directly. Keep your proof of purchase for warranty claims.
