NXGKET Walkie Talkie Brugermanual

1. Produktet er slutview og komponenter

The NXGKET walkie talkie is designed for easy and reliable communication. Before use, familiarize yourself with the main components of your device.

Billede: Labeled diagram of the NXGKET walkie talkie, highlighting key components such as the antenna, LCD display, PTT button, menu/lock button, call/ring button, microphone, speaker, up/down buttons, headphone jack, and charging port.

Pakkeindhold:

• 3 x NXGKET Walkie Talkies
• 1 x USB-C Charging Cable (3-in-1)
• 1 x brugermanual

2. Opsætningsvejledning

2.1 Opladning af batteriet

Your NXGKET walkie talkies come with built-in 1200mAh rechargeable Lithium-ion batteries. Before first use, fully charge the devices.

• Connect the 3-in-1 USB-C charging cable to the charging port on each walkie talkie.
• Plug the USB-A end of the cable into a compatible USB power adapter (not included) or a computer USB port.
• The charging indicator on the walkie talkie will show charging status (refer to device display for details).
• A full charge can provide up to 3 days of standby time.

Billede: Three NXGKET walkie talkies connected to a single 3-in-1 USB-C charging cable, illustrating the convenient simultaneous charging feature.

2.2 Tænd/sluk

• To power on, press and hold the Power button (usually combined with the Menu/Lock button) until the LCD screen illuminates.
• To power off, press and hold the Power button again until the screen turns off.

2.3 Kanalvalg

Your walkie talkie supports 16 channels. For communication, all devices must be set to the same channel and privacy code.

• Tryk på MENU knappen for at gå ind i kanalvalgstilstand.
• Brug UP (+) og NED (-)-knapperne for at vælge den ønskede kanal (1-16).
• Trykke MENU again to confirm the channel.
• To set privacy codes (121 available), press MENU repeatedly until the privacy code setting appears, then use UP/NED to select. Confirm with MENU.

3. Betjeningsvejledning

3.1 Grundlæggende kommunikation (PTT)

• Ensure all walkie talkies are on the same channel and privacy code.
• For at sende, tryk og hold nede PTT (Push-to-Talk) button located on the side of the device. Speak clearly into the microphone.
• Slip PTT knappen for at lytte efter et svar.

3.2 VOX-funktion (stemmestyret central)

The VOX function allows for hands-free communication without pressing the PTT button. The walkie talkie will automatically transmit when it detects your voice.

• To activate VOX, turn off the walkie talkie. Then, simultaneously press and hold the Power-knap og den TOT-knap until the VOX indicator appears on the screen.
• Adjust VOX sensitivity if needed (refer to the device's on-screen menu for details).
• To deactivate VOX, repeat the activation steps or power cycle the device.

Billede: A person hiking with a walkie talkie attached to their backpack strap via a belt clip, illustrating the convenience of the VOX hands-free communication feature.

3.3 Lydstyrkejustering

Brug UP (+) og NED (-) buttons to adjust the speaker volume to a comfortable level. The updated speaker provides up to 150% maximum volume increase.

3.4 Tastaturlås

To prevent accidental channel changes or setting adjustments, activate the keypad lock function.

• Tryk og hold på MENU/LÅS button until the lock icon appears on the LCD screen.
• For at låse op skal du trykke på og holde nede MENU/LÅS knappen igen, indtil låseikonet forsvinder.

3.5 Andre funktioner

• Automatic Squelch: Reduces background noise for clearer communication.
• Automatisk scanning: Scans through channels to find active conversations.
• Ringetoner: Choose from 10 different call tones.
• Alarm for lavt batteri: Giver dig besked, når batteriniveauet er lavt.
• Drop beskyttelse: Designed for durability in various environments.

Billede: Visual representation of key features including drop protection, 10 ringtones, keypad lock, squelch, VOX hands-free, and automatic scan.

4. Rækkevidde og ydeevne

The actual communication range of your walkie talkie depends on environmental factors and obstacles.

• City Environment: Up to 1.5 kilometers (0.9 miles).
• Open Area (unobstructed): Up to 5 kilometers (3.1 miles).

Billede: Diagram illustrating the communication range of the walkie talkie, showing a shorter range in urban areas with buildings (up to 1.5 km) and a longer range in open, unobstructed areas (up to 5 km).

4.1 Clear and Loud Sound

The walkie talkie features an upgraded speaker and an adopted silence system, ensuring clear and loud audio even in noisy environments. It is compatible with all brands of walkie talkies.

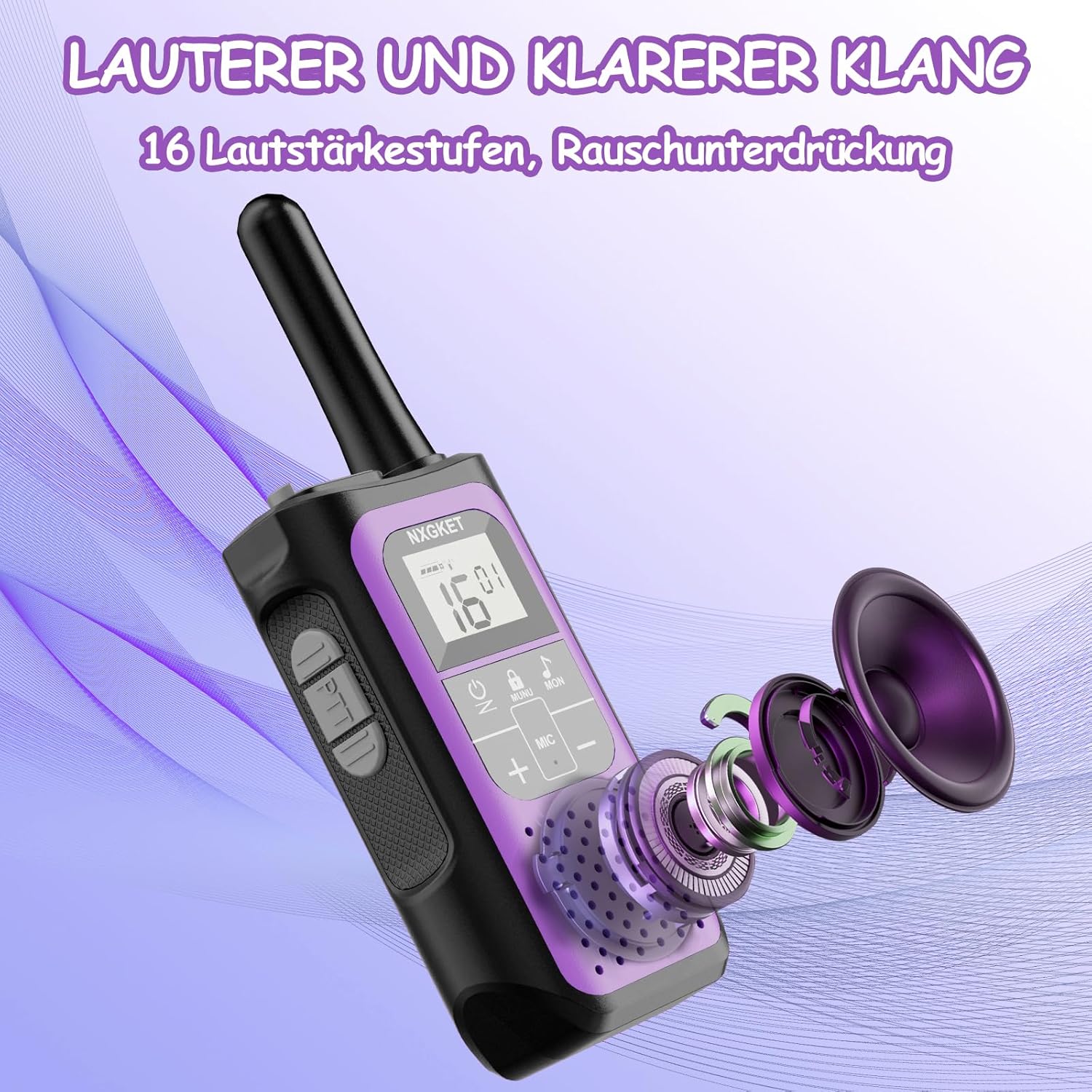

Billede: En eksploderede view diagram of the walkie talkie's speaker components, emphasizing the design for louder and clearer sound output.

5. Vedligeholdelse

Proper maintenance will extend the life of your NXGKET walkie talkies.

• Rensning: Brug en blød, damp cloth to clean the exterior of the device. Do not use harsh chemicals or abrasive cleaners.
• Batteripleje: Avoid fully discharging the battery frequently. Recharge the devices regularly, especially if storing them for extended periods.
• Opbevaring: Store the walkie talkies in a cool, dry place away from direct sunlight and extreme temperatures.
• Vandtæthed: The device has an IPX4 international protection rating, meaning it is resistant to splashing water from any direction. Do not submerge the device in water.

6. Fejlfinding

If you encounter issues with your walkie talkie, refer to the following common problems and solutions:

7. Specifikationer

Detailed technical specifications for the NXGKET walkie talkie:

8. Garanti og support

Specific warranty information is not provided in the product details. For warranty claims, technical support, or further assistance, please contact the seller or manufacturer directly through your purchase platform.

Keep your purchase receipt or order number handy as it may be required for support.
