Elation Professional Magmatic Magma Fog 1500IP-II tågemaskine brugermanual

1. Introduktion

This manual provides essential instructions for the safe and efficient operation, setup, maintenance, and troubleshooting of your Elation Professional Magmatic Magma Fog 1500IP-II Fog Machine. Please read this manual thoroughly before operating the device to ensure proper function and to prevent damage or injury. Keep this manual for future reference.

The Magma Fog 1500IP-II is a high-performance, 1500W water-based fog machine designed for professional applications. It features an IP67 rating, making it suitable for outdoor use, and offers a maximum output of 60,000 cubic feet per minute (CFM). Control options include an onboard LCD touchscreen and DMX-512/RDM.

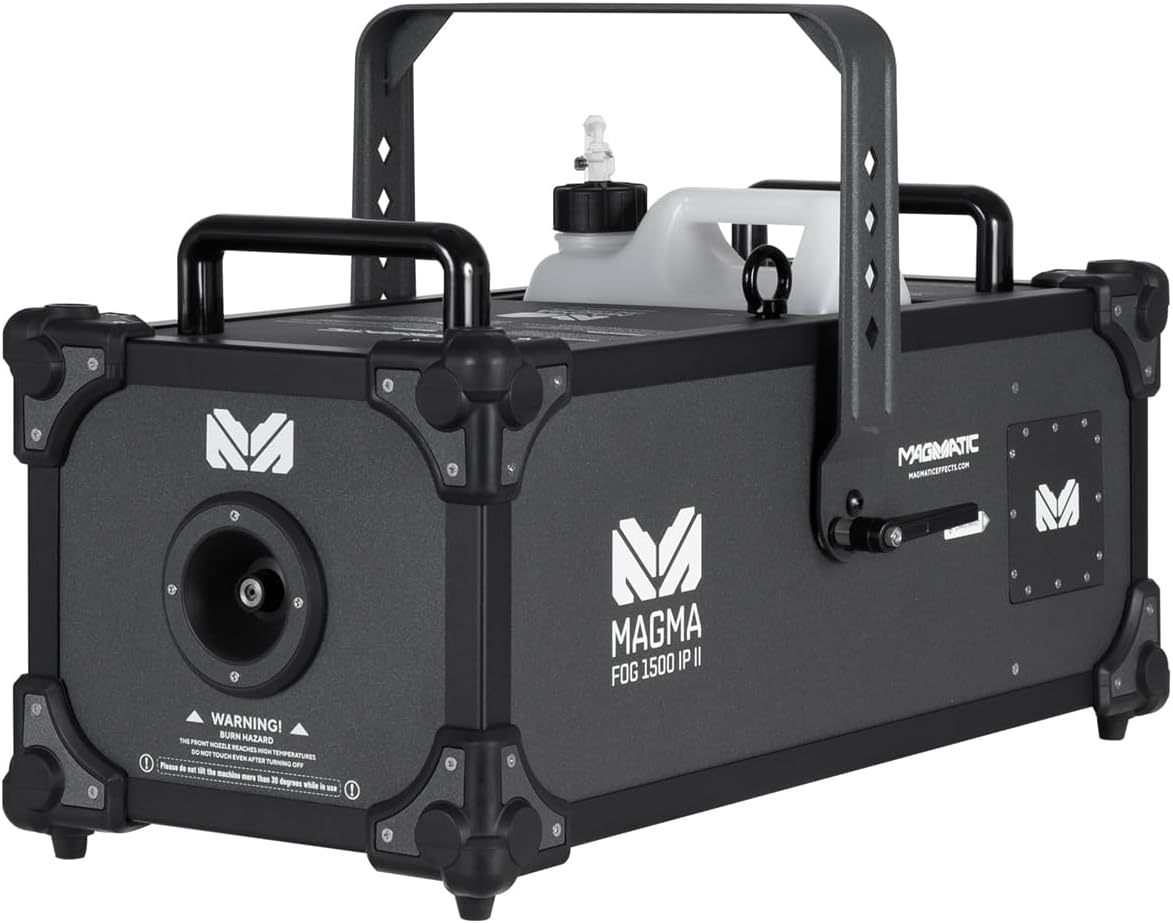

Figur 1.1: Forside view of the Magmatic Magma Fog 1500IP-II Fog Machine, showcasing its robust design and integrated fluid tank.

2. Sikkerhedsoplysninger

Always observe the following safety precautions to reduce the risk of electrical shock, fire, or personal injury.

• Elektrisk sikkerhed: Ensure the unit is connected to a grounded power outlet with the correct voltage (120V, 60Hz). Disconnect power before performing any maintenance or cleaning.
• Forbrændingsfare: The front nozzle and surrounding areas become extremely hot during operation. WARNING! BURN HAZARD! THE FRONT NOZZLE REACHES HIGH TEMPERATURES. DO NOT TOUCH NOZZLE AFTER POWERING OFF. Allow sufficient cooling time (at least 30 minutes) after use.
• Fluid Safety: Use only approved water-based fog fluid. Do not ingest fog fluid. In case of contact with skin or eyes, rinse thoroughly with water. Keep out of reach of children.
• Ventilation: Ensure adequate ventilation around the machine. Do not block air vents.
• Placering: Do not tilt the machine more than 30 degrees while in use. Place the machine on a stable, level surface. Keep flammable materials away from the unit.
• Udendørs brug: The unit is IP67 rated for outdoor use, but ensure all connections are properly sealed and protected from direct water spray into openings.

Figur 2.1: Forside view highlighting the burn hazard warning label near the fog output nozzle. Always observe this warning.

3. Produktet er slutview

The Magma Fog 1500IP-II is engineered for reliability and performance. Key components include:

• Fog Output Nozzle: Placeret fortil, hvor der udsendes tåge.
• Væsketank: A 5-liter (1.32 gallon) removable tank for fog fluid.
• Kontrolpanel: Onboard LCD touchscreen for direct control and settings adjustment.
• Strømindgang: IP65 locking power connector.
• DMX ind/ud: IP65 locking 5-pin XLR connectors for DMX-512 and RDM control.
• Fjernindgang: For optional wired or wireless remote control.
• Bærehåndtag: Two heavy-duty handles for transport.
• Hængende beslag: For truss mounting applications.

Figur 3.1: Bagside view of the unit, displaying the LCD touchscreen control panel, power input, DMX connections, and remote input.

4. Opsætning

4.1 Udpakning

1. Carefully remove the fog machine from its packaging.
2. Inspect the unit for any signs of damage during shipping. Contact your dealer immediately if damage is found.
3. Gem den originale emballage til senere transport eller opbevaring.

4.2 Fluid Tank Installation and Filling

1. Locate the fluid tank compartment on the top of the unit.
2. Remove the empty fluid tank.
3. Fyld tanken med Magmatic brand water-based fog fluid only. Using other fluid types may damage the unit and void the warranty.
4. Securely replace the fluid tank, ensuring the fluid hose is properly submerged and connected.

4.3 Strømtilslutning

1. Connect the supplied IP65 locking power cable to the power input on the rear of the unit.
2. Connect the other end of the power cable to a suitable grounded electrical outlet (120V, 60Hz).

4.4 DMX-tilslutning (valgfrit)

1. For DMX control, connect a 5-pin DMX cable from your DMX controller to the DMX IN port on the fog machine.
2. To daisy-chain multiple units, connect a DMX cable from the DMX OUT port of the first unit to the DMX IN port of the next unit.
3. Ensure all DMX cables are IP65 rated for outdoor use if applicable.

4.5 Montering

The unit includes a hanging bracket for truss mounting. Ensure the mounting surface or truss system can safely support the weight of the unit (74.3 lbs / 33.7 kg) and any accessories. Use appropriate clamps and safety cables (not included) for secure installation.

5. Betjeningsvejledning

5.1 Powering On and Warm-up

1. After connecting power, the unit will begin its initial warm-up sequence.
2. The thermally protected heat exchanger requires approximately 14 minutes to reach optimal operating temperature.
3. The LCD touchscreen will display the warm-up status. The unit is ready for operation once the status indicates 'Ready'.

5.2 Onboard LCD Touchscreen Control

The intuitive LCD touchscreen allows direct control over various functions:

• Manual Fog Output: Activate fog output manually.
• Timerindstillinger: Program timed fog bursts and intervals.
• Lydstyrkekontrol: Adjust the fog output intensity.
• DMX-adresse: Set the DMX start address for remote control.
• Systemoplysninger: View operational data and status.

5.3 DMX-512 and RDM Control

The Magma Fog 1500IP-II supports DMX-512 and RDM (Remote Device Management) for integration into professional lighting and effects systems. Refer to the DMX chart in the appendix (if provided separately) for specific channel assignments and control values. RDM allows for remote configuration and monitoring of the device.

5.4 Optional Remote Control

The unit is compatible with optional wired and wireless remote controls (sold separately). Connect the remote to the 'REMOTE IN' port on the rear of the unit. Consult the remote control's manual for specific operating instructions.

6. Vedligeholdelse

Regular maintenance ensures optimal performance and extends the lifespan of your fog machine.

6.1 Rengøring

• Ydre: Tør det ydre afasing med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Dyse: Periodically check the fog nozzle for any blockages. If necessary, gently clean with a small brush after the unit has completely cooled.
• Fluid System: It is recommended to run a cleaning solution (specifically designed for fog machines) through the system every 200 hours of operation or before long periods of storage to prevent clogs.

6.2 Fluid Handling and Storage

• Always store fog fluid in a cool, dark place, away from direct sunlight and extreme temperatures.
• Ensure the fluid tank is securely capped when not in use.
• If storing the machine for an extended period (more than 30 days), empty the fluid tank and run a cleaning solution through the system.

7. Fejlfinding

This section addresses common issues you might encounter. If a problem persists, contact qualified service personnel.

8. Specifikationer

Detailed technical specifications for the Magmatic Magma Fog 1500IP-II.

9. Garanti og support

For warranty information and technical support, please refer to the official Elation Professional webwebstedet eller kontakt din autoriserede forhandler. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

Elation Professional Customer Support: For hjælp, besøg www.elationlighting.com/support eller kontakt din lokale forhandler.
