MEETION Trådløs mus BTM001 Brugermanual

1. Introduktion

This manual provides comprehensive instructions for the MEETION BTM001 Wireless Mouse. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and user experience. Please read this manual thoroughly before using the device.

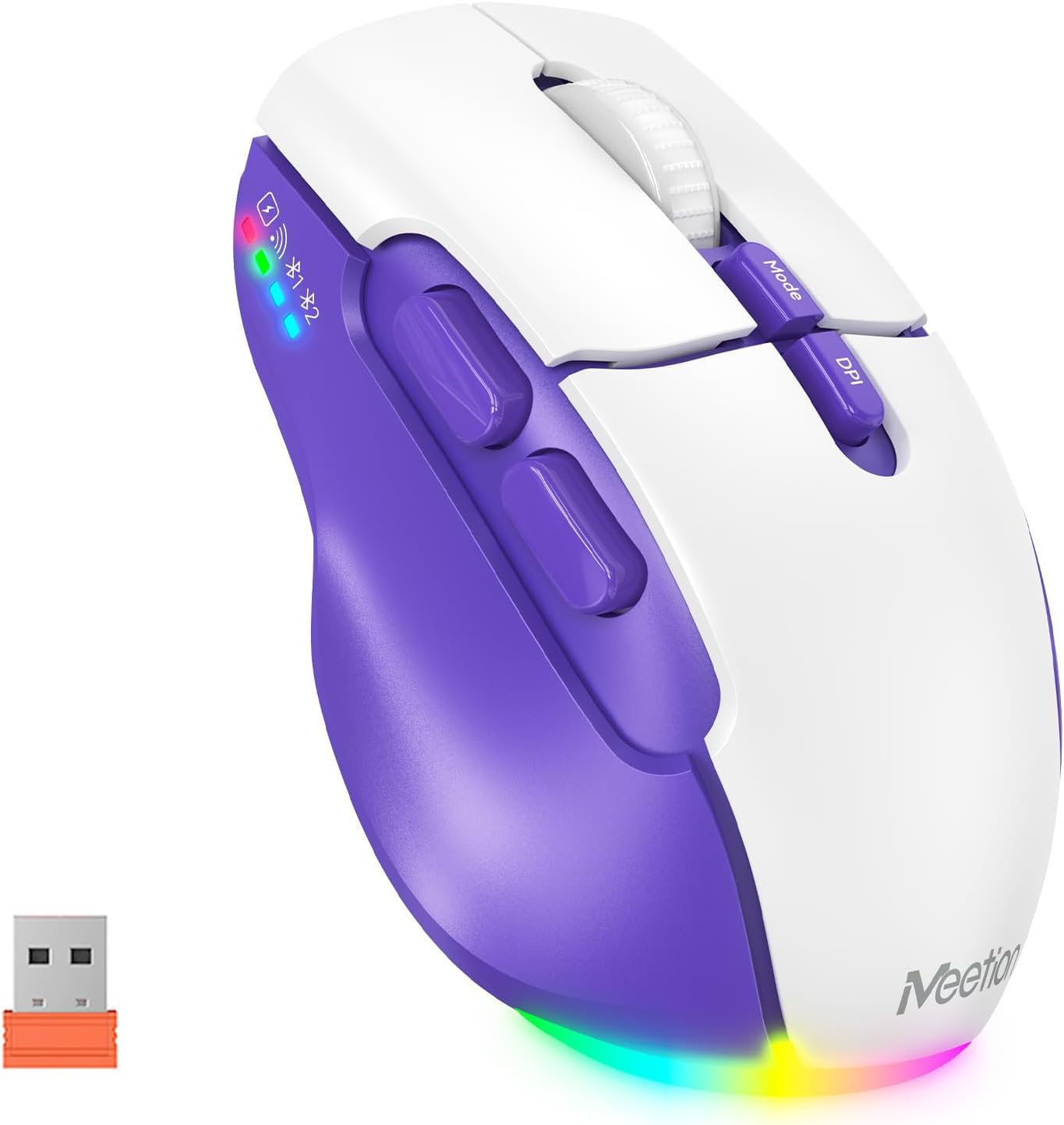

Image 1.1: The MEETION BTM001 Wireless Mouse, showcasing its purple and white design along with the included USB receiver.

2. Produktet er slutview

The MEETION BTM001 is an ergonomic wireless mouse designed for versatile use across multiple devices. It features dual connectivity options (USB 2.4GHz and Bluetooth), adjustable DPI settings, and a rechargeable battery.

2.1 Nøglefunktioner

• Dobbelt tilslutning: Supports 2.4GHz USB wireless and dual Bluetooth (BT1, BT2) for seamless switching between up to three devices.
• Justerbar DPI: Four DPI settings (800, 1200, 1600, 2400) for precise cursor control.
• Genopladeligt batteri: Built-in lithium polymer battery, rechargeable via USB-C, with support for use while charging.
• Ergonomisk design: Contoured shape with supportive finger rests for comfortable extended use.
• Lydløse klik: Designed for quiet operation to minimize disturbance.
• RGB belysning: Bottom lighting for aesthetic enhancement, with an option to toggle on/off.

2.2 Komponenter

Image 2.1: Detailed diagram illustrating the various buttons and ports on the MEETION BTM001 Wireless Mouse, including the Left Button, Right Button, Scroll Wheel, Forward Button, Backward Button, Mode Switching Button, DPI Speed Switch Button, Type-C Charging Port, Power Switch (ON/OFF), Tail Light Switch, and USB Receiver compartment.

1. Venstre knap: Standard venstreklikfunktion.
2. Højre knap: Standard højreklikfunktion.
3. Scrollhjul: For vertical scrolling. Can be tilted right for auto-scroll mode.
4. Frem-knap: Navigerer fremad i web browsere eller file opdagelsesrejsende.
5. Baglæns knap: Navigerer baglæns i web browsere eller file opdagelsesrejsende.
6. Knap til tilstandsskift: Cycles between 2.4GHz USB, Bluetooth 1, and Bluetooth 2 connections.
7. DPI Speed Switch Button: Adjusts cursor sensitivity (800/1200/1600/2400 DPI).
8. Type-C opladningsport: For recharging the mouse battery.
9. Tænd/sluk-knap (tænd/sluk): Turns the mouse power on or off.
10. Tail Light Switch: Toggles the RGB bottom lighting on or off.
11. USB-modtager: Stores the 2.4GHz USB dongle.

3. Opsætning

The MEETION BTM001 mouse offers flexible connectivity options. Follow these steps to connect your mouse to your device.

Image 3.1: Visual guide for connecting the mouse via USB receiver or Bluetooth to various devices like laptops, desktops, tablets, and smartphones.

3.1 2.4GHz USB Wireless Connection

1. Locate the USB receiver stored in the compartment on the bottom of the mouse.
2. Plug the USB receiver into an available USB-A port on your computer or device. If your device only has USB-C ports, use a suitable adapter (not included).
3. Turn on the mouse using the Power Switch on the bottom.
4. Press the Mode Switching Button until the indicator light for 2.4GHz (often represented by a Wi-Fi-like icon) is active.
5. Musen burde oprette forbindelse automatisk.

3.2 Bluetooth-forbindelse (BT1 / BT2)

The mouse supports two separate Bluetooth connections, allowing you to pair with two different Bluetooth-enabled devices.

1. Turn on the mouse using the Power Switch on the bottom.
2. Press the Mode Switching Button to select either Bluetooth 1 (BT1) or Bluetooth 2 (BT2). The corresponding indicator light will flash.
3. Gå til Bluetooth-indstillinger på din enhed (bærbar computer, tablet, smartphone) og aktiver Bluetooth.
4. Søg efter new devices. The mouse should appear as "MEETION BTM001" or similar.
5. Select the mouse to pair. The indicator light on the mouse will stop flashing and remain solid once connected.
6. Repeat these steps for the second Bluetooth channel (BT2) if you wish to connect to another device.

3.3 Skift mellem enheder

To switch between connected devices (USB, BT1, BT2), simply press the Mode Switching Button on the top of the mouse. The indicator lights will show which connection is currently active.

Image 3.2: The MEETION BTM001 mouse demonstrating its ability to connect and switch between a laptop, tablet, and desktop computer using both Bluetooth and 2.4GHz USB connections.

4. Betjeningsvejledning

4.1 Adjusting DPI (Cursor Speed)

The mouse offers four adjustable DPI settings to control cursor sensitivity. Press the DPI Speed ​​Switch-knap located on the top of the mouse to cycle through the settings:

• 800 DPI (Slowest)
• 1200 DPI (Standard)
• 1600 DPI (Faster)
• 2400 DPI (Fastest)

Image 4.1: Illustration of the four adjustable DPI settings (800, 1200, 1600, 2400) and the DPI button on the MEETION BTM001 mouse.

4.2 Sideknapper

The Forward and Backward buttons on the left side of the mouse provide quick navigation in web browsere, file explorers, and other applications that support these functions.

4.3 Scroll Wheel Functions

• Lodret rulning: Rotate the scroll wheel up or down.
• Auto-Scroll Mode: Push the scroll wheel to the right to activate auto-scroll. You can adjust the scrolling speed by moving the mouse slightly up or down while in this mode. Push the scroll wheel again or click any button to exit auto-scroll.

4.4 RGB-lysstyring

The mouse features a customizable RGB backlight at its base. To toggle the lighting on or off, use the Baglygtekontakt placeret på undersiden af ​​musen.

5. Opladning og batteri

The MEETION BTM001 mouse is equipped with a rechargeable lithium polymer battery.

5.1 Opladning af musen

1. Connect the included USB-C charging cable to the Type-C Charging Port on the front of the mouse.
2. Plug the other end of the cable into a USB power source (e.g., computer USB port, USB wall adapter).
3. The mouse can be used while it is charging.

Image 5.1: The MEETION BTM001 mouse connected to a power source via its USB-C charging cable, indicating its rechargeable capability.

5.2 Battery Saving Features

To conserve battery life, the mouse incorporates intelligent power-saving features:

• Standbytilstand: After approximately 20 minutes of inactivity, the mouse will enter standby mode.
• Automatisk dvaletilstand: If left inactive for an extended period, the mouse will enter a deeper auto-sleep mode.
• To reactivate the mouse from standby or auto-sleep, simply move the mouse or click any button.

Image 5.2: Illustration depicting the mouse's power states: Working, Standby (after 20 minutes), Auto Sleep, and how to activate it by clicking.

6. Vedligeholdelse

To ensure the longevity and optimal performance of your MEETION BTM001 Wireless Mouse, follow these maintenance guidelines:

• Rensning: Brug en blød, tør klud til at tørre musens overflade af. Ved genstridigt snavs, tør let afampRengør kluden med vand eller en mild rengøringsopløsning. Undgå skrappe kemikalier eller slibende materialer.
• Sensorpleje: Hold den optiske sensor i bunden af ​​musen ren og fri for støv eller snavs for at sikre nøjagtig sporing.
• Opbevaring: When not in use for extended periods, turn off the mouse to conserve battery life. Store it in a cool, dry place away from direct sunlight and extreme temperatures.
• Undgå dråber: Protect the mouse from drops and impacts, which can damage internal components.

7. Fejlfinding

If you encounter issues with your MEETION BTM001 Wireless Mouse, refer to the following troubleshooting steps:

8. Specifikationer

9. Garanti og support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official MEETION webwebsted. Gem din købsbevis i tilfælde af garantikrav.
