TURBRO Beluga Series Inverter Swimming Pool Heat Pump

1. Introduktion

Thank you for choosing the TURBRO Beluga Series Inverter Swimming Pool Heat Pump. This manual provides essential information for the safe and efficient operation of your new pool heater. Please read this manual thoroughly before installation and use, and keep it for future reference.

The TURBRO Beluga series heat pump is designed to extend your swimming season by maintaining a consistent and comfortable pool temperature. Utilizing advanced inverter technology, it intelligently adjusts heating power to optimize energy consumption and ensure stable water temperature. This unit is suitable for both in-ground and above-ground pools up to 16,000 gallons.

Image: Extend Your Swimming Season with TURBRO Beluga Heat Pump.

2. Sikkerhedsoplysninger

Vigtige sikkerhedsinstruktioner:

• Læs alle instruktioner, før du bruger dette apparat.
• Professionel installation påkrævet: This unit requires a certified electrician to set up a hardwired connection to a 220-240 V power supply. Do not attempt to install electrical connections yourself unless you are a qualified professional.
• Ensure the heat pump is installed on a stable, level surface with adequate clearance for airflow.
• Do not operate the heat pump if any part of it is submerged in water.
• Hold børn og kæledyr væk fra enheden under drift.
• Do not insert fingers or foreign objects into the fan or any openings.
• Afbryd altid strømmen, før du udfører vedligeholdelse eller service.
• The unit is IPX4-Waterproof, but it should not be directly sprayed with high-pressure water.
• This heat pump is designed for heating swimming pool water only. It is not intended to turn your pool into a hot tub.

3. Produktet er slutview

The TURBRO Beluga B50V is an advanced inverter pool heat pump designed for energy-efficient pool heating. It features a full DC inverter compressor and a titanium heat exchanger, ensuring durability and optimal performance even in saltwater environments.

Image: TURBRO Beluga B50V Heat Pump with App Interface.

This image shows the main unit of the TURBRO Beluga B50V heat pump, highlighting its compact design and the integrated control panel. A smartphone displaying the companion app is also visible, demonstrating the smart control capabilities.

Image: Product Dimensions and Included Accessories.

This diagram illustrates the physical dimensions of the heat pump (25.9" H x 38.2" W x 15.7" D) and lists the accessories included in the package: a user manual, two water pipe joints, one drain connector, one drain pipe, and four rubber blankets. Note that water hoses, valves, pool filters, water pumps, or chlorinators are excluded.

Nøglefunktioner:

• Inverter teknologi: Full DC inverter compressor for precise temperature control and energy efficiency.
• Cost-Saving: Up to 15.90 COP (Coefficient of Performance), significantly reducing heating costs compared to gas or propane heaters.
• Smart kontrol: Intuitive control panel and mobile app for remote management and timer settings.
• Holdbar konstruktion: Titanium heat exchanger, corrosion-resistant, suitable for saltwater pools.
• Sikkerhedsfunktioner: Multiple built-in sensors monitor critical parameters and display error codes for safe operation.
• Ultra-stille drift: Designed with damping and sound-absorbing materials for low noise levels.

4. Opsætning og installation

Proper installation is crucial for the performance and longevity of your heat pump. It is strongly recommended that installation be performed by a certified professional.

4.1 Valg af websted:

• Choose a location with good airflow, away from obstructions.
• Ensure the ground is level and stable enough to support the unit's weight (approx. 146.7 lbs).
• Consider proximity to your pool and existing filtration system.

4.2 Elektrisk tilslutning:

The TURBRO Beluga B50V requires a hardwired connection to a 220-240 V power supply. This must be done by a certified electrician to ensure compliance with local electrical codes and safety standards.

• Sørg for, at strømforsyningen passer til enhedens krav.
• Install appropriate circuit breakers and wiring as per local regulations.

4.3 Plumbing Connection:

The heat pump integrates into your existing pool filtration system. Water flows from the pool pump, through the filter, then through the heat pump, and back to the pool.

Image: Swimming Pool System Diagram with Heat Pump Integration.

• Connect the heat pump to your pool's circulation system using appropriate water hoses and valves (not included).
• Sørg for, at alle forbindelser er sikre og lækagefri.
• The unit is not recommended for inflatable pools due to potential low water pressure issues.

5. Betjeningsvejledning

Your TURBRO Beluga heat pump can be controlled via its intuitive control panel or through a mobile application.

5.1 Kontrolpanel:

The integrated control panel allows you to power the unit on/off, set the desired water temperature, and select operating modes.

5.2 Mobile App Control:

For enhanced convenience, download the TURBRO app to control your heat pump from your smartphone. The app allows you to monitor current temperature, set target temperature, switch modes, and manage timer settings remotely.

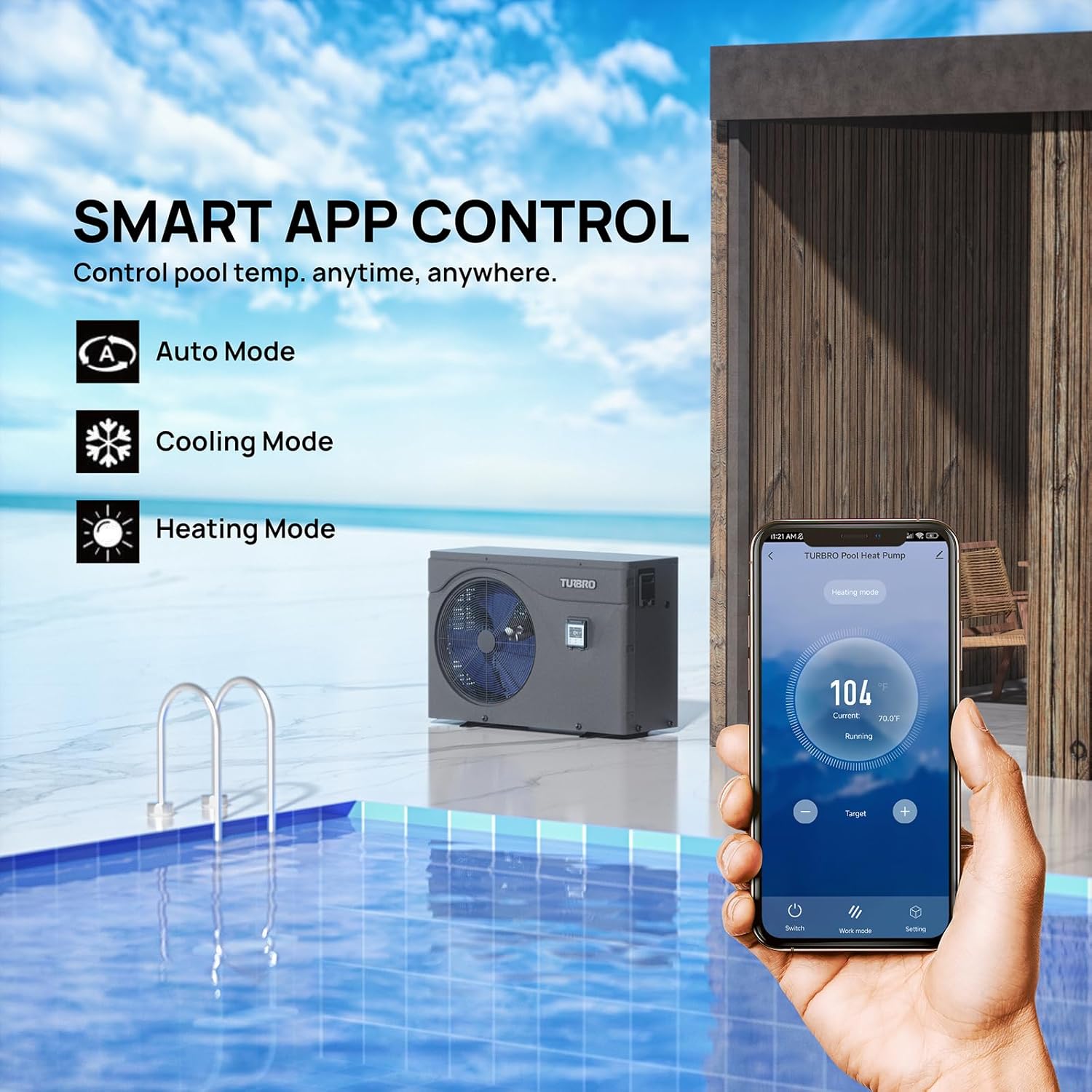

Image: Smart App Control Interface.

This image highlights the convenience of controlling the heat pump via a mobile app, allowing users to manage settings like temperature and operating modes from anywhere.

Image: Two Ways to Set Timer.

This image demonstrates that the heat pump's timer can be set either directly on the unit's control panel or through the mobile application, offering flexibility for scheduling heating periods.

5.3 driftstilstande:

• Opvarmningstilstand: Heats the pool water to your desired temperature.
• Køletilstand: Can cool the pool water if it becomes too warm.
• Automatisk tilstand: Automatically switches between heating and cooling to maintain the set temperature.

5.4 Timerfunktion:

You can set two timer periods to automatically turn the heat pump on or off, optimizing energy usage and convenience.

5.5 Performance Tips:

• Heat pumps perform most efficiently when outdoor temperatures are 60°F or above.
• Performance and efficiency may decrease as temperatures drop.
• Using a swimming pool cover can significantly help retain heat and reduce heating time, especially in colder weather.
• Factors like climate, pool size, wind speed, solar gain, and maintenance affect heating performance.

Image: Factors Affecting Pool Temperature.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer varmepumpens levetid og effektive drift.

6.1 Routine Cleaning:

• Keep the area around the heat pump clear of debris, leaves, and other obstructions to ensure proper airflow.
• Rengør enhedens yderside regelmæssigt med en blød, tør klud.amp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
• Inspect the fan blades for any accumulation of dirt or debris and clean carefully if necessary.

6.2 Winterization:

If you live in an area with freezing temperatures, it is essential to properly winterize your heat pump to prevent damage.

• Consult a pool professional for specific winterization procedures for your climate.
• Typically involves draining water from the unit and protecting it from the elements.

7. Fejlfinding

The TURBRO Beluga heat pump is equipped with multiple built-in sensors that monitor operational parameters. If a fault occurs, the unit will display a corresponding error code and shut down to prevent further damage.

Common Issues and General Advice:

• Enheden tænder ikke: Check power supply, circuit breaker, and ensure all electrical connections are secure.
• Utilstrækkelig opvarmning: Verify the set temperature, ensure proper water flow, check for obstructions around the unit, and consider using a pool cover.
• Viste fejlkoder: Refer to the detailed error code list in the complete user manual for specific meanings and troubleshooting steps. If the issue persists after following the manual's instructions, contact customer support.
• Usædvanlig støj: Check for debris in the fan, ensure the unit is level, and inspect for loose components.

For detailed troubleshooting steps and a comprehensive list of error codes, please refer to the full user manual included with your product or contact TURBRO customer support.

8. Specifikationer

9. Garanti og support

9.1 Garantioplysninger:

TURBRO provides a 5-year standard coverage for both parts and compressors for the Beluga Series heat pumps. Please retain your proof of purchase for warranty claims.

9.2 Kundesupport:

For any questions, technical assistance, or warranty claims, please contact TURBRO customer support. You can find contact information on the official TURBRO webwebsted eller via din købsplatform.

Additionally, you may find helpful resources and FAQs on the TURBRO Store on Amazon.
