Neoteck 2-i-1 digitalt multimeter af pentypen NTK232 brugermanual

1. Introduktion

This manual provides essential instructions for the safe and effective use of your Neoteck 2 in 1 Pen Type Digital Multimeter (Model NTK232). This device combines the functionalities of a voltage tester pen and a digital multimeter, offering versatile measurement capabilities for various electrical tasks. Please read this manual thoroughly before operation and retain it for future reference.

2. Sikkerhedsoplysninger

WARNING: Always adhere to safety precautions when working with electrical systems. Failure to do so may result in injury or damage to the device.

• This multimeter complies with CE CAT II 600V safety standards.
• Forsøg ikke at måle voltages exceeding the specified maximum ratings.
• Ensure the test leads are in good condition and properly connected before any measurement.
• Use caution when working with live circuits. Avoid direct contact with conductors.
• NCV (Non-Contact Voltage) function detects dangerous electrical voltages without direct contact, providing an additional layer of protection.
• Always turn off power to the circuit before connecting or disconnecting test leads for resistance, continuity, diode, or capacitance measurements.
• Udskift batterierne med det samme, når indikatoren for lavt batteri vises, for at sikre nøjagtige aflæsninger.

3. Produktet er slutview

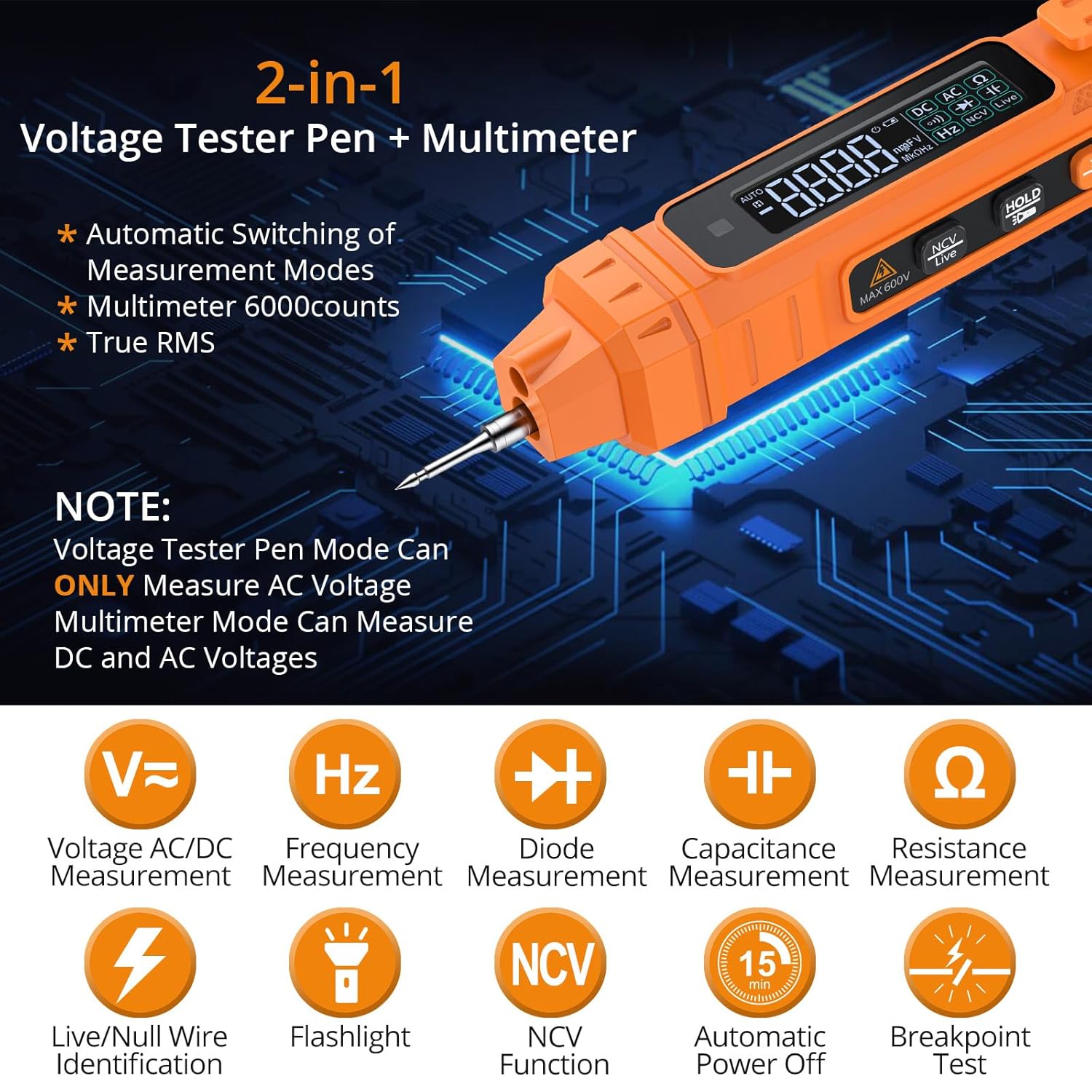

The Neoteck NTK232 is a compact and intelligent pen-type digital multimeter designed for both professionals and DIY enthusiasts. It features a 6000-count display and True RMS for precise measurements.

Nøglefunktioner:

• 2-i-1 funktionalitet: Combines voltage tester pen and digital multimeter capabilities.
• Intelligent drift: Automatically identifies measurement targets (AC/DC voltage, resistance, continuity) without manual mode changes.
• Måletilstande: Mål AC/DC voltage, resistance, diode, continuity, capacitance, and frequency.
• Non-Contact Voltage (NCV): Registrerer AC voltage uden fysisk kontakt.
• Null/Live Wire Detection: Distinguishes between null and live wires with varying alarm frequencies.
• Ægte RMS: Giver nøjagtige aflæsninger for ikke-sinusformede bølgeformer.
• Sikkerhedsstandard: Complies with CE CAT II 600V.
• Bekvemmelighed: Automatic power-off after 15 minutes of inactivity, low battery indicator, built-in flashlight, portable pen clip, and velvet pouch.

4. Hvad er der i æsken

• 1 x Neoteck 2 in 1 Pen Type Digital Multimeter
• 2 x 1.5V AAA-batterier (inkluderet)
• 1 x Test Lead
• 1 x fløjlspose

5. Opsætning

5.1 Batteriinstallation

1. Find batteridækslet på bagsiden af ​​multimeteret.
2. Use a small screwdriver to open the battery compartment.
3. Isæt to 1.5V AAA-batterier, og sørg for at polerne vender korrekt (+/-).
4. Luk batterirummets dæksel og fastgør det med skruen.

5.2 Tilslutning af testledninger

1. For multimeter functions requiring a second lead, insert the black test lead into the 'COM' (Common) jack.
2. The red test lead is integrated into the pen tip.

6. Betjeningsvejledning

The multimeter features an intelligent automatic mode that identifies most common measurements. For specific functions, manual selection may be required.

6.1 Tænd/sluk og valg af tilstand

• Tryk på SEL button to power on the device. It will typically start in automatic mode.
• Tryk kort på SEL button to cycle through manual modes (e.g., Diode, Capacitance, Frequency).
• Tryk længe på SEL knappen for at slukke for enheden.
• Enheden slukkes automatisk efter 15 minutters inaktivitet for at spare på batteriet.

6.2 AC/DC Voltage Måling

1. Ensure the device is in automatic mode or select the appropriate voltage -tilstand.
2. Connect the test lead to the circuit points where voltage needs to be measured.
3. LCD'et viser voltage læsning.

6.3 Modstandsmåling

1. Sørg for, at kredsløbet er spændingsløst, før du måler modstanden.
2. Connect the test lead across the component to be measured.
3. The LCD will display the resistance value.

6.4 Diode and Continuity Measurement

1. Sørg for, at kredsløbet er spændingsløst.
2. Select Diode or Continuity mode using the SEL knap.
3. For continuity, touch the test leads to the ends of the circuit. A beep indicates continuity.
4. For diode, connect the leads across the diode. The forward voltage drop vil blive vist.

6.5 Capacitance and Frequency Measurement

1. Ensure the capacitor is fully discharged before measuring capacitance.
2. Select Capacitance or Frequency mode using the SEL knap.
3. Tilslut testledningerne til komponenten.
4. The LCD will display the capacitance or frequency value.

6.6 Non-Contact Voltage (NCV) Function

1. Tryk kort på NCV/LIVE button to activate NCV mode.
2. Move the pen tip close to the conductor. The device will beep and flash red when AC voltage er opdaget.

6.7 Null/Live Wire Detection

1. Tryk kort på NCV/LIVE button to switch between NCV and LIVE modes.
2. In LIVE mode, touch the pen tip to the wire.
3. For a live wire, the screen displays "-H", with red flashing and a quick beep sound.
4. For a null wire, the screen displays "LIVE" without any beeps or flashes.

6.8 Indbygget lommelygte

• Tryk længe på HOLD/LYS button to turn the flashlight on or off.

6.9 Dataholdefunktion

• Tryk kort på HOLD/LYS knappen for at fryse den aktuelle aflæsning på displayet. Tryk igen for at slippe.

6.10 Breaking Point Test

This function helps identify breaks in a live wire.

1. Activate the NCV function.
2. Move the pen tip along the insulated wire.
3. The device will indicate voltage up to the break point and stop indicating past it.

7. Vedligeholdelse

7.1 Rengøring

• Tør enheden af ​​med en tør, blød klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.

7.2 Udskiftning af batteri

• When the low battery indicator appears on the display, replace the batteries as described in the Setup section.

7.3 Opbevaring

• Store the multimeter in a cool, dry place, away from direct sunlight and extreme temperatures.
• Hvis produktet opbevares i længere tid, skal batterierne fjernes for at forhindre lækage.

8. Fejlfinding

• Ingen skærm/strøm: Kontroller batteriinstallationen, og sørg for, at batterierne ikke er afladede.
• Upræcise læsninger: Ensure test leads are properly connected and not damaged. Verify the correct measurement mode is selected. Replace batteries if low.
• NCV Not Responding: Ensure NCV mode is activated. The function may be affected by external interference or shielded wires.

9. Specifikationer

10. Garanti og support

Neoteck products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Neoteck webwebsted. Gem din købsbevis til garantikrav.
