BOTSLAB HK30 Bil Dash Cam Brugermanual

1. Introduktion

Thank you for choosing the BOTSLAB HK30 Car Dash Cam. This manual provides detailed instructions for the installation, operation, and maintenance of your new dash camera system. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.

2. Sikkerhedsoplysninger

• Do not operate the dash cam or access its settings while driving. Always pull over safely before making any adjustments.
• Sørg for, at dashcam'et er sikkert monteret og ikke blokerer førerens view eller forstyrre airbaggens udløsning.
• Use only the original power adapter and cables provided with the device. Using unauthorized accessories may damage the product and void the warranty.
• Avoid exposing the dash cam to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.
• Forsøg ikke selv at adskille eller reparere enheden. Kontakt kundesupport for at få hjælp.
• Regularly format the memory card to ensure optimal recording performance.

3. Pakkens indhold

Tjek venligst pakken for følgende varer:

• BOTSLAB HK30 Dash Cam Unit
• Biloplader (strømkabel)
• Mounting Bracket (with adhesive pad)
• Brugermanual
• Optional: Rear Camera (if purchased as a bundle)
• Optional: GPS Module

4. Produktet er slutview

The BOTSLAB HK30 is a multi-channel dash cam designed to provide comprehensive coverage of your driving environment. It features a main front camera with 4K resolution, and supports additional cameras for rear and interior views (sold separately or as part of a bundle).

Image: The main BOTSLAB HK30 dash cam unit, showing the front lens and the Botslab branding.

Nøglefunktioner omfatter:

• 4K Front Camera: Captures high-resolution video of the road ahead.
• 140° bred Viewvinkel: Provides extensive coverage, minimizing blind spots.
• Farve Night Vision: Enhances visibility and clarity in low-light conditions.
• Indbygget GPS: Records speed and location data for your journeys.
• G-sensor: Låser automatisk video files upon impact to prevent overwriting.
• Loop-optagelse: Continuously records by overwriting the oldest files når hukommelseskortet er fuldt.
• Parkeringsovervågning: Offers 24-hour surveillance with time-lapse recording and collision-triggered normal recording (requires buck line kit, sold separately).
• App kontrol: Connects to your smartphone for easy settings adjustment, live view, and video download.

Billede: En illustration, der viser den 140-graders bredde viewing angle of the dash cam, showing its ability to capture a broad perspective of the road.

5. Opsætning og installation

5.1 Indsættelse af hukommelseskort

Before first use, insert a high-speed (Class 10 or higher) microSD card (up to 256GB recommended) into the dash cam's memory card slot. Ensure the card is inserted correctly until it clicks into place. Format the card via the dash cam's settings menu or the mobile app before initial recording.

5.2 Montering af dashcam'et

1. Clean the windshield area where you intend to mount the dash cam. Ensure it is free of dust and grease.
2. Attach the adhesive pad to the mounting bracket, then firmly press the bracket onto the chosen spot on your windshield, ideally behind the rearview spejl for optimal view og minimal obstruktion.
3. Slide the dash cam unit onto the mounted bracket until it locks securely.
4. Adjust the camera lens angle to ensure it captures the road ahead clearly, with approximately 60% road and 40% sky visible.

5.3 Strømtilslutning

1. Connect the provided car charger cable to the dash cam's power input port.
2. Sæt den anden ende af bilopladeren i bilens 12V-stikkontakt (cigarettænder).
3. Route the power cable neatly along the edge of the windshield and dashboard to conceal it and prevent interference with driving.

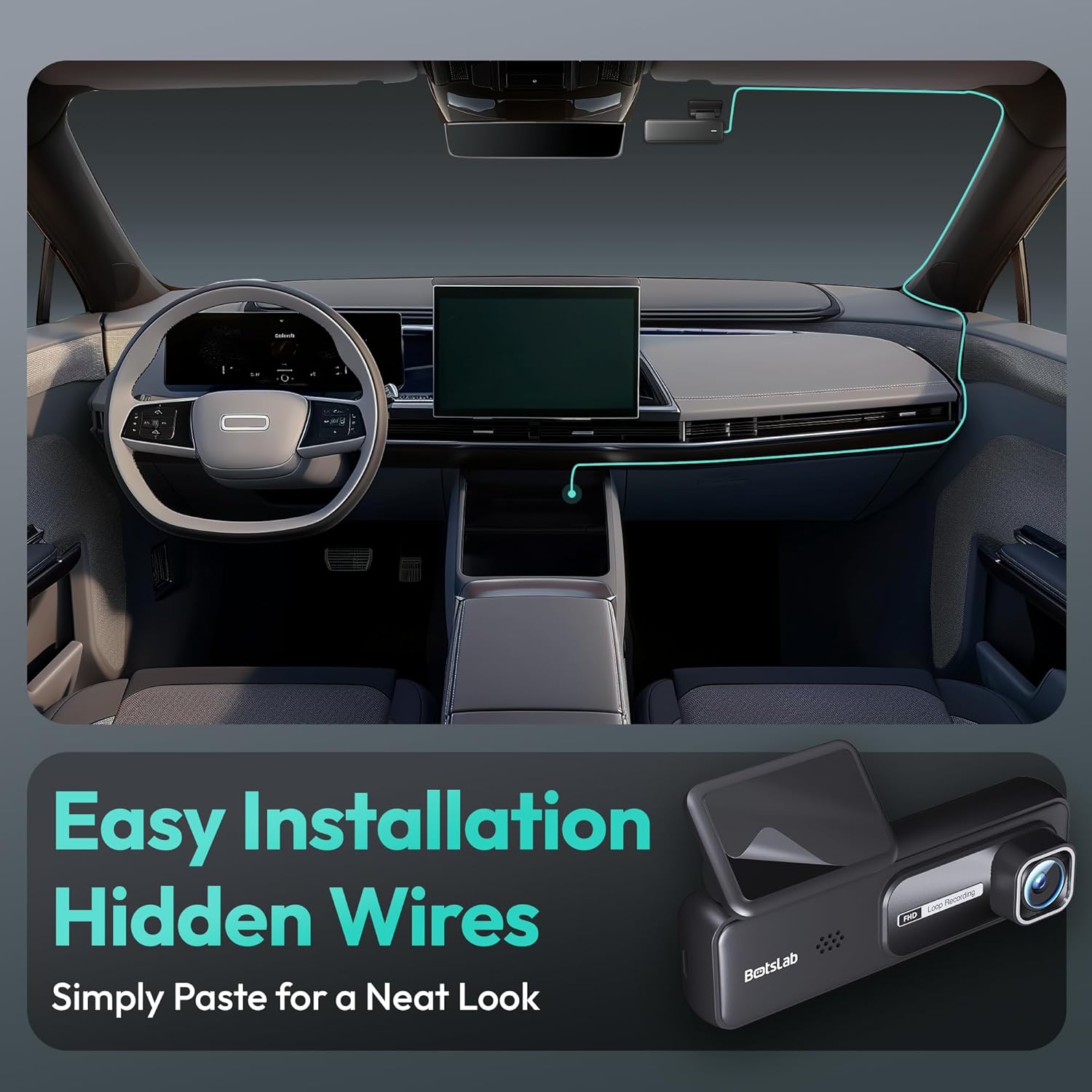

Image: A visual guide illustrating the process of easy dash cam installation with hidden wires, showing how to route the cable neatly along the car's interior for a clean look.

5.4 GPS Module Connection (if applicable)

If your package includes a separate GPS module, connect it to the designated port on the dash cam. Ensure the GPS module is placed in an area with a clear view af himlen for optimal signalmodtagelse.

6. Betjeningsvejledning

6.1 Automatisk optagelse

Once powered on and connected to your vehicle's ignition, the dash cam will automatically start recording when the engine is started. It will stop recording and power off shortly after the engine is turned off.

Image: A visual representation highlighting the crisp and clear recording capabilities of the dash cam, indicating 2K resolution for detailed footage.

6.2 Loop-optagelse

The dash cam records video in continuous loops (e.g., 1, 3, or 5-minute segments). When the memory card is full, the oldest unlocked files vil automatisk blive overskrevet af nye optagelser. Dette sikrer kontinuerlig optagelse uden manuel indgriben.

6.3 G-sensor (optagelse i nødstilfælde)

The built-in G-Sensor detects sudden impacts or collisions. When an impact is detected, the current video segment will be automatically locked and saved to a protected folder on the memory card, preventing it from being overwritten by loop recording. These files are crucial for accident evidence.

6.4 Parkeringsovervågning

For 24-hour parking surveillance, a hardwire kit (buck line) is required (sold separately). Once installed, the dash cam can utilize:

• Time-lapse-optagelse: Records continuously at a low frame rate to save storage space while providing a full overview of parking events.
• Collision-Triggered Recording: If an impact is detected while parked, the dash cam will wake up and record a short video segment, which will be locked.

Image: An illustration depicting the 24/7 parking monitoring feature, highlighting time-lapse recording and collision-triggered normal recording capabilities, with a shield icon indicating protection.

6.5 App Control and Connectivity

Download the official BOTSLAB app from your smartphone's app store. Connect your phone to the dash cam's Wi-Fi network (SSID and password usually found on the device or in the manual). Through the app, you can:

• View live videofeed.
• Adjust dash cam settings (resolution, G-sensor sensitivity, loop recording duration, etc.).
• Afspil optagede videoer.
• Download video filedirekte til din telefon.
• Opdater firmware.

6.6 GPS Tracking and Playback

With the GPS module connected, the dash cam records your vehicle's speed and location data. This information can be viewed during video playback using the dedicated PC viewer software (available for download from the BOTSLAB website) or within the mobile app, often overlaid on a map (e.g., Google Maps).

7. Vedligeholdelse

7.1 Rengøring af enheden

Use a soft, dry cloth to clean the dash cam's lens and body. Do not use liquid cleaners or abrasive materials, as they may damage the device.

7.2 Administration af hukommelseskort

It is recommended to format the microSD card once a month to maintain optimal performance and prevent data corruption. Back up any important files før formatering.

7.3 firmwareopdateringer

Periodically check the BOTSLAB official website or the mobile app for available firmware updates. Firmware updates can improve performance, add new features, or fix bugs. Follow the instructions provided with the firmware update carefully.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

BOTSLAB products come with a limited warranty. Please refer to the warranty card included in your package or visit the official BOTSLAB website for detailed warranty terms and conditions. For technical support, troubleshooting assistance, or any inquiries, please contact BOTSLAB customer service through the contact information provided on their official website or within the mobile application.

Webwebsted: www.botslab.com (Eksample link, please refer to actual product documentation for correct URL)
