Brugervejledning til pecron E3600LFP bærbar kraftstation

1. Introduktion

The pecron E3600LFP Portable Power Station is a high-capacity, versatile power solution designed for various applications, including RVs, camping, CPAP machines, and emergency backup. This manual provides essential information for the safe and efficient operation of your power station and its extended battery units.

Image: The pecron E3600LFP main unit stacked with four EP3000-48V extended batteries, showcasing its expandable design.

2. Sikkerhedsoplysninger

Læs og forstå alle sikkerhedsinstruktioner, før du bruger enheden. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

• Enheden må ikke skilles ad, repareres eller modificeres.
• Hold enheden væk fra ild, vand og ekstreme temperaturer.
• Sørg for korrekt ventilation under brug for at forhindre overophedning.
• Brug kun originalt eller certificeret tilbehør.
• Opbevares utilgængeligt for børn.

3. Pakkens indhold

Bekræft at alle varer er inkluderet i din pakke:

• Pecron E3600LFP bærbar kraftstation (1 enhed)
• EP3000-48V Extension Battery (4 units)
• 15A AC-ladekabel (1 enhed)
• 30A AC-ladekabel (1 enhed)
• Enkeltports XT60 til MC4 solcelleopladningskabel (1 enhed)
• Parallelt dobbeltports XT60 til MC4 solcelleopladningskabel (1 enhed)
• Bilopladningskabel (1 enhed)
• Ligekærvskruetrækker (1 enhed)
• Tilbehørstaske (1 enhed)
• Brugervejledning (1 enhed)

4. Produktet er slutview

4.1. Nøglefunktioner

• Høj kapacitet: 3072Wh capacity, expandable up to 15360Wh with EP3000-48V extended batteries.
• Kraftig output: Pure sine wave 3600W (Rated) / 7200W (Peak) AC output.
• Flere outputmuligheder: 16 output ports including 4x AC, 1x TT30-R, 4x USB-A, 2x 100W USB-C, 1x XT60-F, 1x Cigar Port, 1x DC5525.
• Hurtig opladning: Fully charges in 1.3 hours via 3200W AC input or 1.5 hours via 8x300W solar panels.
• Sikkerhed og holdbarhed: Built-in Battery Management System (BMS) for protection against short circuits, overload, and overheating. LiFePO4 battery with 3500+ charge cycles to 80% capacity.
• Smart kontrol: Wi-Fi and Bluetooth connectivity for app control and monitoring.
• UPS funktion: Uninterruptible Power Supply with 8-20ms fast switching.

4.2. Porte og grænseflader

The E3600LFP offers a comprehensive array of input and output ports to meet diverse power needs.

Image: The main control panel of the E3600LFP, highlighting its 16 output options.

• AC-udgang: 4x 100V-120V 3600W (Rated) pure sine wave outlets.
• TT30-R Output: 1x 30A outlet for RVs.
• USB-A-output: 4x USB-A ports (18W each).
• USB-C udgang: 2x 100W USB-C ports.
• XT60-F Output: 1x XT60-F port (12V-30A).
• Cigarport: 1x 12V Cigar Port (12V-10A).
• DC5525 udgang: 1x DC5525 port (12V-5A).
• Trådløs oplader: 2x wireless charging pads on top.
• DC-indgang: 1x 12-30V (150W Max) input, 2x 32-150V (1200W Max each) XT60 inputs for solar charging.
• AC-indgang: 1x 100-120Vac 30A Max input for fast wall charging.
• Udvidelsesporte: 2x ports for connecting EP3000-48V extended batteries.

5. Opsætning

5.1. Første opladning

Before first use, fully charge the power station. The E3600LFP supports multiple charging methods:

• AC vægudtag: Connect the provided AC charging cable to the AC input port and a wall outlet. The unit can charge at up to 3200W, achieving a full charge in approximately 1.3 hours.
• Solpaneler: Connect compatible solar panels to the DC input ports using the XT60 to MC4 solar charging cables. The unit supports up to 2400W solar input (1200W per XT60 port), allowing a full charge in about 1.5 hours with optimal sunlight.
• Biloplader: Brug bilopladekablet til at oplade fra bilens 12V-stikkontakt.

Image: Three charging methods for the E3600LFP: AC wall charging, solar panel charging, and car charging.

5.2. Connecting Extended Batteries

The E3600LFP can be expanded with up to four EP3000-48V extended batteries to increase total capacity. Use the provided connection cables to link the main unit with the extended batteries. Ensure the units are securely stacked or placed before connecting.

Image: Visual representation of the E3600LFP's expandable capacity with EP3000-48V batteries.

5.3. Parallel Connection for 240V Output

For 240V AC output, two E3600LFP units can be connected in series using a dual voltage hub (sold separately). This configuration allows for powering high-demand 240V appliances.

Image: Two E3600LFP units connected for 240V output, demonstrating increased power capability.

6. Betjening

6.1. Tænd/sluk

Press and hold the main power button to turn the unit on or off. Individual AC and DC output sections have their own power buttons.

6.2. Using Outputs

Connect your devices to the appropriate output ports. Ensure the total power draw does not exceed the unit's rated output of 3600W. The TT30-R port is specifically designed for RV shore power connections.

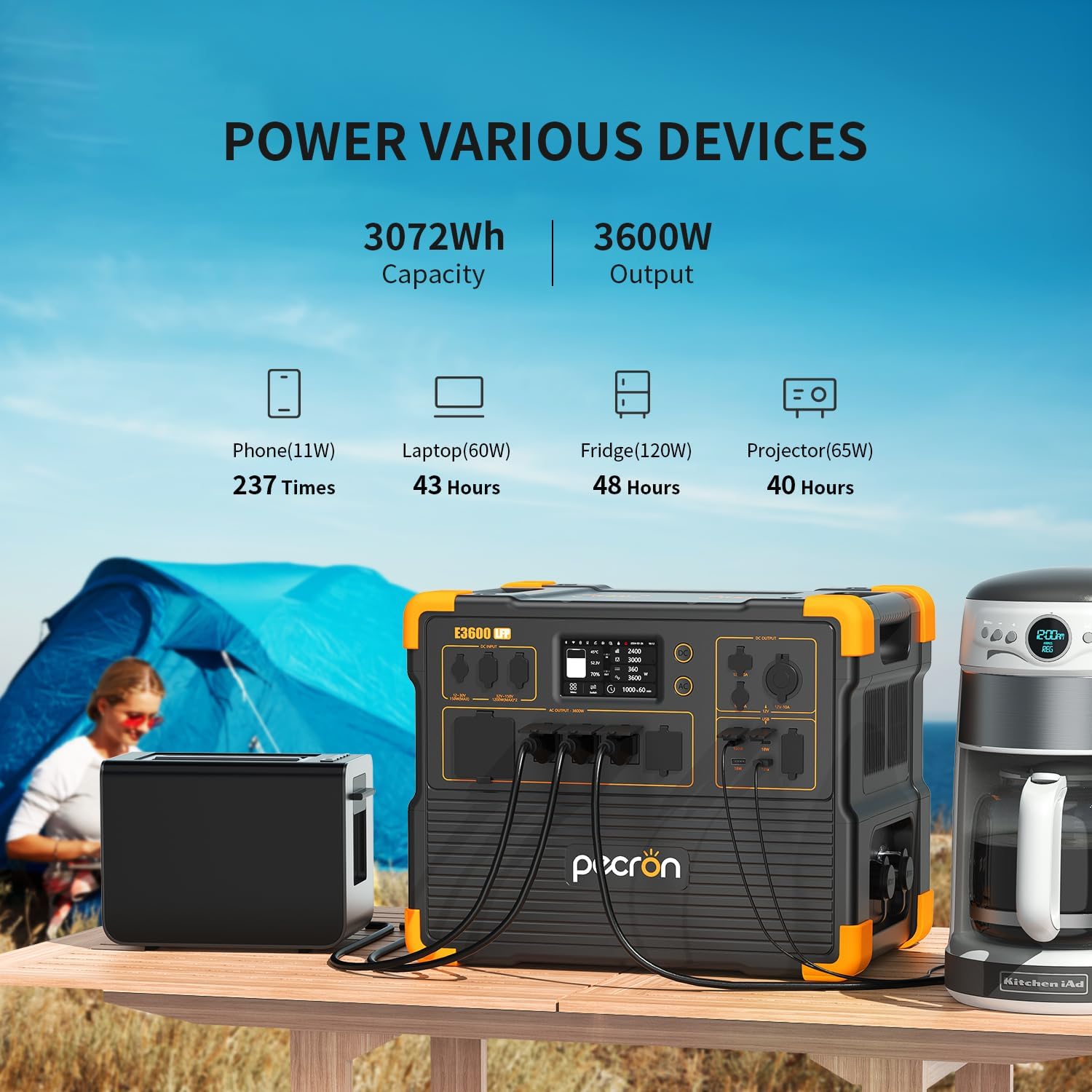

Image: The E3600LFP powering various devices, illustrating its versatility.

6.3. Monitoring via Display and App

The integrated IPS high-definition touchable display provides real-time information on battery status, input/output wattage, and operating temperatures. For advanced control and monitoring, download the pecron app (available on Google Play and App Store) and connect via Wi-Fi or Bluetooth.

Image: The pecron app provides smart control and monitoring capabilities for the power station.

6.4. UPS Functionality

The E3600LFP features an Uninterruptible Power Supply (UPS) function, providing fast switching within 8-20 milliseconds during a power outage. This ensures continuous power for critical devices.

7. Vedligeholdelse

7.1. Batteripleje

The E3600LFP uses LiFePO4 batteries, known for their longevity. To maximize battery lifespan, avoid prolonged storage at extremely low or high charge levels. It is recommended to fully charge the unit at least once every 3-6 months if not in regular use.

Image: The LiFePO4 battery technology ensures over 3500 complete charge cycles while retaining 80% of its original capacity.

7.2. Rengøring og opbevaring

Wipe the unit with a dry, soft cloth. Do not use abrasive cleaners or immerse the unit in water. Store in a cool, dry place away from direct sunlight and corrosive materials.

8. Fejlfinding

• Enheden tænder ikke: Sørg for, at batteriet er opladet. Hvis ikke, skal du tilslutte det til en strømkilde.
• Ingen output fra porte: Check if the specific AC/DC/USB output section is enabled via its button or the app. Verify device connection.
• Overbelastningsbeskyttelse: If an overload occurs, the unit may shut down. Disconnect some devices and restart the unit.
• Visningsproblemer: If the display is unresponsive or showing errors, try restarting the unit. Consult the app for detailed error codes.

9. Specifikationer

10. Garanti og support

The pecron E3600LFP comes with a 2+3 years worry-free warranty. For any inquiries or support, please contact pecron customer service, available 24 hours a day, 7 days a week.

For further assistance, visit the official pecron store: Pecron-butik på Amazon.
