Indledning
This instruction manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your Einhell TE-SP 330 Stationary Planer. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
The Einhell TE-SP 330 Stationary Planer, showcasing its compact design and robust construction, ready for operation.
Sikkerhedsinstruktioner
Always observe the following safety precautions when operating the Einhell TE-SP 330 Stationary Planer:
- Personligt beskyttelsesudstyr: Always wear safety glasses, hearing protection, and a dust mask when operating the planer. Avoid loose clothing or jewelry that could get caught in moving parts.
- Arbejdsområde: Ensure your work area is clean, well-lit, and free of clutter. Keep children and bystanders away from the machine during operation.
- Maskinens stabilitet: Securely mount the planer to a stable workbench or stand to prevent tipping or movement during use.
- Elektrisk sikkerhed: Ensure the power supply matches the machine's requirements. Do not operate the planer in damp or wet conditions. Always disconnect power before performing maintenance or adjustments.
- Materialehåndtering: Never plane material that contains nails, screws, or other foreign objects. Ensure the workpiece is free of knots or defects that could cause kickback.
- Klingesikkerhed: Keep hands and fingers away from the planer blades. Allow the machine to come to a complete stop before clearing any jams or performing adjustments.
- Støvsugning: Connect a suitable dust extraction system to the machine's dust port to minimize airborne dust and maintain a clean workspace.
Opsætning
Before initial operation, ensure the planer is properly set up.
Udpakning og inspektion
Carefully remove all components from the packaging. Verify that all parts listed in the "What's in the Box" section are present and undamaged. The package includes the Stationary Planer and a Dust Extraction Adapter.
Forsamling
- Sikker montering: Place the planer on a sturdy, level workbench. Use appropriate fasteners to secure the machine to prevent any movement during operation.
- Dust Extraction Adapter Installation: Attach the provided dust extraction adapter to the machine's dust port. Ensure a tight fit to prevent sawdust leakage.
- Strømtilslutning: Connect the planer to a suitable power outlet. Ensure the power switch is in the "OFF" position before plugging in.
En detaljeret view of the Ø 100 mm dust extraction port on the Einhell TE-SP 330, designed for connecting a dust collection system to maintain a clean workspace.
Betjeningsvejledning
Follow these steps for safe and effective operation of your planer.
Preparing the Workpiece
- Inspect the wood for foreign objects (nails, screws) and remove them.
- Ensure the workpiece dimensions are within the planer's capacity (max. 330 mm width, 153 mm height).
Justering af høvledybde
The planing depth can be precisely adjusted using the hand crank. The maximum material removal per pass is 3 mm.
- Turn the hand crank to raise or lower the planing head.
- Refer to the depth adjustment scale to set the desired material removal.
The hand crank used for precise height adjustment of the planing depth on the Einhell TE-SP 330 Stationary Planer.
En klar view of the depth adjustment scale, indicating planing depths in millimeters from 0 to 3.0 mm.
Høvledrift
- Ensure the dust extraction system is connected and active.
- Turn on the planer using the power switch. Allow the motor to reach full speed (10000 min-1).
- Carefully feed the workpiece into the planer's infeed table. The machine has a feed rate of 8.4 m/min.
- Guide the workpiece smoothly through the machine. Do not force the material.
- Collect the planed material from the outfeed table.
A user wearing safety glasses and a mask, guiding a wooden beam through the Einhell TE-SP 330 Stationary Planer in a workshop setting.

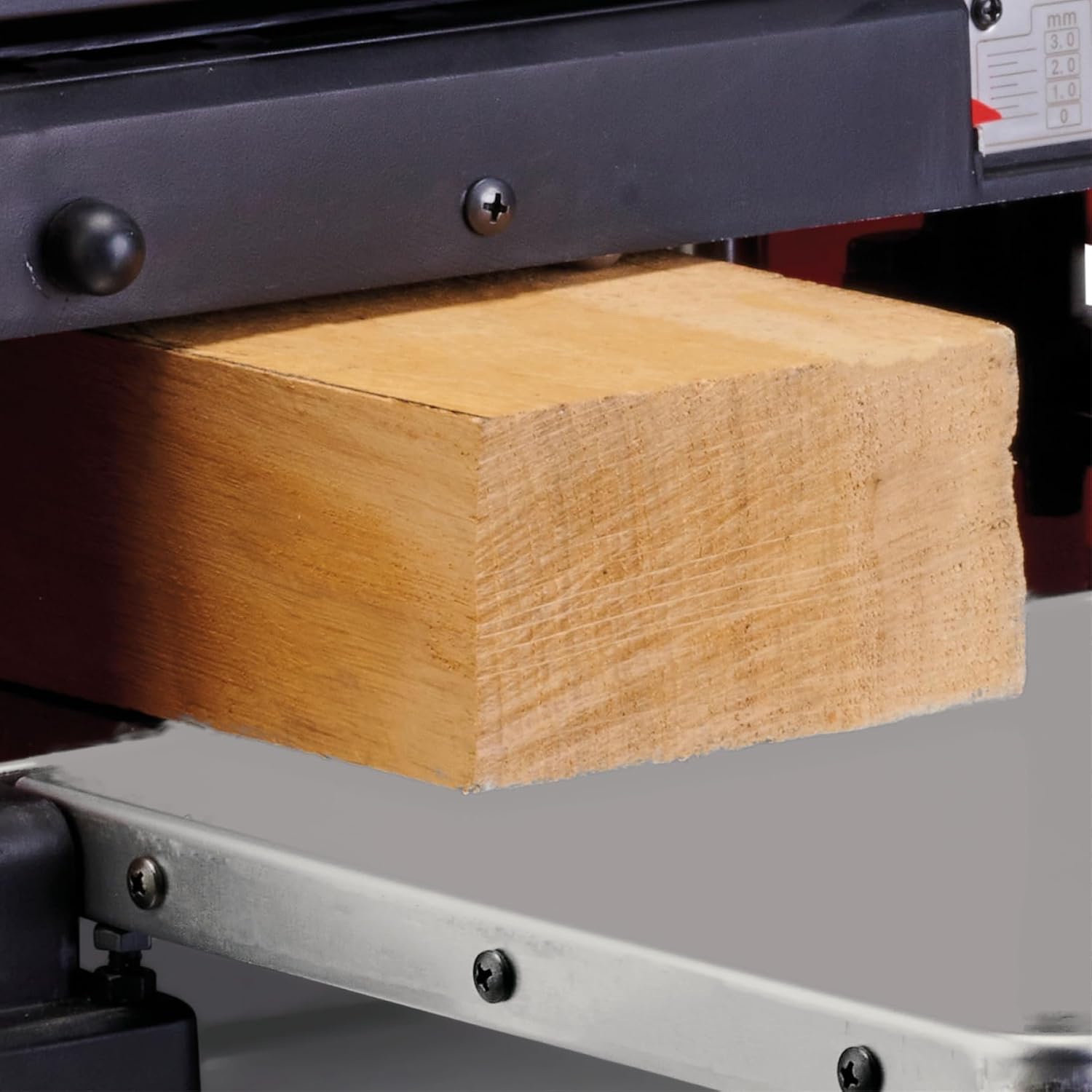

A piece of wood being planed, showing the smooth finish achieved by the Einhell TE-SP 330 Stationary Planer.
Opretholdelse
Regelmæssig vedligeholdelse sikrer din høvls levetid og optimale ydeevne.
Rensning
- Afbryd altid strømforsyningen før rengøring.
- Regularly clear sawdust and chips from the machine, especially around the blades and feed rollers. Use a brush or compressed air.
- Tør udvendige overflader af med adamp klæde. Brug ikke skrappe kemikalier.
Blade Replacement/Reversal
The Einhell TE-SP 330 uses two sharp, reversible planer blades. When one edge becomes dull, the blades can be reversed to use the second edge. Eventually, blades will need replacement.
- Disconnect the planer from the power supply.
- Access the blade drum according to the machine's design (refer to specific diagrams in the full manual if available).
- Løsn forsigtigt bladkl.enampskruer.
- Remove the dull blades. If reversing, flip them to the unused edge. If replacing, insert new blades.
- Ensure blades are correctly seated and tighten the clampskruer sikkert fast.
Close-up of two sharp, reversible planer blades, designed for precise and smooth wood planing.
Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Maskinen starter ikke. | Ingen strømforsyning; udløst afbryder; defekt afbryder. | Kontrollér strømtilslutningen; nulstil afbryderen; kontakt service, hvis afbryderen er defekt. |
| Rough or uneven surface after planing. | Dull or damaged blades; incorrect planing depth; material fed too fast. | Reverse or replace blades; reduce planing depth per pass; feed material at a consistent, slower rate. |
| Overdreven ophobning af savsmuld. | Dust extraction system not connected or clogged; dust port blocked. | Connect/check dust extraction system; clear any blockages in the dust port or hose. |
| Maskinen går i stå under drift. | Overload (too deep cut); dull blades; motor overheating. | Reduce planing depth; replace blades; allow motor to cool down. |
Specifikationer
Technical data for the Einhell TE-SP 330 Stationary Planer:
- Model: TE-SP 330
- Varenummer: 4419925
- Strømindgang: 1800 W
- Hastighed uden belastning: 10000 min-1
- Maks. Høvlebredde: 330 mm
- Max. Material Removal: 3 mm
- Max. Pass-Through Height: 153 mm
- Foder rate: 8.4 m/min
- Produktmål (L x B x H): 86 x 56.1 x 48.7 cm
- Produktvægt: 34.7 kg
- Dust Extraction Port Diameter: Ø 100 mm
- Blade: 2 Reversible Planer Blades
Garanti og support
For warranty information, technical support, or to order spare parts, please refer to the official Einhell webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.
Einhell Officiel Webwebsted: www.einhell.de
