Indledning
The Comica EJoy Uni Pro A is a revolutionary USB condenser microphone designed for versatile audio recording. It features an integrated wireless module, allowing for both wired and wireless operation, providing unparalleled flexibility for various scenarios such as podcasting, streaming, gaming, and music creation. With its 48kHz/24-bit recording capability, dynamic RGB lighting, and user-friendly controls, this microphone delivers professional studio-quality sound.
Figur 1: The Comica EJoy Uni Pro A microphone being used in various professional and creative settings, highlighting its versatility for podcasting, recording, music production, and gaming.
Pakkens indhold
Kontroller venligst pakkens indhold ved åbning for at sikre, at alle varer er til stede og i god stand.

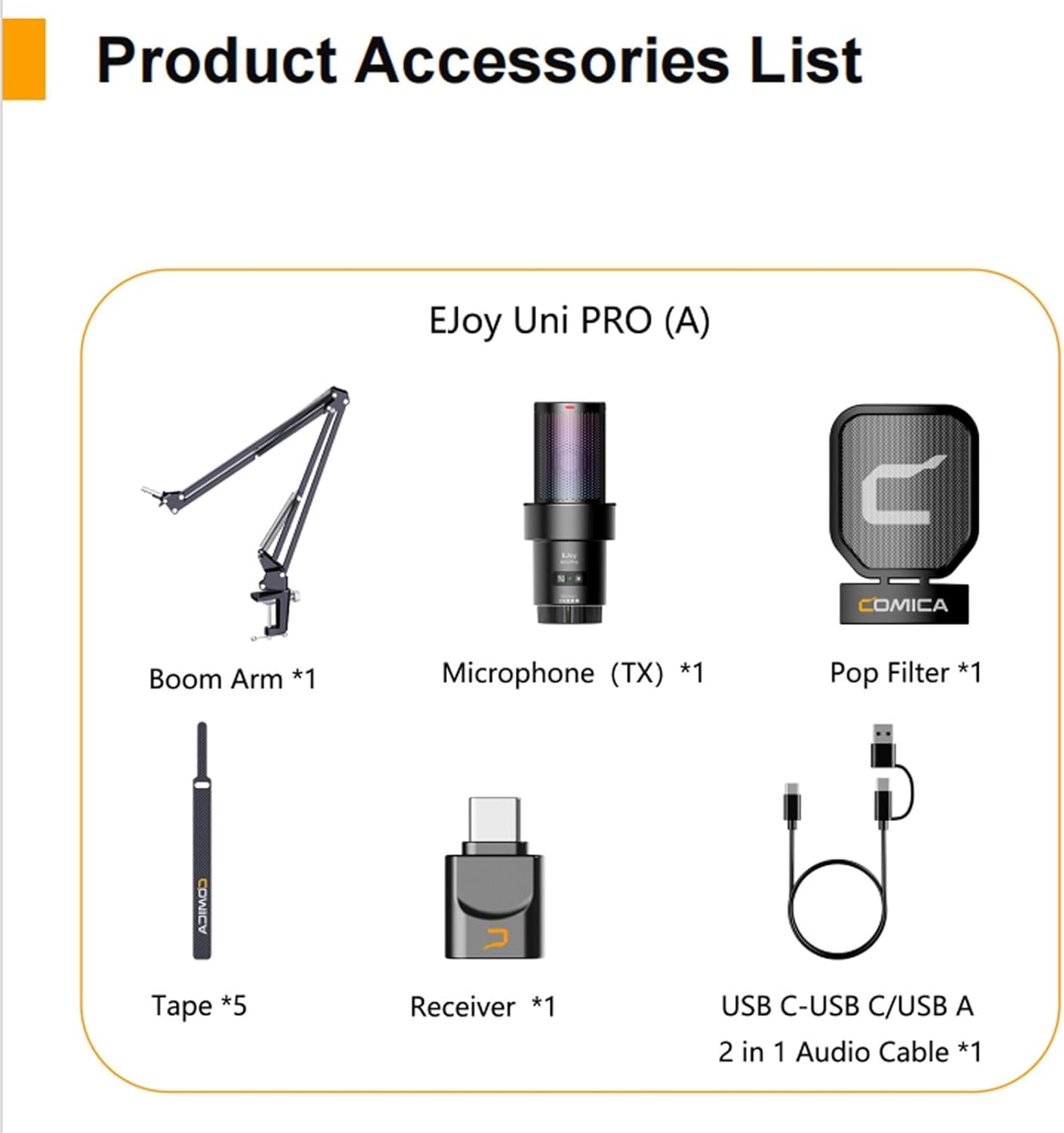

Figur 2: Visual representation of all components included in the Comica EJoy Uni Pro A package.
- 1 x USB Microphone (TX)
- 1 x modtager (RX)
- 1 x popfilter
- 5 x Velcro Fasteners (Tape)
- 1 x Bomarm
- 1 x USB-C to USB-C/USB-A 2-in-1 Audio Cable
- 1 x brugermanual
- 1 x garantikort
Produktegenskaber
- Integrated Wireless Module: Revolutionary studio microphone with a built-in RF wireless module, breaking traditional wired connection limitations.
- Dual Wired/Wireless Modes: Supports both wired and wireless connections for flexible usage. Wireless transmission distance up to 20 meters.
- Professionel lydkvalitet: 48kHz/24-bit high-resolution recording captures rich and detailed audio, restoring real timbre.
- Indbygget lydkort: Plug and Play functionality, compatible with various operating systems and applications without additional drivers.
- Omfattende kontrol: Supports gain control, real-time monitoring, one-key denoise, and one-key muting.
- Dynamisk RGB-belysning: Features 3 unique RGB effects (Breathing Light, Dynamic Gradient, Audio Dynamics) to customize your setup.
- Universal USB-C Output: Digital USB-C output for intact sound quality, widely compatible with smartphones and computers.
- Robust Accessories: Includes a unique shock-mount and a metal pop filter for improved audio clarity and stability.
- Justerbar bomarm: Stable and handy boom arm, adjustable to meet various usage requirements, supporting up to 1.5kg.
Figur 3: Illustration of the microphone's cardioid pickup pattern and its high-resolution 48kHz/24-bit recording capability, ensuring professional studio quality.
Figur 4: The microphone's dynamic RGB lighting in action, showcasing the three unique lighting effects that can be switched freely.
Figur 5: Details of the adjustable boom arm, capable of holding up to 1.5kg, and the integrated shock-mount with a metal pop filter designed to reduce vibrations and plosives.
Specifikationer
| Feature | Specifikation |
|---|---|
| Transmissionseffekt | +10 dBm |
| Modtagelse af følsomhed | -97 dBm |
| Antenne type | Keramisk antenne |
| Trådløs forsinkelse | <20 ms |
| Polar mønster | Kardioide (envejsbestemt) |
| Mikrofonfølsomhed | -35 dB ± 2 dB |
| Frekvensområde | 20 Hz ~ 20 kHz |
| Maksimal SPL | 105 dB (at 1% THD) |
| Signal/støjforhold | 72 dB SPL (A-weighted, according to IEC651) |
| Tilsvarende støj | 22 dB SPL (A-weighted, according to LEC651) |
| Dynamisk rækkevidde | 83 dB SPL (A-weighted, according to LEC651) |
| Sampling Rate | 48 kHz |
| Bit Depth (Recording) | 24 bits |
| Bit Depth (Headphone Monitoring) | 16 bits |
| Output Interface | USB-C |
| Overvågningshavn | 3.5 mm TRS / TRRS |
| Batteritype | 1000 mAh 3.7V Lithium Polymer |
| Standby Time (RGB Off) | 50 timer |
| Standby Time (RGB On) | 20 timer |
| Net Weight (Microphone Body) | 140 g |
| Net Weight (RX) | 2.6 g |
| Dimensions (Microphone Body) | 64.5 x 154.2 mm |
| Dimensions (RX) | 15.5 x 7.0 x 25.7 mm |
| Varens vægt (i alt) | 1.04 kilo |
| Impedans | 2.2 kiloohms |
| Hardware platform | Smartphone, Computer |
| Anbefalede anvendelser | Singing, Gaming, Streaming, Voice Recording, Video Recording |
Opsætningsvejledning
1. Assembling the Microphone and Boom Arm
- Attach the boom arm to a stable surface using its clamp.
- Securely mount the microphone onto the boom arm. Ensure the shock-mount is properly installed around the microphone body.
- Attach the metal pop filter to the boom arm, positioning it approximately 2-3 inches in front of the microphone.
2. Tilslutning af mikrofonen
The Comica EJoy Uni Pro A supports both wired and wireless connections.
Kablet forbindelse:
- Connect the USB-C end of the 2-in-1 audio cable to the microphone's USB-C port.
- Connect the other end (USB-C or USB-A, depending on your device) to your computer or smartphone.
- The microphone is plug-and-play and should be recognized automatically by your device.
Trådløs forbindelse:
- Insert the wireless receiver (RX) into the USB-C port of your computer or smartphone.
- Ensure the microphone (TX) is powered on. The microphone and receiver should automatically pair.
- The wireless connection provides flexibility for movement up to 20 meters.
Figur 6: Connection diagrams for both wired and wireless modes, showing how the microphone connects to different devices.
Figur 7: The microphone features a built-in sound card, enabling direct plug-and-play operation without the need for additional drivers.
Betjeningsvejledning
1. Tænd/sluk
- Press and hold the power button (often combined with the pairing button) to turn the microphone on or off.
2. Få kontrol
- Rotate the gain knob on the microphone body to adjust the input volume. Adjust as needed to prevent clipping or low audio levels.
3. Realtidsovervågning
- Plug your headphones into the 3.5mm monitoring port on the microphone to listen to your audio in real-time. This helps in adjusting levels and ensuring clear sound.
4. One-Key Denoise
- Press the denoise button to activate or deactivate the noise reduction feature. This helps to minimize background noise for clearer recordings.
5. One-Key Muting
- Press the mute button to instantly mute or unmute the microphone. An indicator light will typically show the mute status.
6. RGB-lyseffekter
- Cycle through the three dynamic RGB lighting effects (Breathing Light, Dynamic Gradient, Audio Dynamics) by pressing the dedicated RGB button.
Figur 8: Close-up of the microphone's control panel, illustrating the functions for gain adjustment, real-time monitoring, noise reduction, and muting.
Opretholdelse
- Rensning: Use a soft, dry cloth to clean the microphone body and boom arm. Do not use liquid cleaners or abrasive materials.
- Opbevaring: When not in use, store the microphone in a dry, dust-free environment.
- Håndtering: Undgå at tabe mikrofonen eller udsætte den for kraftige stød, da dette kan beskadige de interne komponenter.
- Popfilter: Periodically clean the pop filter to ensure optimal performance.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lydudgang | Microphone not powered on; Incorrect connection; Muted; Low gain; Incorrect input device selected on computer/smartphone. | Ensure microphone is powered on. Check wired/wireless connection. Unmute microphone. Increase gain. Select "Comica EJoy Uni Pro A" as the input device in your system settings. |
| Dårlig lydkvalitet / Forvrængning | Gain too high (clipping); Background noise; Pop filter not positioned correctly. | Reduce gain. Activate one-key denoise. Ensure pop filter is correctly placed and clean. Record in a quieter environment. |
| Trådløs forbindelse ustabil | Too far from receiver; Interference; Low battery. | Move closer to the receiver (within 20m). Avoid strong electromagnetic interference. Charge the microphone battery. |
| RGB-lys virker ikke | RGB feature turned off; Malfunction. | Press the RGB button to cycle through effects. If still not working, contact support. |
Garanti og support
The Comica EJoy Uni Pro A microphone comes with a manufacturer's warranty. Please refer to the included Warranty Card for specific terms and conditions, including warranty period and coverage details.
For technical support, troubleshooting assistance, or warranty claims, please contact Comica customer service through their official webwebstedet eller kontaktoplysningerne på dit garantikort.
Fabrikant: tegneserie
Oprindelsesland: Kina
