Indledning
The Vive Ultra Lightweight Wheelchair is designed to provide a portable and convenient mobility solution for adults. Its lightweight yet durable construction makes it ideal for travel and easy storage. This manual provides essential information for the safe and effective use, setup, and maintenance of your wheelchair.
Figure 1: The Vive Ultra Lightweight Wheelchair, showcasing its blue seat and black frame.
Opsætning
The Vive Ultra Lightweight Wheelchair features a pre-assembled frame for hassle-free setup. It arrives largely assembled and requires minimal effort to prepare for use.
- Udfoldning af kørestolen:
Place the folded wheelchair on a flat, stable surface. Gently pull the armrests outwards to begin unfolding the frame. Continue to pull until the seat fabric is taut and the frame is fully extended and locked into place. Ensure all locking mechanisms are engaged before use.
Figure 2: Demonstrates the portable folding design, showing a person unfolding the wheelchair from a vehicle's trunk.
- Attaching/Adjusting Footrests:
The wheelchair comes with adjustable footrests. To adjust the height, locate the adjustment pins on the footrest hangers. Press the pins and slide the footrest up or down to the desired height. Ensure the pins securely lock into the adjustment holes. The footrests are designed to accommodate various user heights for optimal comfort and support.
Betjeningsvejledning
This section details the proper operation of your Vive Ultra Lightweight Wheelchair.
User Operation (Self-Propelled)
- Fremdrift: Grasp the handrims on the large rear wheels and push forward to move. Use both hands for straight movement, or one hand for turning.
- Manual Brakes: The wheelchair is equipped with manual brakes located near the large rear wheels. Push the brake levers forward to engage the brakes and lock the wheels. Pull them back to release. Always engage the brakes when transferring in or out of the wheelchair, or when stationary.
Figure 3: Illustrates the safe braking system, showing both manual brakes for the user and caregiver brakes on the handles.
Caregiver Operation (Transport Chair)
- Push Handles: The wheelchair features ergonomic push handles for caregiver comfort and control.
- Caregiver Brakes: Brakes are also located on the push handles for convenient control by the caregiver. Squeeze the levers to slow down or stop. Push the levers down to lock the brakes for parking.
- Sikkerhedsfunktioner: Always ensure the user is secured with the safety seatbelt and leg strap provided. The leg strap helps keep the user's feet securely on the footrests during transport.
Figure 4: Shows the wheelchair in use, emphasizing its stable and safe design with a user secured by the seatbelt and leg strap.
Opretholdelse
Regular maintenance ensures the longevity and safe operation of your wheelchair.
- Rensning: Clean the frame and fabric components regularly with a damp klud og mild sæbe. Undgå slibende rengøringsmidler.
- Hjulinspektion: Periodically check the wheels for wear and tear. Ensure tires are properly inflated if applicable (this model has solid tires, so inflation is not relevant, but general wheel integrity is).
- Bremsekontrol: Test the manual and caregiver brakes regularly to ensure they engage and disengage properly.
- Fastgørelseskontrol: Inspect all bolts, screws, and fasteners to ensure they are tight. Tighten any loose components as needed.
Fejlfinding
Dette afsnit omhandler almindelige problemer, du kan støde på med din kørestol.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Wheelchair does not unfold or lock securely. | Frame not fully extended or locking mechanisms not engaged. | Ensure the armrests are pulled outwards completely until the seat fabric is taut and the frame clicks into place. Check all locking pins/levers for full engagement. |
| Backrest appears loose or collapses. | Backrest release lever not fully engaged or damaged. | Inspect the backrest release levers located on the back of the frame, near the top of the backrest. Ensure they are fully pushed down to lock the backrest in the upright position. If a lever feels loose or does not engage, inspect for damage or contact customer support. |
| Brakes are not holding or are difficult to engage. | Brake cable tension is incorrect or brake pads are worn. | Check the brake cable tension. If too loose, the brakes may not engage properly. If too tight, they may be difficult to engage. Adjustment may be required by a qualified technician. Inspect brake pads for wear and replace if necessary. |
| Footrests are not stable or difficult to adjust. | Adjustment pins not fully engaged or debris in the adjustment holes. | Ensure the adjustment pins snap securely into place. Clear any debris from the adjustment holes. If the issue persists, inspect for damage to the footrest or frame. |
Specifikationer
| Feature | Detalje |
|---|---|
| Produktdimensioner | 38 cm D x 26 cm B x 40 cm H (udfoldet) |
| Varens vægt | 28 pund |
| Vægt kapacitet | Op til 240 pund |
| Sædemål | 18" W x 15.5" Deep |
| Hjulstørrelse | 22" Rear Wheels |
| Rammemateriale | Høj kvalitet aluminium |
| Farve | Black (with blue accents) |

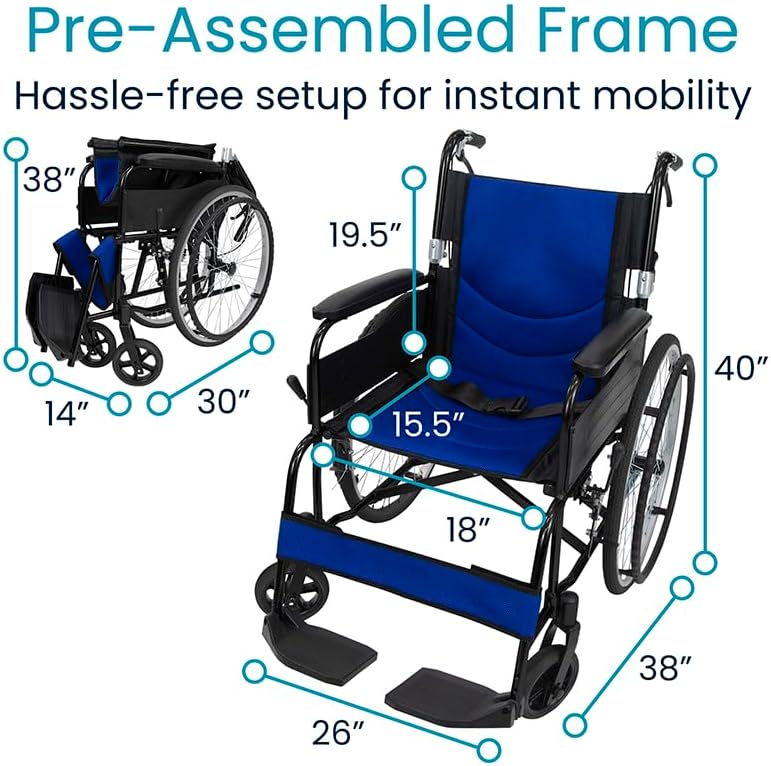

Figure 5: Detailed dimensions of the wheelchair in both its unfolded and folded states.
Garanti og support
The Vive Ultra Lightweight Wheelchair comes with a Vive 1-års garanti. This product is also eligible for purchase with Health Savings Account (HSA) or Flexible Spending Account (FSA) funds.
For any questions, concerns, or warranty claims, please contact Vive Mobility customer support. Refer to the product packaging or the Vive Mobility official webhjemmeside for de seneste kontaktoplysninger.
Figure 6: Vive Health 1-Year Limited Guarantee information.
