Indledning
This manual provides instructions for the assembly, operation, maintenance, and troubleshooting of your VECELO Mesh Office Chair, Model B. Please read this manual thoroughly before assembly and use to ensure proper function and safety.
Sikkerhedsoplysninger
- Sørg for, at alle komponenter er til stede og ubeskadigede før montering. Må ikke anvendes, hvis der mangler eller er beskadigede dele.
- Saml stolen på en blød, ren overflade for at forhindre ridser.
- Stå ikke på stolen.
- Overskrid ikke den maksimale statiske belastningskapacitet på 130 kg (286 lbs).
- Hold børn væk fra bevægelige dele under justering.
- Regularly check all screws and bolts for tightness. Retighten as necessary.
Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- Office Chair x 1 (disassembled components)
- Assembly Kit x 1 (includes tools and fasteners)
- Brugsanvisning x 1
Monteringsvejledning
Follow these steps for chair assembly. A Japanese instruction manual is included for detailed guidance.
Figure 1: Chair Dimensions. This diagram illustrates the overall dimensions of the VECELO Mesh Office Chair, Model B, including width, depth, and adjustable height range.
- Udpak komponenter: Carefully remove all parts from the packaging and lay them out on a soft, flat surface.
- Fastgør hjul til basen: Insert the casters into the holes at the end of each leg of the chair base. Apply firm pressure until they click into place.
- Installer gaslift: Placer gasløftecylinderen i det midterste hul på stolebasen.
- Fastgør mekanismen til sædet: Fastgør sædemekanismen til undersiden af sædehynden med de medfølgende skruer. Sørg for, at mekanismens forside flugter med sædets forside.
- Tilslut sæde til gaslift: Placer forsigtigt det samlede sæde på gasløftecylinderen.
- Fastgør ryglæn: Secure the backrest to the seat mechanism using the remaining screws.
- Fastgør armlæn: Fasten the armrests to the seat and backrest as indicated in the manual.

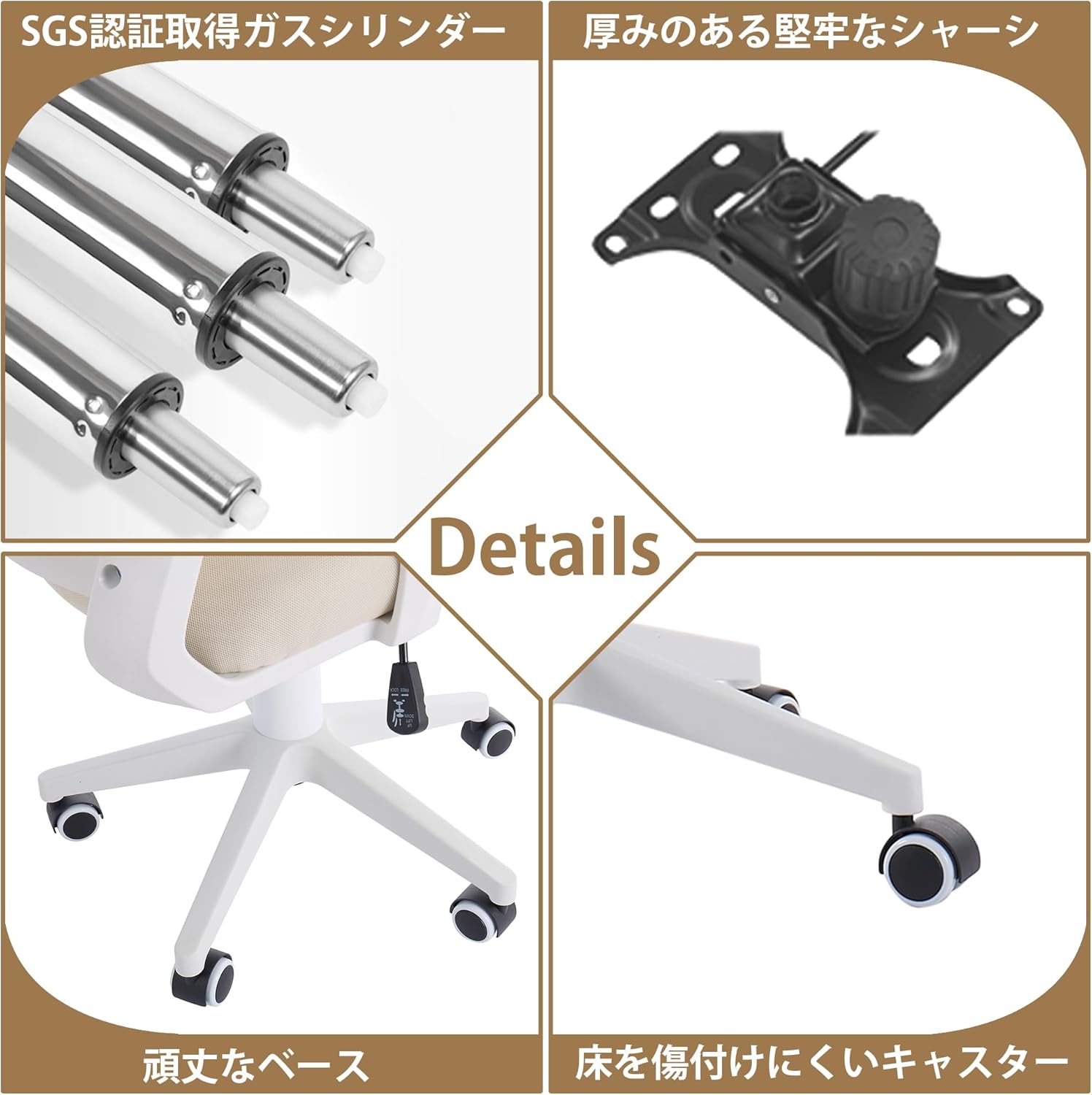

Figure 2: Component Details. This image highlights key components such as the SGS certified gas lift, the robust chassis, the sturdy five-star base, and the casters designed to protect flooring.
Betjeningsvejledning
Højdejustering
To adjust the chair height, pull the lever located under the seat upwards while seated. Release the lever at the desired height. To lower the chair, pull the lever upwards while applying weight to the seat. To raise the chair, pull the lever upwards while standing.
Lændestøtte
Figure 3: Ergonomic Backrest. The S-shaped backrest is designed to conform to the natural curve of the spine, providing support to the lower back and promoting correct posture.
The chair features an S-shaped backrest designed to provide ergonomic lumbar support, reducing strain on the lower back during prolonged sitting.
Armrest Functionality
Figure 4: Flip-up Armrests. The armrests can be flipped up by 90 degrees, allowing the chair to be pushed closer to a desk or stored compactly to maximize space utilization.
The armrests can be flipped up by 90 degrees. This feature allows the chair to be pushed under a desk for space-saving storage when not in use.
Drejelig funktion
The chair is equipped with a 360-degree swivel function, allowing for easy rotation and movement.
Opretholdelse
- Rensning: Wipe the mesh and seat cushion with a damp klud og mildt rengøringsmiddel. Undgå skrappe kemikalier eller slibende rengøringsmidler.
- Inspektion: Periodically check all bolts and screws to ensure they are tight. Retighten if any looseness is detected.
- Hjulpleje: Hold hjulene fri for hår og snavs for at sikre en jævn bevægelse.
- Opbevaring: Store the chair in a dry environment away from direct sunlight and extreme temperatures.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Stolen vakler eller føles ustabil. | Løse skruer eller ujævn montering. | Kontrollér og spænd alle monteringsskruer. Sørg for, at stolen står på en plan overflade. |
| Højdejusteringen virker ikke. | Fejl i gasløft eller blokering af håndtag. | Ensure the lever is fully engaged. Check for any obstructions around the gas lift mechanism. If the issue persists, contact customer support. |
| Hjulene ruller ikke jævnt. | Affald sidder fast i hjulene. | Fjern hår, støv eller snavs fra hjulene. |
Specifikationer
| Mærke | VECELO |
| Model | Model B |
| Farve | Beige B |
| Materiale | Alloy Steel, Mesh Fabric |
| Produktmål (B x D x H) | 56 cm x 56 cm x 91-99 cm (justerbar) |
| Sædehøjdeområde | 32 cm - 40 cm |
| Produktets vægt | 8.3 kg (ca. 9 kg angivet i specifikationerne) |
| Statisk belastningskapacitet | 130 kg (286 lbs) |
| Montering påkrævet | Ja |
| Gasliftcertificering | SGS certificeret |
Garanti og support
VECELO offers a 1-year free parts exchange og en 30 dages returret from the date of purchase. If you encounter any initial defects, including missing or damaged parts, please contact our customer service team immediately for assistance.
For support, please refer to the contact information provided with your purchase documentation or visit the official VECELO webwebsted.
